RudiUsoy RV Roof Window 700x500mm User Manual

1. Introduction

This manual provides essential information for the proper use, installation considerations, operation, and maintenance of your RudiUsoy RV Roof Window. Please read this manual thoroughly before attempting any installation or operation to ensure safe and efficient use of the product.

2. Product Overview

The RudiUsoy RV Roof Window is designed for caravans, trailers, motorhomes, and other modified vehicles. It features a robust construction and integrated functionalities for enhanced comfort.

Key Features:

• High-quality aluminum alloy top frame and ABS inner frame.
• Integrated LED lighting for interior illumination.
• Double-layer hollow acrylic cover for insulation.
• Easy operation with lift springs for opening and closing.
• Equipped with an integrated insect net and sunshade for comfort and privacy.
• Designed for simple installation (professional installation recommended).

Figure 2.1: RudiUsoy RV Roof Window in open position. This image displays the clear acrylic dome, the robust frame, and the lift mechanisms that allow the window to open upwards.

Figure 2.2: Detailed view of the RV Roof Window, highlighting the opening mechanism, latches, and sealing components for secure closure.

3. Specifications

The following table outlines the key specifications for the RudiUsoy RV Roof Window (700x500mm model).

Figure 3.1: Detailed specifications including dimensions and weight. For the 700x500mm model, the ordering size and cut hole size are 700x500mm, overall size is 774x574mm, cut hole corner radius is 4-R70, and net weight is 6.74 kg.

4. Installation Considerations

Important: An installation manual is not included with this product. Professional installation is highly recommended to ensure proper fitment, sealing, and functionality. Incorrect installation can lead to leaks, damage, or malfunction.

Key Considerations Before Installation:

• Cut Hole Size: The ordering size (700x500mm) refers to the required cut hole size in your vehicle's roof. Do not use the overall size for cutting.
• Corner Radius: The cut hole must have an arc-shaped corner radius of R70. Avoid right-angle cuts without this radius, as it can affect fitment and sealing.
• Wall Thickness: Ensure you select the correct fitting thickness for your vehicle's wall when ordering. The bolts are adjustable to accommodate varying wall thicknesses.
• Sealing: Proper sealing around the cut hole is crucial to prevent water ingress. Use appropriate sealants recommended for RV applications.
• Electrical Connection: The integrated LED light requires an electrical connection. Ensure wiring is done safely and according to vehicle electrical standards.

Figure 4.1: Fitting diagram illustrating the required cut hole dimensions (W x H), the 4-R70 corner radius, and the adjustable bolts for varying wall thicknesses. The maximum opening angle is approximately 70 degrees.

5. Operating Instructions

5.1 Opening and Closing the Window

The roof window is equipped with lift springs for smooth operation. To open, release the internal latches and gently push the window upwards. The lift springs will assist in holding it open. To close, pull the window down until the latches engage securely.

Figure 5.1: Close-up view of the internal latch and handle used to open and secure the roof window.

5.2 Using the LED Light

The inner frame of the roof window includes integrated LED lights. These are typically controlled by a switch located on the inner frame or connected to your vehicle's interior lighting circuit. Consult your installer or vehicle's electrical diagram for specific switch location and operation.

Figure 5.2: Interior view of the roof window, highlighting the LED light strips embedded within the inner frame, providing ambient illumination.

5.3 Deploying the Insect Net and Sunshade

The inner frame features a sliding insect net and a sliding sunshade. To deploy either, gently slide the respective screen across the opening. Ensure they are fully extended and secured to cover the entire window area when in use. To retract, slide them back into their housing.

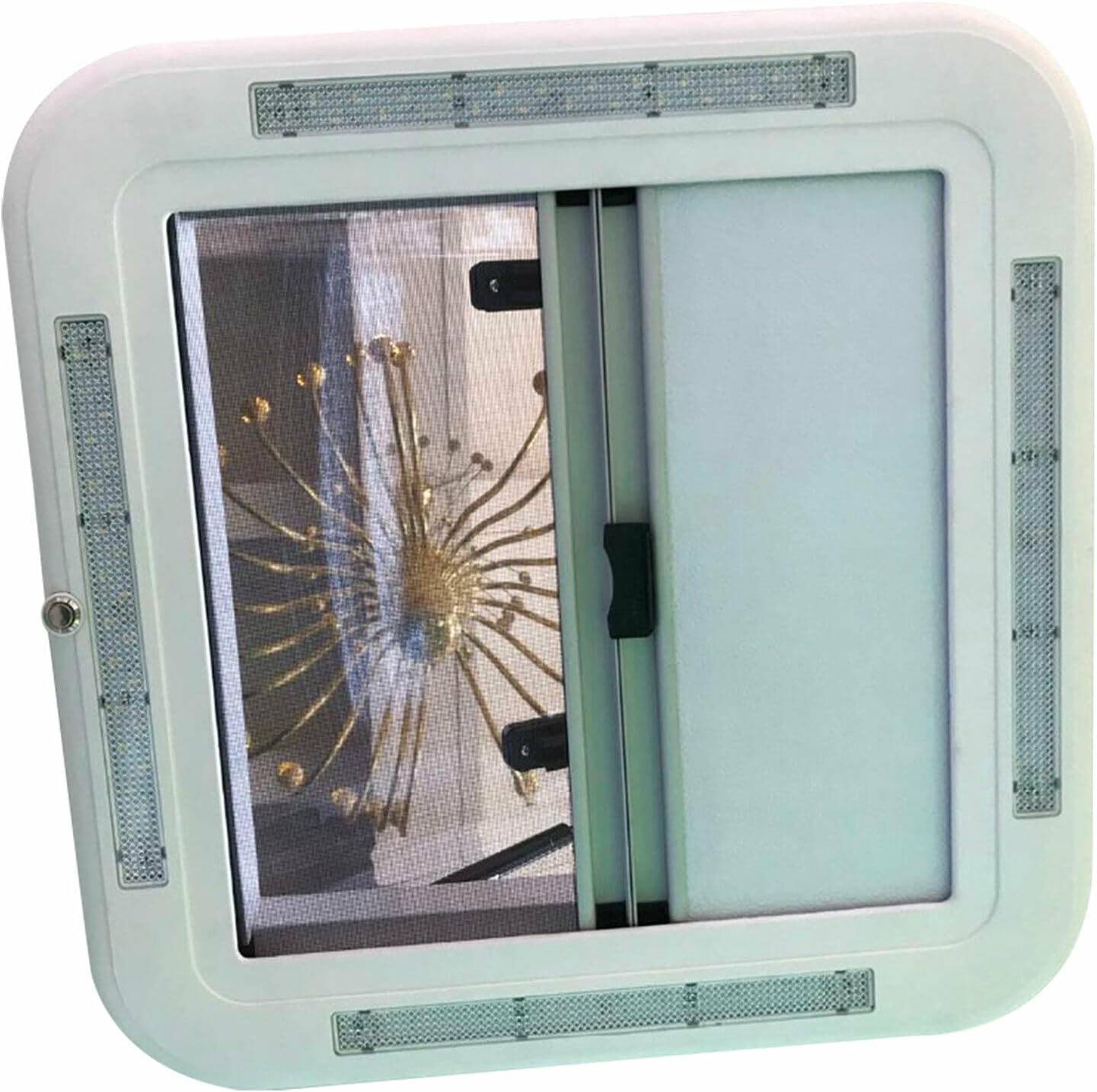

Figure 5.3: Interior view showing the insect net fully deployed, providing ventilation while keeping insects out.

Figure 5.4: Interior view showing the sunshade fully deployed, blocking sunlight and providing privacy.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your RV roof window.

• Cleaning the Acrylic Cover: Clean the acrylic cover with a soft cloth and mild, non-abrasive cleaning solution specifically designed for acrylic or plastic. Avoid harsh chemicals or abrasive materials that can scratch the surface.
• Cleaning the Frame: Wipe down the aluminum alloy and ABS frames with a damp cloth.
• Seals Inspection: Periodically inspect the rubber seals around the window for cracks, tears, or signs of wear. Damaged seals should be replaced promptly to prevent leaks.
• Moving Parts: Check the lift springs and hinges for smooth operation. Lubricate with a silicone-based spray if they become stiff.
• Insect Net and Sunshade: Gently clean the insect net and sunshade with a soft brush or vacuum cleaner to remove dust and debris.

7. Troubleshooting

This section addresses common issues you might encounter with your RV roof window.

• Window does not open or close smoothly:
  • Check for obstructions around the frame or hinges.
  • Inspect lift springs for damage or misalignment.
  • Apply silicone lubricant to hinges and moving parts.
• Water leaks around the window:
  • This is often due to improper installation or damaged seals.
  • Inspect the external seals for cracks or gaps.
  • Ensure the window is fully closed and latched.
  • If leaks persist, professional inspection and re-sealing may be required.
• LED lights are not working:
  • Check the power switch for the LED lights.
  • Verify the electrical connection to the vehicle's power supply.
  • Inspect wiring for any disconnections or damage (professional assistance recommended for electrical issues).
• Insect net or sunshade does not slide properly:
  • Check for debris in the tracks.
  • Ensure the screens are not bent or damaged.
  • Gently clean the tracks and screens.

8. Warranty and Support

RudiUsoy products are backed by a free lifetime warranty and a replacement parts policy. For any questions, concerns, or support needs regarding your RV Roof Window, please contact RudiUsoy customer service. They aim to reply to inquiries within 24 hours.

Please refer to your purchase documentation or the RudiUsoy official website for specific contact details.
