Introduction
This manual provides detailed instructions for the assembly, use, and maintenance of your KOTEK Set of 4 Dining Chairs. These chairs feature a DSW molded shell plastic seat with a mesh design and solid wood legs, offering a mid-century modern aesthetic suitable for various rooms. Please read this manual thoroughly before assembly and use to ensure proper function and longevity of your chairs.
Safety Information
Before assembly and use, please read all safety warnings and guidelines:
- Maximum Weight Capacity: Each chair has a maximum weight capacity of 331 lbs (150 kg). Do not exceed this limit to prevent damage or injury.
- Floor Protection: The chairs are equipped with non-slip foot pads designed to prevent scratches on floors. Ensure these pads are always in place and in good condition.
- Secure Assembly: Ensure all connections are securely tightened during assembly. Periodically check all screws for tightness and re-tighten if necessary.
- Child Safety: The chairs feature rounded corners for enhanced safety. However, always supervise children around furniture.
- Intended Use: These chairs are designed for indoor use only, suitable for carpet or hard floor surfaces.
Package Contents
Please verify that all components are present and undamaged before beginning assembly. If any parts are missing or damaged, contact customer support.
- 4 x Dining Chair Seats (Molded Shell)
- 4 x Leg Frames (Beech Wood with Metal Cross Tubes)
- 1 x Hardware Pack (Includes screws, washers, and Allen wrench)
- 1 x Assembly Instruction Sheet
Assembly Instructions
Follow these steps carefully to assemble your KOTEK Dining Chairs. It is recommended to assemble on a soft, clean surface to prevent damage to the chair components or your floor.
- Unpack Components: Carefully remove all parts from the packaging. Lay them out and identify each component against the parts list provided in the included instruction sheet.
- Attach Leg Frame to Seat: Align the leg frame with the pre-drilled holes on the underside of the chair seat. Ensure the frame is oriented correctly.
Image: Underside view of the chair, highlighting the metal cross frame and the attachment points for the beech wood legs. This structure ensures stability.
- Secure with Screws: Insert the provided screws and washers through the leg frame and into the seat. Hand-tighten all screws initially to ensure proper alignment before fully tightening.
- Tighten Connections: Once all screws are in place, use the included Allen wrench to fully tighten all screws. Ensure they are snug but do not overtighten, as this can damage the plastic seat or strip the threads.
Image: Detail of an anti-sliding leg pad attached to the bottom of a varnished beech wood leg. These pads protect floors from scratches.
- Check Stability: After assembly, gently rock the chair to ensure it is stable and all connections are secure. If any wobbling occurs, re-check screw tightness and adjust as needed.
Image: Four different rotational views (0, 45, 90, 180 degrees) of the assembled KOTEK dining chair, showcasing its complete form and design from all sides.
Operating Instructions (Usage and Placement)
Your KOTEK dining chairs are designed for versatile use in various indoor settings.
- Intended Use: These chairs are suitable for dining rooms, kitchens, living rooms, and other indoor areas where seating is required.
Image: A set of four black KOTEK dining chairs arranged around a white circular dining table, demonstrating their use in a dining area.
- Ergonomic Comfort: The ergonomic design with a curved backrest and mesh seat provides comfort and ventilation, even during extended periods of sitting.
Image: Two KOTEK dining chairs highlighting the mesh seat base for ventilation and heat dissipation, along with the ergonomic shape of the seat and backrest.
- Placement: Place chairs on a stable, level surface. The non-scratch foot pads protect your flooring.
Image: Two KOTEK dining chairs paired with a small white table, illustrating a typical indoor placement scenario.
Care and Maintenance
Proper care will extend the life and appearance of your KOTEK dining chairs.
- Cleaning: Wipe clean with a damp cloth. Avoid harsh chemicals, abrasive cleaners, or solvents, which can damage the polypropylene seat or wood legs.
- Dusting: Regularly dust the chairs with a soft, dry cloth to prevent buildup.
- Inspection: Periodically check all screws and connections to ensure they remain tight. Re-tighten if necessary to maintain stability and safety.
Troubleshooting
This section addresses common issues you might encounter with your dining chairs.
- Wobbling Chair: If a chair wobbles, first ensure it is placed on a level surface. Then, check that all screws connecting the legs to the seat are fully tightened. Loosen slightly, adjust the chair to a level position, and then re-tighten.
- Loose Screws: Over time, screws may loosen due to regular use. Periodically inspect and re-tighten all assembly screws using the provided Allen wrench. Avoid overtightening.
- Scratched Floors: Ensure the anti-sliding foot pads are intact and properly seated on the bottom of each leg. If pads are missing or damaged, they may need to be replaced to prevent floor scratches.
Specifications
Detailed specifications for the KOTEK Dining Chairs (Model PI-670-HW).
| Feature | Detail |
|---|---|
| Brand | KOTEK |
| Model Number | PI-670-HW |
| Color | Black |
| Material | Polypropylene (Seat), Beech Wood (Legs), Metal (Cross Tubes) |
| Product Dimensions (D x W x H) | 22'' x 18'' x 32.5'' (55D x 45.5W x 82H Centimetres) |
| Seat Height | 17'' (43.2 Centimetres) |
| Seat Size (W x D) | 18'' x 16'' (45.7W x 40.6D Centimetres) |
| Item Weight (per chair) | 7 lbs (3.18 kg) |
| Maximum Weight Capacity | 331 lbs (150 kg) |
| Special Features | Ergonomic, Lightweight, Mesh Design, Anti-Sliding Foot Pads |
| Assembly Required | Yes |

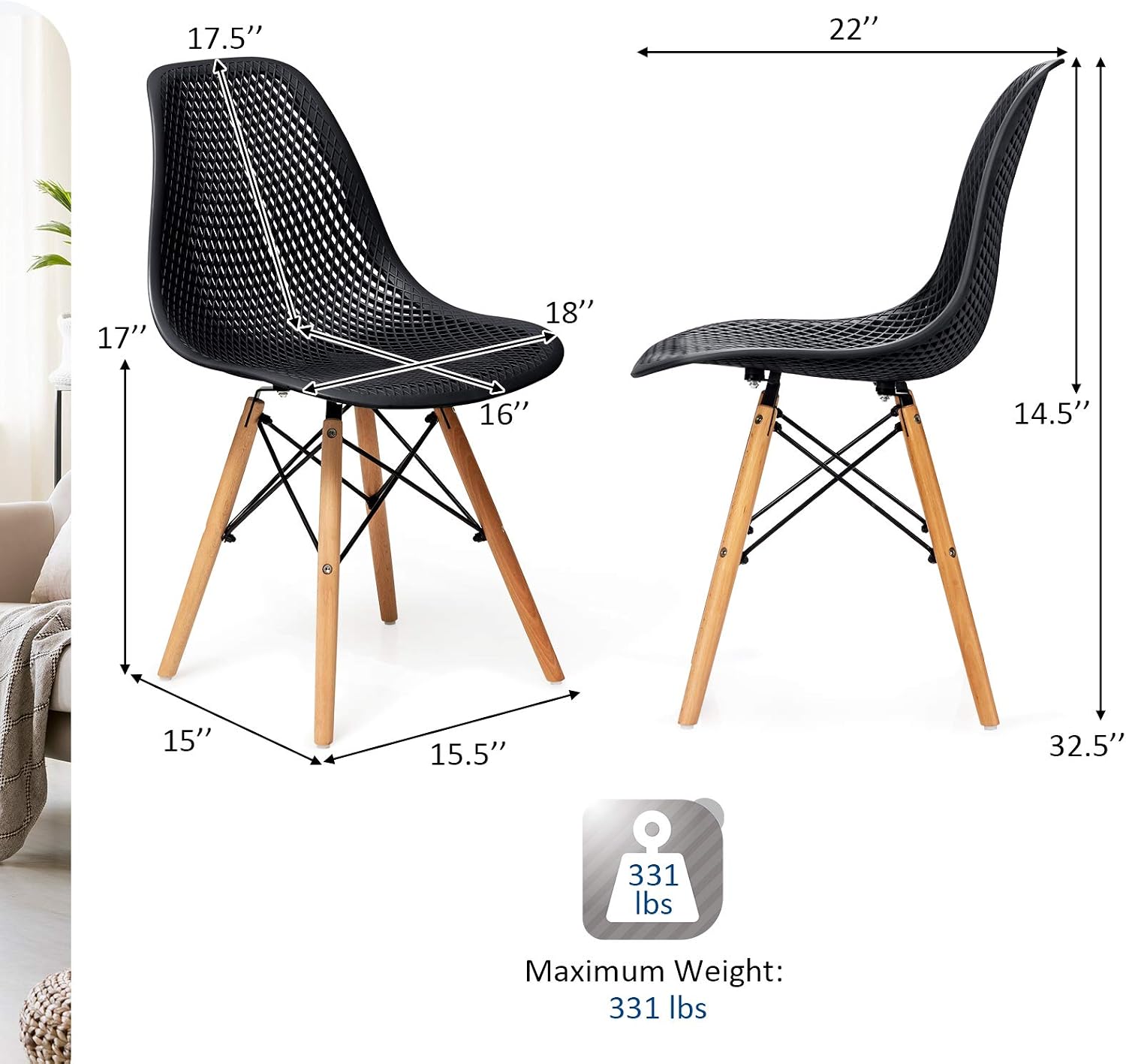

Image: A visual representation of the chair's dimensions, including height, width, depth, and seat measurements, along with an icon indicating the maximum weight capacity of 331 lbs.
Warranty and Support
KOTEK products are manufactured with quality in mind. For assistance with your product, please refer to the following information:
- Warranty Information: Specific warranty details may vary depending on your region and retailer. Please refer to your purchase documentation or contact KOTEK customer support for detailed warranty terms and conditions.
- Customer Support: For assistance with assembly, missing parts, troubleshooting, or any product-related inquiries, please contact KOTEK customer service. Contact information can typically be found on the product packaging or the retailer's website where the product was purchased.
Manufacturer Contact Information: Guelph, Ontario, Canada
