EVERGEAR 14 Inch 36W Dual Row and 3 Inch 20W LED Pod Lights Kit Instruction Manual

1. Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of your EVERGEAR 14 Inch 36W Dual Row and 3 Inch 20W LED Pod Lights Kit. This lighting system is designed to provide powerful and expansive illumination for various vehicles, including trucks, SUVs, UTVs, ATVs, tractors, and boats. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.

Figure 1: The EVERGEAR 14-inch LED light bar and two 3-inch LED pod lights kit.

This image displays the complete EVERGEAR lighting kit, including one 14-inch dual-row LED light bar and two 3-inch LED pod lights, ready for installation.

2. Product Overview and Features

The EVERGEAR LED Light Kit is engineered for durability and high performance in challenging environments. Key components and features include:

• 14-Inch Dual Row LED Light Bar: Provides broad and powerful illumination.
• 3-Inch LED Pod Lights (x2): Compact yet powerful, offering focused or supplementary lighting.
• Wiring Harness: Included for simplified installation.
• CREE Chips: Utilizes high-quality CREE LED chips for efficient and bright light output.
• IP67 Waterproof Rating: Ensures protection against dust and water immersion up to 2 meters for 30 minutes, suitable for adverse weather conditions.
• Durable Construction: Features a specially designed die-cast aluminum housing and back radiator for effective heat dissipation, extending the product's lifespan beyond 50,000 hours.
• Adjustable Mounting Brackets: Allows for flexible positioning and aiming of the lights.
• Wide Voltage Compatibility: Operates within a DC9-36V range, making it suitable for various vehicle electrical systems.

Figure 2: CREE LED Chip Technology.

This graphic highlights the integration of CREE LED chips, emphasizing their role in providing powerful, efficient, and versatile lighting solutions.

Figure 3: Beam Patterns and Distance.

This image illustrates the effective beam distance of 656 feet and the distinct 15-degree spot beam for focused light and 170-degree flood beams for broad area illumination.

Figure 4: Wider Field of View.

This image compares the illumination provided by a standard light versus the EVERGEAR super driving beam, demonstrating a wider field of view and greater light source gathering for larger illumination areas.

3. Setup and Installation

Proper installation is crucial for the performance and safety of your LED lights. It is recommended that installation be performed by a qualified professional if you are unfamiliar with vehicle electrical systems.

3.1 Components Check

Before beginning, ensure all components are present:

• 1 x 14-Inch LED Light Bar
• 2 x 3-Inch LED Pod Lights
• 1 x Wiring Harness
• 1 set of Installation Accessories (mounting brackets, screws, nuts)

3.2 Mounting

1. Identify a suitable mounting location on your vehicle (e.g., bumper, roof rack, grille). Ensure the location provides a stable surface and does not obstruct vehicle lights or sensors.
2. Use the provided adjustable mounting brackets to secure the light bar and pod lights. The brackets allow for flexible repositioning to achieve the desired beam angle.
3. Mark and drill pilot holes if necessary, then firmly attach the brackets using appropriate hardware.
4. Mount the light bar and pod lights onto the secured brackets. Adjust the angle as needed before tightening all fasteners.

3.3 Wiring Connection

1. Connect the light bar and pod lights to the included wiring harness. Ensure all connections are secure and properly insulated.
2. Route the wiring harness safely, away from moving parts, hot surfaces, and sharp edges. Use cable ties to secure the wiring.
3. Connect the wiring harness to your vehicle's power source (DC9-36V). Typically, this involves connecting to the battery with an inline fuse and a switch for control.
4. Ensure the ground wire is securely connected to a clean, unpainted metal surface on the vehicle chassis.
5. Test the lights to confirm they function correctly before finalizing all connections and tidying up the wiring.

4. Operating Instructions

Once installed, operating your EVERGEAR LED lights is straightforward:

• Ensure your vehicle's ignition is in the 'ON' position or the engine is running, depending on how the lights are wired.
• Activate the lights using the switch connected to the wiring harness.
• The lights are designed for off-road use or in situations where additional illumination is permitted and safe. Always comply with local regulations regarding auxiliary lighting.

5. Maintenance

Regular maintenance helps ensure the longevity and optimal performance of your EVERGEAR LED lights.

• Cleaning: Periodically clean the lenses with a soft cloth and mild soap and water to remove dirt, mud, or debris that may obstruct light output. Avoid abrasive cleaners.
• Inspection: Regularly check all mounting hardware for tightness. Vibrations from vehicle operation can loosen fasteners over time.
• Wiring: Inspect the wiring harness for any signs of wear, fraying, or damage. Ensure all connections remain secure and free from corrosion.
• Heat Dissipation: The aluminum housing is designed for efficient heat dissipation. Ensure that the back of the light bar and pod lights are not obstructed to allow for proper airflow.

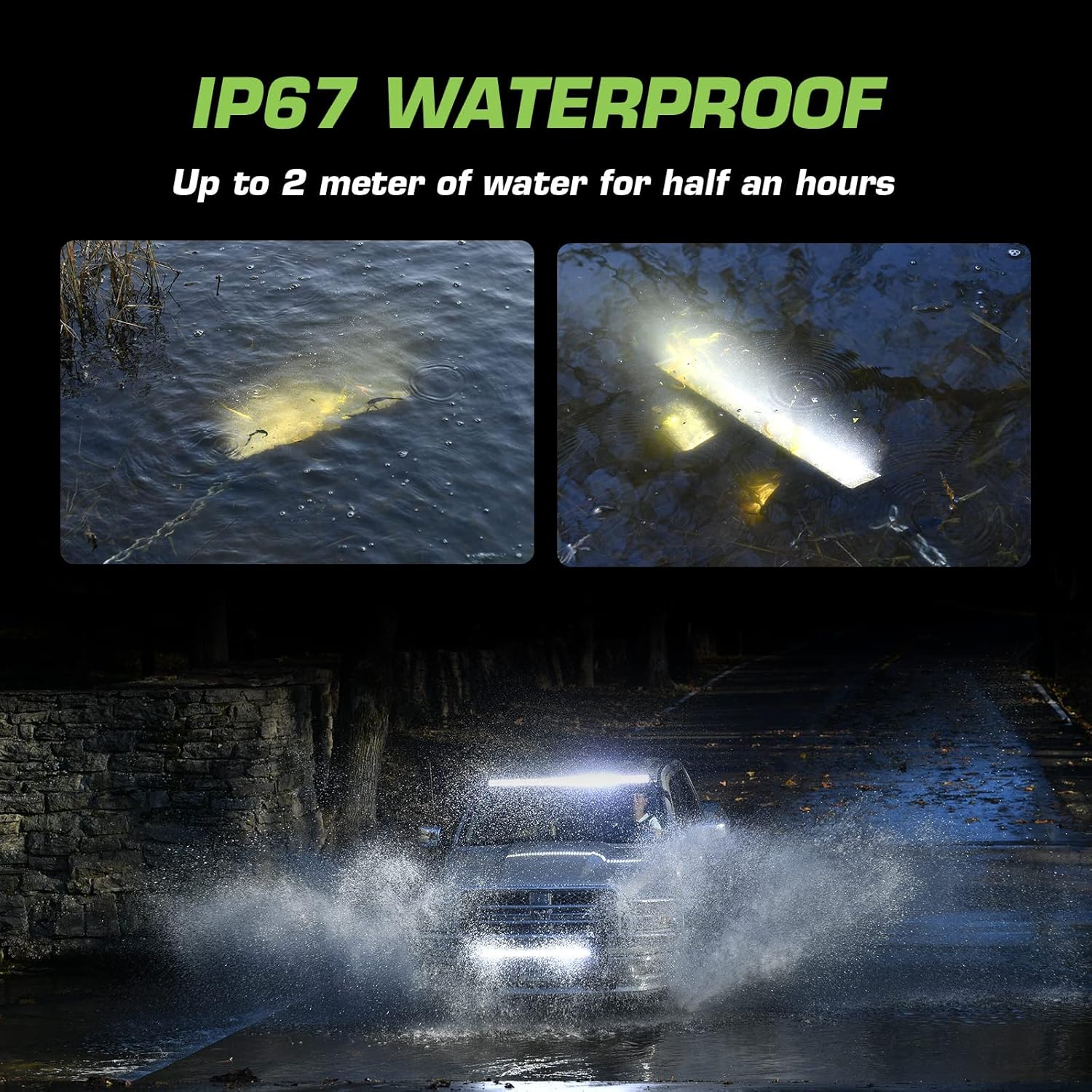

Figure 5: IP67 Waterproof Capability.

This image illustrates the IP67 waterproof capability of the EVERGEAR lights, showing them submerged in water and performing effectively on a vehicle driving through wet conditions. The rating ensures protection against water immersion up to 2 meters for 30 minutes.

Figure 6: Designed for Outdoor Use.

This image showcases the EVERGEAR LED lights mounted on off-road vehicles, highlighting their suitability for outdoor use and challenging terrains with unpredictable weather conditions.

6. Troubleshooting

If you encounter issues with your EVERGEAR LED lights, refer to the following common troubleshooting steps:

• Lights Not Turning On:
  • Check the power connection to the vehicle's battery.
  • Verify the inline fuse in the wiring harness. Replace if blown.
  • Ensure the ground connection is secure and free of corrosion.
  • Test the switch for proper operation.
• Lights Are Dim or Flickering:
  • Check for loose wiring connections or corrosion at terminals.
  • Ensure the vehicle's voltage is within the DC9-36V operating range.
  • Inspect for any damage to the wiring harness.
• Moisture Inside Lens:
  • While IP67 rated, extreme temperature changes can sometimes cause condensation. If persistent, check for cracks in the housing or seal damage.

If these steps do not resolve the issue, please contact EVERGEAR customer support for further assistance.

7. Specifications

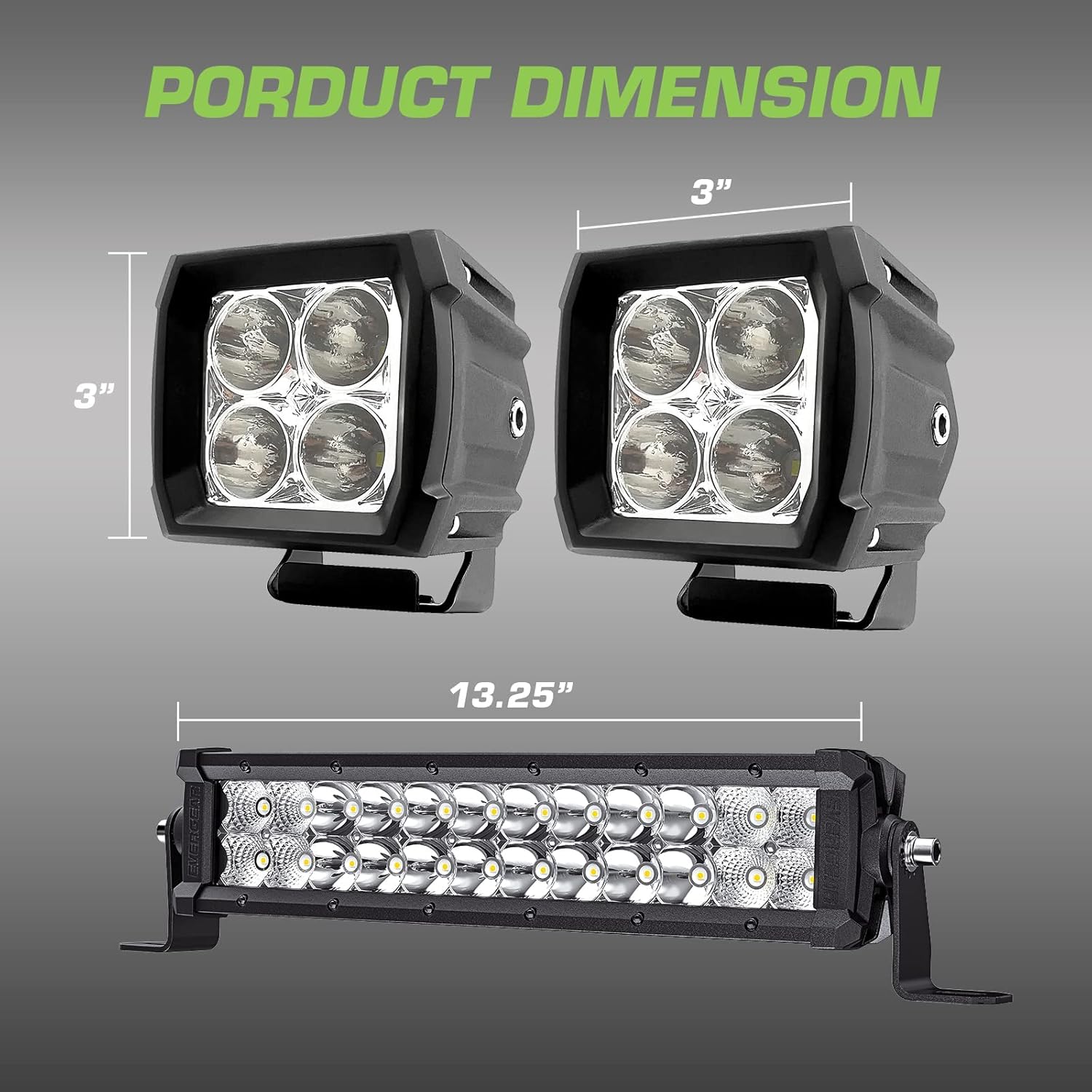

Figure 7: Product Dimensions.

This image provides the physical dimensions of the light bar (13.25 inches) and the pod lights (3x3 inches), aiding in installation planning.

8. Warranty and Support

For warranty information, technical support, or any inquiries regarding your EVERGEAR LED Light Kit, please contact the manufacturer directly through their official website or the retailer from whom the product was purchased. Please have your model number (902S) and purchase details available when contacting support.
