1. Introduction
The BRUTUS UP PRO by RTR BIKES is a professional-grade freestanding bicycle stand designed for secure and convenient storage of your bicycle. It offers high stability for bikes weighing up to 30 kg and is suitable for various bicycle types, including e-bikes, road bikes, and mountain bikes, with wheel sizes from 24 to 29 inches and tire widths up to 3.5 inches. Its versatile design allows for both horizontal and vertical bike storage, optimizing space in your garage, home, or bicycle shop.
Image 1.1: The BRUTUS UP PRO Freestanding Bicycle Stand, showcasing its robust design and a bicycle stored vertically.
This manual provides comprehensive instructions for the assembly, operation, and maintenance of your BRUTUS UP PRO stand, ensuring safe and efficient use.
Image 1.2: The BRUTUS UP PRO stand alongside its packaging, highlighting its European design and manufacturing.
2. Safety Instructions
Please read all safety instructions carefully before assembling or using the BRUTUS UP PRO stand. Failure to follow these instructions may result in injury or damage to the product or your bicycle.
- Maximum Load Capacity: Do not exceed the maximum load capacity of 30 kg (66 lbs).
- Stable Surface: Always place the stand on a flat, stable, and level surface to prevent tipping.
- Proper Assembly: Ensure all components are correctly assembled and all fasteners are securely tightened before placing a bicycle on the stand.
- Bike Placement: When placing or removing a bicycle, ensure it is balanced and stable to prevent it from falling.
- Children and Pets: Keep children and pets away from the stand, especially when a bicycle is mounted, to prevent accidents.
- Incompatibility: The stand is not compatible with bicycles equipped with certain types of mudguards that may interfere with proper seating. Refer to Image 2.1 for an example of an incompatible mudguard type.
Image 2.1: Illustration of a bicycle with a mudguard type that is incompatible with the BRUTUS UP PRO stand.
3. Package Contents
Before beginning assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, please contact RTR BIKES customer support.
- Main Base Frame (1)
- Vertical Support Arm (1)
- Front Wheel Holder (1)
- Rear Wheel Holder (1)
- Charger Holder (1)
- Caster Wheels with Brakes (4)
- Assembly Hardware (screws, nuts, washers)
- Assembly Tools (Allen keys)
- Instruction Manual (this document)
4. Assembly and Setup
Follow these steps to assemble your BRUTUS UP PRO bicycle stand. Assembly typically takes approximately 20 minutes.
- Attach Caster Wheels: Securely attach the four caster wheels to the designated points on the underside of the Main Base Frame using the provided hardware. Ensure the wheels with brakes are positioned for easy access.
- Install Vertical Support Arm: Connect the Vertical Support Arm to the Main Base Frame. Align the holes and fasten with the appropriate screws and nuts.
- Mount Wheel Holders: Attach the Front Wheel Holder and Rear Wheel Holder to the Main Base Frame. These are adjustable to accommodate different wheel sizes.
- Attach Charger Holder: Secure the Charger Holder to the Vertical Support Arm at a convenient height. This holder is designed to keep your e-bike charger organized and accessible.
- Final Tightening: Double-check all screws and connections to ensure they are tight and secure. The stand should feel stable and rigid.
Image 4.1: Detailed view of the caster wheels, charger holder, and adjustment points on the BRUTUS UP PRO stand.
For a visual guide to assembly and setup, please watch the official product video below:
Video 4.1: Official product video demonstrating the setup, features, and ease of use of the BRUTUS UP PRO stand. This video highlights the charger holder, wheel size adjustment, and mobility of the stand.
5. Operating Instructions
5.1. Placing a Bicycle (Vertical Position)
- Ensure the stand is on a stable surface and the caster wheel brakes are engaged if you do not intend to move it.
- Roll the front wheel of your bicycle into the Front Wheel Holder.
- Gently lift the rear of the bicycle, guiding the rear wheel into the Rear Wheel Holder. The bicycle should rest securely in an upright vertical position.
- Adjust the position of the wheel holders if necessary to ensure a snug fit for your specific wheel size (24-29 inches).

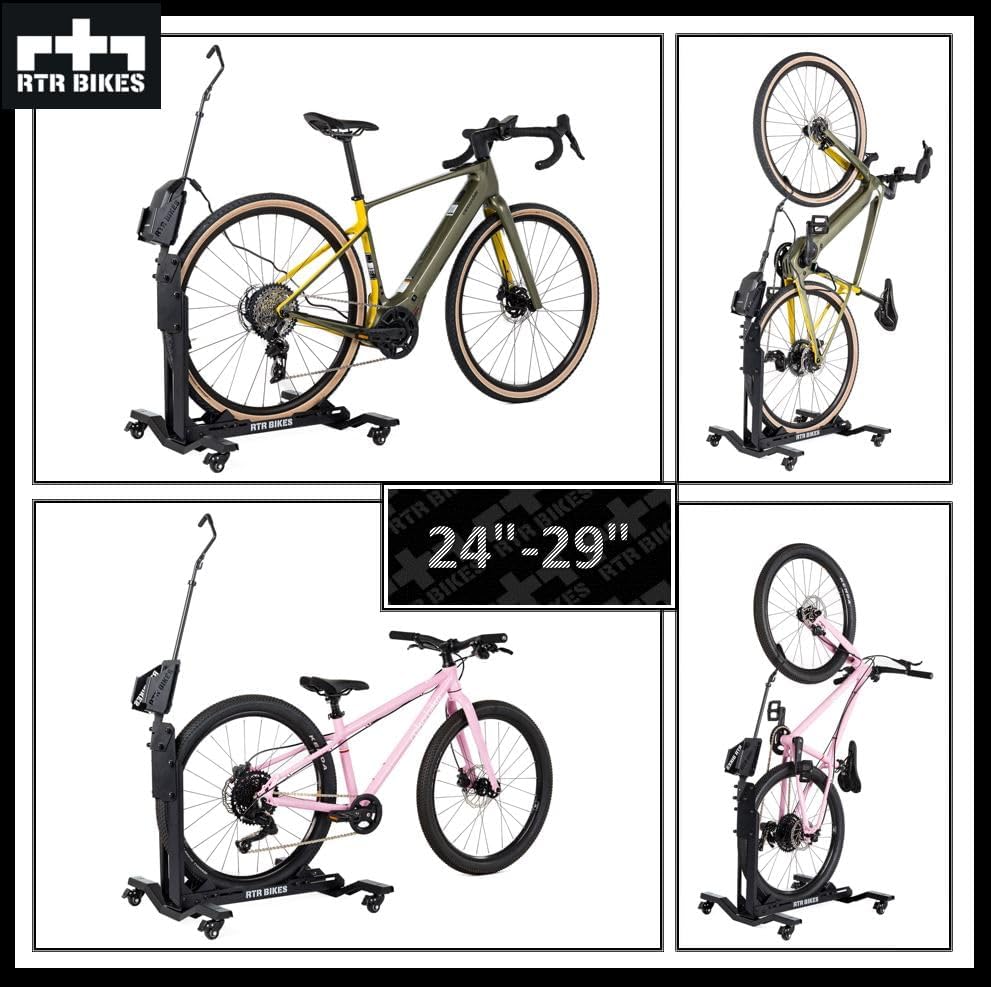

Image 5.1: Examples of different bicycle types and sizes (24-29 inches) securely stored in the BRUTUS UP PRO stand in a vertical orientation.
5.2. Placing a Bicycle (Horizontal Position)
The stand can also be used to hold a bicycle in a horizontal position for minor adjustments or temporary storage. Simply roll the bicycle into the main base frame, allowing both wheels to rest in the designated slots.
5.3. Using the Charger Holder
The integrated charger holder provides a convenient location to store your e-bike charger while the bike is on the stand. Place the charger securely in the holder to keep it off the floor and prevent damage.
5.4. Moving the Stand
The BRUTUS UP PRO is equipped with caster wheels for easy mobility. To move the stand, disengage the brakes on the caster wheels. You can then effortlessly roll the stand, even with a bicycle mounted, to a new location. Re-engage the brakes once the stand is in its desired position to ensure stability.

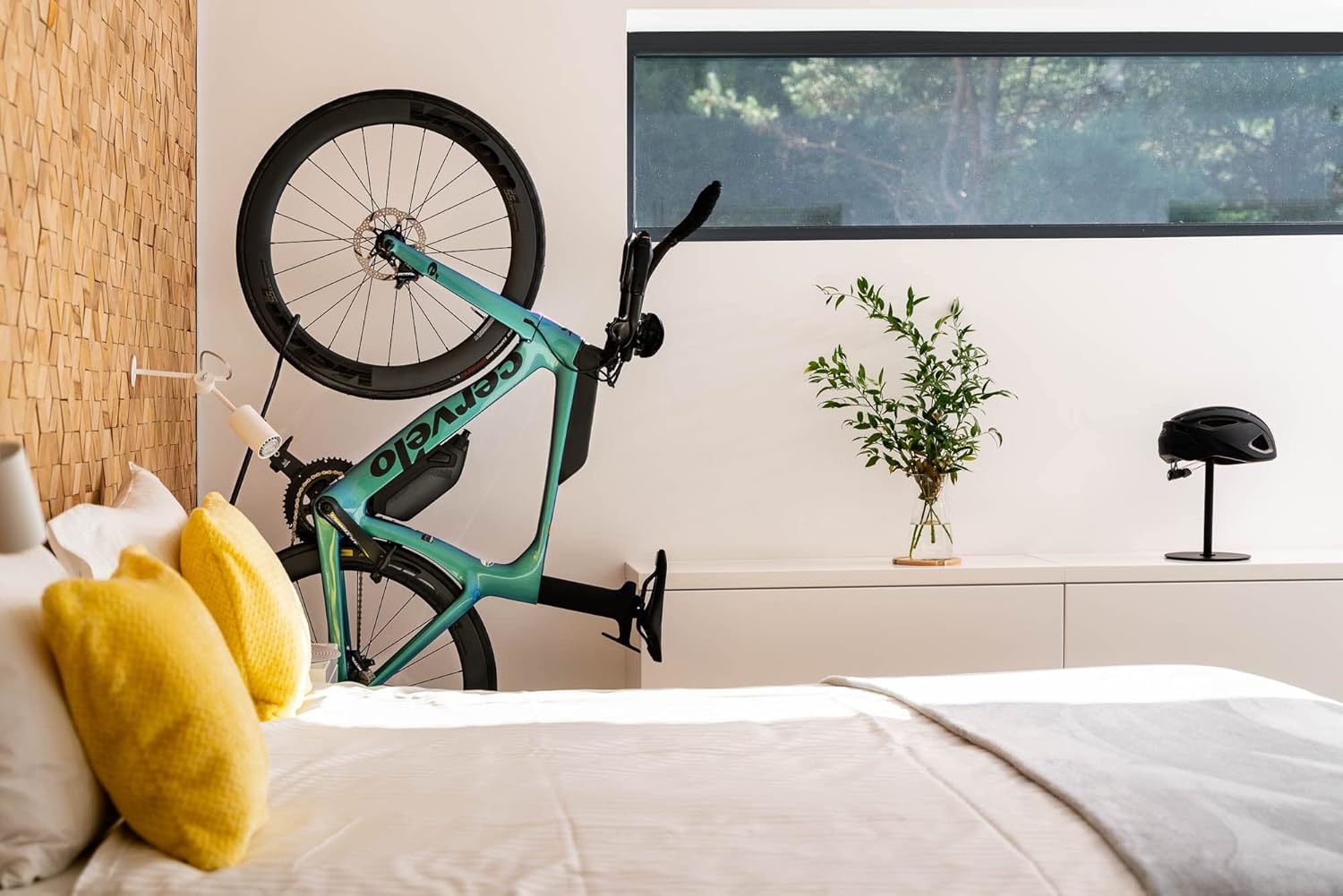

Image 5.2: A bicycle stored vertically in the BRUTUS UP PRO stand within a modern home environment, demonstrating its space-saving capability.
6. Maintenance
Regular maintenance will ensure the longevity and optimal performance of your BRUTUS UP PRO stand.
- Cleaning: Wipe down the stand periodically with a soft, damp cloth to remove dust and dirt. Avoid abrasive cleaners or solvents that could damage the powder-coated finish.
- Inspection: Regularly inspect all bolts, screws, and connections to ensure they remain tight. Re-tighten any loose fasteners.
- Caster Wheels: Check the caster wheels for any debris or hair that might impede their movement. Clean as necessary.
- Surface Protection: The stand's high-quality structured surface is resistant to damage and scratches, but avoid sharp objects that could cause deep marks.
7. Troubleshooting
This section addresses common issues you might encounter with your BRUTUS UP PRO stand.
| Problem | Possible Cause | Solution |
|---|---|---|
| Stand feels unstable. | Not on a level surface; loose fasteners; bicycle not properly seated. | Move stand to a level surface. Check and tighten all assembly fasteners. Ensure bicycle wheels are fully seated in their holders. |
| Difficulty rolling the stand. | Caster wheel brakes engaged; debris in wheels. | Disengage all caster wheel brakes. Inspect wheels for debris and clean if necessary. |
| Bicycle does not fit securely. | Wheel holders not adjusted for correct wheel size; incompatible mudguards. | Adjust the wheel holders to match your bicycle's wheel size (24-29 inches) and tire width (up to 3.5 inches). Check for mudguard interference (refer to Image 2.1). |

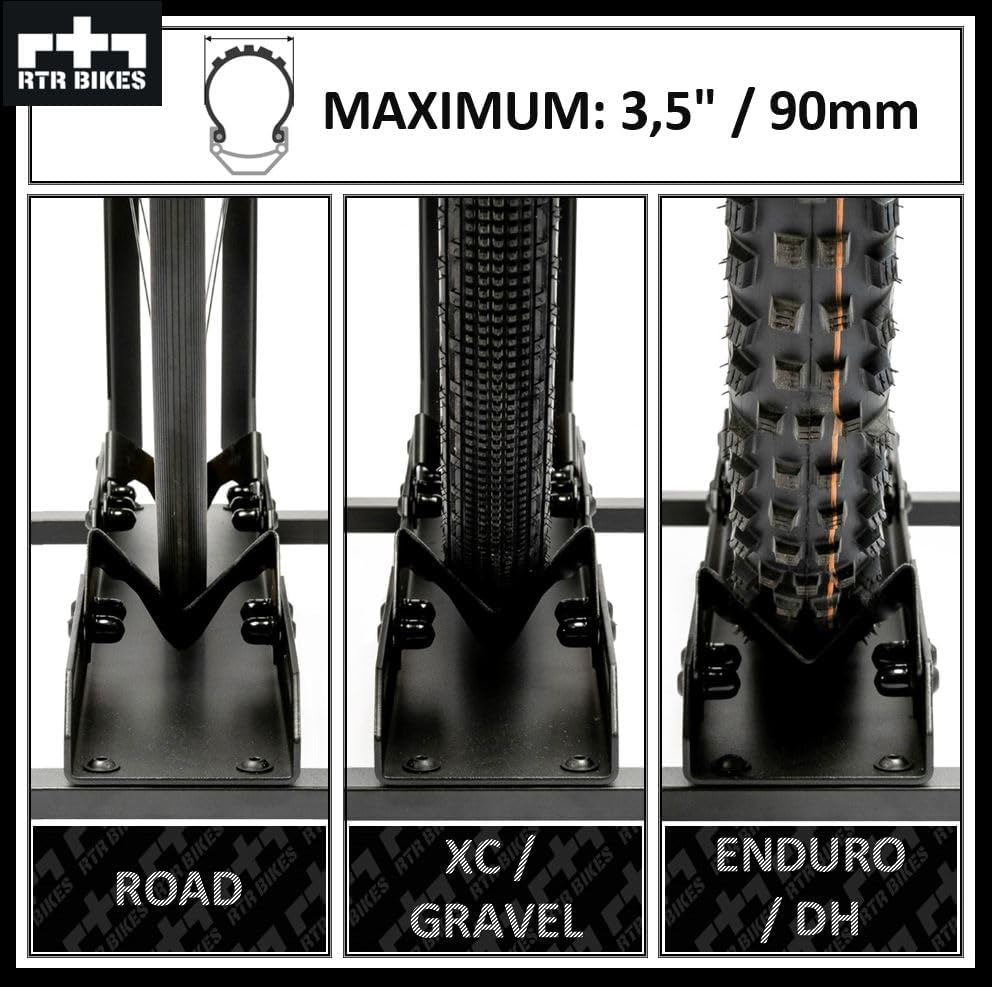

Image 7.1: Visual guide to tire width compatibility (maximum 3.5 inches / 90mm) for various bike types including Road, XC/Gravel, and Enduro/DH.
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | BRUTUS UP PRO |
| Brand | RTR BIKES |
| Material | Metal (100% steel construction) |
| Finish Type | Powder Coated |
| Color | Black |
| Load Capacity | 30 Kilogram (66 lbs) |
| Product Dimensions (L x W x H) | 27.24 x 23.03 x 60.63 inches (approx. 69.2 x 58.5 x 154 cm) |
| Item Weight | 20.9 pounds (approx. 9.5 kg) |
| Compatible Wheel Sizes | 24 to 29 inches |
| Maximum Tire Width | 3.5 inches (90mm) |
| Assembly Required | Yes |
Image 8.1: Technical diagram showing the dimensions of the BRUTUS UP PRO stand in both vertical and horizontal configurations.
9. Warranty and Support
RTR BIKES stands behind the quality of the BRUTUS UP PRO. For specific warranty details, please refer to the warranty information provided with your purchase or visit the official RTR BIKES website. If you have any questions, require technical assistance, or need to report a missing or damaged part, please contact RTR BIKES customer support through the retailer where you purchased the product or directly via their official channels.
For more information and product updates, visit the RTR BIKES Store on Amazon.
