1. Safety Instructions
Please read all instructions carefully before using this appliance and retain them for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Ensure the power supply voltage matches the rating label on the appliance.
- Do not operate the appliance with a damaged cord or plug.
- Keep the appliance away from water or other liquids. Do not immerse it.
- Unplug the appliance before cleaning, performing maintenance, or when not in use.
- Do not block air inlets or outlets. Maintain adequate clearance around the unit.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Do not insert fingers or foreign objects into the air inlets or outlets.
- Use only original SANVINDER replacement filters.
2. Product Overview
The SANVINDER DH-JH01 is a compact air purifier designed to improve indoor air quality in small to medium-sized rooms. It features a multi-layer filtration system, quiet operation, and user-friendly controls.
Key Features:
- H-13 HEPA Filter: Captures 99.97% of airborne particles as small as 0.3 microns, including pollen, dust mites, pet dander, and PM2.5.
- Activated Carbon Filter: Effectively absorbs odors from tobacco, cooking, pets, and other common household sources.
- Quiet Sleep Mode: Operates at a low noise level (approx. 25dB) for undisturbed rest.
- Timer Function: Set the purifier to operate for 6, 12, or 24 hours.
- Aroma Function: Allows for the addition of essential oils to diffuse pleasant scents.
- Night Light: Integrated soft blue light for ambient illumination.
- Energy Efficient: Low power consumption (22W).
Product Components:
Familiarize yourself with the main parts of your air purifier.
Image: The SANVINDER DH-JH01 Compact Air Purifier, showing its cylindrical design and top control panel.
Image: Close-up view of the touch control panel, indicating buttons for timer, UV, light, and fan speed settings.
3. Setup
Unpacking:
- Carefully remove the air purifier from its packaging.
- Check for any damage during transit. If damaged, contact customer support.
- Ensure all components are present: air purifier unit, power adapter, and user manual.
Image: The air purifier, power cable, and user manual as typically included in the product package.
Filter Installation:
The filter may come pre-installed or require installation before first use. Follow these steps:
- Turn the unit upside down and twist the base counter-clockwise to unlock and remove it.
- Remove the plastic packaging from the filter.
- Insert the filter into the unit, ensuring it sits securely.
- Replace the base and twist clockwise to lock it into place.
Image: The cylindrical replacement filter for the air purifier, showing its pleated design.
Placement:
- Place the air purifier on a firm, level surface.
- Ensure there is at least 15 cm (6 inches) of space around all sides for optimal airflow.
- Avoid placing it near heat sources, direct sunlight, or areas with high humidity.
- For best results, place the unit in the room where you spend the most time.
Image: An illustration showing optimal placement of the air purifier in various rooms of a house for effective air circulation.
4. Operating Instructions
The SANVINDER DH-JH01 features a touch control panel for easy operation.
Power ON/OFF and Fan Speed:
- Connect the power adapter to the unit and plug it into a suitable electrical outlet.
- Touch the Power/Fan Speed button once to turn on the unit at the lowest fan speed.
- Touch the button repeatedly to cycle through fan speeds: Low (1), Medium (2), High (3).
- To turn off the unit, cycle through all fan speeds until the unit powers down, or press and hold the Power/Fan Speed button.
Quiet/Sleep Mode:
- Press the Sleep Mode button (often indicated by a moon icon) to activate the quietest operation mode.
- In this mode, the fan speed is reduced, and the display lights may dim or turn off to ensure minimal disturbance.
- Press the button again to exit Sleep Mode.
Image: A person sleeping peacefully in a bedroom, with the SANVINDER air purifier operating quietly on a bedside table, illustrating the quiet sleep mode.
Timer Function:
- Press the Timer button (indicated by a clock icon) to set the operating duration.
- Each press cycles through available timer settings: 6 hours, 12 hours, 24 hours.
- The unit will automatically turn off once the set time has elapsed.
- To cancel the timer, press the Timer button until no timer indicator is lit.
Image: The air purifier with an overlay highlighting the 6h, 12h, and 24h timer settings on its control panel.
UV Sterilization and Night Light:
- Press the UV button to activate or deactivate the UV sterilization function.
- Press the Light button (indicated by a sun/star icon) to turn the night light on or off.

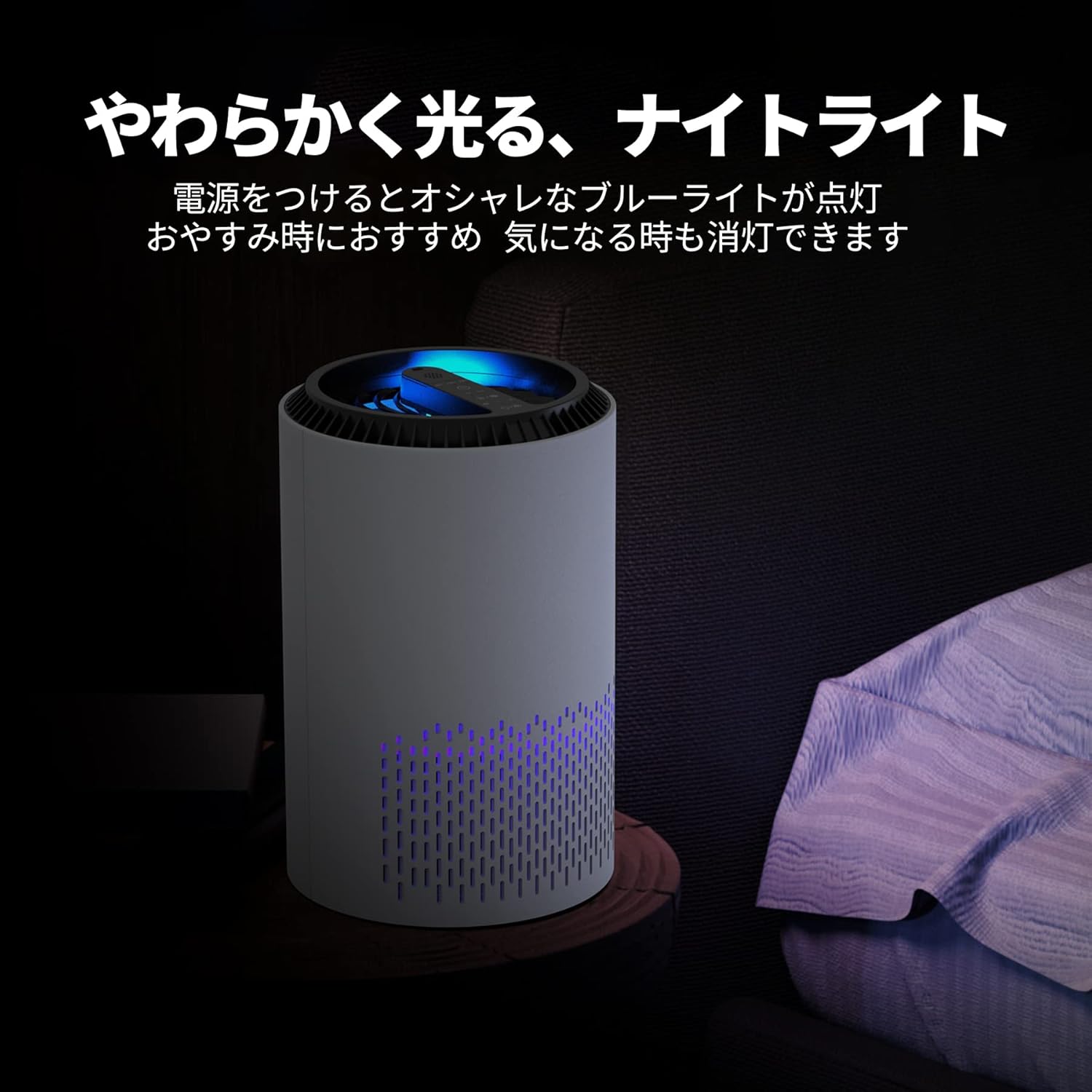

Image: The air purifier operating with its soft blue night light illuminated, placed on a bedside table in a dimly lit room.
Aroma Function:
- Locate the aroma pad compartment, usually near the air outlet or filter area.
- Add a few drops of your preferred essential oil onto the aroma pad.
- Close the compartment. The scent will diffuse with the purified air.
- Do not add essential oils directly into the air outlet or filter.
Image: A hand adding drops of essential oil into a designated aroma pad area on the top of the air purifier.
5. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your air purifier.
Filter Replacement:
The filter should be replaced approximately every 2 years, depending on usage and air quality. A filter replacement indicator light will illuminate when it's time to change the filter.
- Unplug the air purifier from the power outlet.
- Turn the unit upside down and twist the base counter-clockwise to unlock and remove it.
- Remove the old filter and dispose of it properly.
- Unpack the new filter (Model: B09MNQN6FD) and insert it into the unit.
- Replace the base and twist clockwise to lock it into place.
- Plug in the unit. To reset the filter indicator, press and hold the filter reset button (refer to control panel diagram) for 3-5 seconds until the light turns off.
Image: An exploded view of the air purifier's multi-layer filter, showing the pre-filter, activated carbon filter, and HEPA filter components.
Cleaning the Exterior:
- Unplug the air purifier before cleaning.
- Wipe the exterior surface with a soft, dry cloth.
- Do not use abrasive cleaners, waxes, or solvents.
- Periodically vacuum the air inlet vents to remove accumulated dust.
6. Troubleshooting
If you encounter any issues with your air purifier, refer to the following table for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on. | Not plugged in; power outlet malfunction; filter not installed correctly. | Check power cord connection; try a different outlet; ensure filter is installed and base is locked. |
| Weak airflow or no purification. | Blocked air inlets/outlets; dirty filter; incorrect fan speed setting. | Clear any obstructions; replace filter; increase fan speed. |
| Unusual noise. | Foreign object inside; unit not on a stable surface; filter not seated correctly. | Unplug and check for objects; place on a flat surface; re-install filter. |
| Odor persists. | Filter saturation; strong odor source. | Replace the activated carbon filter; remove or address the odor source. |
| Filter indicator light remains on after replacement. | Filter reset not performed. | Press and hold the filter reset button for 3-5 seconds. |
7. Specifications
Technical details for the SANVINDER DH-JH01 Air Purifier.
| Feature | Specification |
|---|---|
| Model | DH-JH01 |
| Brand | SANVINDER |
| Dimensions (Product) | 20 cm (Depth) x 20 cm (Width) x 24.7 cm (Height) |
| Weight (Package) | 1.8 kg |
| Color | White |
| Power Source | Corded Electric |
| Power Consumption | 22W |
| Noise Level | 41 dB (Max), approx. 25 dB (Sleep Mode) |
| Applicable Area | Approx. 12 Tatami Mats (JEM1467 standard) |
| Filtration Type | H-13 HEPA and Activated Carbon Filter |
| Control Method | Touch Panel |
| Special Features | PM2.5 Compatible, Timer, Sleep Mode, Aroma Function, Night Light, UV Sterilization |
Image: A diagram illustrating the physical dimensions of the SANVINDER DH-JH01 air purifier, showing its height of 24.7 cm and width of 16 cm.
8. Warranty and Support
SANVINDER products are manufactured with high-quality standards. For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official SANVINDER website.
Please have your model number (DH-JH01) and purchase date ready when contacting support.
