Freeman G2XL31 2nd Generation Pneumatic 3-in-1 Finish Nailer/Stapler User Manual

Model: G2XL31

1. Introduction

The Freeman G2XL31 2nd Generation Pneumatic 3-in-1 Finish Nailer/Stapler is a versatile and durable air-powered tool designed for a wide range of finishing projects. Its re-engineered internal components and optimized airflow provide enhanced driving power with less air consumption, making it suitable for tasks such as crown molding, baseboards, window casing, chair rails, furniture assembly, and cabinetry.

Key features include:

Next-Generation 3-in-1 Design: Capable of driving 18 gauge brad nails (5/8" – 2"), 16 gauge straight finish nails (3/4" – 2"), and 18 gauge 1/4" narrow crown staples (5/8" – 1-5/8").
Upgraded Internal Parts: Optimized air flow for enhanced driving power with less air consumption.
Built to Last: Features a one-piece hardened steel drive blade for increased durability.
Integrated Dual Mode Trigger: Allows for quick switching between single sequential firing for precision and bump firing for speed.
Tool-Free Depth Adjust: Enables precision flush or countersink nailing in various materials.
No Mar Safety Tip: Protects working surfaces from damage.
Textured Rubber Grip: Provides maximum comfort and control.
Powder Coated Exterior: Resists scratches and enhances longevity.
Adjustable Metal Belt Hook: For convenient portability.
1/4" NPT Air Connector: Standard connection for air supply.

2. Safety Information

Always prioritize safety when operating power tools. Failure to follow safety instructions can result in serious injury.

Eye Protection: Always wear ANSI Z87.1 approved safety glasses with side shields.
Hearing Protection: Wear hearing protection to prevent hearing damage.
Hand Protection: Wear gloves to protect hands from splinters and sharp objects.
Proper Air Pressure: Do not exceed the maximum recommended air pressure for the tool. Refer to specifications.
Disconnect Air: Always disconnect the tool from the air supply before loading fasteners, making adjustments, clearing jams, or performing maintenance.
Secure Workpiece: Ensure the workpiece is stable and secure before fastening.
Avoid Accidental Firing: Keep fingers away from the trigger when not actively fastening. Never point the tool at yourself or others.
Read Manual: Read and understand the complete instruction manual before operating the tool.

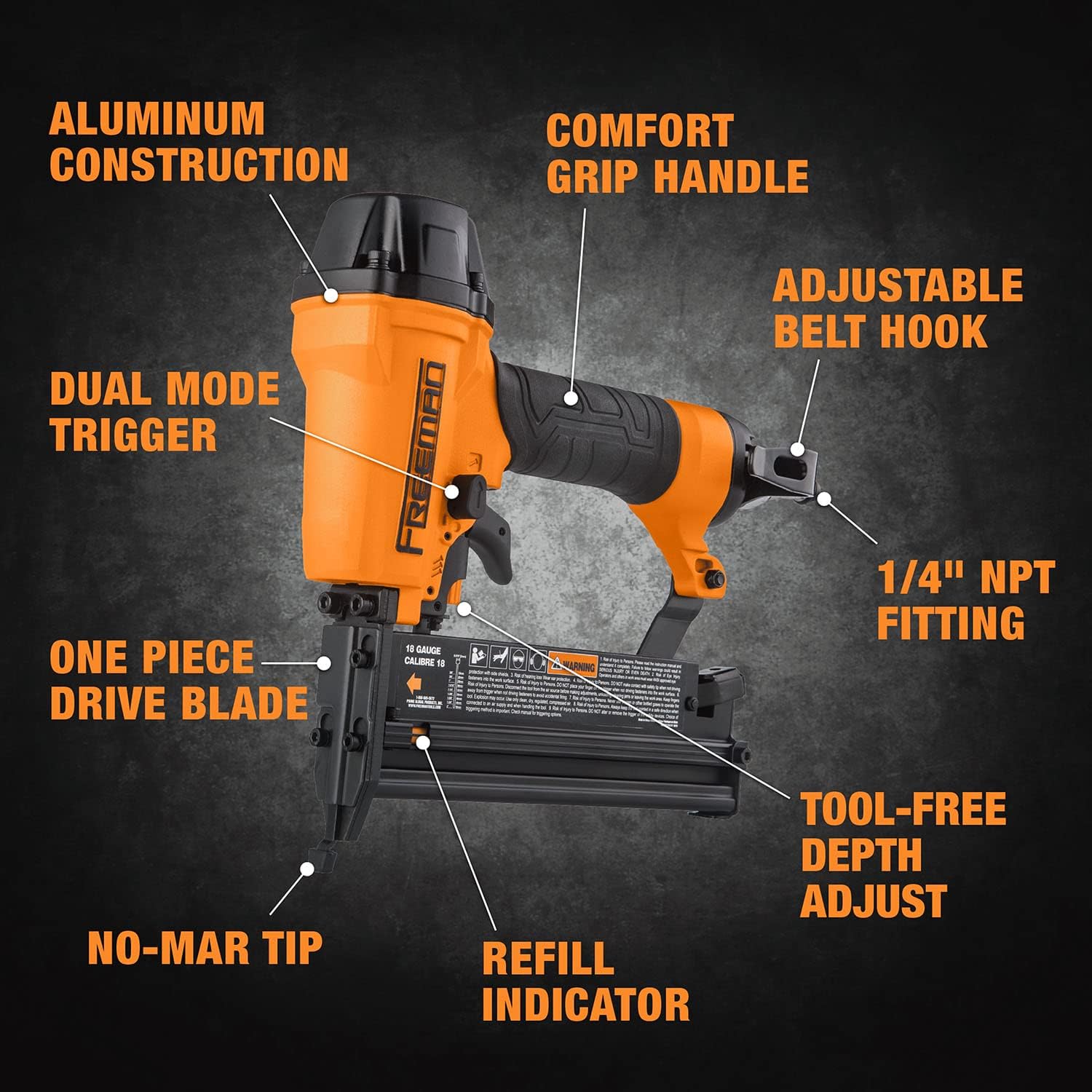

Close-up of the Freeman G2XL31 nailer's trigger and safety mechanism.

Figure 2.1: Close-up of the trigger and safety mechanism, highlighting areas to keep clear when not in use.

3. What's in the Box

Upon opening the package, please verify that all items are present and undamaged:

2nd Generation Pneumatic 3-in-1 16-Gauge and 18-Gauge Nailer / Stapler (Model G2XL31)
Adjustable Metal Belt Hook
1/4" NPT Connector
Adjustment Tools

Freeman G2XL31 2nd Generation Pneumatic 3-in-1 Finish Nailer/Stapler, main view.

Figure 3.1: The Freeman G2XL31 Nailer/Stapler.

4. Specifications

Specification	Value
Brand	Freeman
Model Number	G2XL31
Item Weight	3.15 pounds
Product Dimensions	9.25 x 2.63 x 9.5 inches
Material Type	One piece hardened steel drive blade
Number of Fasteners	3 (16-Ga Finish Nails, 18-Ga Brad Nails, 18-Ga Narrow Crown Staples)
Operation Mode	Automatic

Diagram showing key features of the Freeman G2XL31 nailer including aluminum construction, comfort grip, adjustable belt hook, 1/4 inch NPT fitting, one piece drive blade, no-mar tip, refill indicator, dual mode trigger, and tool-free depth adjust.

Figure 4.1: Annotated diagram of the Freeman G2XL31's features.

Diagram illustrating various fastener types and their dimensions: 16 gauge finish nails, 18 gauge brad nails, and 18 gauge narrow crown staples, with lengths ranging from 5/8 inch to 2 inches.

Figure 4.2: Fastener compatibility chart for the G2XL31.

5. Setup

5.1 Connecting to Air Supply

Ensure your air compressor is off and the air tank is drained.
Attach the 1/4" NPT air connector to the tool's air inlet.
Connect an air hose from your compressor to the tool.
Set the air compressor's output pressure to the recommended operating pressure (refer to tool markings or specifications, typically 70-120 PSI). Do not exceed maximum pressure.
Turn on the air compressor and allow it to build pressure.

Close-up of the 1/4 inch NPT air connector on the Freeman G2XL31 nailer, showing where the air hose connects.

Figure 5.1: Connecting the air hose to the tool.

A person using the Freeman G2XL31 nailer connected to an orange air compressor, demonstrating the pneumatic setup.

Figure 5.2: Nailer connected to an air compressor.

5.2 Loading Fasteners

Ensure the tool is disconnected from the air supply.
Pull back the magazine follower until it locks into place.
Insert a strip of compatible nails or staples into the magazine. Ensure the fasteners are oriented correctly with the points facing down.
Release the magazine follower, allowing it to push the fasteners forward.
Check the refill indicator to ensure fasteners are properly loaded.

A close-up image of a strip of collated nails, ready for loading into a nail gun.

Figure 5.3: Example of collated fasteners.

5.3 Adjusting Depth of Drive

The tool-free depth adjustment allows you to control how deep the fastener is driven into the material.

Locate the depth adjustment dial or lever on the tool.
Rotate the dial or move the lever to increase or decrease the driving depth. Test on a scrap piece of material to achieve the desired flush or countersink finish.

6. Operating Instructions

6.1 Firing Modes

The Freeman G2XL31 features an integrated dual-mode trigger for versatile operation:

Single Sequential Firing: For precise fastener placement. Depress the safety contact tip against the workpiece, then pull the trigger to drive a single fastener. Release both the tip and trigger before the next fastener.
Bump Firing (Contact Actuation): For rapid fastening. Hold the trigger, then depress the safety contact tip against the workpiece to drive a fastener. Lift the tool and repeat for subsequent fasteners.

6.2 General Operation

Ensure the tool is properly connected to the air supply and loaded with fasteners.
Position the tool firmly against the workpiece, ensuring the safety contact tip is fully depressed.
Pull the trigger to drive the fastener.
Utilize the no-mar safety tip to prevent damage to delicate surfaces.

A person using the Freeman G2XL31 nailer to fasten trim to a wall, demonstrating its application in finish carpentry.

Figure 6.1: Using the nailer for trim work.

Front view of the Freeman G2XL31 nailer, showing the magazine and contact tip.

Figure 6.2: Front view of the tool, highlighting the contact tip.

Side view of the Freeman G2XL31 nailer, showcasing its ergonomic design and textured grip.

Figure 6.3: Side view of the tool, showing the textured grip for comfort and control.

7. Maintenance

Regular maintenance ensures optimal performance and extends the life of your tool. Always disconnect the tool from the air supply before performing any maintenance.

7.1 Lubrication

Apply 5-10 drops of pneumatic tool oil into the air inlet daily before use. This lubricates internal components and prevents wear. Do not use detergent oil or automotive oil.

7.2 Cleaning

Keep the tool clean and free of debris. Wipe down the exterior with a clean cloth.
Periodically clean the magazine to ensure smooth fastener feeding.
Check the air filter (if applicable) and clean or replace as needed to maintain proper airflow.

7.3 Inspection

Regularly inspect the tool for loose screws, worn parts, or air leaks. Tighten screws and replace worn components as necessary.
Check the safety contact tip and trigger for proper function.

8. Troubleshooting

This section provides solutions to common issues you might encounter. For problems not listed here, contact customer support.

Problem	Possible Cause	Solution
Tool not firing	No air supply, low air pressure, empty magazine, jammed fasteners, safety not engaged.	Check air connection and pressure, reload fasteners, clear jam (disconnect air first), ensure safety tip is fully depressed.
Fasteners not driving fully	Low air pressure, incorrect depth setting, wrong fastener length for material, worn driver blade.	Increase air pressure, adjust depth setting, use appropriate fastener length, inspect and replace driver blade if worn.
Air leak from tool	Loose fittings, worn O-rings or seals.	Tighten all air fittings. If leak persists, internal seals may need replacement (contact service center).
Fasteners jamming frequently	Damaged fasteners, bent magazine, incorrect fastener size, debris in magazine.	Use only high-quality, undamaged fasteners. Clean magazine. Ensure correct fastener size is used.

Video 8.1: An overview of Freeman pneumatic and cordless power tools, demonstrating various applications and features. This video highlights the versatility and performance of Freeman tools, including nailers and staplers.

9. Warranty and Support

The Freeman G2XL31 2nd Generation Pneumatic 3-in-1 Finish Nailer/Stapler is backed by an industry-leading 7 Year Professional Warranty and a 90 Day Wearable Parts Warranty.

For warranty claims, technical support, or to purchase replacement parts, please visit the official Freeman website or contact their customer service department. Keep your proof of purchase for warranty validation.

Online Resources: Visit the Freeman Store on Amazon
