TAG Heuer S35.006 Professional Chronograph Watch User Manual

Introduction

Thank you for choosing the TAG Heuer S35.006 Professional Chronograph watch. This manual provides essential information for the proper setup, operation, and care of your timepiece. Please read it carefully to ensure optimal performance and longevity of your watch.

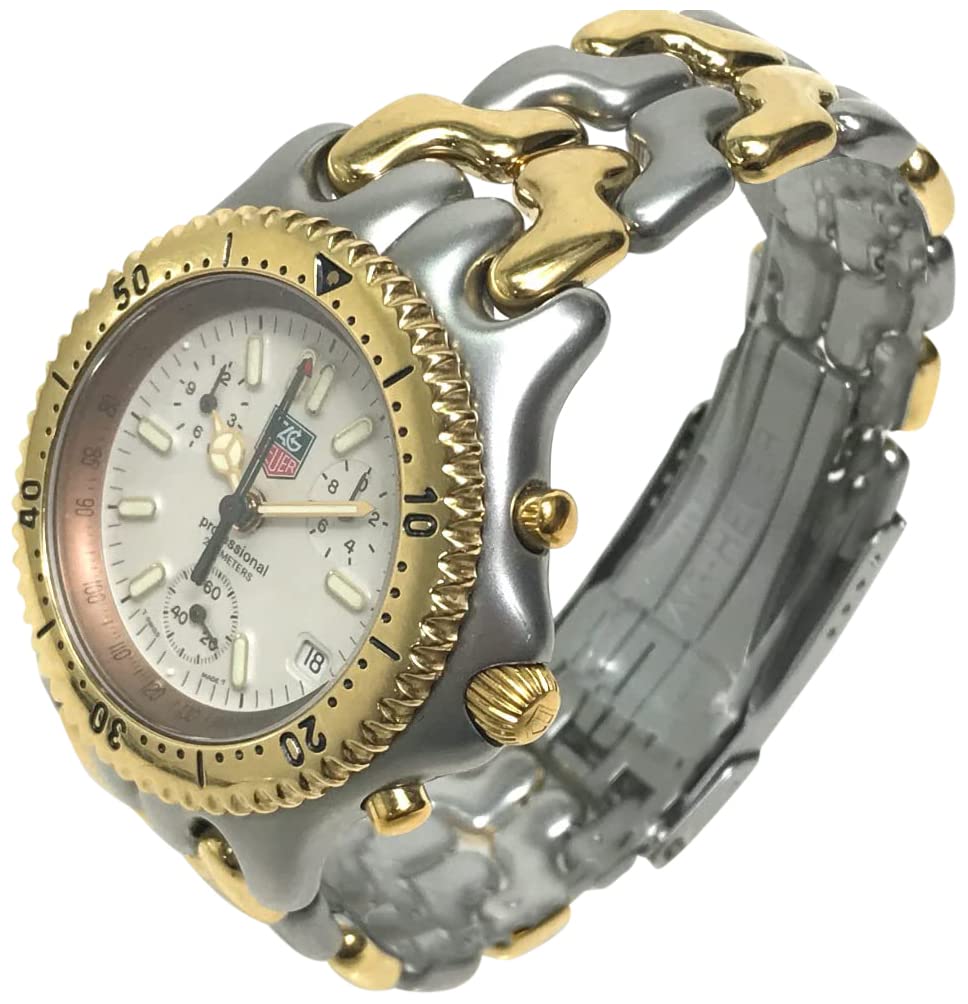

Figure 1: Front view of the TAG Heuer S35.006 Professional Chronograph watch, showcasing the white/silver dial with gold accents and chronograph subdials.

Setup

1. Setting the Time

1. Unscrew the Crown: If your watch has a screw-down crown, gently unscrew it counter-clockwise until it springs out to position 1.
2. Pull the Crown: Carefully pull the crown out to position 2 (the outermost position). The second hand will stop.
3. Adjust Time: Turn the crown clockwise or counter-clockwise to set the hour and minute hands to the desired time. Ensure you differentiate between AM and PM if setting the date.
4. Push and Screw Down the Crown: Once the time is set, push the crown back into position 1 and screw it down clockwise firmly to ensure water resistance.

2. Setting the Date

1. Unscrew the Crown: If applicable, unscrew the crown to position 1.
2. Pull the Crown: Pull the crown out to position 1 (the first click).
3. Adjust Date: Turn the crown clockwise or counter-clockwise to set the date. Avoid setting the date between 9 PM and 3 AM, as this can damage the movement.
4. Push and Screw Down the Crown: Push the crown back in and screw it down firmly to maintain water resistance.

3. Adjusting the Bracelet

The bracelet can be adjusted by adding or removing links. This procedure typically requires specialized tools and is best performed by a qualified watchmaker or jeweler to prevent damage to the bracelet or clasp.

Figure 2: Detail of the watch clasp, showing the mechanism for securing the bracelet. Proper adjustment ensures a comfortable and secure fit.

Operating Instructions

1. Chronograph Function

Your TAG Heuer S35.006 is equipped with a chronograph function for measuring elapsed time.

1. Start: Press the upper pusher (A) to start the chronograph. The central chronograph second hand will begin to move.
2. Stop: Press the upper pusher (A) again to stop the chronograph. The elapsed time can be read from the central second hand and the chronograph subdials.
3. Reset: Press the lower pusher (B) to reset the chronograph hands to zero. This can only be done when the chronograph is stopped.

Figure 3: Side view of the watch, illustrating the crown and chronograph pushers (A and B) used for time setting and chronograph operation.

2. Water Resistance

The TAG Heuer S35.006 is water-resistant to 200 meters (20 ATM). This rating makes it suitable for swimming, snorkeling, and recreational diving. However, it is crucial to ensure the crown is fully screwed down before any contact with water. Do not operate the pushers or crown while the watch is submerged or wet, as this can compromise water resistance.

Maintenance

1. Cleaning

To maintain the appearance of your watch, clean it regularly with a soft, damp cloth. For metal bracelets, a soft brush and mild soapy water can be used, followed by thorough rinsing with fresh water and drying. Avoid using harsh chemicals or abrasive materials.

2. Battery Replacement

As a quartz watch, the S35.006 is powered by a battery. The typical battery life is 2-3 years. When the battery is low, the second hand may jump every few seconds (End-of-Life indicator). Battery replacement should be performed by an authorized service center to ensure proper sealing and water resistance.

3. Water Resistance Checks

It is recommended to have the water resistance of your watch checked annually by an authorized service center, especially if it is frequently exposed to water. Gaskets can degrade over time, affecting the watch's water-resistant properties.

Troubleshooting

• Watch Not Running: Check if the crown is fully pushed in. If the watch is quartz, the battery may need replacement.
• Date Not Changing: Ensure the time is set correctly, passing midnight for the date change. Avoid setting the date between 9 PM and 3 AM.
• Chronograph Hands Not Resetting to Zero: This may indicate a need for calibration or service. Do not force the pushers.
• Condensation Under Crystal: This indicates a loss of water resistance. Immediately take the watch to an authorized service center to prevent further damage.

For issues not covered here, please contact an authorized TAG Heuer service center.

Specifications

Figure 4: View of the watch case back, displaying model number S35.006, water resistance rating, and brand engravings.

Warranty and Support

Your TAG Heuer watch is covered by a limited international warranty against manufacturing defects. Please refer to the official TAG Heuer website or your warranty card for specific terms and conditions, including the warranty period and coverage details.

For service, repairs, or any inquiries, please contact an authorized TAG Heuer service center. Using unauthorized service providers may void your warranty and compromise the integrity of your watch.

You can find a list of authorized service centers on the official TAG Heuer website: www.tagheuer.com
