1. Introduction
Thank you for choosing the YONOK Semi Flush Mount Ceiling Light. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions carefully before beginning installation and retain them for future reference.

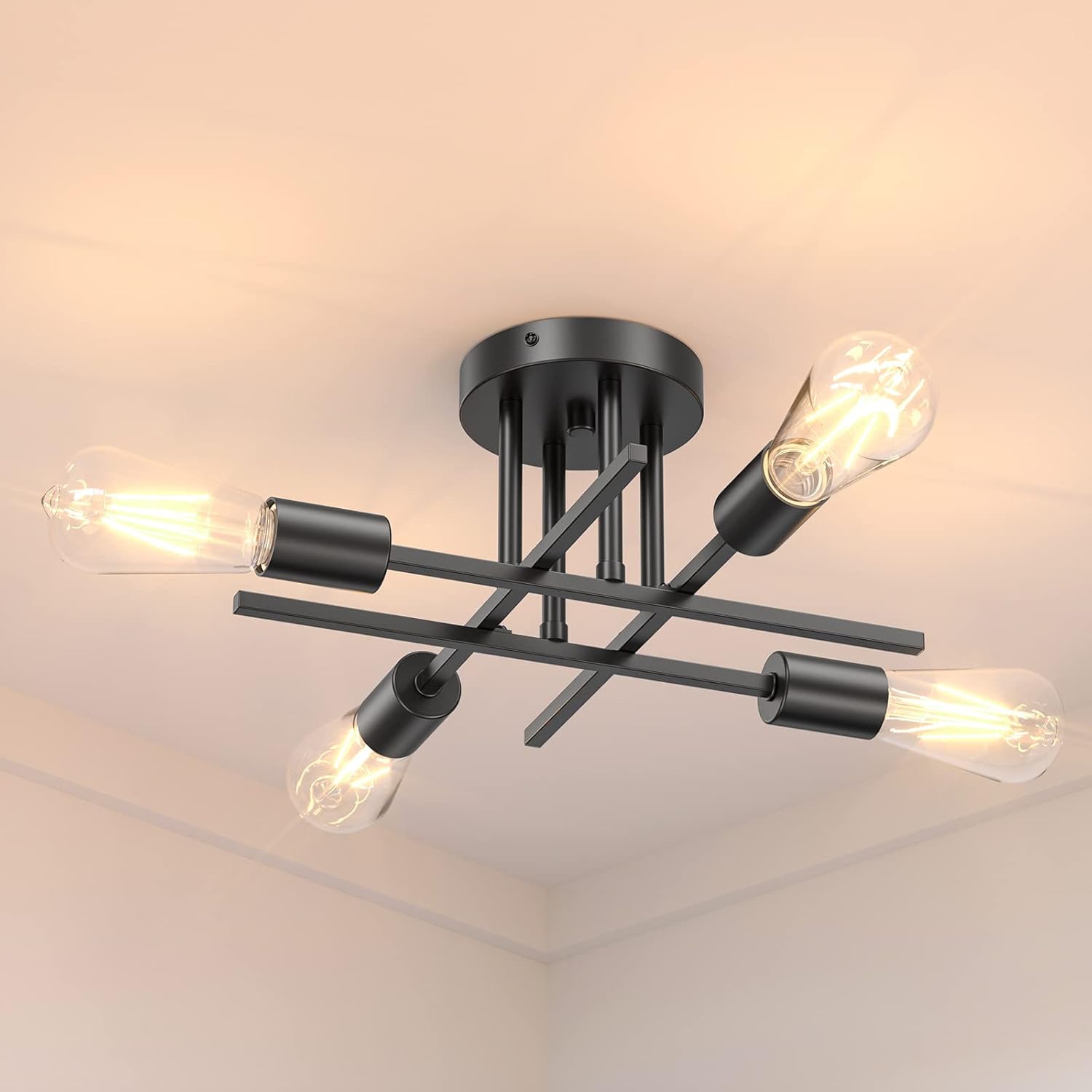

Image 1.1: The YONOK Semi Flush Mount Ceiling Light, featuring a modern matte black finish and four exposed E26 bulb sockets, designed to provide ambient lighting in various indoor settings.
2. Safety Information
To reduce the risk of fire, electric shock, or personal injury, always follow these basic safety precautions:
- WARNING: Risk of electric shock. Disconnect power at the fuse box or circuit breaker before installing or servicing.
- All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC). Consult a qualified electrician if you are unfamiliar with proper electrical wiring connections.
- Do not install this fixture in wet or damp locations. It is designed for indoor use only.
- Use only E26 base bulbs with a maximum wattage of 60W per socket.
- Ensure the fixture is securely mounted to a structurally sound part of the ceiling.
- Do not touch the bulb when the fixture is operating or immediately after turning it off, as the bulb will be hot.
- Keep combustible materials away from the light fixture.
3. Package Contents
Carefully unpack your fixture and check that all parts are included. If any parts are missing or damaged, do not attempt to assemble or install the fixture. Contact customer support for assistance.
- Mounting Bracket
- Canopy
- Fixture Arms (pre-assembled or requiring minor assembly)
- E26 Sockets (4x)
- Mounting Screws and Wire Nuts
- Instruction Manual
4. Product Features
- Socket Type: E26 Base (Bulbs not included)
- Maximum Wattage: 60W per socket
- Dimmable Compatibility: Compatible with dimmable bulbs and a dimmer switch (sold separately)
- Material: Durable Metal construction with a matte black finish
- Style: Modern, semi-flush mount design
- Dimensions: Approximately 59.44 cm (23.4 inches) x 59.44 cm (23.4 inches) x 16.51 cm (6.5 inches)
Image 4.1: This diagram illustrates the key features of the YONOK ceiling light, including its dimensions (approximately 23.4 inches wide and 6.5 inches high), E26 base compatibility, and a maximum wattage of 60W per bulb. It also highlights its compatibility with dimmable bulbs.
Image 4.2: This image provides a comparative view of the YONOK light fixture's components, highlighting the E26 heat-resistance socket, double-pian matte black finish, and heavy-made bearing support, contrasting them with typical plastic sockets, poor finishes, and lighter materials found in other products.
5. Setup and Installation
Before installation, ensure the power is turned off at the circuit breaker. It is recommended to have two people for installation.
- Prepare the Canopy: Thread the electrical wires from your ceiling through the center hole of the fixture's canopy. Secure the canopy to the mounting bracket using the provided nuts.
- Assemble Lower Rods: Install rod 1-1 and rod 1-2 onto the bottom layer of the fixture's central hub.
- Assemble Upper Rods: Install rod 2-1 and rod 2-2 onto the top layer of the fixture's central hub.
- Wire Connections: Connect the fixture's wires to your household electrical wires. Typically, black to black (live), white to white (neutral), and bare copper/green to bare copper/green (ground). Secure connections with wire nuts.
- Attach to Ceiling: Carefully push the canopy up against the ceiling, aligning the mounting holes. Secure the canopy to the mounting bracket using the provided screws.
- Install Bulbs: Once the fixture is securely mounted and wired, screw in four E26 base bulbs (not included) into the sockets.
Image 5.1: This visual guide provides a six-step process for the easy installation of the YONOK Semi Flush Mount Ceiling Light, from threading wires and assembling rods to connecting electrical wires and finally installing the bulbs.
6. Operating Instructions
Once installed and wired correctly, operate your YONOK Ceiling Light using a standard wall switch. If you have installed dimmable bulbs and a compatible dimmer switch, you can adjust the light intensity as desired.
Image 6.1: This image demonstrates the visual difference between warm white and daylight illumination when using appropriate bulbs with the YONOK ceiling light, showcasing its versatility in creating different room ambiances.
7. Maintenance
Regular maintenance will help prolong the life and appearance of your light fixture.
- Cleaning: Always turn off the power and allow the fixture to cool before cleaning. Wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish.
- Bulb Replacement: Ensure the power is off and the bulbs have cooled completely before attempting to replace them. Screw in new E26 base bulbs, ensuring they do not exceed the maximum 60W per socket.
- Inspection: Periodically check all electrical connections and mounting hardware to ensure they remain secure.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power to the fixture Loose wire connection Faulty bulb | Check circuit breaker/fuse Verify all wire connections are secure (power off first) Replace bulb |
| Light flickers | Loose bulb Incorrect dimmer switch/bulb combination Loose wire connection | Tighten bulb Ensure dimmer and bulbs are compatible Check wire connections (power off first) |
| Fixture hums | Incompatible dimmer switch Loose wiring | Replace dimmer with a compatible one Check wire connections (power off first) |
9. Specifications
| Attribute | Detail |
|---|---|
| Model Number | C5116-04-BK |
| Manufacturer | YONOK |
| Product Dimensions | 59.44 x 59.44 x 16.51 cm (23.4 x 23.4 x 6.5 inches) |
| Weight | 1.53 kg (3.37 lbs) |
| Brand | YONOK (efancy) |
| Material | Metal |
| Style | Modern |
| Light Fixture Form | Chandelier / Semi Flush Mount |
| Room Type | Bedroom, Kitchen (suitable for various indoor rooms) |
| Specific Uses | Indoor use only |
| Power Source | Hardwired (AC) |
| Installation Type | Flush Mount |
| Special Feature | Dimmable with compatible dimmer and bulbs |
| Bulb Base | E26 |
| Max Wattage per Bulb | 60W |
10. Warranty and Support
YONOK products are manufactured with quality and durability in mind. While specific warranty details are not provided in this manual, please retain your proof of purchase for any warranty claims. For technical support, missing parts, or any inquiries regarding your YONOK Semi Flush Mount Ceiling Light, please contact the retailer or manufacturer's customer service department.
For more information, you may visit the official YONOK brand page or contact their support channels as listed on their website.
