Okuma TG-1000 Ceymar Tactical Green Spinning Reel User Manual

1. Introduction

Thank you for choosing the Okuma TG-1000 Ceymar Tactical Green Spinning Reel. This limited edition reel combines advanced engineering with a distinctive aesthetic, designed for anglers who demand performance and style. This manual provides essential information for the proper setup, operation, and maintenance of your new fishing reel, ensuring optimal performance and longevity.

The Ceymar TG-1000 features a super lightweight, aggressively ported spool and rotor, finished in a matte black and tactical green style. Its robust core includes a Quick-Set anti-reverse system, a precision-machined aluminum spool, a durable Blade Body Design, a forged aluminum handle with a comfortable EVA handle knob, and an 8-bearing system capable of delivering up to 22 pounds of drag. This reel is engineered to excel in a wide range of fishing applications, from medium to heavy duty.

2. Product Features

• Multi-Disc, Carbon Fiber Drag Washers: Provides smooth and consistent drag pressure.
• 7BB + 1RB Bearing System: Ensures ultra-smooth operation and durability.
• Quick-Set Anti-Reverse Roller Bearing: Allows for instant hook sets with no back play.
• Machined Aluminum Spool: Lightweight yet strong, designed for optimal line management.
• Blade Body Design: Reduces weight and enhances the reel's sleek profile.
• Forged Aluminum Handle with EVA Handle Knob: Offers a comfortable and secure grip.
• Tactical Green Finish: Unique matte black and tactical green aesthetic.

3. Setup Instructions

3.1 Attaching the Reel to Your Rod

1. Align the reel foot with the reel seat on your fishing rod.
2. Tighten the reel seat's locking nut until the reel is securely fastened. Ensure there is no wobble.

3.2 Spooling Fishing Line

1. Open the bail arm.
2. Tie the fishing line to the spool using an arbor knot or a similar secure knot. Trim any excess tag end.
3. Close the bail arm.
4. Hold the line under slight tension and begin to reel slowly, ensuring the line lays evenly on the spool.
5. Fill the spool to approximately 1/8 inch (3 mm) from the rim. Overfilling can cause tangles and casting issues.

3.3 Adjusting the Drag System

The drag system controls the amount of resistance the line experiences when a fish pulls on it. Proper drag setting prevents line breakage and helps tire out the fish.

1. To increase drag, turn the drag knob (located on top of the spool) clockwise.
2. To decrease drag, turn the drag knob counter-clockwise.
3. A good starting point for drag is about 25-30% of your line's breaking strength. Test the drag by pulling line directly from the spool.

4. Operating Instructions

4.1 Casting

1. Hold the rod and reel comfortably.
2. Open the bail arm with your non-reeling hand.
3. Use your index finger to hold the line against the rod.
4. Bring the rod back over your shoulder, then swiftly cast forward, releasing the line with your index finger at the desired point in the cast.
5. As your lure or bait hits the water, close the bail arm manually or by turning the handle.

4.2 Retrieving

Turn the reel handle clockwise to retrieve the line. Maintain a steady retrieve speed appropriate for your lure or bait.

4.3 Using the Anti-Reverse Feature

The Quick-Set anti-reverse system prevents the rotor from spinning backward, allowing for immediate hook sets. This feature is always engaged for optimal performance. There is no switch to disengage it on this model.

5. Maintenance

Regular maintenance will extend the life and performance of your Okuma TG-1000 Ceymar reel.

5.1 Cleaning After Each Use

1. Wipe down the reel with a damp cloth to remove salt, dirt, and debris.
2. For saltwater use, lightly rinse the reel with fresh water, avoiding direct high-pressure spray into bearings or drag system.
3. Dry the reel thoroughly with a soft, clean cloth.

5.2 Lubrication

Periodically apply a small amount of high-quality reel oil to moving parts such as the handle knob, bail arm pivot points, and line roller. Use reel grease on gears if disassembling for deeper maintenance (recommended only for experienced users or professional service).

5.3 Storage

Store your reel in a dry, cool place away from direct sunlight and extreme temperatures. Consider using a reel cover to protect it from dust and scratches.

6. Troubleshooting

• Line Tangles or Loops:
  Possible Cause: Overfilled spool, improper line winding, or twisted line.
  Solution: Remove some line if overfilled. Re-spool line correctly. Consider using a line conditioner to reduce memory and twist.
• Stiff Handle or Rough Operation:
  Possible Cause: Dirt, salt, or lack of lubrication in bearings or gears.
  Solution: Clean the reel thoroughly. Apply reel oil to moving parts. If the issue persists, professional servicing may be required.
• Inconsistent Drag:
  Possible Cause: Dirty or worn drag washers, or improper drag setting.
  Solution: Inspect and clean drag washers. Ensure drag is set correctly. If washers are worn, they may need replacement.
• Bail Arm Not Closing Properly:
  Possible Cause: Debris in the bail mechanism or a bent bail wire.
  Solution: Clean the bail mechanism. If the bail wire is bent, it may need to be straightened or replaced.

7. Specifications

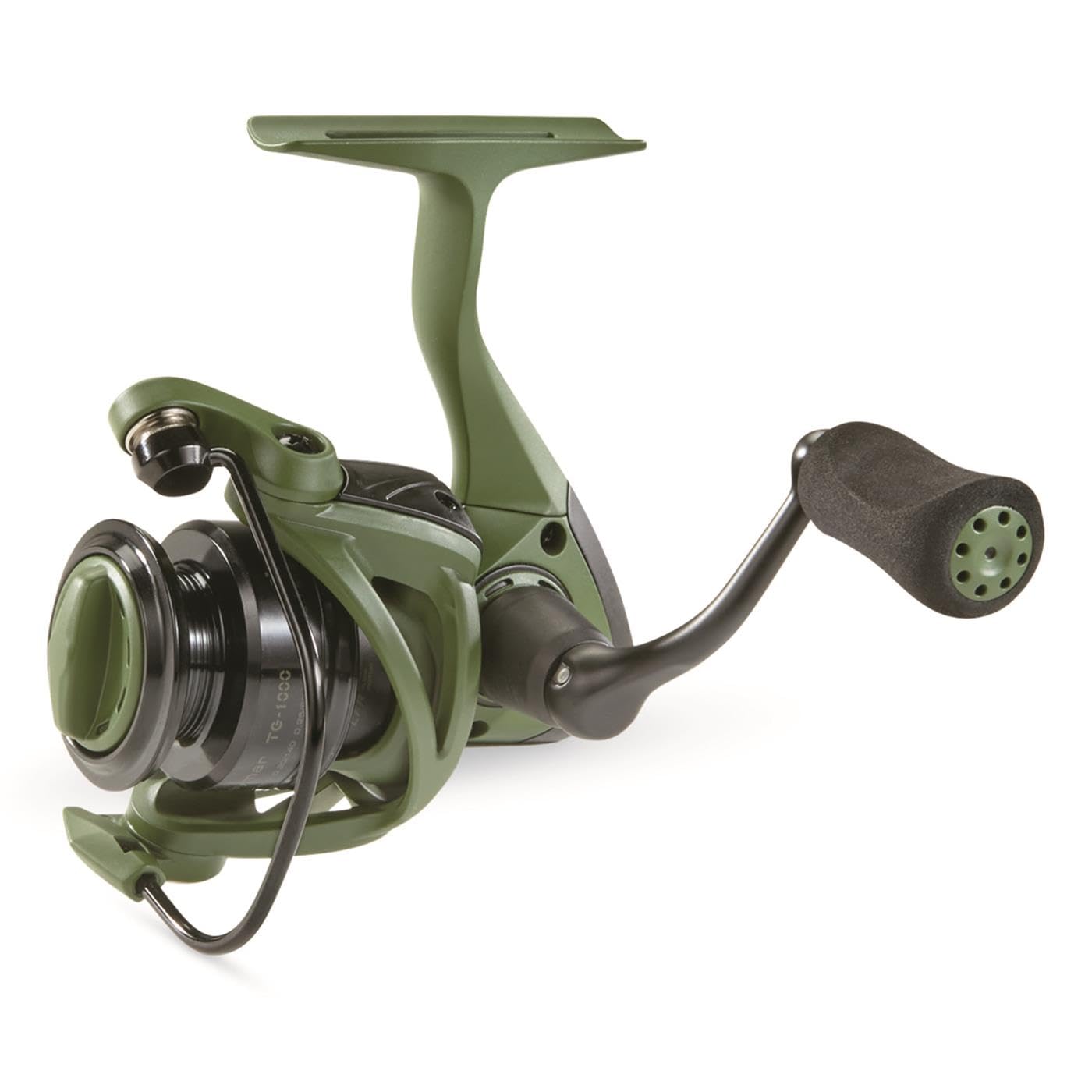

Image: Okuma TG-1000 Ceymar Tactical Green Spinning Reel. This image shows the reel from a side angle, highlighting its matte black and tactical green finish, the handle, and the spool.

8. Warranty and Support

For detailed warranty information and customer support, please refer to the official Okuma Fishing Tackle website or contact your local authorized Okuma dealer. Keep your purchase receipt as proof of purchase for any warranty claims.

Okuma Website: www.okumafishing.com
