CaliHutt 6.0AH Replacement Battery for KIMO 20V Cordless Tools User Manual

Introduction

This user manual provides essential information for the safe and effective use of your CaliHutt 6.0AH Replacement Battery for KIMO 20V Cordless Tools. Please read these instructions carefully before using the battery to ensure optimal performance and longevity. This battery is designed to be fully compatible with KIMO 20V cordless tools and chargers, offering extended runtime and reliable power.

Product Overview

The CaliHutt 6.0AH Replacement Battery is engineered to provide robust power for your KIMO 20V cordless tools. It features A-Grade Li-Ion cells for enhanced performance and durability.

Key Features:

• 20V | Actual 6.0Ah Capacity: Provides up to 4X the run time compared to standard 18V LXT batteries, with 45% more capacity.
• KIMO 20V Compatible: 100% compatible with KIMO 20V chargers and tools for seamless integration.
• 4 LED Indicators: Allows for quick and easy monitoring of battery charging and usage levels by pressing a button.
• Smart Protection: Built-in circuit protection ensures safety and stability, guarding against over-voltage, over-charge, over-current, over-heating, short-circuit, and over-discharge.
• No Memory Effect: Can be stored, charged, or discharged as needed without loss of capacity.
• Certifications: CE / ROHS / PSE certified for quality and safety.

Figure 1: CaliHutt 6.0AH Replacement Battery for KIMO 20V Cordless Tools.

Detailed Features:

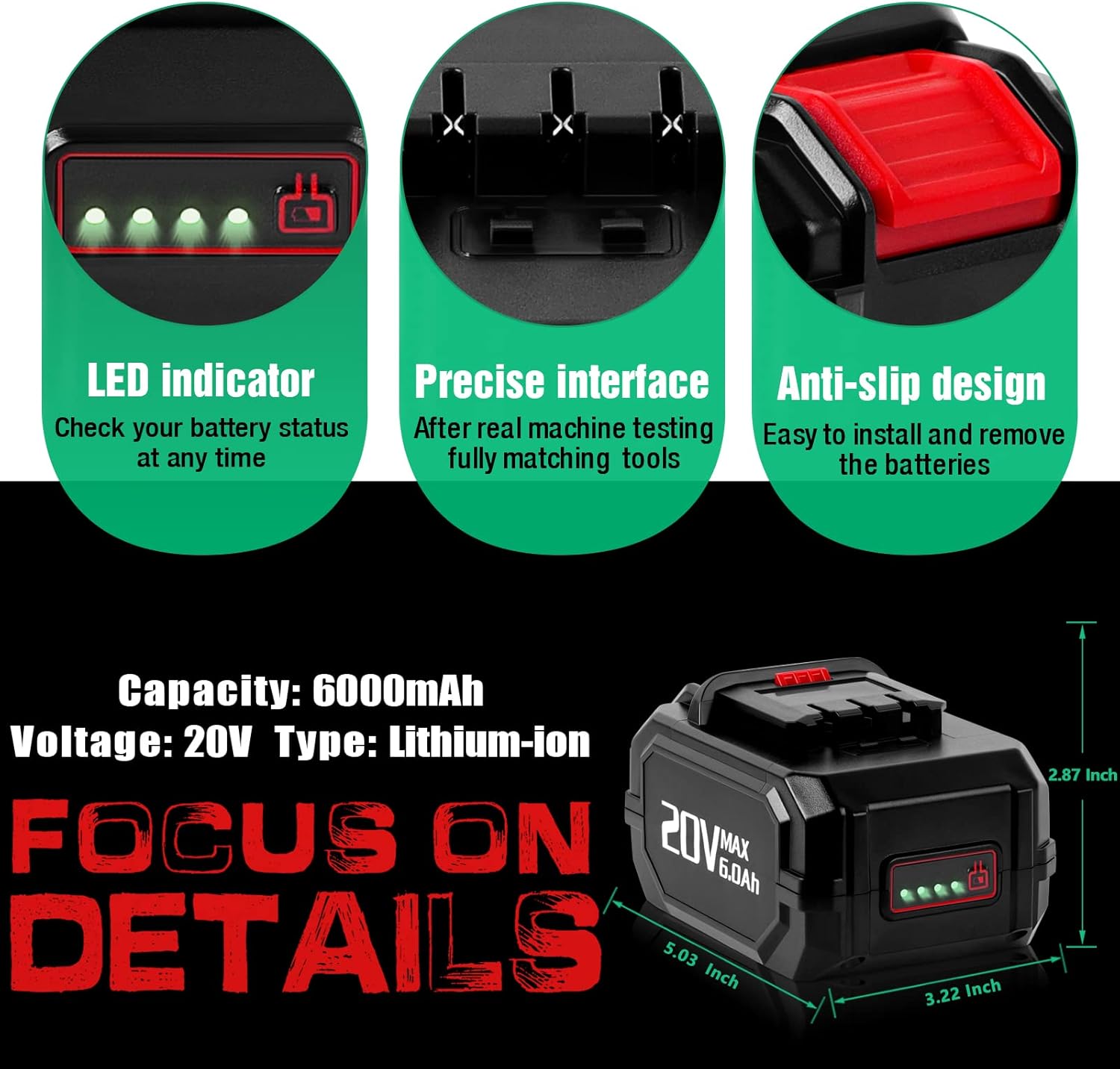

Figure 2: Features including LED indicator for battery status, precise interface for tool compatibility, and anti-slip design for easy handling.

Figure 3: Comparison of actual 6.0Ah capacity, highlighting extended life and running time.

Figure 4: Illustration of multiple protection features: over-voltage, over-charge, no-memory effects, power protection, over-current, over-heating, short-circuit, and over-discharge protection.

Figure 5: Details on CaliHutt's Exclusive ECP Smart Chip, increasing Li-ion density by 30% and battery storage by 25%.

Product Video:

Setup

Before first use, fully charge the battery. The battery is designed for easy installation and removal from compatible KIMO 20V tools and chargers.

Charging the Battery:

1. Connect the KIMO 20V charger (not included with battery, but compatible) to a power outlet.
2. Slide the CaliHutt 6.0AH Replacement Battery onto the charger until it clicks into place.
3. Monitor the 4 LED indicators on the battery. They will illuminate to show the charging progress. A full charge typically takes approximately 60 minutes.
4. Once fully charged, remove the battery from the charger.

Installing the Battery:

• Align the battery with the battery slot on your KIMO 20V cordless tool.
• Slide the battery into the tool until it securely locks into place. Ensure a firm connection.

Figure 6: The CaliHutt battery is designed for precision and seamless installation with KIMO 20V tools and chargers.

Operating Instructions

Once the battery is charged and installed, your KIMO 20V tool is ready for operation. Always refer to your specific KIMO tool's manual for detailed operating procedures.

Checking Battery Level:

• Press the button on the battery pack to activate the 4 LED indicators.
• The number of illuminated LEDs indicates the remaining charge level. Four LEDs mean a full charge, while one LED indicates a low charge.

General Usage:

• Ensure the battery is fully seated in the tool before operation.
• Operate the tool according to its manufacturer's instructions.
• The 6.0AH capacity provides extended runtime for various tasks, including blowing, wrenching, nailing, and drilling.

Figure 7: Examples of compatible KIMO 20V tools that can be powered by the CaliHutt 6.0AH battery.

Battery in Action:

Maintenance

Proper maintenance ensures the longevity and performance of your CaliHutt battery.

Storage:

• Store the battery in a cool, dry place away from direct sunlight and extreme temperatures.
• For long-term storage, it is recommended to store the battery with a partial charge (around 50%).
• The battery has no memory effect, so it can be stored, charged, or discharged as needed without capacity loss.

Cleaning:

• Keep battery terminals clean and free from debris. Use a dry cloth to wipe them if necessary.

Troubleshooting

If you encounter issues with your CaliHutt battery, refer to the following common solutions:

Battery Not Charging:

• Ensure the charger is properly plugged into a working power outlet.
• Verify that the battery is securely seated on the charger.
• Check the LED indicators on the battery; if no LEDs illuminate, the battery or charger may be faulty.

Tool Not Operating with Battery:

• Confirm the battery is fully charged using the LED indicators.
• Ensure the battery is correctly and securely installed in the tool.
• The built-in smart protection circuit may prevent operation if the battery detects an issue (e.g., overheating, over-discharge). Allow the battery to cool down or recharge if necessary.

For persistent issues, please contact CaliHutt customer support.

Specifications

Warranty and Support

CaliHutt is committed to providing high-quality products and excellent customer service.

Warranty Information:

• 1.5 Years Free Refund or Replacement: If you are not satisfied with the product within 1.5 years of purchase, you are eligible for a free refund or replacement.
• 18 Months Satisfaction Guarantee: Within 18 months, if you are not satisfied, contact us for a replacement product or a full refund.

Customer Support:

• 24/7 Fast After-Sales Service: Contact our support team for any inquiries or assistance.
• For support, please refer to the contact information provided with your product packaging or visit the official CaliHutt website.

Figure 8: Overview of CaliHutt's customer service and warranty policy.
