Introduction
This manual provides essential information for the safe and efficient operation of your Hotpoint H8 D94WB UK 9kg Freestanding Heat Pump Tumble Dryer. Please read it thoroughly before installation and use, and keep it for future reference.
Your Hotpoint tumble dryer features a 9kg load capacity, ideal for medium to large households. It incorporates advanced heat pump technology for highly efficient drying, contributing to its A+++ energy efficiency rating. Special cycles like Anti-allergy and Pro-Iron are designed to enhance fabric care and user convenience.
Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury to persons.
- Do not allow children to play on or in the appliance. Close supervision is necessary when the appliance is used near children.
- Do not install or store this appliance where it will be exposed to the weather.
- Do not dry unwashed items in the tumble dryer.
- Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
- Remove all objects from pockets such as lighters and matches.
- The appliance must be properly earthed.
- Ensure the power cord is not trapped or damaged during installation.
Setup
Unpacking
Carefully remove all packaging materials from the dryer. Inspect the appliance for any damage incurred during transit. Report any damage to your retailer immediately.
Placement
Place the dryer on a firm, level floor. Ensure there is adequate ventilation around the appliance. Do not install the dryer in a room where the temperature is likely to fall below 5°C, as this may affect the performance of the heat pump.
Image: Angled view of the Hotpoint H8 D94WB UK Tumble Dryer, showing its compact design suitable for various placements.
Electrical Connection
Connect the dryer to a properly earthed electrical outlet. The voltage and frequency requirements are 220V. Do not use extension cords or multiple socket adapters.
First Use Preparation
Before the first use, wipe the drum interior with a damp cloth to remove any dust or residues from manufacturing. Ensure the lint filter and water container are correctly installed.
Operating Instructions
Control Panel Overview
The control panel features a program selector knob, various function buttons, and a digital display. Refer to the diagram below for a general layout.

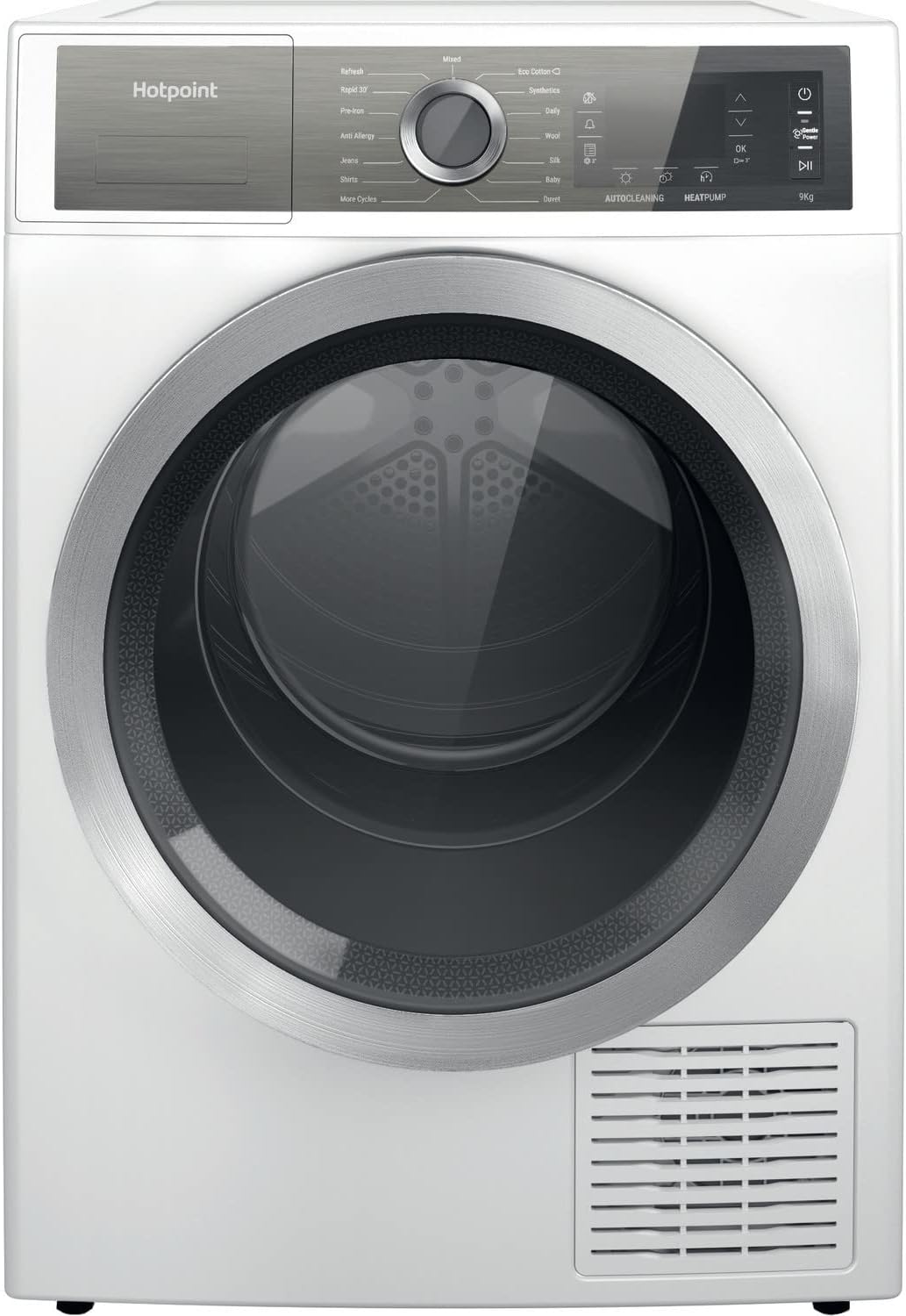

Image: Front view of the Hotpoint H8 D94WB UK Tumble Dryer, highlighting the intuitive control panel and large loading door.
Loading Laundry
Open the dryer door and load laundry into the drum. Do not overload the dryer; ensure clothes can tumble freely. For optimal results, sort laundry by fabric type and desired dryness level.
Image: The Hotpoint H8 D94WB UK Tumble Dryer with its large door open, revealing the spacious 9kg capacity drum.
Selecting a Program
Turn the program selector knob to choose the desired drying program. Available programs include:
- Eco Cotton: Energy-efficient program for cotton items.
- Synthetics: For synthetic and mixed fabrics.
- Mixed: Suitable for a mixed load of cotton and synthetics.
- Refresh: A short cycle to refresh clothes without washing.
- Rapid 30': Quick drying for small loads.
- Anti-allergy: Helps remove common allergens and bacteria from fabrics.
- Pro-Iron: Reduces creases, making ironing easier.
- Jeans: Specific program for denim.
- Wool: Gentle drying for wool items.
- Silk: Delicate drying for silk garments.
- Baby: For baby clothes and delicate items.
Starting a Cycle
Press the Start/Pause button to begin the selected drying cycle. The display will show the remaining time.
End of Cycle
The dryer will signal when the cycle is complete. Remove laundry promptly to minimize creasing. Turn the program selector to the 'Off' position.
Maintenance
Regular maintenance ensures optimal performance and longevity of your tumble dryer.
Cleaning the Lint Filter
Clean the lint filter after every cycle. Pull out the filter, remove accumulated lint, and rinse under running water if necessary. Ensure it is dry before reinserting.
Emptying the Water Container
The water container collects condensation during the drying process. Empty it after each cycle to prevent the dryer from stopping prematurely. Pull out the container, empty the water, and push it back in until it clicks.
Cleaning the Condenser
For heat pump dryers, the condenser requires periodic cleaning (approximately every 3-6 months, depending on usage). Refer to the appliance's specific instructions for accessing and cleaning the condenser unit. This typically involves removing the lower cover and rinsing the condenser fins.
Cleaning the Drum
Wipe the inside of the drum with a damp cloth periodically to remove any residue or lint that may have accumulated.
External Cleaning
Clean the exterior of the dryer with a soft, damp cloth. Do not use abrasive cleaners or solvents.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Dryer does not start | No power; Door not closed; Program not selected | Check power supply; Close door firmly; Select a program and press Start |
| Clothes not drying properly | Lint filter clogged; Water container full; Overloaded; Incorrect program | Clean lint filter; Empty water container; Reduce load size; Select appropriate program |
| Excessive noise | Unbalanced load; Foreign objects in drum | Redistribute laundry; Check drum for objects |
| Water leaking | Water container not inserted correctly | Ensure water container is fully pushed in |
Specifications
| Feature | Specification |
|---|---|
| Brand | Hotpoint |
| Model | H8 D94WB UK |
| Type | Freestanding Heat Pump Tumble Dryer |
| Load Capacity | 9 kg |
| Energy Efficiency Rating | A+++ |
| Dimensions (H x W x D) | 84.9 cm x 59.7 cm x 64.9 cm |
| Weight | 50.5 kg |
| Voltage | 220V |
| Noise Level | 62 dB (as per energy label) |
Image: The official energy label for the Hotpoint H8 D94WB UK, indicating its A+++ energy rating, 9kg capacity, and 62 dB noise level.
Warranty and Support
Your Hotpoint H8 D94WB UK Tumble Dryer comes with a 10-year parts and 1-year labour warranty, providing peace of mind. For warranty claims or technical support, please contact Hotpoint customer service or your retailer.
Keep your purchase receipt as proof of purchase for warranty purposes.
