Whadda Animated Ghost Kit (WSSA166)

1. Introduction

Thank you for purchasing the Whadda Animated Ghost Kit (WSSA166). This kit provides an engaging electronic project that, once assembled, creates a sound-activated animated ghost. It is designed to respond to sudden noises, making it an ideal gadget for Halloween, parties, or as a fun educational project. Please note: This is a kit and requires basic soldering skills for assembly.

2. Safety Information

• Always work in a well-ventilated area when soldering.
• Use appropriate safety gear, including safety glasses, to protect your eyes from solder splashes.
• Ensure your soldering iron is on a heat-resistant stand and unplugged when not in use.
• Avoid touching the hot tip of the soldering iron.
• Keep all components and tools out of reach of children.
• Dispose of electronic waste responsibly.

3. Package Contents

Before beginning assembly, please verify that all components listed below are present in your kit. Refer to the image for visual identification of the kit components.

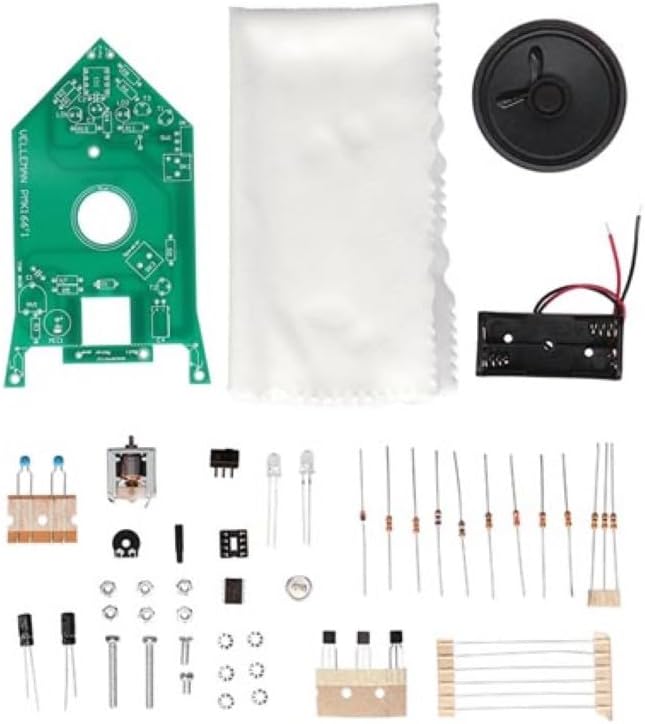

Image: All components included in the Whadda Animated Ghost Kit, laid out for inspection. This includes the PCB, speaker, battery holder, LEDs, resistors, capacitors, transistors, and other small electronic parts.

Your kit should include:

• Printed Circuit Board (PCB)
• Speaker
• Battery Holder (for 2xAAA batteries)
• Various Resistors
• Various Capacitors
• Transistors and Integrated Circuits
• LEDs (Light Emitting Diodes)
• Microphone/Sound Sensor
• Switch
• Mounting Hardware (screws, nuts, standoffs)
• Fabric 'Ghost' Material

4. Setup and Assembly

This section guides you through the assembly process. A basic understanding of electronics and proficiency in soldering are required. If you are new to soldering, it is recommended to practice on scrap components first.

4.1 Tools Required

• Soldering Iron (25-40W recommended)
• Solder (rosin core, electronic grade)
• Wire Cutters/Flush Cutters
• Needle-nose Pliers
• Multimeter (optional, for testing connections)
• Safety Glasses

4.2 Assembly Steps

1. Identify Components: Carefully identify each component using the provided circuit diagram (if included) and the markings on the PCB. Resistors have color codes, capacitors have values printed, and integrated circuits have model numbers.
2. Solder Smallest Components First: Begin by soldering the smallest components, such as resistors and diodes, to the PCB. This prevents larger components from obstructing access. Insert the component, bend the leads slightly to hold it in place, solder each lead, and then trim the excess leads with flush cutters.
3. Solder Integrated Circuits (ICs): If your kit includes ICs, ensure correct orientation (usually indicated by a notch or dot on the IC and a corresponding mark on the PCB). Solder each pin carefully, avoiding solder bridges.
4. Solder Capacitors and Transistors: Pay attention to polarity for electrolytic capacitors and transistors. The longer lead of an electrolytic capacitor is usually positive (+). Transistors have specific pinouts (Emitter, Base, Collector) that must match the PCB.
5. Solder Speaker and Microphone: Connect the speaker and microphone to their designated pads on the PCB. Ensure correct polarity if indicated.
6. Solder Battery Holder Wires: Connect the red wire from the battery holder to the positive (+) terminal on the PCB and the black wire to the negative (-) terminal. Double-check polarity.
7. Solder Switch: Solder the power switch to its designated location.
8. Mounting: Secure the assembled PCB and speaker within the ghost housing or frame using the provided mounting hardware.
9. Attach Fabric: Drape and secure the fabric 'ghost' material over the assembled electronics and frame, ensuring the LEDs are visible as eyes.

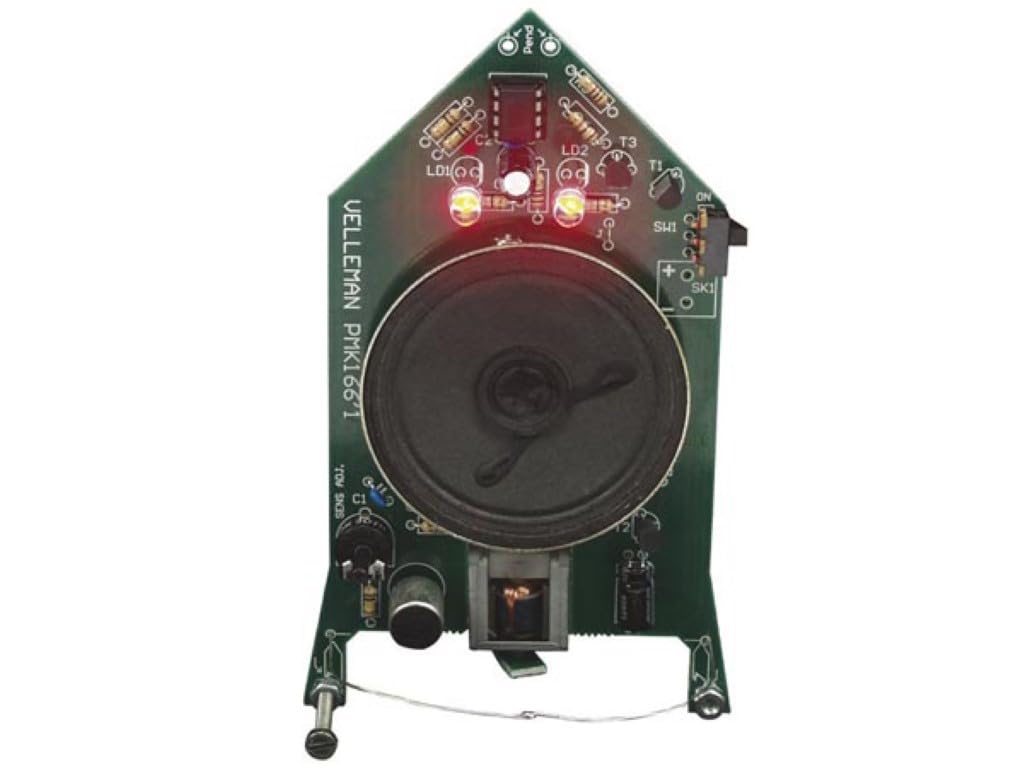

Image: The fully assembled circuit board of the Whadda Animated Ghost Kit, showing soldered components, speaker, and LEDs.

5. Operating Instructions

Once assembled, your Animated Ghost is ready for operation.

5.1 Battery Installation

• Open the battery compartment on the battery holder.
• Insert 2x AAA batteries, ensuring correct polarity (+/-).
• Close the battery compartment securely.

5.2 Powering On/Off

Locate the power switch on the assembled circuit board. Flip the switch to the 'ON' position to power on the ghost. Flip it to 'OFF' to power down.

5.3 Sound Activation and Sensitivity

The Animated Ghost is designed to respond to sudden noises. When a sharp sound is detected, the ghost's eyes (LEDs) will light up, and it will emit a ghostly sound effect.

• Adjusting Sensitivity: A potentiometer (small knob or screw on the PCB) allows you to adjust the sensitivity of the sound sensor. Turn it clockwise to increase sensitivity (responds to quieter sounds) or counter-clockwise to decrease sensitivity (requires louder sounds).

Image: The fully assembled Whadda Animated Ghost, showing its white fabric and glowing red LED eyes, indicating it is active or has been triggered by sound.

6. Maintenance

• Cleaning: Use a soft, dry cloth to gently clean the exterior of the ghost. Avoid using liquids or abrasive cleaners.
• Battery Replacement: If the ghost's response becomes weak or inconsistent, replace the AAA batteries. Always replace both batteries at the same time.
• Storage: When not in use for extended periods, remove the batteries to prevent leakage and store the ghost in a dry, cool place.

7. Troubleshooting

8. Specifications

• Model: WSSA166
• Function: Sound-activated animated ghost
• Power Supply: 2x AAA batteries
• Features: Responds to sudden noises, adjustable sensitivity
• Dimensions: 137 x 68 x 50 mm (5.39 x 2.68 x 1.97 inches)
• Weight: Approximately 5 Ounces (142 grams)
• Skill Level: Requires basic soldering skills

9. Warranty and Support

For warranty information or technical support regarding your Whadda Animated Ghost Kit (WSSA166), please refer to the documentation provided with your purchase or contact the retailer/manufacturer directly. As this is a DIY kit, successful operation is dependent on correct assembly and soldering techniques.
