1. Product Overview
The Tienily Handheld Cordless Vacuum Cleaner is designed for efficient cleaning in various environments, including homes, offices, and vehicles. It features strong suction, a lightweight design, and multiple attachments for versatile use.
This image displays the Tienily Handheld Cordless Vacuum Cleaner along with its full set of accessories, including various nozzles for different cleaning tasks, an extension hose, and the charging cable.
Package Contents:
- Handheld Vacuum Cleaner Unit
- Gap Nozzle (Crevice Tool)
- Dust Brush
- Extension Hose
- Washable HEPA Filter (pre-installed)
- Charger
2. Setup and Charging
Initial Charge:
- Before first use, ensure the vacuum cleaner is fully charged.
- Connect the charger to the vacuum cleaner's charging port and plug it into a power outlet.
- The charging indicator light will illuminate. A full charge typically takes 2-3 hours.
- Once fully charged, disconnect the charger. The vacuum is now ready for use.

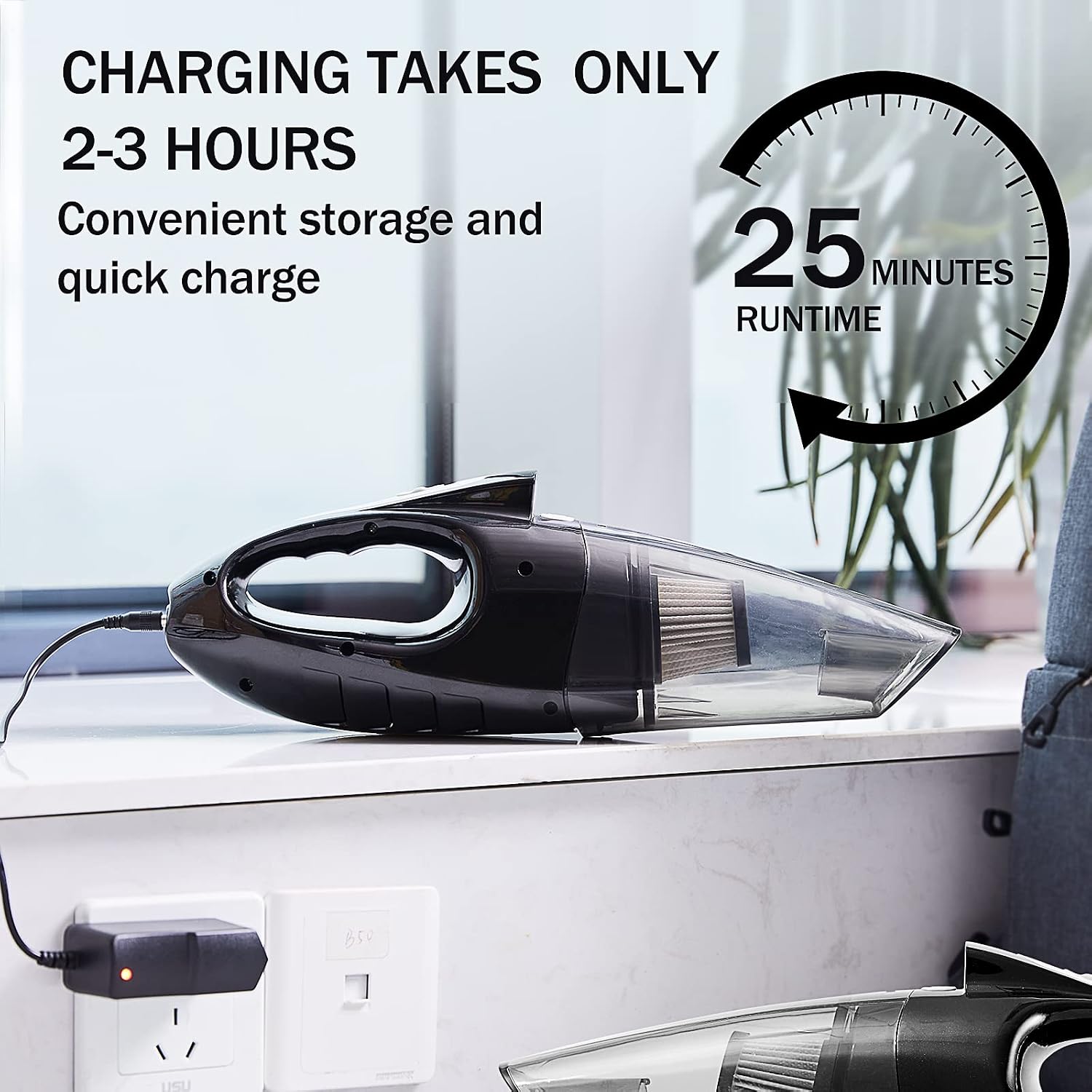

The handheld vacuum is shown connected to its charging cable, illustrating the charging process. A full charge typically takes 2-3 hours.
Attaching Accessories:
- To attach a nozzle or hose, align it with the vacuum's suction inlet and push firmly until it clicks into place.
- To remove, gently twist and pull the attachment away from the inlet.
3. Operating Instructions
Power On/Off:
- To turn on the vacuum, slide the power switch to the 'ON' position.
- To turn off, slide the power switch to the 'OFF' position.
Using Attachments:
- Gap Nozzle (Crevice Tool): Ideal for reaching narrow spaces, corners, and between car seats.
- Dust Brush: Suitable for cleaning delicate surfaces, upholstery, and removing pet hair from fabrics.
- Extension Hose: Provides extended reach for difficult-to-access areas, such as under furniture or deep within car interiors.
This image demonstrates the versatility of the vacuum, showing it cleaning a carpet with the brush attachment and reaching tight spaces in a car interior using the crevice tool.
LED Light:
- The integrated LED light illuminates dimly lit areas, improving visibility during cleaning.
4. Maintenance
Emptying the Dust Cup:
- Ensure the vacuum is turned off.
- Press the release button to detach the transparent dust collection cup from the main unit.
- Empty the contents of the dust cup into a trash receptacle.
- Reattach the dust cup to the vacuum until it clicks securely into place.
The image illustrates the simple process of emptying the transparent dust collection cup. The cup detaches with a single button press for convenient disposal of collected debris.
Cleaning the HEPA Filter:
- After emptying the dust cup, remove the HEPA filter.
- Rinse the filter under running water until clean. Do not use detergents or hot water.
- Allow the filter to air dry completely before reinserting it into the dust cup. Ensure it is fully dry to prevent damage to the vacuum.
- Regular cleaning of the filter maintains optimal suction performance.
This image shows the washable HEPA filter being rinsed under running water, highlighting the ease of maintenance for optimal performance.
5. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Vacuum does not turn on | Battery is depleted | Charge the vacuum cleaner for 2-3 hours. |
| Low suction power | Dust cup is full or filter is clogged | Empty the dust cup and clean the HEPA filter. Ensure the filter is completely dry before reinserting. |
| Attachments do not stay connected | Attachment not properly secured | Ensure attachments are pushed firmly onto the suction inlet until they click into place. |
| Short battery runtime | Battery not fully charged or aging battery | Ensure the vacuum is fully charged before use. Battery life may decrease over time with repeated charging cycles. |
6. Specifications
- Brand: Tienily
- Model: Handheld Cordless Vacuum Cleaner
- Suction Power: Max 8500PA
- Motor Power: 150W
- Noise Level: Below 75 Decibels
- Power Source: Battery Powered (3 Lithium Ion batteries included)
- Charging Time: 2-3 hours
- Runtime: Up to 25 minutes
- Filter Type: Washable HEPA (Cloth)
- Form Factor: Handheld
- Color: Black
- Item Weight: 2.38 pounds
- Product Dimensions: 14.56 x 5.11 x 5.11 inches
- Connectivity Technology: USB (for charging)
7. Warranty and Support
For any questions regarding your Tienily Handheld Cordless Vacuum Cleaner, please contact the Tienily service team. We are committed to providing technical support and after-sales service.
Please retain your proof of purchase for warranty claims.
