Yaheetech Upholstered Bed Frame User Manual

Product Overview

The Yaheetech Upholstered Bed Frame is designed for comfort and functionality, featuring a sturdy metal and wood construction, an adjustable headboard, and integrated storage drawers. This bed frame eliminates the need for a box spring, providing direct support for your mattress.

Key Features:

• Sturdy and Durable: Crafted from premium wood, high-quality PU leather, and a solid steel metal frame, supporting up to 363kg/800lb.
• Underbed Storage: Equipped with 4 wire netting drawers (31.5''L x 19.7''W x 6''H) for organized storage of bedding and other items.
• No Box Spring Needed: Wooden slats provide direct mattress support, extending mattress life.
• Faux Leather Upholstery: High-grade faux leather with dense foam padding for enhanced comfort and an adjustable headboard height (39.5″ to 44″).
• Easy Cleaning: Smooth painted metal and PU leather surfaces allow for simple cleaning with a dry or damp cloth.

Figure 1: Fully assembled Yaheetech Upholstered Bed Frame in black.

Safety Information

• Always refer to the product's 'Maximum Weight Capacity' (800 Pounds) and 'Slat Spacing' information before use.
• Ensure proper assembly according to the instructions provided in this manual.
• Keep fingers away from moving parts during assembly to avoid pinching.
• Inspect the bed frame regularly for any signs of wear or damage. Discontinue use if damage is found.
• Do not exceed the recommended weight capacity to prevent injury or damage to the product.

Package Contents

Before beginning assembly, ensure all parts listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.

• Headboard (Upholstered)
• Bed Frame Components (Metal)
• Slats (Wooden)
• Drawers (4 wire netting drawers with upholstered fronts)
• Installation Manual (PDF - refer to provided document for detailed diagrams)
• Assembly Hardware (Screws, Allen Wrench, etc.)

Assembly Instructions

Follow these steps carefully for proper assembly. It is recommended to have two people for assembly.

1. Prepare Components

Unpack all components and lay them out on a clean, soft surface (like a carpet) to prevent scratches. Identify all parts according to the parts list in the included Installation Manual PDF.

Figure 2: Product dimensions and maximum weight capacity (363 kg / 800 lbs).

2. Assemble Bed Frame

Connect the main metal frame pieces using the provided screws and the Allen wrench. Ensure all connections are secure but do not overtighten until all pieces are aligned.

Figure 3: Illustration of the sturdy metal frame and wooden slat support system.

3. Attach Headboard and Footboard

Secure the upholstered headboard to the assembled frame using the designated screws. Repeat for the upholstered footboard. Ensure the headboard is set to your desired height before fully tightening.

Figure 4: The headboard height can be adjusted to fit various mattress thicknesses.

4. Install Wooden Slats

Place the wooden slats across the bed frame, ensuring they fit securely into the plastic caps on the side rails. The slats provide direct support for your mattress.

Figure 5: Attach plastic parts to outer slats and fix slats on both sides of the bed.

5. Assemble Storage Drawers

Assemble the four wire netting drawers by attaching the upholstered fronts and wheels. Ensure the wheels are securely fastened for smooth operation.

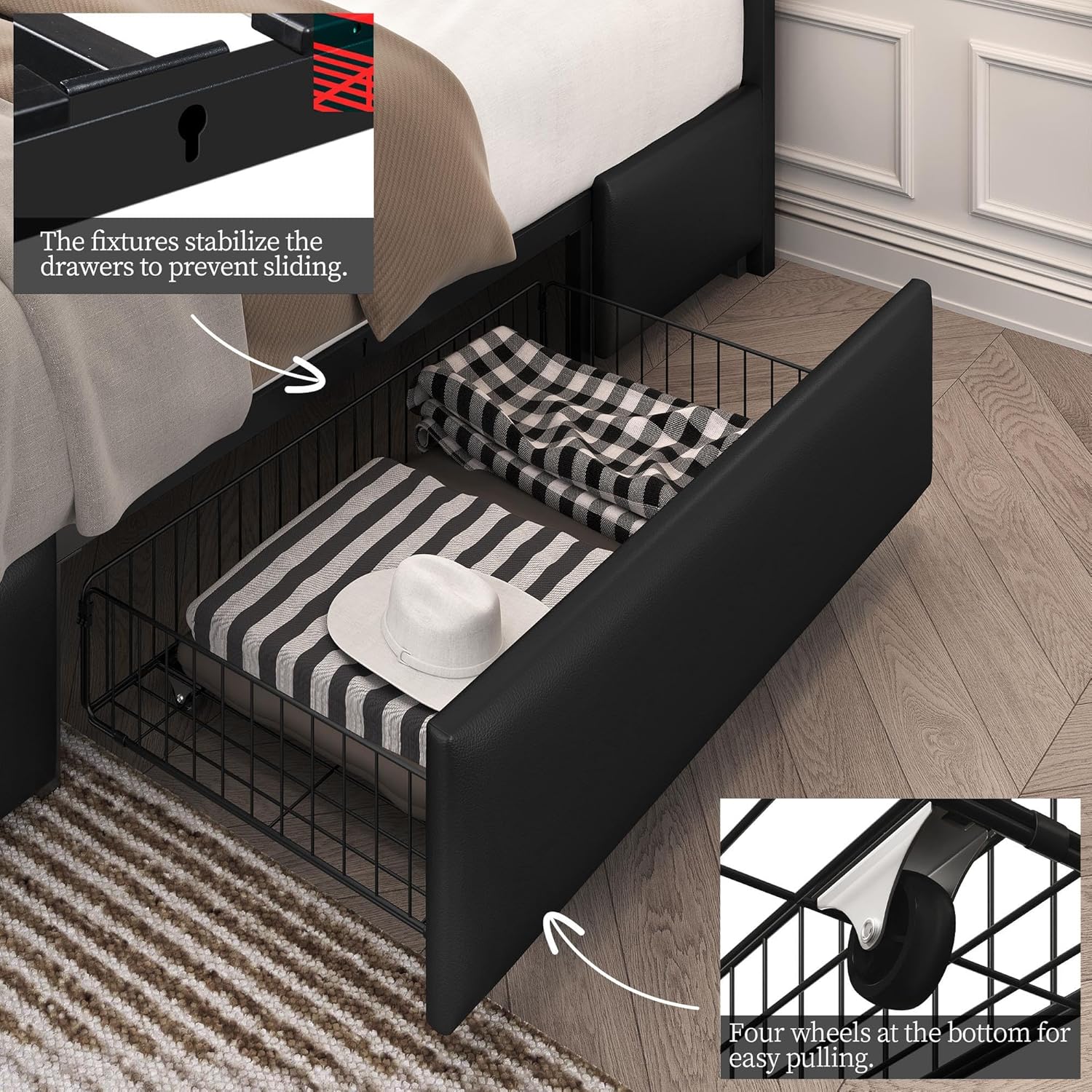

Figure 6: Drawer fixtures prevent sliding, and four wheels allow for easy pulling.

Figure 7: Real details of the drawer, showing dimensions (31.5" x 19.7" x 6") and wheel assembly.

6. Integrate Drawers into Bed Frame

Slide the assembled drawers under the bed frame. The drawers are designed to fit neatly and can be secured to the frame using the integrated fixtures to prevent unwanted sliding.

Figure 8: The bed frame with all four storage drawers extended, showcasing ample storage space.

Figure 9: Ensure enough space (54 cm) for the nightstand and easy access to the drawers.

Assembly Videos:

Operating Instructions

Using the Storage Drawers:

The four underbed drawers are designed for easy access and organization. Simply pull the upholstered front of the drawer to slide it out on its wheels. Push it back in until it aligns with the bed frame for a seamless look. The integrated fixtures help prevent accidental sliding.

Adjusting the Headboard:

The headboard height can be adjusted to accommodate mattresses of varying thicknesses. To adjust, loosen the screws connecting the headboard to the frame, slide the headboard to the desired height (between 39.5″ and 44″), and then securely tighten the screws.

Maintenance & Care

To maintain the appearance and longevity of your Yaheetech Upholstered Bed Frame, follow these simple care instructions:

• Cleaning: Wipe the faux leather upholstery and painted metal surfaces with a dry or damp cloth. Avoid harsh chemicals or abrasive cleaners.
• Regular Inspection: Periodically check all screws and connections to ensure they remain tight. Retighten if necessary to maintain stability and prevent squeaking.
• Weight Distribution: Distribute weight evenly across the bed frame to prevent undue stress on the slats and frame.

Troubleshooting

If you encounter any issues with your bed frame, refer to the following common troubleshooting tips:

• Squeaking Noises: Squeaking often indicates loose connections. Check and tighten all assembly screws, especially those on the main frame and headboard.
• Drawers Not Sliding Smoothly: Ensure the drawer wheels are clean and free of debris. Check that the drawers are properly aligned within their tracks and that no items are obstructing their path.
• Instability: Verify that all frame components are correctly assembled and all screws are fully tightened. Ensure the bed is placed on a flat, even surface.

Specifications

Warranty and Support

For warranty information or technical support, please refer to the contact details provided in the original product packaging or visit the official Yaheetech website. Keep your purchase receipt for warranty claims.
