1. Introduction
Thank you for choosing the Leuwd Countertop Ice Maker. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new ice maker. Please read it thoroughly before first use and retain it for future reference.

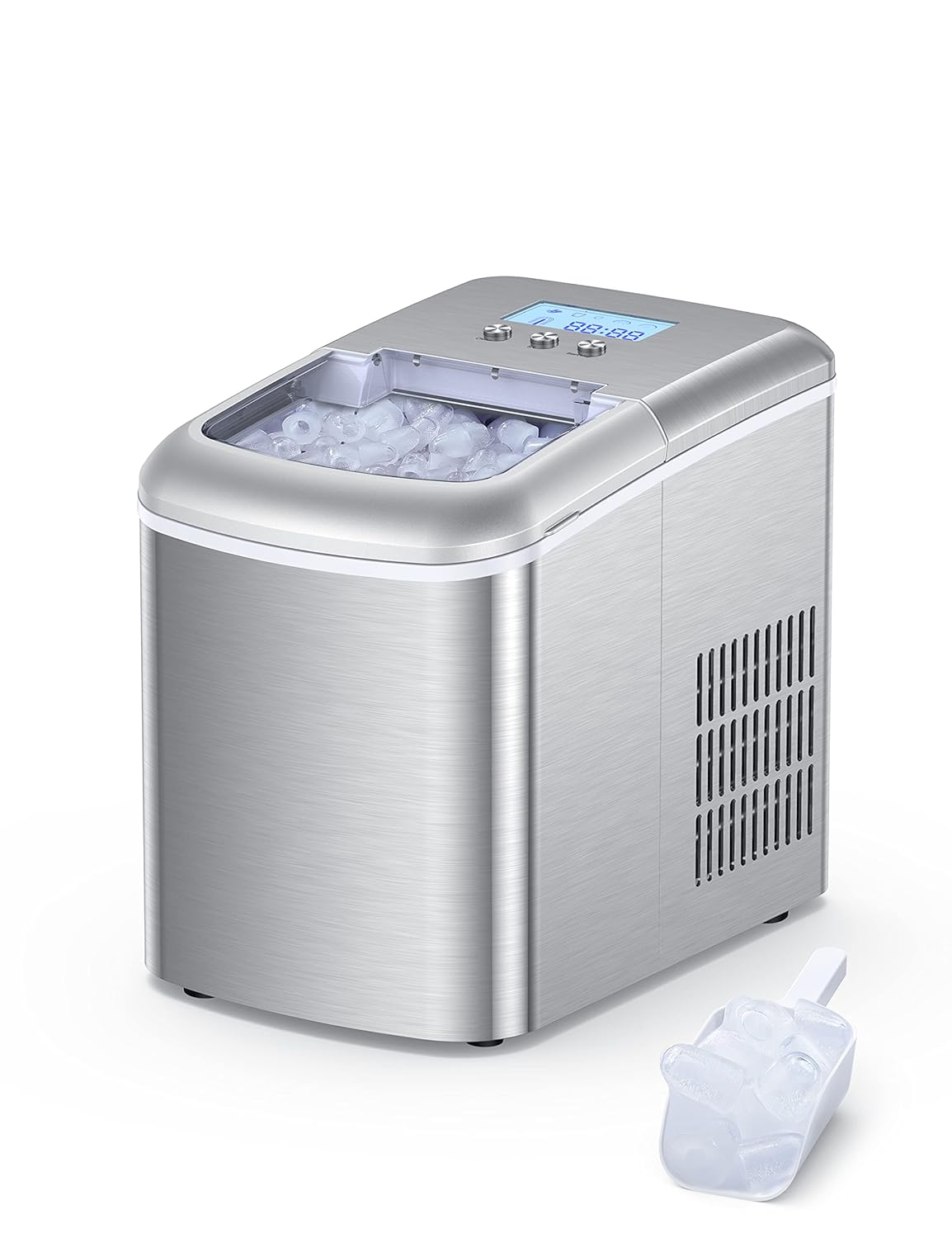

Figure 1: Leuwd Countertop Ice Maker with included accessories.
2. Product Overview
2.1 What's in the Box
- 1 x Ice Maker Machine for Counter Top
- 1 x Ice Basket
- 1 x Ice Scoop
- 1 x User Guide
2.2 Key Features
- Fast Ice Making: Produces 9 bullet-shaped ice cubes in 6-9 minutes, with up to 22 lbs of ice per day.
- Clear LCD Display: Shows ice making status, self-cleaning mode, ice size selection (small/large), and alerts for full ice basket or empty water reservoir.
- Self-Cleaning Function: Simplifies maintenance by eliminating mineral scale buildup.
- Durable & Safe Construction: Made from high-quality 304 stainless steel and food-grade ABS materials for safety and longevity.
- Large Capacity: 2.1L water reservoir generates up to 4.6 lbs of ice cubes per fill.

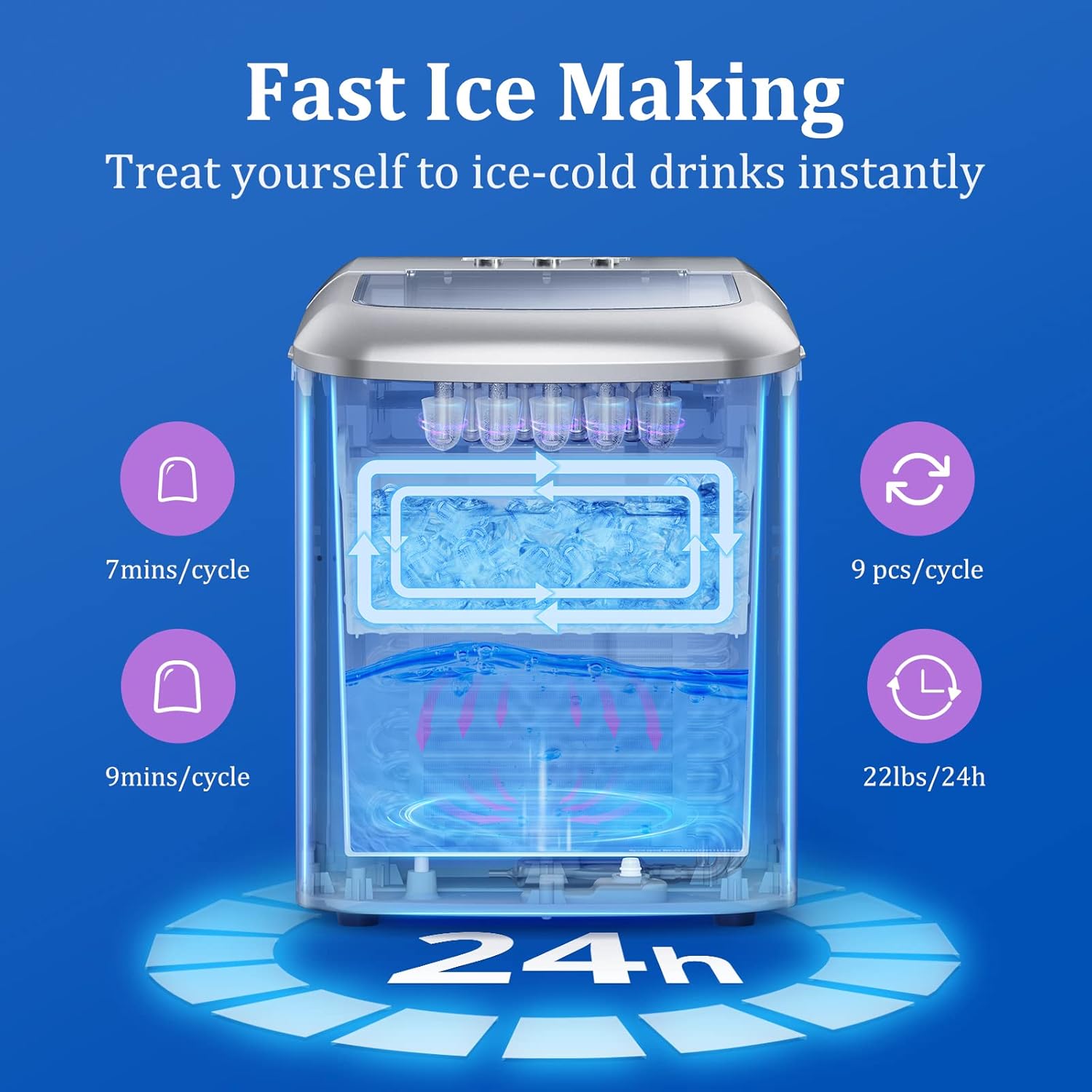

Figure 2: Illustration of the ice maker's rapid ice production capability.
Figure 3: Detailed view of the intuitive LCD control panel.
Figure 4: Construction materials: Food-Grade ABS, Good Insulation, and 304 Stainless Steel.
3. Setup
3.1 Unpacking and Placement
- Carefully remove all packaging materials and check that all components listed in Section 2.1 are present and undamaged.
- Place the ice maker on a flat, stable, and level surface, away from direct sunlight or heat sources. Ensure there is adequate ventilation around the unit (at least 4 inches of space on all sides).
- Allow the unit to stand upright for at least 2 hours before plugging it in, especially if it was transported horizontally. This allows the refrigerant to settle.
3.2 Initial Cleaning
- Before first use, clean the interior of the ice maker. Remove the ice basket and wash it with warm water and a mild detergent. Rinse thoroughly.
- Wipe the interior with a soft cloth dampened with warm water and a small amount of vinegar or mild detergent. Rinse with clean water and dry thoroughly.
- Ensure the drain plug at the bottom of the unit is securely closed.
4. Operating Instructions
4.1 Adding Water
- Open the top lid and fill the water reservoir with potable water up to the MAX fill line. Do not overfill.
- Close the lid securely.
4.2 Starting Ice Production
- Plug the ice maker into a grounded electrical outlet.
- Press the "Start/Stop" button on the control panel to begin the ice making cycle.
- To select ice cube size (small or large), press the "S/L" button. The selected size will be indicated on the LCD display.
- The first batch of ice may take slightly longer to produce and may be smaller or irregular in shape. This is normal. Discard the first few batches of ice.
4.3 Understanding LCD Indicators
- Ice Full: The indicator will illuminate when the ice basket is full. The ice maker will automatically pause production. Remove ice to resume operation.
- Add Water: The indicator will illuminate when the water reservoir is low. Add water to the reservoir to resume ice production.
- S/L: Indicates the currently selected ice cube size (Small or Large).
- Clean: Indicates the self-cleaning mode is active.
Video 1: Demonstration of the ice maker in operation, showing ice production and collection.
5. Maintenance
5.1 Self-Cleaning Function
- Ensure the ice maker is empty of ice and water.
- Fill the water reservoir with clean water up to the MAX line.
- Press the "Clean" button on the control panel to activate the self-cleaning cycle. The "Clean" indicator will light up.
- The cleaning cycle will run for a few minutes, circulating water through the system.
- Once the cycle is complete, drain the water from the unit by unplugging the drain plug at the bottom.
- Rinse the interior with clean water and drain again.
Figure 5: Visual representation of the self-cleaning process.
5.2 Regular Cleaning
- Regularly wipe the exterior of the unit with a soft, damp cloth.
- Clean the ice basket and ice scoop after each use.
- For thorough cleaning, especially if the unit is not used frequently, perform the self-cleaning cycle and then manually clean any remaining residue.
- Always ensure the unit is unplugged before performing any manual cleaning.
6. Troubleshooting
If you encounter issues with your ice maker, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Ice maker not producing ice. | No water in reservoir; water pump malfunction; ambient temperature too high. | Ensure water reservoir is filled. Check for obstructions in water lines. Operate in a cooler environment. |
| "Add Water" indicator is on, but reservoir is full. | Water sensor dirty or obstructed. | Clean the water sensor located at the bottom of the reservoir. |
| Ice cubes are too small or irregular. | Insufficient water; ambient temperature too high; first few cycles. | Ensure water is at MAX level. Operate in a cooler environment. Discard first few batches. |
| Ice maker is noisy. | Normal operation sounds (compressor, water pump); unit not level. | Ensure unit is on a flat, stable surface. If noise is excessive or unusual, contact customer support. |
| Ice cubes stick together in basket. | Ice melting and refreezing; high humidity. | Transfer ice to a freezer bag or container immediately after production. Do not leave ice in the basket for extended periods. |
If the problem persists after attempting these solutions, please contact Leuwd customer support.
7. Specifications
| Specification | Value |
|---|---|
| Brand | Leuwd |
| Model Name | Ice Maker Countertop Machine |
| Product Dimensions | 12.4"D x 9.5"W x 14.7"H |
| Capacity | 0.6 Kilograms (Ice Basket), 2.1 Liters (Water Reservoir) |
| Wattage | 120 watts |
| ASIN | B09KV17R2Y |
| Date First Available | November 19, 2021 |
8. Warranty and Support
Leuwd values your satisfaction. Your ice maker comes with a 12-month warranty from the date of purchase. We also provide lifetime technical support and 24-hour professional customer service.
If you have any questions, concerns, or require assistance with your Leuwd ice maker, please do not hesitate to contact us through the retailer's platform or visit the official Leuwd store for more information:
