1. Safety Instructions
Always observe basic safety precautions when using electric tools to reduce the risk of fire, electric shock, and personal injury. Read all instructions before operating this tool.
General Power Tool Safety Warnings
- Work Area Safety: Keep work area clean and well lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
- Electrical Safety: Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
- Personal Safety: Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
- Power Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
- Battery Tool Use and Care: Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
- Service: Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
2. Product Overview
The POWERPLUS POWDP15200 is a versatile 20V cordless impact drill driver designed for various drilling and screwing applications. It is part of the Dual Power range, meaning its battery and charger (sold separately) are compatible with other Dual Power tools.
Key Features:
- Adjustable Speed and Rotation: Two-speed gearbox (0-450 min-1 / 0-1800 min-1) and a forward/reverse switch for optimal control.
- Multi-Material Capability: Drills up to 25 mm in wood, 10 mm in steel, and 10 mm in concrete.
- 3-in-1 Functionality: Offers screwing, drilling, and impact drilling modes with 23+2 torque settings.
- Powerful Performance: Delivers up to 50 Nm of torque and an impact rate of 7200-28800 strokes per minute.
- Enhanced Visibility: Integrated LED work light illuminates the work area.
- Safety Mechanisms: Features soft start, quick stop, and overload protection.
- Quick Accessory Change: Spindle lock for easy chuck and bit changes.
Figure 2.1: Front view of the POWERPLUS POWDP15200 Cordless Impact Drill Driver. This image shows the overall design of the tool, including the chuck, speed selector, and handle.

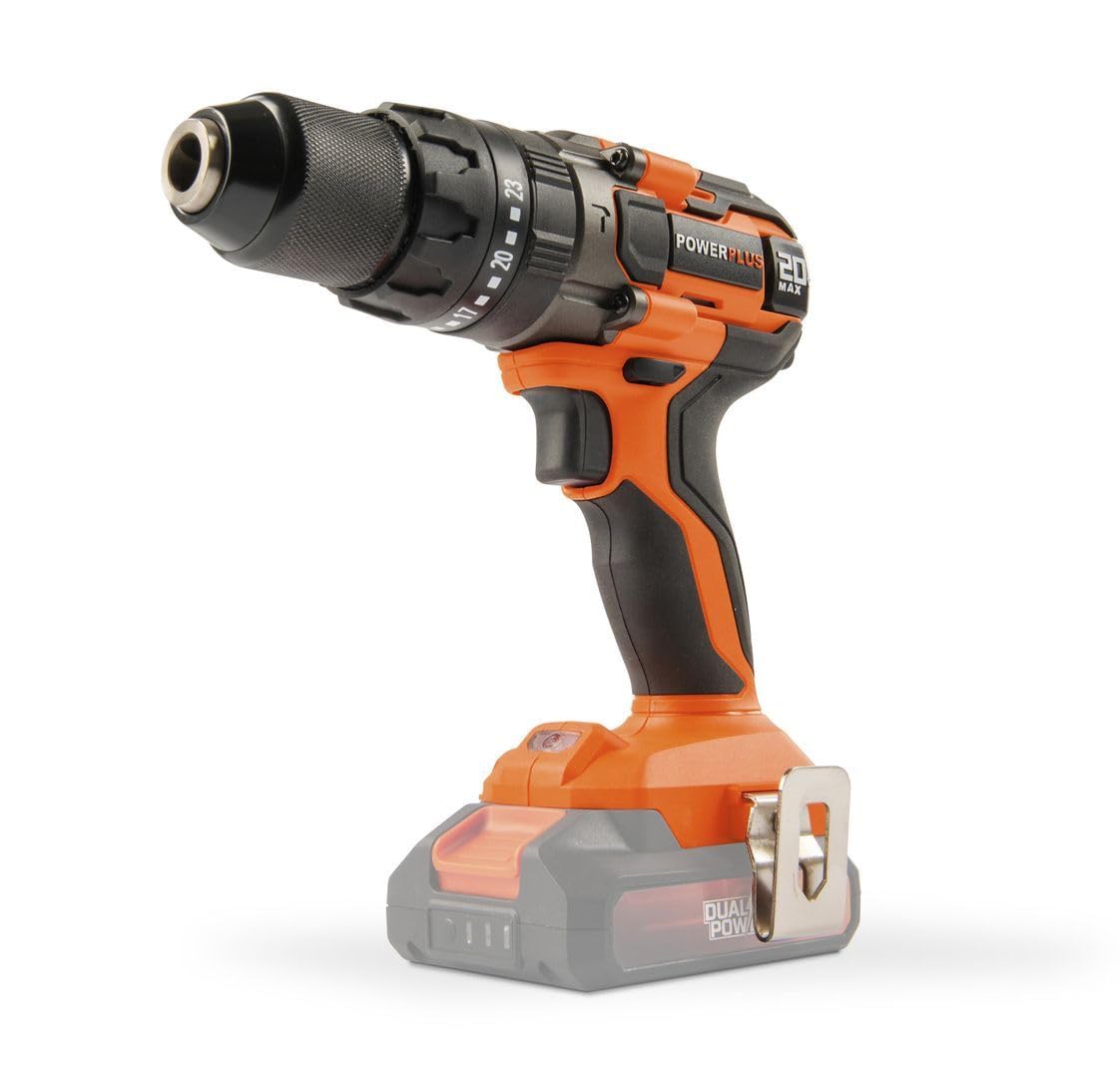

Figure 2.2: The POWERPLUS POWDP15200 drill driver with a compatible Dual Power battery attached. Note that the battery and charger are sold separately.
3. Setup
3.1. Battery Installation and Charging
This tool requires a 20V Dual Power battery and a compatible charger, which are not included and must be purchased separately. Ensure the battery is fully charged before first use.
- To install the battery, align the battery pack with the slot in the base of the drill handle.
- Slide the battery into place until it clicks securely.
- To remove the battery, press the release button(s) on the sides of the battery pack and slide it out.
Figure 3.1: Rear view of the drill driver, showing the battery compartment where the Dual Power battery slides in.
Figure 3.2: Side view of the drill driver, illustrating the ergonomic handle and the battery interface.
Figure 3.3: Close-up of the drill chuck and torque adjustment ring. This ring allows selection of 23 torque settings for screwing, a drill mode, and an impact drill mode.
3.2. Installing Drill Bits or Screwdriver Bits
- Ensure the tool is switched off and the battery is removed for safety.
- Rotate the chuck counter-clockwise to open the jaws.
- Insert the desired drill bit or screwdriver bit into the chuck. Ensure the bit is centered and fully inserted.
- Rotate the chuck clockwise to tighten the jaws firmly around the bit. The spindle lock feature assists in holding the chuck steady during this process.
- Pull on the bit to ensure it is securely fastened.
4. Operation
4.1. Selecting Speed and Rotation Direction
The drill driver features a two-speed gearbox and a forward/reverse selector.
- Speed Selector: Use the switch on top of the drill to select between two speeds:
- Position 1 (Low Speed): 0-450 min-1, ideal for screwing and larger drilling diameters.
- Position 2 (High Speed): 0-1800 min-1, suitable for smaller drilling diameters and faster work.
- Forward/Reverse Switch: Located above the trigger, this switch controls the rotation direction.
- Push left for forward rotation (screwing in, drilling).
- Push right for reverse rotation (unscrewing, removing bits).
- Center position locks the trigger for safety during storage or bit changes.

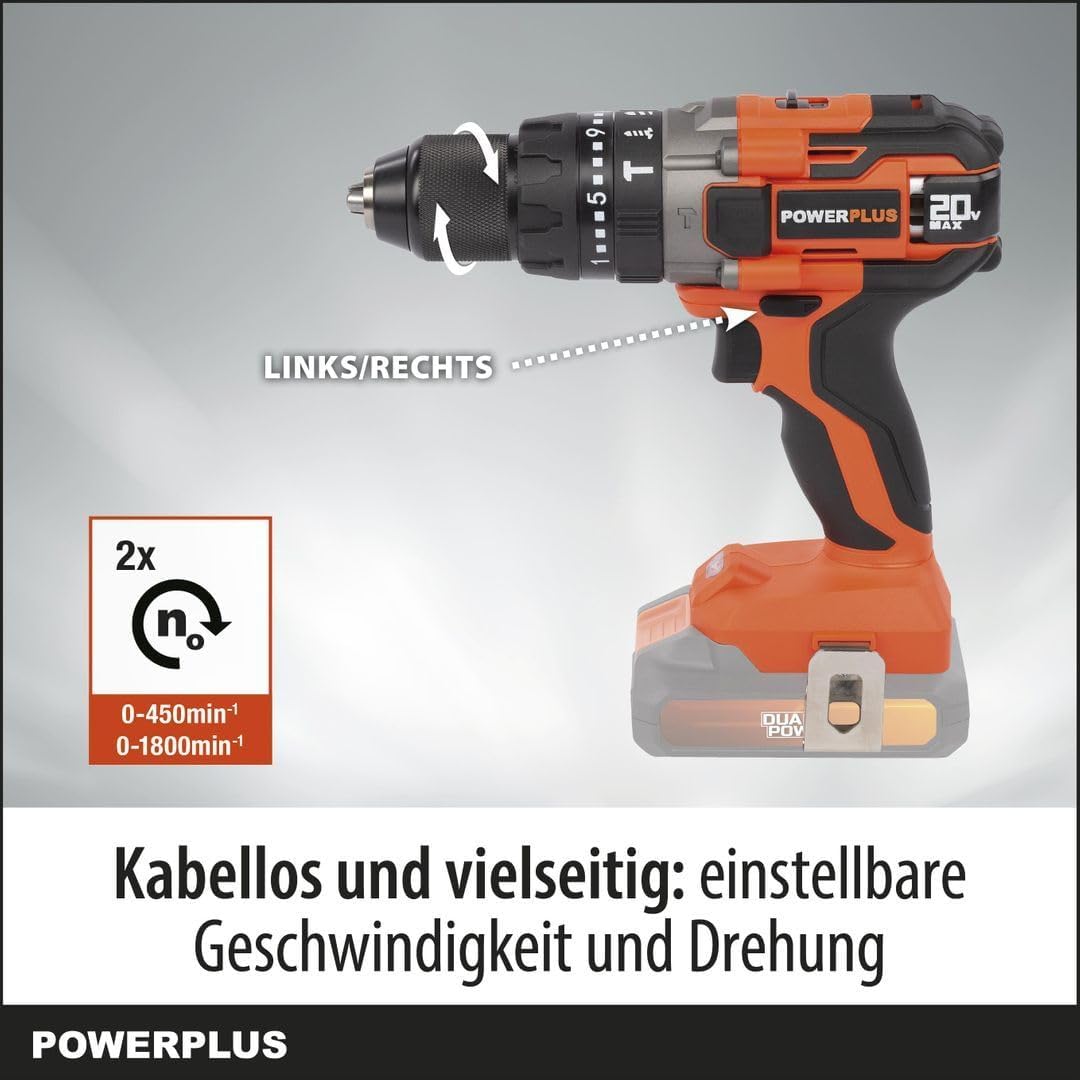

Figure 4.1: Illustration of the speed selector (2x n0) and the forward/reverse switch (LINKS/RECHTS). The image highlights the two speed ranges: 0-450 min-1 and 0-1800 min-1.
4.2. Adjusting Torque and Mode
The torque adjustment ring allows you to select the appropriate torque for screwing or switch to drilling or impact drilling modes.
- Screwing Mode: Rotate the ring to select one of the 23 torque settings. Lower numbers are for smaller screws and softer materials, higher numbers for larger screws and harder materials. This prevents over-tightening and stripping screw heads.
- Drilling Mode (Drill Bit Icon): Select this mode for general drilling without impact. The clutch will not engage, providing full power.
- Impact Drilling Mode (Hammer Drill Icon): Select this mode for drilling into masonry or concrete. This mode combines rotation with a hammering action.
Figure 4.2: Close-up of the chuck and torque adjustment ring, showing the 23 torque settings, drill icon, and impact drill icon.
4.3. Starting and Stopping the Tool
- To start the tool, press the trigger switch. The tool features a soft start mechanism for controlled acceleration.
- The integrated LED work light will illuminate when the trigger is pressed, providing visibility to the work area.
- To stop the tool, release the trigger switch. The quick stop feature will rapidly halt the chuck's rotation.
Figure 4.3: The drill driver with its LED work light activated, illuminating the area in front of the chuck for improved visibility.
4.4. Drilling and Screwing Tips
- Always use sharp, appropriate bits for the material and task.
- For drilling, apply steady, even pressure. Do not force the tool.
- For screwing, start with a lower torque setting and increase if necessary to avoid stripping screw heads.
- When drilling into hard materials or concrete, use the impact drilling mode and ensure the bit is designed for impact use.
- The tool is suitable for drilling up to 25mm in wood, 10mm in steel, and 10mm in concrete.

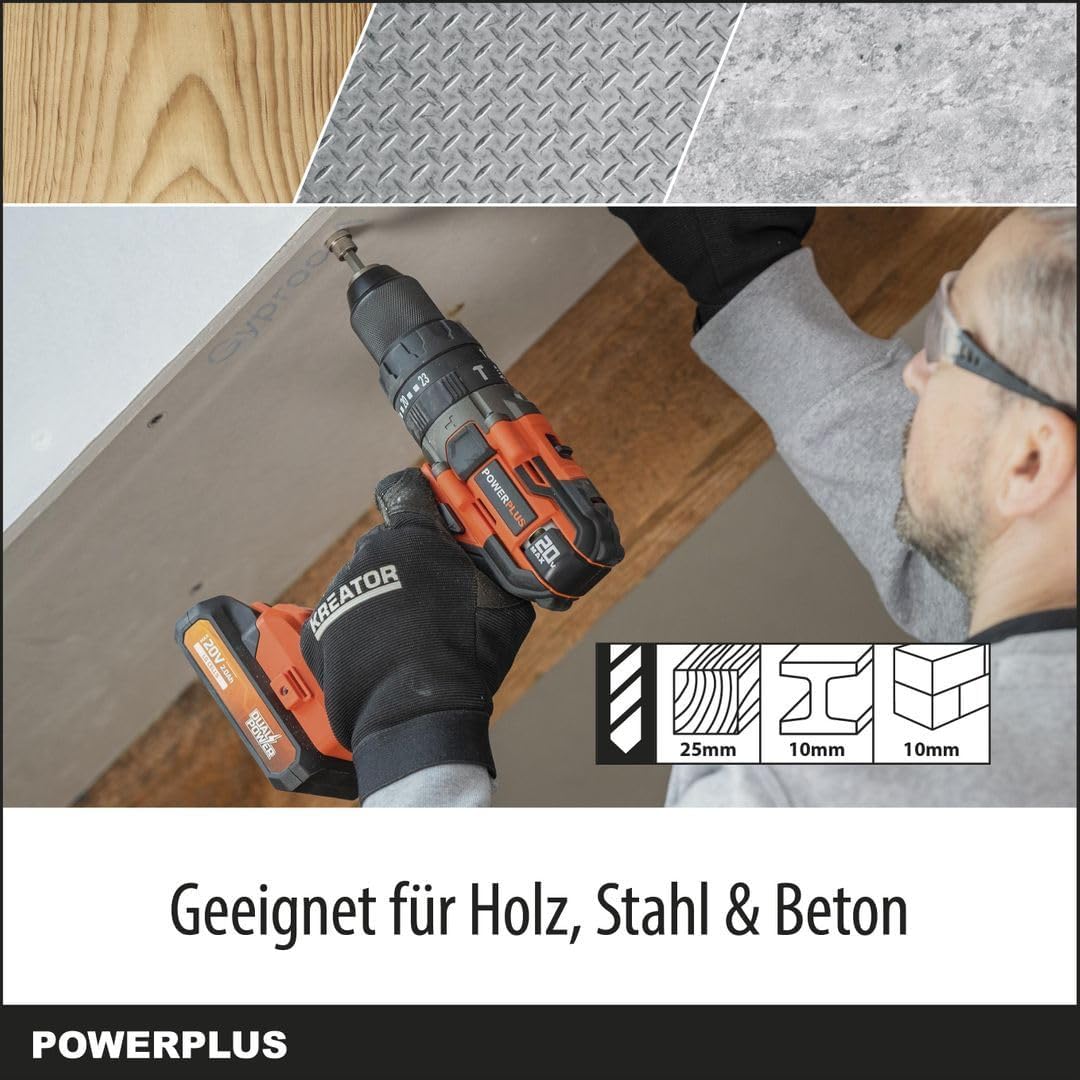

Figure 4.4: The drill driver being used to drill into a wooden surface, demonstrating its capability for wood applications up to 25mm.
Figure 4.5: The drill driver in operation, illustrating its powerful 50 Nm torque and controlled performance for various tasks.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your POWERPLUS POWDP15200 drill driver.
5.1. Cleaning
- Always disconnect the battery before cleaning.
- Keep the ventilation openings clean to prevent overheating. Use a soft brush or compressed air to clear dust and debris.
- Wipe the tool housing with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
- Clean the chuck jaws regularly to ensure proper grip on bits.
5.2. Storage
- Store the tool in a dry, secure place, out of reach of children.
- Remove the battery from the tool before storing for extended periods.
- Store batteries in a cool, dry place, away from direct sunlight and extreme temperatures.
6. Troubleshooting
If you encounter issues with your drill driver, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Tool does not start. | Battery not installed correctly or discharged. Trigger lock engaged. | Ensure battery is fully charged and properly inserted. Check that the forward/reverse switch is not in the center (locked) position. |
| Reduced power or stops during operation. | Battery low. Overload protection activated. | Recharge the battery. Reduce pressure on the tool or use a lower speed/torque setting. Allow the tool to cool down if it has overheated. |
| Bit slips in chuck. | Chuck not tightened sufficiently. Bit shank is dirty or damaged. | Tighten the chuck firmly. Clean the bit shank or replace damaged bits. |
| Excessive vibration or noise. | Damaged bit. Loose components. | Replace the bit. Check for any loose parts. If the problem persists, contact customer support. |
7. Specifications
| Feature | Specification |
|---|---|
| Model Number | POWDP15200 |
| Brand | POWERPLUS |
| Nominal Voltage | 20 V |
| Max. Torque | 50 Nm |
| No-load Speed (Gear 1) | 0 - 450 min-1 |
| No-load Speed (Gear 2) | 0 - 1800 min-1 |
| Impact Rate (Gear 1) | 0 - 7200 strokes/min |
| Impact Rate (Gear 2) | 0 - 28800 strokes/min |
| Chuck Capacity | Max. Ø13 mm |
| Torque Settings | 23 + 1 (Drill) + 1 (Impact Drill) |
| Drilling Capacity (Wood) | 25 mm |
| Drilling Capacity (Steel) | 10 mm |
| Drilling Capacity (Concrete) | 10 mm |
| Weight (without battery) | 1.36 kg |
| Dimensions (L x W x H) | 22 x 8 x 19.8 cm |
| Material (Motor winding) | Copper |
| Material (Housing) | PA6-GF30 |
| Material (Gear housing) | Aluminum |
| Special Features | Automatic stop, Integrated LED work light, Soft start, Quick stop, Overload protection, Spindle lock |
| Included Components | 1x belt clip, 1x instruction manual, 1x screw |
| Battery/Charger | Not included, required (Dual Power compatible) |
8. Warranty and Support
For warranty information, please refer to the documentation provided with your purchase or visit the official POWERPLUS website. Keep your proof of purchase for any warranty claims.
For technical support, spare parts, or service inquiries, please contact your local POWERPLUS dealer or authorized service center. Contact information can typically be found on the manufacturer's website or in the included documentation.
