1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Kojem Front Bumper Brush Guard, Model AM-208-1. This brush guard is designed to protect the front grille and radiator of compatible vehicles from minor impacts and debris.
Compatibility:
- 2007-2013 Toyota Tundra
- 2008-2014 Toyota Sequoia
2. Safety Information
- Always wear appropriate personal protective equipment (PPE) such as safety glasses and gloves during installation.
- Ensure the vehicle is parked on a level surface with the parking brake engaged.
- If lifting the vehicle, use appropriate jack stands to secure it.
- Do not overtighten bolts, as this may strip threads or damage components. Refer to vehicle manufacturer specifications for torque values if available.
- Professional installation is recommended if you are unfamiliar with vehicle modifications.
3. Package Contents
Verify all components are present before beginning installation.
- 1 x Front Bumper Brush Guard Assembly
- Mounting Hardware Kit (bolts, washers, nuts)
Figure 3.1: Complete package contents including the brush guard components and hardware.

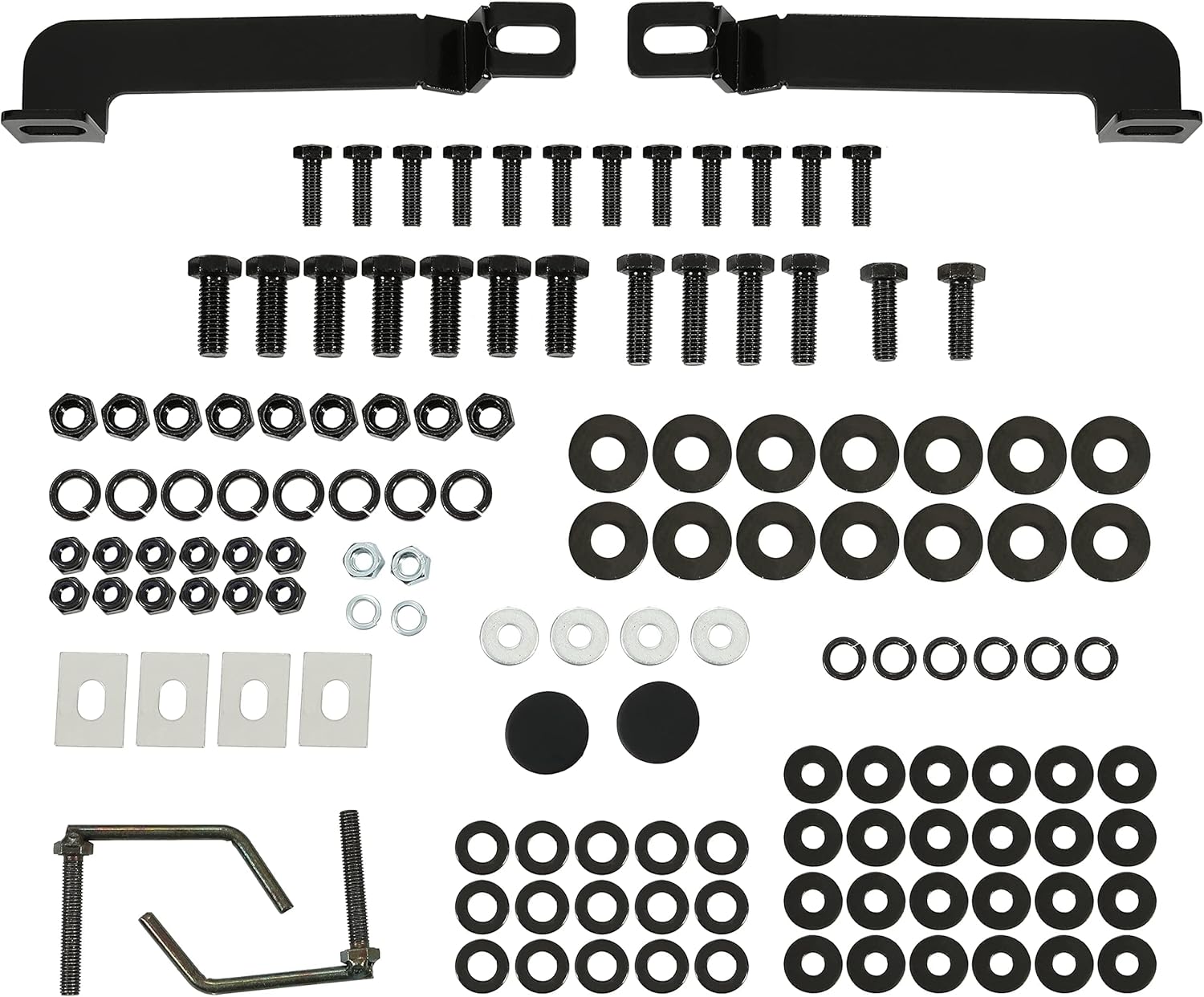

Figure 3.2: Detailed view of the mounting hardware kit.
4. Product Specifications
| Attribute | Detail |
|---|---|
| Brand | Kojem |
| Model Number | AM-208-1 |
| Color | Black |
| Material | Alloy Steel |
| Surface Finish | Powder Coated |
| Installation Type | Bolt-On |
| Vehicle Service Type | Truck |
| Automotive Fit Type | Vehicle Specific Fit |
| Position | Front |
5. Setup and Installation
This section provides a general guide for installing the Kojem Front Bumper Brush Guard. While the product is designed for bolt-on installation, professional assistance is recommended for optimal fitment and safety.
5.1 Assembly of the Main Guard Frame
- Attach the side support bars to the main horizontal bar using the provided bolts and washers. Ensure all connections are secure but do not fully tighten until all components are in place.
- Connect the lower horizontal bar to the main vertical supports.
- Secure the upper horizontal bar to the main vertical supports.
Video 5.1: Assembly of the main brush guard frame. This video demonstrates connecting the various bars and supports using the provided hardware.
Video 5.2: Detailed assembly steps for the Kojem Front Bumper, showing how to attach the main frame components.
5.2 Attaching Headlight Guards
- Align the headlight guard sections with the pre-drilled holes on the main frame.
- Secure them using the appropriate bolts and washers from the hardware kit.
Figure 5.1: Features of the brush guard, showing pre-drilled holes and removable headlight cages.
Video 5.3: Assembly of the black grill guard, demonstrating how to attach the headlight guard sections to the main frame.
5.3 Vehicle Mounting
The brush guard is designed for bolt-on installation. Specific mounting points on your Toyota Tundra or Sequoia will be utilized. It is crucial to identify the correct mounting locations on your vehicle's frame.
- Locate the factory mounting points on the front of your vehicle's frame.
- Attach the provided mounting brackets to these points using the specified hardware.
- Carefully lift the assembled brush guard and align it with the installed mounting brackets.
- Secure the brush guard to the brackets using the remaining hardware.
- Once all components are loosely fitted, gradually tighten all bolts evenly to ensure proper alignment and a secure fit.
Video 5.4: General guide for mounting brush guards to a vehicle, illustrating the process of attaching brackets and securing the guard.
Figure 5.2: Kojem Front Bumper Brush Guard installed on a compatible vehicle.
6. Operating Instructions
The Kojem Front Bumper Brush Guard operates passively, providing protection to your vehicle's front end. No active operation is required.
7. Maintenance
- Regular Inspection: Periodically check all mounting bolts and connections to ensure they remain tight. Retighten as necessary.
- Cleaning: Clean the brush guard regularly with mild soap and water to remove dirt, road grime, and salt. Avoid abrasive cleaners or harsh chemicals that could damage the powder-coated finish.
- Damage Check: Inspect the brush guard for any signs of damage, such as bends, cracks, or rust, especially after off-road use or minor impacts. Address any damage promptly to maintain effectiveness and appearance.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Brush guard is loose or rattling. | Loose mounting bolts. | Inspect and tighten all mounting hardware. |
| Difficulty aligning during installation. | Bolts overtightened prematurely; incorrect component orientation. | Ensure all bolts are hand-tight only until all components are in place. Verify correct orientation of parts as per diagrams/videos. |
| Paint chipping or rust. | Environmental exposure; surface damage. | Clean and apply touch-up paint to prevent further corrosion. Consider protective coatings for harsh environments. |
9. Warranty and Support
For specific warranty information or technical support, please refer to the manufacturer's official website or contact their customer service directly. Keep your purchase receipt for warranty claims.
Manufacturer: FAMETRADE LLC
