KoolStar VoyagAir Pro Bluetooth 5.0 Earbuds User Manual

1. Introduction

Thank you for choosing the KoolStar VoyagAir Pro Bluetooth 5.0 Earbuds. This manual provides detailed instructions on how to set up, operate, and maintain your new earbuds. Please read this manual carefully before use to ensure optimal performance and longevity of your device.

The VoyagAir Pro earbuds offer a seamless wireless audio experience with touch controls and Bluetooth 5.0 connectivity, designed for comfort and high-quality stereo sound.

2. What's in the Box

Please check the package contents upon unboxing:

• KoolStar VoyagAir Pro Earbuds (Left and Right)
• Charging Case
• USB Charging Cable
• User Manual (this document)

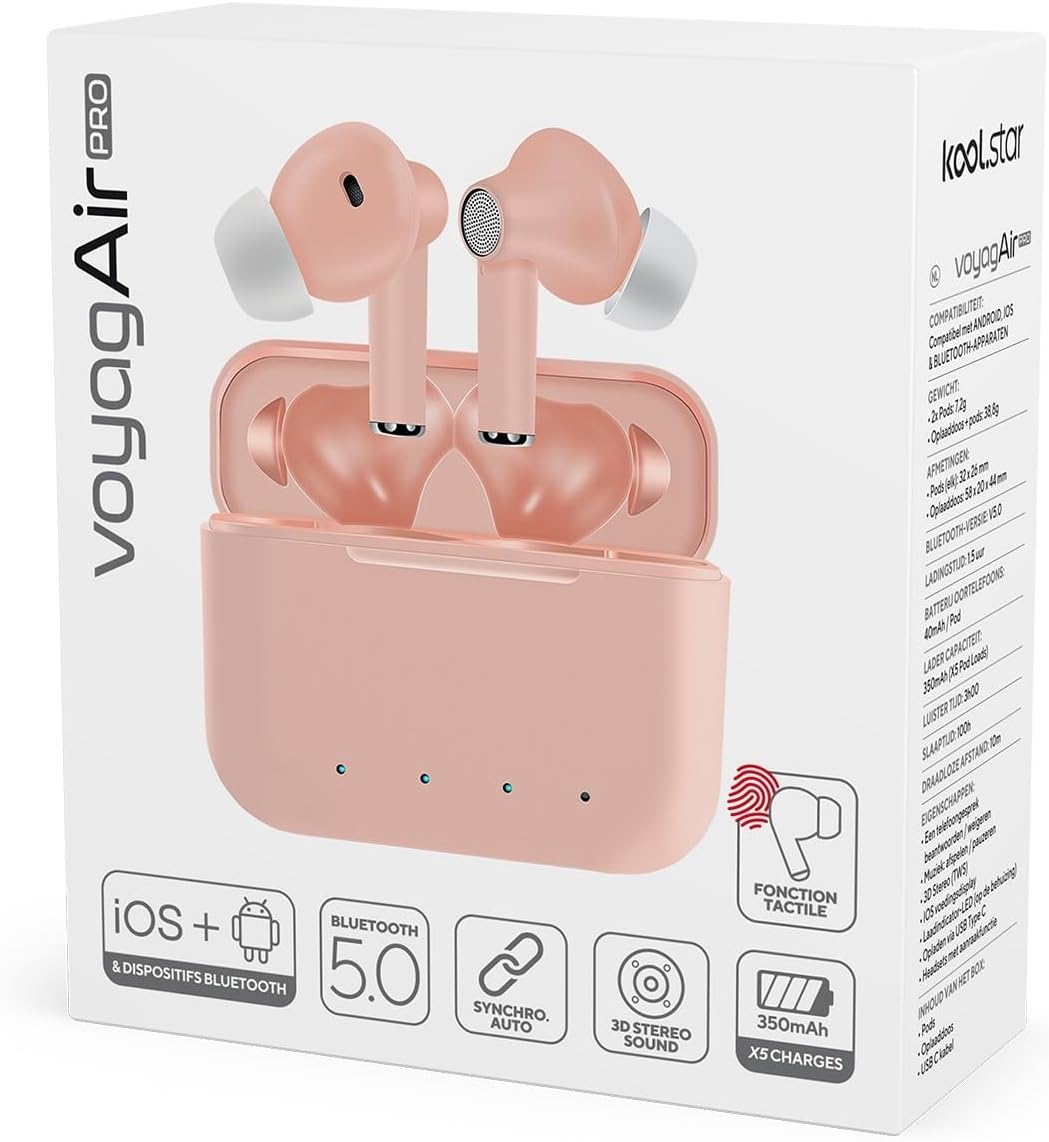

Image: The retail packaging for the KoolStar VoyagAir Pro earbuds, showing the earbuds and charging case inside.

3. Setup

3.1 Charging the Earbuds and Case

Before first use, fully charge the earbuds and the charging case.

1. Place the earbuds into the charging case. Ensure they are correctly seated; magnetic contacts will hold them in place.
2. Connect the USB charging cable to the USB Type C port on the charging case and plug the other end into a compatible USB power source (e.g., wall adapter, computer USB port).
3. The indicator lights on the charging case will illuminate to show the charging status. Once fully charged, the lights may change color or turn off, depending on the model.
4. A full charge typically takes approximately 1-2 hours for the earbuds and 2-3 hours for the charging case.

Image: The KoolStar VoyagAir Pro earbuds resting inside their open pink charging case, with indicator lights visible on the front of the case.

3.2 Bluetooth Pairing

To connect your VoyagAir Pro earbuds to your device:

1. Ensure the earbuds are charged.
2. Open the charging case. The earbuds will automatically enter pairing mode, indicated by flashing lights (refer to specific light patterns in the quick start guide if provided).
3. On your smartphone or Bluetooth-enabled device, go to the Bluetooth settings.
4. Turn on Bluetooth.
5. Search for available devices. You should see "VoyagAir Pro" or a similar name appear in the list.
6. Select "VoyagAir Pro" to connect. Once connected, a voice prompt will confirm the connection, and the earbud indicator lights will stop flashing.
7. After initial pairing, the earbuds will automatically connect to the last paired device when taken out of the case, provided Bluetooth is enabled on the device.

4. Operating the Earbuds

4.1 Wearing the Earbuds

For optimal sound quality and comfort, ensure the earbuds are worn correctly:

1. Identify the 'L' (left) and 'R' (right) markings on each earbud.
2. Gently insert each earbud into the corresponding ear canal.
3. Adjust the earbud until it fits snugly and comfortably, creating a good seal for better audio performance.

Image: A close-up side view of the left and right KoolStar VoyagAir Pro earbuds, highlighting their in-ear design and silicone tips.

4.2 Touch Controls

The VoyagAir Pro earbuds feature intuitive touch controls on the outer surface of each earbud. The specific functions are:

• Single Tap: Play/Pause music, Answer/End call.
• Double Tap (Left Earbud): Previous track.
• Double Tap (Right Earbud): Next track.
• Triple Tap (Either Earbud): Activate voice assistant (Siri, Google Assistant, etc.).
• Long Press (2 seconds, Either Earbud): Reject incoming call.

Note: Volume control may need to be adjusted directly on your connected device.

Image: A detailed close-up of a single KoolStar VoyagAir Pro earbud, showing the microphone and speaker grille, indicating the touch-sensitive area.

5. Maintenance

5.1 Cleaning

To maintain optimal sound quality and hygiene:

• Regularly clean the earbuds, especially the ear tips and speaker grilles, with a soft, dry, lint-free cloth.
• Do not use abrasive cleaners, alcohol, or chemical solvents.
• Ensure no moisture enters the earbud openings.

5.2 Storage

When not in use, always store the earbuds in their charging case to protect them from dust, damage, and to keep them charged.

6. Troubleshooting

If you encounter issues with your VoyagAir Pro earbuds, try the following solutions:

• Earbuds not pairing:
  • Ensure both earbuds are charged.
  • Turn off and on Bluetooth on your device.
  • Forget "VoyagAir Pro" from your device's Bluetooth list and try pairing again.
  • Place earbuds back in the case, close it, wait a few seconds, then open it again to re-enter pairing mode.
• No sound from one earbud:
  • Ensure both earbuds are charged.
  • Try resetting the earbuds (refer to specific reset instructions if provided in a separate quick start guide, or try placing them in the case, closing, and reopening).
  • Check your device's audio balance settings.
• Charging issues:
  • Ensure the charging cable is securely connected to both the case and the power source.
  • Try a different USB charging cable or power adapter.
  • Clean the charging contacts on the earbuds and inside the case with a dry cotton swab.
• Poor sound quality or disconnections:
  • Ensure your device is within the Bluetooth range (typically 10 meters/33 feet) without significant obstacles.
  • Avoid interference from other wireless devices.
  • Ensure earbuds are clean and properly seated in your ears.

7. Specifications

8. Warranty and Support

For warranty information, please refer to the warranty card included with your purchase or visit the official KoolStar website. If you require technical support or have questions not covered in this manual, please contact KoolStar customer service through their official channels.
