Phoscon Kobold Zigbee 3.0 In-Wall Dimmer Actuator User Manual

1. Introduction

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Phoscon Kobold Zigbee 3.0 In-Wall Dimmer Actuator. Please read these instructions carefully before use and retain them for future reference.

The Phoscon Kobold Dimmer Actuator integrates traditional dimmable lights into your smart home system via Zigbee radio. It is designed for flush-mount installation and allows for dimming control using a single switch or multiple push-buttons, offering a simple upgrade for existing switch programs.

2. Safety Information

• Electrical Installation: Installation must be performed by a qualified electrician in accordance with national wiring regulations.
• Power Disconnection: Always disconnect the main power supply before installing, maintaining, or troubleshooting the device.
• Voltage: This device operates on 230V AC. Ensure compatibility with your electrical system.
• Load Capacity: Do not exceed the maximum load capacity of 200W (resistive) or 400W (inductive/capacitive) as specified.
• Indoor Use Only: This device is designed for indoor use in dry environments.
• Temperature: Ensure the operating temperature (tc = 75°C) is not exceeded.

3. Product Overview

The Phoscon Kobold Zigbee 3.0 Dimmer Actuator is a compact device designed to be installed behind a traditional light switch or within a flush-mounted box. It enables wireless control and dimming of connected lights through a Zigbee gateway.

Key Features:

• Integrates classic dimmable lights into a Smart Home system via radio.
• Simple upgrade for existing switch programs.
• Optional connector allows dimming via one or more push-buttons.
• Adjustable minimum brightness to prevent flickering.
• Phase-cut dimming for various load types.

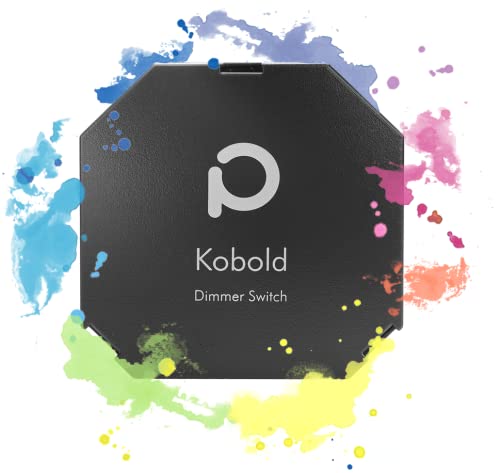

Figure 3.1: Front view of the Phoscon Kobold Zigbee 3.0 Dimmer Actuator. This image shows the compact, octagonal design of the device, featuring the 'p' logo and 'Kobold Dimmer Switch' text on its black surface.

Figure 3.2: Multiple views of the Phoscon Kobold Dimmer Actuator. This composite image displays the device from the front, side, and a detailed view of its wiring terminals and labels, providing a comprehensive look at its physical characteristics and connection points.

4. Setup and Installation

Before proceeding with installation, ensure the main power supply is disconnected at the circuit breaker.

4.1 Wiring

The Kobold Dimmer Actuator is designed for flush-mount installation. Follow the wiring diagram carefully. The device supports both single-switch and multi-push-button configurations.

Figure 4.1: Close-up view of the Phoscon Kobold Dimmer Actuator's wiring terminals. This image highlights the screw terminals for input (L, N), output (OUT), and control inputs (+A1, -A2), along with labels for Reset and Set Min buttons, and technical specifications like AC 100-240V and 50/60 Hz.

Figure 4.2: Detailed wiring diagram for the Phoscon Kobold Dimmer Actuator. This schematic illustrates how to connect the device to the mains power (L, N), a light fixture (L, N OUT), and an external push-button switch for local control. It clearly shows the input and output connections for proper installation.

4.2 Pairing with a Zigbee Gateway (e.g., ConBee II)

1. Ensure your Zigbee gateway (e.g., ConBee II) is powered on and connected to your smart home system.
2. Place the Kobold Dimmer Actuator within range of your Zigbee gateway.
3. Initiate the device search function on your Zigbee gateway's software (e.g., deCONZ, Phoscon App).
4. Power on the Kobold Dimmer Actuator. The device should automatically enter pairing mode. If not, press the 'Reset' button on the device for 5 seconds.
5. Once detected, follow the on-screen instructions in your gateway's software to complete the pairing process.

Figure 4.3: Diagram illustrating the Phoscon Kobold Dimmer Actuator's integration into a smart home system. This image shows how a smartphone app communicates with a gateway (e.g., ConBee II), which then wirelessly controls the Kobold dimmer, which in turn controls a connected light bulb.

5. Operating Instructions

5.1 Dimming Control

• Via Smart Home App: Once paired, you can control the connected light's on/off state and dimming level directly from your Zigbee gateway's application.
• Via External Push-Button: If an external push-button is connected to the +A1 and -A2 terminals, a short press will toggle the light on/off. A long press will initiate dimming: holding the button will cycle the brightness up or down. Releasing and pressing again will reverse the dimming direction.

5.2 Adjusting Minimum Brightness

To prevent flickering with certain dimmable light sources, the Kobold Dimmer Actuator allows for adjustment of the minimum brightness level. This can typically be done through your Zigbee gateway's software or by using the 'Set Min' button on the device itself. Consult your gateway's documentation for specific software instructions.

To adjust manually:

1. Ensure the light is on and dimmed to its lowest setting.
2. Press and hold the 'Set Min' button on the device. The light will start to slowly increase in brightness.
3. Release the 'Set Min' button when the desired minimum brightness is reached and stable (no flickering).
4. The new minimum brightness is now saved.

6. Maintenance

The Phoscon Kobold Dimmer Actuator requires minimal maintenance. Ensure the device is kept dry and free from dust. Do not use abrasive cleaners or solvents. If cleaning is necessary, gently wipe the surface with a dry, soft cloth. Always disconnect power before cleaning.

7. Troubleshooting

• Device not responding:
  • Check if the main power supply is connected.
  • Verify the wiring connections are secure and correct according to the diagram.
  • Ensure the device is within range of your Zigbee gateway.
  • Try resetting the device by pressing the 'Reset' button for 5 seconds and re-pairing it with your gateway.
• Light flickering at low brightness:
  • Adjust the minimum brightness setting as described in Section 5.2.
  • Ensure the connected light bulb is dimmable and compatible with phase-cut dimmers.
• Cannot pair with gateway:
  • Ensure the gateway is in pairing mode.
  • Move the dimmer closer to the gateway during the pairing process.
  • Perform a factory reset on the dimmer (press 'Reset' button for 10 seconds) and try pairing again.

8. Specifications

9. Warranty and Support

Phoscon products are designed for reliability and performance. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official Phoscon website. For technical support, troubleshooting assistance, or further inquiries, please contact Phoscon customer service through their official channels.
