1. Introduction
Thank you for purchasing the Sokany SK-109 Ice Cream Cone Maker. This appliance is designed to help you create fresh, crispy ice cream cones and waffle-style treats quickly and conveniently. Featuring a non-stick coated plate and 1000 watts of power, it ensures efficient and quality preparation. Please read this manual thoroughly before first use to ensure safe operation and optimal performance.
2. Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:
- Read all instructions carefully.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electrical shock, do not immerse cord, plugs, or the appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact customer service for examination, repair, or adjustment.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to “off”, then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- This appliance has a power supply protection feature against overheating.
3. Product Components
- Main Unit with Non-Stick Cooking Plates
- Heat-Resistant Handles
- Power Indicator Light
- Cone Rolling Tool (typically included for shaping)
4. Setup
- Unpacking: Carefully remove the cone maker and all accessories from the packaging. Retain packaging for future storage or transport.
- Initial Cleaning: Before first use, wipe the non-stick cooking plates with a damp cloth or sponge. Dry thoroughly. Do not immerse the appliance in water.
- Placement: Place the cone maker on a stable, heat-resistant, and dry surface. Ensure there is adequate ventilation around the appliance.
- Power Connection: Ensure the voltage of your power outlet matches the rating label on the appliance (220-240V ~ 50Hz). Plug the appliance into a grounded wall outlet.
5. Operating Instructions
Follow these steps to prepare your ice cream cones:
- Prepare Ingredients: Have your ice cream cone batter ready. Ensure all necessary materials are prepared before starting.
- Preheat the Appliance: Close the cone maker and plug it into the power outlet. The indicator light will illuminate, signaling that the appliance is preheating. Allow the cone maker to preheat for approximately 2-3 minutes, or until the indicator light signals it's ready (if applicable).
- Add Batter: Open the cone maker. Pour a small amount of batter (typically 1-2 tablespoons, depending on desired cone size) onto the center of the bottom cooking plate.
- Cook the Cone: Close the lid firmly. Cook for 20-30 seconds, or until the cone is golden brown and crispy. Cooking time may vary based on batter consistency and desired crispiness. The double-sided heating ensures even cooking.
- Form the Cone: Immediately after cooking, carefully remove the hot waffle from the plate using a non-metallic utensil. Quickly place the hot waffle around the cone rolling tool and press the edges together to form a cone shape. Hold for a few seconds until it sets.
- Cool and Serve: Place the formed cone on a wire rack to cool completely before serving with ice cream.

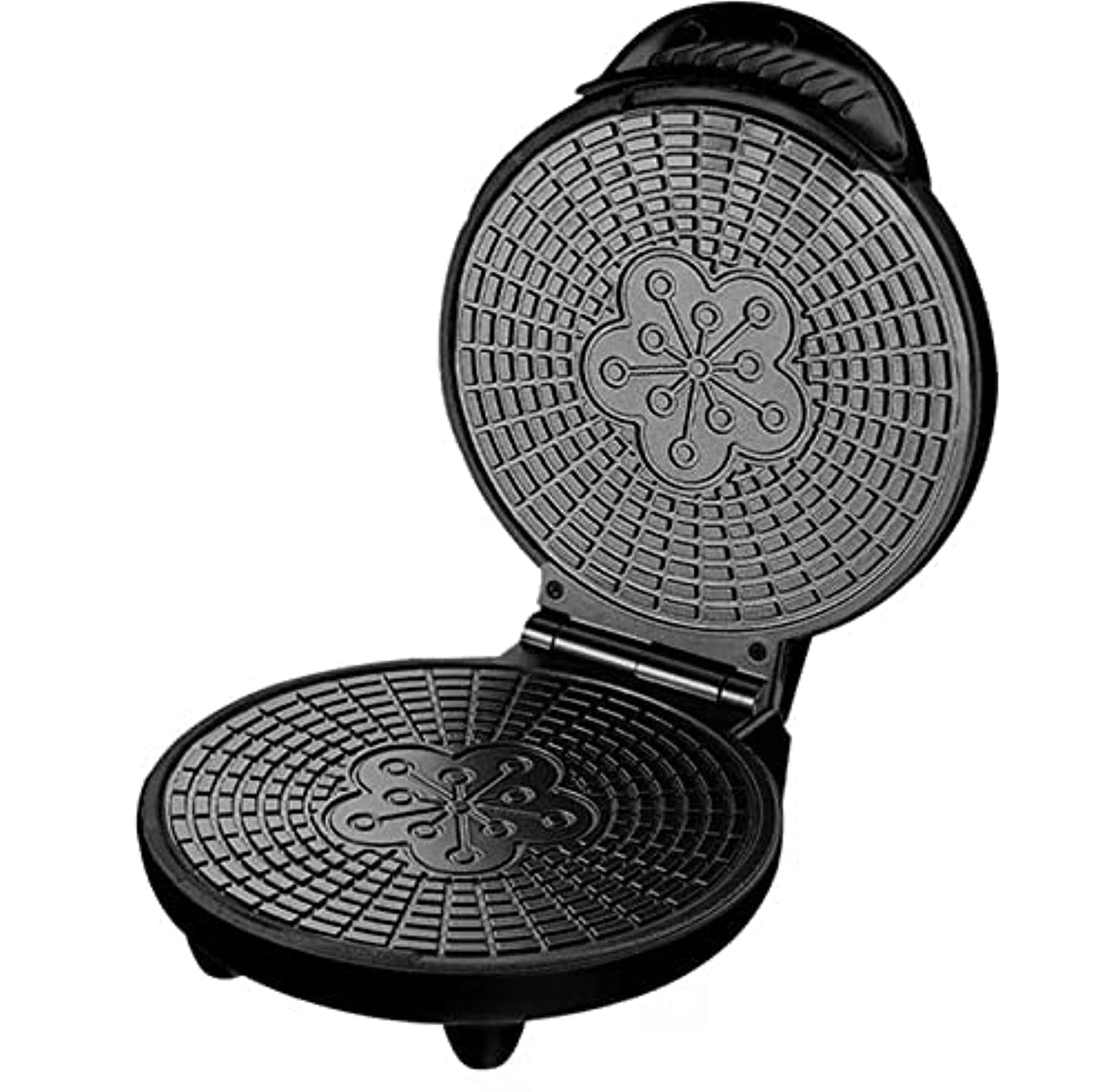

Image 1: Visual guide showing the steps from preparing ingredients to forming a cone using the Sokany SK-109 Ice Cream Cone Maker.
Image 2: The Sokany SK-109 Ice Cream Cone Maker shown with several finished ice cream cones, illustrating the final product.
6. Cleaning and Maintenance
Proper cleaning and maintenance will extend the life of your appliance.
- Unplug and Cool: Always unplug the cone maker from the power outlet and allow it to cool completely before cleaning.
- Clean Cooking Plates: The non-stick coating makes cleaning easy. Wipe the cooking plates with a soft, damp cloth or sponge. For stubborn residue, use a small amount of cooking oil to soften it, then wipe clean. Do not use abrasive cleaners or metal scouring pads, as these can damage the non-stick surface.
- Clean Exterior: Wipe the exterior of the appliance with a damp cloth. Do not immerse the appliance in water or any other liquid.
- Storage: Once clean and dry, store the cone maker in a cool, dry place.
Image 3: Illustration of cleaning the non-stick interior of the Sokany SK-109 Ice Cream Cone Maker with a cloth.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not heat up. | Not plugged in; power outage; faulty outlet. | Ensure the appliance is properly plugged in. Check the power outlet with another device. |
| Cones are not crispy. | Insufficient cooking time; batter too thick. | Increase cooking time slightly. Adjust batter consistency by adding a little more liquid. |
| Cones stick to the plates. | Plates not properly cleaned; insufficient preheating. | Ensure plates are clean before use. Allow adequate preheating time. A very light brush of oil can be applied if needed, though the non-stick coating should prevent this. |
| Smoke or unusual odor during first use. | Protective oils burning off. | This is normal for first use. Ensure good ventilation. If it persists, unplug and contact customer support. |
8. Specifications
- Brand: Sokany
- Model: SK-109
- Power: 1000 Watt
- Voltage: 220-240V ~ 50Hz
- Material: Stainless Steel (housing), Non-stick coated plates
- Special Features: Non-stick coating, Overheat protection
- Color: Black
- Item Weight: 1.42 Kilograms
- Shipping Dimensions: 31 x 24 x 14.9 cm
- Style: Modern
9. Warranty and Support
Sokany products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your purchase or contact your local retailer. For technical support or service inquiries, please contact Sokany customer service through the contact information provided on the product packaging or official website.
