1. Product Overview
This manual provides instructions for the assembly, operation, maintenance, and troubleshooting of your IRONCK Triple Wide 5-Tier Industrial Bookshelf. This unit is designed for organizing and displaying items in living rooms, bedrooms, home offices, and study areas.

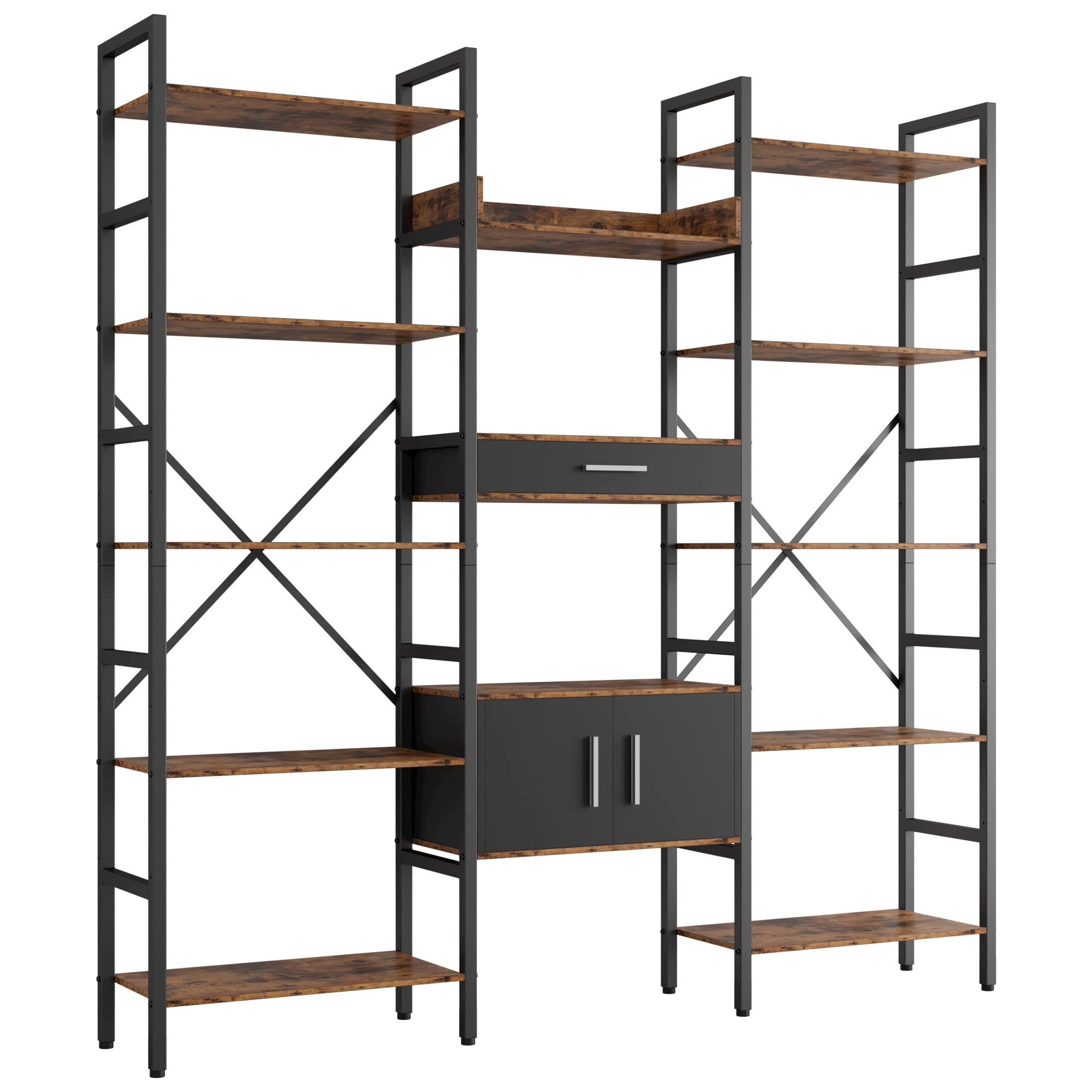

Image 1.1: The IRONCK Triple Wide 5-Tier Industrial Bookshelf, showcasing its design and storage capacity.
The bookshelf features open shelving, a storage drawer, and a cabinet with doors, providing versatile storage solutions. It is constructed from engineered wood and a matte black iron frame, ensuring stability and durability.
2. Safety Information
- Always assemble the unit on a soft, clean surface to prevent scratches.
- Ensure all screws and fasteners are securely tightened before use.
- Do not overload shelves. Each shelf has a maximum weight capacity of 44 lbs (20 kg).
- Always use the included anti-tip device to secure the bookshelf to a wall. This prevents accidental tipping and potential injury, especially in households with children or pets.
- Keep small parts away from children during assembly.
Image 2.1: Detail of the anti-tip device for wall attachment.
3. Setup and Assembly
Assembly is required for this product. Please follow the steps below carefully. It is recommended to have two people for assembly.
3.1. Before You Begin
- Unpack all components and verify against the parts list (not provided in this manual, refer to your product packaging).
- Ensure you have the necessary tools: Phillips head screwdriver, hammer (optional, for dowels).
- Clear a spacious area for assembly.
3.2. Assembly Steps (General Guidance)
- Frame Assembly: Begin by assembling the metal frame components. Connect the vertical support bars using the horizontal bars and X-shaped brackets. Ensure all connections are finger-tightened initially.
- Shelf Installation: Place the engineered wood shelves onto the designated frame sections. Secure them with the provided screws.
- Drawer and Cabinet Assembly: Assemble the drawer and cabinet components according to the specific instructions in your product packaging. Install the drawer into its slot and attach the cabinet doors.
- Final Tightening: Once all components are in place, systematically tighten all screws and fasteners. Do not overtighten.
- Adjustable Feet: Adjust the bottom small feet to ensure the bookshelf is level and stable on uneven floors.
- Anti-Tip Device Installation: Securely attach the anti-tip device to the top rear of the bookshelf and to a wall stud using appropriate hardware.

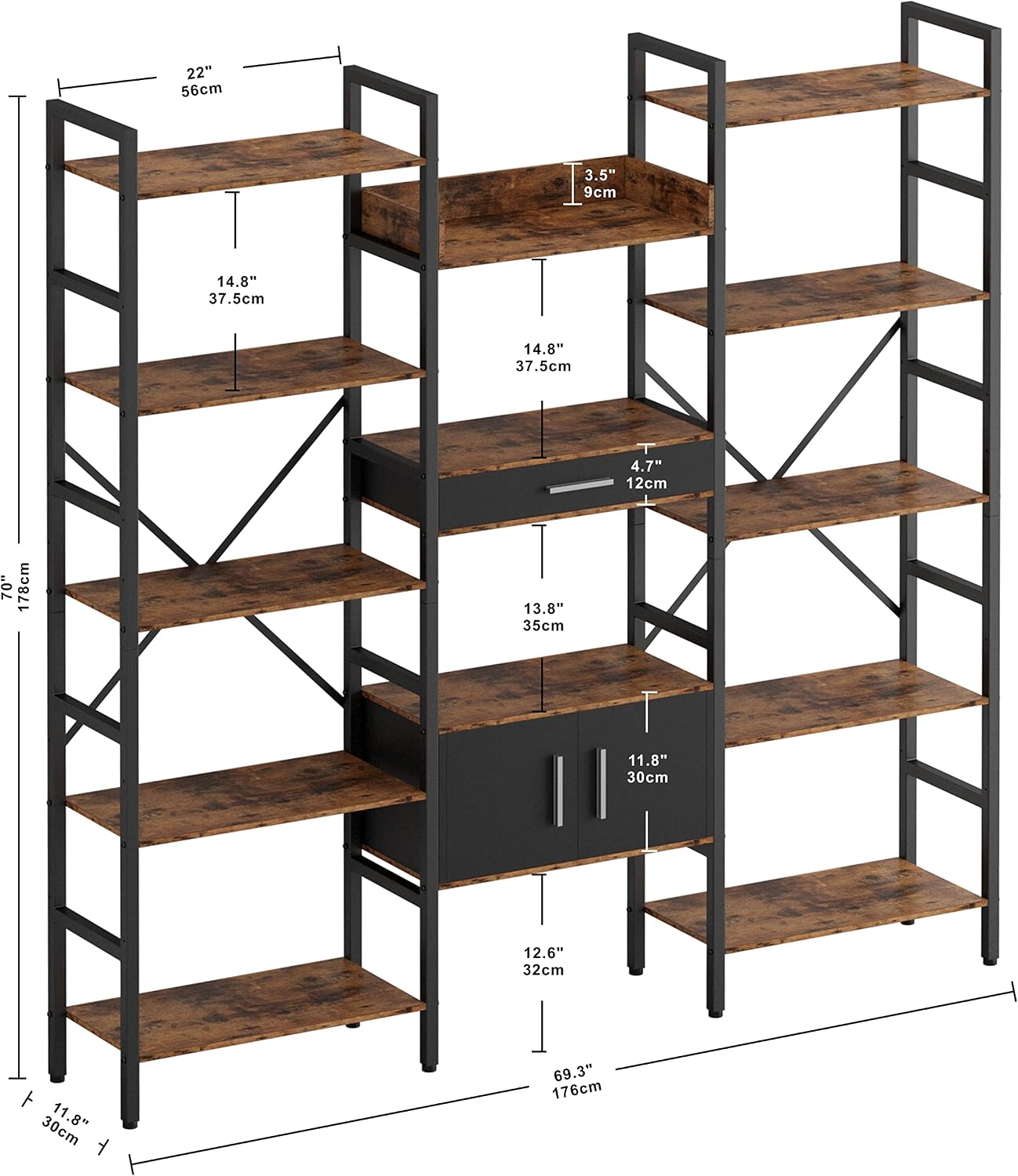

Image 3.1: Product dimensions and structural overview.
Image 3.2: X-shaped brackets for enhanced stability.
Image 3.3: Adjustable feet for leveling.
4. Operating Instructions
The IRONCK Triple Wide Bookshelf is designed for versatile storage and display.
- Open Shelves: Utilize the five tiers of open shelving for books, decorative items, plants, and other display pieces. Distribute weight evenly across shelves.
- Drawer: The integrated drawer provides concealed storage for smaller items, helping to keep your space tidy.
- Cabinet: The cabinet with doors offers additional enclosed storage for items you wish to keep out of sight.
Image 4.1: Detail of the functional storage drawer.
Image 4.2: Detail of the cabinet storage with doors.
4.1. Product Video
Video 4.1: Official product video demonstrating the IRONCK Industrial Triple Wide Bookshelf with Drawer and Door. This video highlights the design, storage features, and overall appearance of the bookshelf.
5. Maintenance
- Cleaning: Wipe the surfaces with a dry cloth. Avoid using harsh chemicals or abrasive cleaners, which may damage the finish.
- Regular Checks: Periodically check all screws and fasteners to ensure they remain tight. Re-tighten if necessary to maintain stability.
- Anti-Tip Device: Regularly inspect the anti-tip device for any signs of wear or loosening. Ensure it remains securely attached to both the bookshelf and the wall.
- Weight Distribution: Avoid placing excessively heavy items on any single shelf or concentrating weight in one area. Distribute items evenly to prevent warping or damage.
6. Troubleshooting
- Bookshelf Wobbles:
- Check if the adjustable feet are properly leveled. Adjust them until the unit is stable.
- Ensure all assembly screws are fully tightened.
- Drawer Sticks or Does Not Close Smoothly:
- Verify that the drawer slides are correctly installed and aligned.
- Check for any obstructions within the drawer mechanism.
- Cabinet Doors Are Misaligned:
- Adjust the hinges on the cabinet doors. Refer to the specific hinge adjustment instructions provided with your hardware.
- Missing Parts:
- If any parts are missing or damaged upon arrival, please contact customer support immediately.
7. Specifications
| Feature | Detail |
|---|---|
| Model | Triple Wide 5-Tier Industrial Bookshelf |
| Dimensions (D x W x H) | 11.8" x 69.3" x 70.1" (30cm x 176cm x 178cm) |
| Material | Engineered Wood, Metal Frame |
| Color | Vintage Brown (shelves), Black (frame) |
| Number of Shelves | 13 (including internal cabinet shelves) |
| Weight Capacity per Shelf | 44 lbs (20 kg) |
| Special Features | 1 Drawer, 1 Cabinet Storage, Adjustable Feet, Anti-tip Device |
| Assembly Required | Yes |
| Product Weight | 64.7 lbs (29.3 kg) |
8. Warranty and Support
For specific warranty details, please refer to the documentation included with your purchase or contact the manufacturer directly. IRONCK is committed to customer satisfaction.
If you encounter any problems with your product, require replacement parts, or have questions regarding assembly or use, please do not hesitate to contact IRONCK customer support. Contact information can typically be found on the product packaging or the official IRONCK website.
You can also visit the IRONCK Store on Amazon for more information and support resources.
