VOLTCRAFT TK-1000 Temperature and Voltage Calibrator User Manual

1. Introduction

The VOLTCRAFT TK-1000 is a versatile calibrator designed for precise measurement and simulation of temperature and voltage. It supports a wide range of thermocouple and Resistance Temperature Detector (RTD) types, making it suitable for various professional measurement applications. This manual provides essential information for the safe and effective use of your device.

Key Features:

High output and measurement precision (up to 0.05% steps).
Measures and simulates nine different thermocouple types (J, K, T, E, R, S, B, Wre325, Wre526).
Measures and simulates four different RTD types (Pt100, Pt10, Cu50, Cu100).
Step and ramp functions for quick linearity detection.
Adjustable LCD backlight for clear readability in various lighting conditions.
Memory function for frequently used settings.
Temperature display in °C and °F.
Automatic power-off function to conserve battery life.

2. Safety Information

Always observe the following safety precautions to prevent electric shock, injury, or damage to the device:

Do not open the device casing unless explicitly instructed for battery replacement.
Ensure test leads are removed before opening the battery compartment.
Use only the specified battery type (9V 6LR61).
Do not operate the device in wet or damp conditions.
Avoid exposing the device to extreme temperatures or direct sunlight.
If the device appears damaged, do not use it.

3. Setup

3.1. Battery Installation

The VOLTCRAFT TK-1000 requires one 9V 6LR61 battery for operation. The battery is supplied with the device.

Ensure the device is powered off and all test leads are disconnected.
Locate the battery compartment cover on the rear of the device.
Use a suitable screwdriver to loosen the screw securing the battery compartment cover.
Carefully remove the cover.
Insert the 9V battery, observing the correct polarity (+/-).
Replace the battery compartment cover and tighten the screw.

Rear view of VOLTCRAFT TK-1000 with battery compartment open and empty

Figure 3.1: Rear view of the calibrator with the battery compartment open, showing where the 9V battery should be inserted.

Rear view of VOLTCRAFT TK-1000 with 9V battery installed

Figure 3.2: Rear view of the calibrator with a 9V battery correctly installed in its compartment.

3.2. Connecting Test Leads

The calibrator comes with a pair of test leads and crocodile clips for various measurement and simulation tasks.

Identify the input jacks on the front panel of the device. These include 4W, V/mV/Ω/TC/RTD, COM, and 3W.
For voltage, current, or resistance measurements/simulations, connect the red test lead to the V/mV/Ω/TC/RTD jack and the black test lead to the COM jack.
For 4-wire RTD measurements, connect the appropriate leads to the 4W and COM jacks.
For 3-wire RTD measurements, connect the appropriate leads to the 3W and COM jacks.
Ensure all connections are secure before operation.

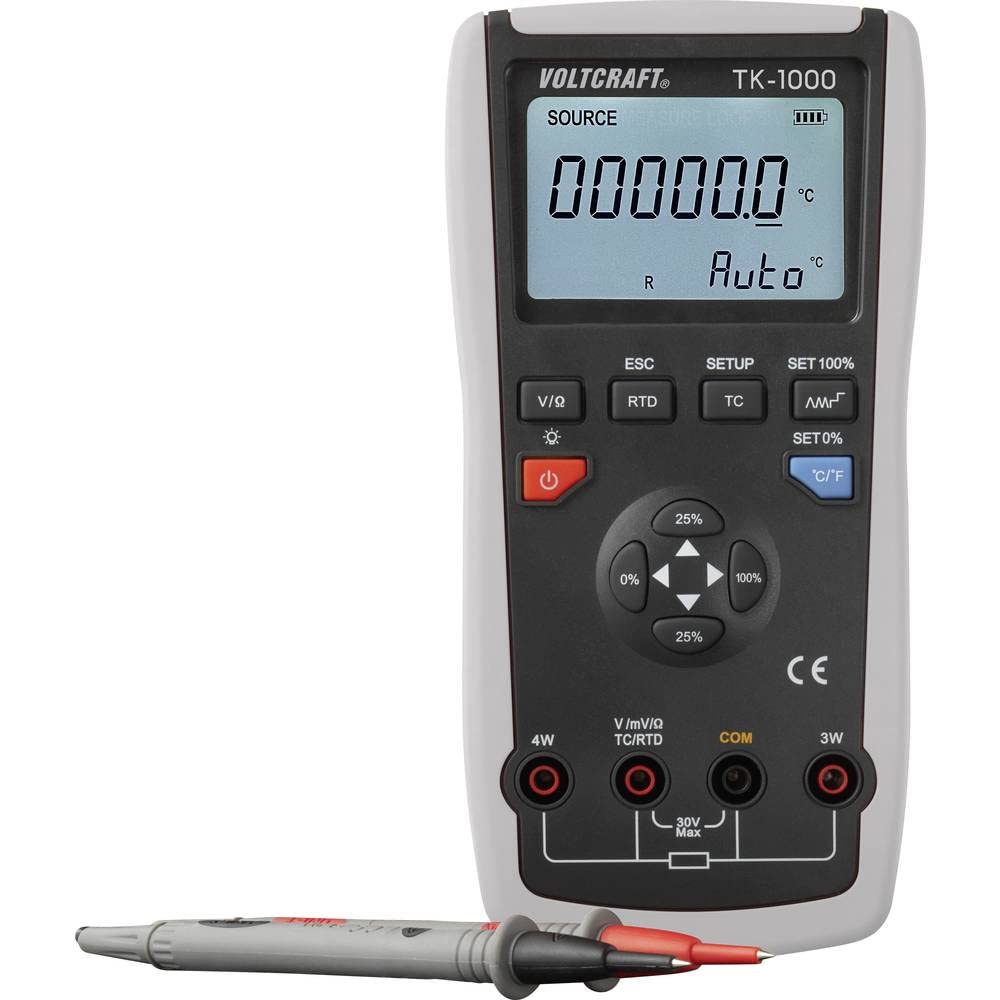

Front view of VOLTCRAFT TK-1000 showing display, buttons, and input jacks

Figure 3.3: Front view of the calibrator, highlighting the display, control buttons, and input terminals for test lead connections.

4. Operating Instructions

4.1. Power On/Off

Press the Power button (usually marked with a circle and a vertical line) to turn the device on or off. The device features an automatic power-off function to save battery life if inactive for an extended period.

4.2. Mode Selection

The TK-1000 can measure and simulate various signals. Use the dedicated buttons to select the desired mode:

V/I/Ω: For voltage, current, and resistance measurements/simulations.
RTD: For Resistance Temperature Detector (Pt100, Pt10, Cu50, Cu100) measurements/simulations.
TC: For Thermocouple (J, K, T, E, R, S, B, Wre325, Wre526) measurements/simulations.

4.3. Setting Values and Units

Once a mode is selected, use the navigation buttons (e.g., arrow keys, percentage buttons 0%, 25%, 100%) to adjust the output or simulation value. The C/F button allows you to switch between Celsius (°C) and Fahrenheit (°F) for temperature readings.

4.4. Backlight Adjustment

The LCD backlight can be adjusted for optimal visibility. Press the Backlight button (often indicated by a sun icon) to cycle through different brightness levels or to turn the backlight on/off.

4.5. Step and Ramp Functions

The TK-1000 includes step and ramp functions for linearity detection. Refer to the on-screen prompts or specific function buttons (if available) to activate and configure these features. These functions allow the calibrator to automatically increment or sweep through a range of values.

4.6. Saving Settings

The device allows you to memorize frequently used settings for convenience. Consult the device's display and menu options for instructions on how to save and recall custom configurations.

5. Maintenance

5.1. Battery Replacement

When the low battery indicator appears on the display, replace the 9V battery as described in Section 3.1. Prompt battery replacement ensures continuous and accurate operation.

5.2. Cleaning

To clean the device, wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the casing or display. Ensure the device is powered off and disconnected from all leads before cleaning.

5.3. Storage

When not in use for extended periods, store the calibrator in its protective carrying case in a cool, dry place. Remove the battery if storing for several months to prevent leakage and potential damage to the device.

6. Troubleshooting

This section addresses common issues you might encounter with the VOLTCRAFT TK-1000.

6.1. Device Does Not Power On

Check Battery: Ensure the 9V battery is correctly installed and not depleted. Replace if necessary.
Battery Polarity: Verify that the battery is inserted with the correct polarity.

6.2. Inaccurate Readings/Simulations

Check Connections: Ensure all test leads and probes are securely connected to the correct input jacks.
Correct Mode: Verify that the correct measurement/simulation mode (TC, RTD, V/I/Ω) is selected for your application.
Probe Type: For temperature measurements, ensure the correct thermocouple or RTD type is selected in the device settings.
Environmental Factors: Extreme temperatures or electromagnetic interference can affect accuracy. Operate in a stable environment.

6.3. Display Issues

No Display/Dim Display: Check battery level. Adjust backlight brightness.
Garbled Display: Try powering the device off and on again. If the issue persists, contact support.

7. Specifications

Feature	Specification
Model	VOLTCRAFT TK-1000 (VC-11769560)
Measurement/Simulation Types	9 Thermocouple types (J, K, T, E, R, S, B, Wre325, Wre526), 4 RTD types (Pt100, Pt10, Cu50, Cu100)
Precision	Up to 0.05% steps
Display Count	200,000
Power Supply	1x 9V 6LR61 battery
Dimensions (L x W x H)	19.3 x 9.6 x 4.7 cm (7.6 x 3.8 x 1.85 inches)
Weight	370 grams (0.82 lbs)
Functions	Step, Ramp, Memory for settings, Auto power-off, LCD backlight adjustment

8. Warranty and Support

Warranty Information: Specific warranty details for the VOLTCRAFT TK-1000 are typically provided with your purchase documentation or can be found on the official VOLTCRAFT website. Please retain your proof of purchase for warranty claims.

Customer Support: For technical assistance, troubleshooting beyond this manual, or service inquiries, please contact VOLTCRAFT customer support. Contact information can usually be found on the product packaging, the VOLTCRAFT website, or through your retailer.
