1. Introduction
Thank you for choosing the CenPro 29N-024 Commercial NSF Solid Stainless Steel Wall Shelf. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new wall shelf. Please read these instructions thoroughly before installation and retain them for future reference.
The CenPro 29N-024 wall shelf is designed to maximize storage space in commercial kitchen environments. Constructed from durable 18-gauge stainless steel, this shelf is easy to clean and disinfect. It features a 1-1/2 inch rear upturn to protect walls and has no sharp edges for safety. This product is NSF certified, meeting key standards for health and safety in commercial settings.

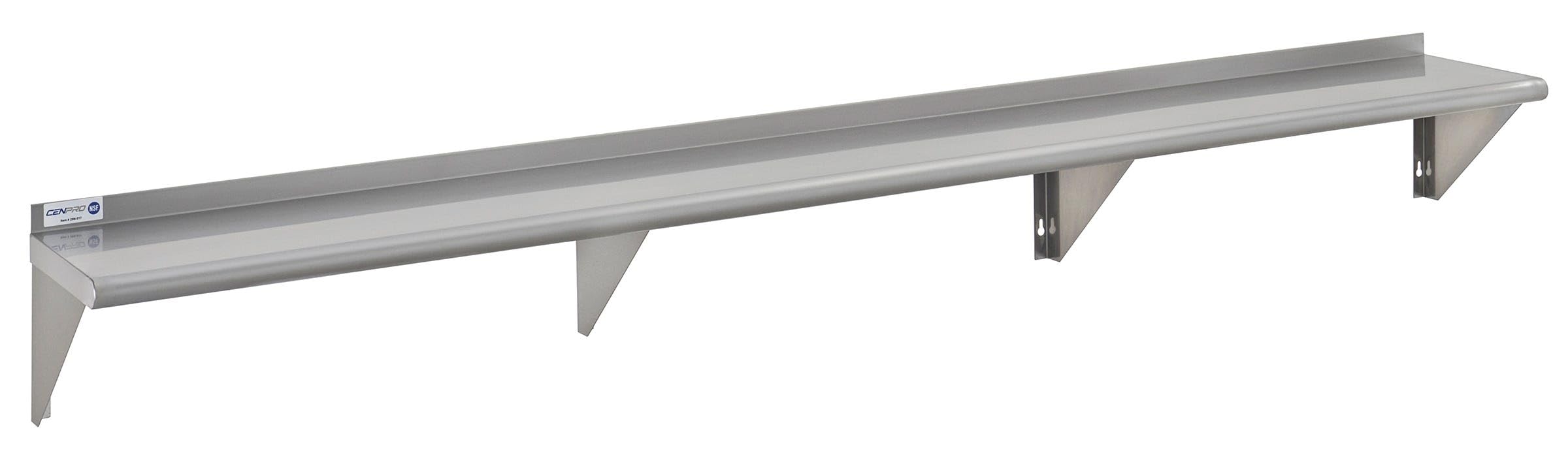

Image 1.1: CenPro 29N-024 Stainless Steel Wall Shelf, front view. This image shows the complete shelf unit with its smooth stainless steel surface and integrated wall brackets.
2. Safety Information
- Weight Capacity: Do not exceed the maximum weight capacity of 550 pounds (249 kg). Overloading the shelf can lead to structural failure and potential injury.
- Proper Installation: Ensure the wall structure where the shelf is to be mounted is capable of supporting the combined weight of the shelf and its maximum load. Use appropriate mounting hardware for your specific wall type (e.g., wood studs, concrete, drywall with anchors).
- Secure Fastening: Verify that all mounting hardware is securely tightened before placing any items on the shelf.
- Edge Awareness: While the shelf is designed with no sharp edges, exercise caution during handling and installation to prevent accidental injury.
- NSF Certification: This product is NSF certified, indicating it meets public health and safety standards for commercial food service environments.
3. Package Contents
Verify that all components are present and undamaged upon unpacking. If any parts are missing or damaged, contact CenPro customer service immediately.
- One (1) CenPro 29N-024 Stainless Steel Wall Shelf unit (15"D x 96"W)
- Mounting hardware (may vary based on supplier; ensure suitable hardware for your wall type is available)
4. Specifications
| Feature | Detail |
|---|---|
| Model Name | 29N-024 |
| Material | 18-Gauge Stainless Steel |
| Product Dimensions (D x W x H) | 15" x 96" x 13" |
| Shelf Thickness | 0.05 Inches |
| Mounting Type | Wall Mount |
| Weight Capacity Maximum | 550 Pounds |
| Number of Shelves | 1 |
| Special Feature | Space Saving, 1-1/2" Rear Upturn |
| Certifications | NSF Listed |
| Required Assembly | Yes |
| Color | Silver |
5. Setup (Installation)
Proper installation is crucial for the stability and safety of your wall shelf. Follow these steps carefully:
- Choose Location: Select a suitable wall location, ensuring it is structurally sound and free from electrical wires or plumbing. Consider the height for convenient access and the weight of items to be stored.
- Mark Mounting Points: Hold the shelf against the wall at the desired height. Use a level to ensure it is perfectly horizontal. Mark the positions of the pre-drilled mounting holes on the wall with a pencil.
- Drill Pilot Holes: Using an appropriate drill bit for your wall type and mounting hardware, drill pilot holes at the marked locations.
- Install Mounting Hardware: Insert any necessary wall anchors (if using) into the pilot holes.
- Mount the Shelf: Align the pre-drilled holes on the shelf's brackets with the drilled holes/anchors on the wall. Secure the shelf to the wall using the provided or suitable mounting screws. Tighten all screws firmly.
- Verify Stability: Gently test the shelf's stability by applying downward pressure. Ensure there is no wobbling or movement.
Image 5.1: CenPro 29N-024 Stainless Steel Wall Shelf, rear view showing brackets. This image illustrates the back of the shelf, highlighting the integrated wall brackets with pre-drilled mounting holes for installation.
Image 5.2: Close-up of CenPro 29N-024 shelf bracket. This detailed view shows the design of the bracket and the pre-drilled hole for secure wall mounting.
6. Operating (Usage)
The CenPro 29N-024 wall shelf is designed for efficient storage in commercial kitchens. To ensure optimal performance and longevity:
- Load Distribution: Distribute items evenly across the shelf surface. Avoid concentrating heavy loads in one area.
- Weight Limit: Never exceed the maximum weight capacity of 550 pounds.
- Rear Upturn: Utilize the 1-1/2 inch rear upturn to prevent items from falling off the back of the shelf and to protect the wall from splashes or damage.
- Intended Use: This shelf is ideal for storing ingredients, spices, small appliances, and other kitchen essentials.
Image 6.1: CenPro 29N-024 Stainless Steel Wall Shelf in use with kitchen items. This image demonstrates the shelf holding various kitchen supplies, showcasing its practical application in a commercial setting.
7. Maintenance
Regular cleaning and inspection will help maintain the appearance and functionality of your stainless steel wall shelf.
- Routine Cleaning: Wipe the stainless steel surface regularly with a soft, dry cloth to remove dust, fingerprints, and light spills.
- Deep Cleaning: For more stubborn stains or to disinfect, use a mild detergent mixed with warm water. Apply with a soft cloth or sponge, then rinse thoroughly with clean water and dry immediately with a clean, dry cloth to prevent water spots.
- Avoid Abrasives: Do not use abrasive cleaners, steel wool, or scouring pads, as these can scratch the stainless steel finish.
- Check Fasteners: Periodically inspect all mounting screws and hardware to ensure they remain tight and secure. Re-tighten if necessary.
8. Troubleshooting
If you encounter any issues with your CenPro wall shelf, refer to the following common problems and solutions:
- Shelf is not level:
- Solution: Re-check the mounting points and use a level during installation. Adjust the mounting hardware as needed to achieve a level surface. Ensure the wall itself is plumb.
- Shelf wobbles or feels unstable:
- Solution: Ensure all mounting screws are securely tightened. Verify that the wall structure is adequate to support the shelf and its load. If using wall anchors, confirm they are correctly installed and rated for the expected weight.
- Difficulty installing mounting hardware:
- Solution: Confirm you are using the correct drill bit size for pilot holes and the appropriate type of mounting hardware for your specific wall material (e.g., wood studs, concrete, drywall).
9. Warranty and Support
For product support, warranty claims, or replacement parts, please contact CenPro customer service. Refer to your purchase documentation or the CenPro official website for specific warranty details and contact information.
CenPro Customer Service: Please visit the CenPro Store on Amazon or consult your product packaging for direct contact methods.
