COMMERCIAL COOL 52” Modern Ceiling Fan with Lights

1. Introduction

The COMMERCIAL COOL 52” Modern Ceiling Fan with Lights is designed to provide efficient cooling and illumination for larger rooms, up to 350 sq. ft. This fan features 5 plywood blades, a dual pull chain for easy control, and an integrated LED light kit. Its brushed silver housing offers a sleek, modern aesthetic.

Key Features:

• Impressive Blade Span: 52” diameter with 5 blades, ideal for larger rooms.
• Adjustable Airflow: Three speed options (High: 4067 CFM, Medium: 2846 CFM, Low: 1513 CFM) for customized comfort.
• Wide Coverage: Effectively cools rooms up to 350 sq. ft.
• Integrated Lighting: Includes two 9-Watt LED bulbs for ample illumination.
• Convenient Control: Dual pull chain for independent fan speed and light control.
• Versatile Installation: Supports both downrod and flush mounting options.

Figure 1: The COMMERCIAL COOL 52-inch Modern Ceiling Fan with Lights, showcasing its sleek design and integrated light kit.

2. Setup and Installation

Proper installation is crucial for the safe and efficient operation of your ceiling fan. Please ensure all components are present before beginning installation.

Components Checklist:

• Motor Housing Assembly
• 5 Plywood Blades
• Blade Brackets
• Light Kit Assembly (with 2 x 9W LED bulbs)
• Downrod (for standard installation)
• Mounting Bracket
• Hardware Pack (screws, washers, wire nuts)
• Pull Chains

Installation Options:

This ceiling fan supports two primary installation methods:

• Downrod Installation: Provides a standard hanging height, suitable for rooms with higher ceilings. The fan dimensions with downrod are approximately 52"D x 52"W x 16.1"H.
• Flush Installation: Mounts the fan closer to the ceiling, ideal for rooms with lower ceilings. The fan dimensions with flush mount are approximately 52"D x 52"W x 10.1"H.

Figure 2: Visual representation of downrod and flush installation options with corresponding height measurements.

Figure 3: A guide to help determine the appropriate ceiling fan size for your room based on square footage.

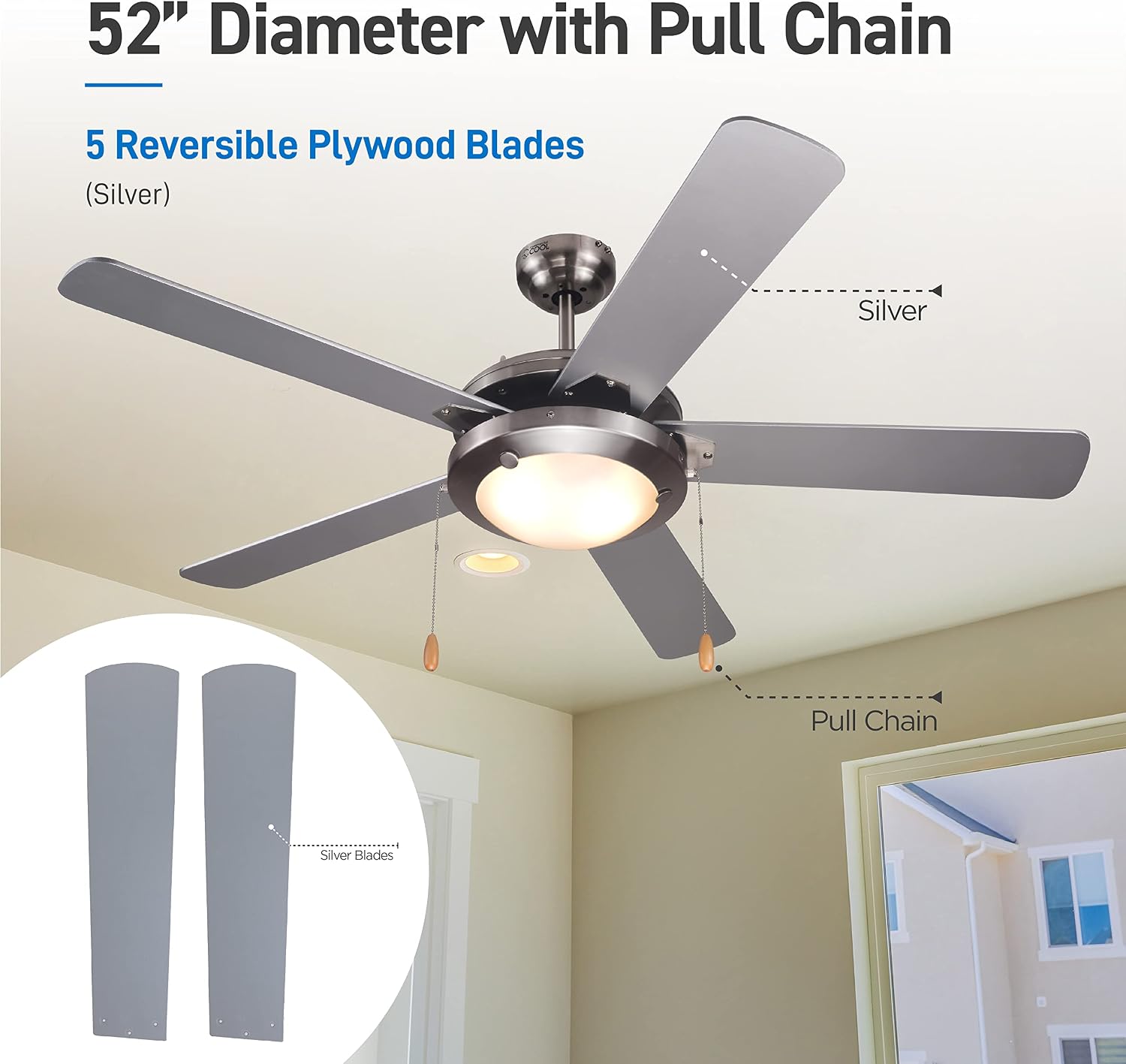

Figure 4: Detail of the 52-inch diameter and pull chain mechanism, highlighting the silver plywood blades.

Figure 5: The integrated LED light kit, which includes two 9-watt LED bulbs for efficient lighting.

3. Operating Instructions

Your COMMERCIAL COOL ceiling fan is designed for user-friendly operation with its dual pull chain system.

Airflow Control:

The fan features three distinct air speed settings, controlled by one of the pull chains:

• High Speed: Provides maximum airflow at 4067 CFM for rapid cooling.
• Medium Speed: Offers balanced airflow at 2846 CFM for comfortable circulation.
• Low Speed: Delivers gentle airflow at 1513 CFM for quiet, continuous air movement.

Light Operation:

The integrated LED light kit is controlled independently by the second pull chain. Pull the chain to turn the lights on or off.

Reversible Blades:

The plywood blades are reversible, allowing you to change the direction of airflow. This feature is useful for seasonal comfort:

• Summer Mode (Counter-clockwise rotation): Pushes cool air down, creating a wind-chill effect.
• Winter Mode (Clockwise rotation): Draws cool air up, circulating warm air trapped near the ceiling.

Figure 6: Illustration of the three-speed airflow settings available on the ceiling fan.

Figure 7: The ceiling fan effectively cools large rooms up to 350 sq. ft., providing comfort for various living spaces.

4. Maintenance

Regular maintenance helps ensure the longevity and optimal performance of your ceiling fan.

Cleaning:

• Always turn off the power to the fan before cleaning.
• Wipe the fan blades and motor housing with a soft, damp cloth. Avoid using abrasive cleaners or solvents that could damage the finish.
• The light cover can be removed and cleaned with mild soap and water if necessary. Ensure it is completely dry before reattaching.

Periodic Checks:

• Periodically check all screws and fasteners on the fan and mounting hardware to ensure they are secure. Tighten any loose connections.
• Inspect the blades for any signs of warping or damage. If a blade is damaged, it should be replaced to maintain balance.
• Ensure the pull chains operate smoothly and are not frayed.

5. Troubleshooting

If you encounter issues with your ceiling fan, refer to the following common troubleshooting steps:

Fan Not Turning On:

• Check the circuit breaker or fuse for the fan.
• Ensure all electrical connections are secure and properly wired.
• Verify the pull chain for the fan speed is in the 'on' position.

Fan Wobbles:

• Ensure all blade screws are tightened securely.
• Check that the mounting bracket is firmly attached to the ceiling joist.
• Verify that the blades are not warped and are balanced. Blade balancing kits can be used if necessary.

Noisy Operation:

• Confirm all screws on the motor housing and blade attachments are tight.
• Check for any loose components within the light kit.
• Ensure the fan is properly lubricated if it has lubrication ports (refer to specific motor instructions if applicable, though this model is generally maintenance-free in terms of lubrication).

6. Specifications

7. Warranty and Support

Warranty Information:

This COMMERCIAL COOL ceiling fan comes with a 1 Year Limited Manufacturer Warranty. Please retain your proof of purchase for warranty claims.

Customer Support:

For technical assistance, troubleshooting not covered in this manual, or warranty inquiries, please contact Commercial Cool customer support. Refer to the product packaging or the official Commercial Cool website for the most current contact information.

You may also visit the Commercial Cool Store on Amazon for additional product information and resources.
