Introduction
This instruction manual provides essential information for the safe and efficient use of your Generic 2000W Hotplate Heating Element. Please read this manual thoroughly before installation and operation, and retain it for future reference. Proper installation and maintenance are crucial for optimal performance and longevity of the product.
Important Safety Instructions
- Electrical Safety: Ensure the power supply matches the voltage specified for the heating element (230V). Disconnect power before installation, cleaning, or maintenance.
- Heat Hazard: The heating element becomes extremely hot during operation. Avoid direct contact to prevent burns. Allow sufficient time for cooling before handling.
- Proper Installation: Install the heating element securely in a compatible hotplate unit. Incorrect installation can lead to electrical hazards or inefficient heating.
- Ventilation: Ensure adequate ventilation around the hotplate unit to prevent overheating.
- Children and Pets: Keep children and pets away from the hotplate during operation and while it is cooling down.
- Flammable Materials: Do not place flammable materials near the heating element.
- Damage Inspection: Regularly inspect the heating element for any signs of damage. Do not operate if damaged.
Product Overview

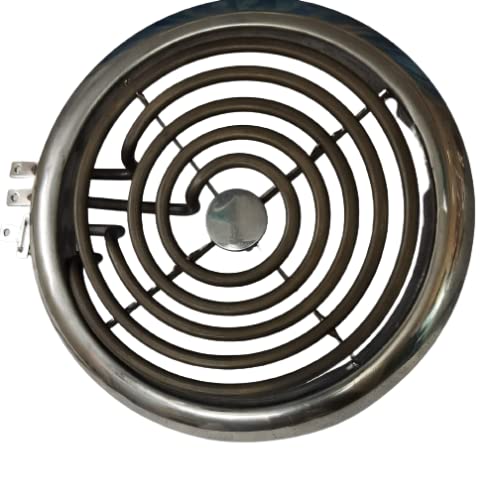

The Generic 2000W Hotplate Heating Element is a robust and efficient component designed for electric hotplates. It features a coiled design for even heat distribution and is constructed from durable stainless steel.
This element is designed for easy integration into compatible hotplate appliances, providing reliable heating for various applications in homes, hotels, and restaurants.
Specifications
| Feature | Detail |
|---|---|
| Brand | Generic |
| Model Number | Hotplate |
| Wattage | 2000 Watts |
| Voltage | 230 Volts |
| Material | Stainless Steel |
| Colour | Silver |
| Heating Elements | 1 |
| Controls Type | Knob (External Hotplate Control) |
| Burner Type | Radiant |
Setup and Installation
This heating element is designed as a replacement part or for integration into a compatible hotplate appliance. Installation should ideally be performed by a qualified technician or an individual with experience in electrical appliance repair.
- Disconnect Power: Before beginning any installation, ensure the hotplate appliance is completely disconnected from the main power supply.
- Access Element Compartment: Carefully open or disassemble the hotplate unit to access the heating element compartment. Refer to your hotplate's specific service manual if available.
- Remove Old Element (if applicable): If replacing an old element, carefully disconnect its wiring and remove it from its mounting brackets. Note the wiring configuration.
- Install New Element: Position the new Generic 2000W Hotplate Heating Element into the designated slot or mounting brackets. Ensure it sits securely and is level.

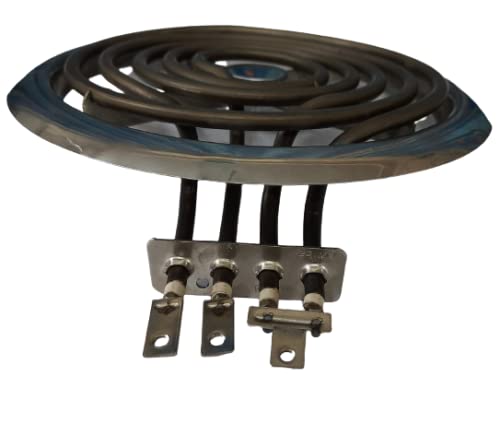

- Connect Wiring: Connect the electrical terminals of the new heating element to the hotplate's internal wiring. Ensure connections are tight and correct according to the hotplate's wiring diagram. The element typically has multiple terminals for power input.
- Secure and Reassemble: Secure any mounting screws or clips. Carefully reassemble the hotplate unit, ensuring all covers are properly closed and secured.
- Initial Test: After reassembly, connect the hotplate to power and perform a brief test to ensure the element heats up correctly. Monitor for any unusual smells or sounds.
Operating Instructions
Once installed in a compatible hotplate appliance, the operation of the heating element is controlled by the hotplate's integrated controls.
- Power On: Ensure the hotplate is connected to a suitable power outlet.
- Adjust Temperature: Use the hotplate's control knob (or digital interface) to select the desired heat setting. The element will begin to heat up.
- Heating Indicator: Many hotplates have an indicator light that illuminates when the element is active.
- Cooking: Place appropriate cookware on the heating element.
- Power Off: After use, turn the control knob to the "OFF" position and disconnect the hotplate from the power supply if not in continuous use.
- Cool Down: Allow the element to cool completely before cleaning or moving the hotplate. The element will remain hot for a significant period after being turned off.
Care and Maintenance
Regular cleaning and proper care will extend the life of your heating element and ensure safe operation.
- Always Disconnect Power: Before cleaning or performing any maintenance, ensure the hotplate is unplugged and the heating element is completely cool.
- Cleaning the Element: For light spills or residue, wipe the cooled element with a damp cloth. For stubborn stains, a non-abrasive cleaner specifically designed for heating elements can be used, followed by wiping with a clean, damp cloth. Ensure no liquid enters the electrical connections.
- Avoid Abrasives: Do not use abrasive pads, harsh chemicals, or metal scrapers, as these can damage the element's surface.
- Keep Dry: Ensure the element and its electrical connections are completely dry before reconnecting power.
- Regular Inspection: Periodically inspect the element for any signs of corrosion, cracks, or loose connections. If any damage is observed, replace the element immediately.
Troubleshooting
If you encounter issues with your heating element, refer to the following common problems and solutions. For complex issues, consult a qualified technician.
| Problem | Possible Cause | Solution |
|---|---|---|
| Element does not heat up. | No power supply; Loose wiring connection; Faulty element; Hotplate internal issue. | Check power outlet and hotplate's power cord. Verify wiring connections are secure. If element is faulty, replace it. Consult hotplate manual for internal issues. |
| Element heats unevenly. | Partial element failure; Incorrect installation. | Inspect element for visible damage. Ensure element is seated correctly and level. Replacement may be necessary. |
| Burning smell during operation. | Food residue on element; Overheating due to poor ventilation; Electrical fault. | Turn off and unplug. Allow to cool, then clean element thoroughly. Ensure hotplate has adequate ventilation. If smell persists or is electrical, discontinue use and seek professional help. |
| Element sparks or trips breaker. | Short circuit; Damaged wiring; Faulty element. | Immediately disconnect power. Do not use. This indicates a serious electrical fault. Have a qualified electrician or technician inspect and repair. |
Warranty and Support
For information regarding warranty coverage or technical support for your Generic 2000W Hotplate Heating Element, please refer to the documentation provided with your original hotplate appliance or contact the retailer from whom the element was purchased. Keep your purchase receipt as proof of purchase.
For further assistance, you may also visit the product page for additional details or contact the manufacturer directly if their information is available.
