Introduction
Thank you for choosing ARTENS SHY Self-Adhesive Vinyl Tiles. These light grey concrete effect PVC tiles are designed to enhance the aesthetic of bedrooms and moderately trafficked areas, adding a modern and distinctive character to your interior. Their light color contributes to a brighter and more pleasant room ambiance. This manual provides essential information for proper installation, usage, and maintenance to ensure the longevity and optimal appearance of your new flooring.
Image: A living room featuring the ARTENS SHY concrete effect vinyl tiles, showcasing their modern design and light color.
Installation Guide
ARTENS SHY vinyl tiles are self-adhesive, designed for quick and easy installation. They are suitable for renovating smooth existing floors and can be easily cut to fit any room, allowing for a comfortable transformation of your interiors.
Surface Preparation
Proper surface preparation is crucial for successful installation and durability. Ensure the subfloor is clean, dry, smooth, and free of dust, grease, or any loose particles. Refer to the image below for specific preparation steps based on your existing floor type.
Image: A table detailing the necessary preparation steps for various subfloor types before installing the vinyl tiles. This includes recommendations for new concrete (rough or uneven, completely dry, 15 days/cm drying time), tiled/cement tiled (check tile stability), soft floor coverings (remove existing covering, scrape/remove adhesive), floating wood floors (remove existing covering), and nailed/glued wood floors (check strip stability, sand).
Important: Always follow the manufacturer's instructions for primer and screed products, and observe the recommended drying times.
Tile Application
- Ensure the room temperature is between 18°C and 25°C (64°F and 77°F) for at least 24 hours before and after installation.
- Acclimate the tiles to the room for at least 48 hours prior to installation by laying them flat in their packaging.
- Plan your layout: Determine the starting point and direction of the tiles. It is often recommended to start from the center of the room or a prominent wall.
- Peel off the protective backing from the self-adhesive side of the tile.
- Carefully position the tile onto the prepared subfloor, aligning it precisely. Once placed, press firmly across the entire surface of the tile to ensure good adhesion.
- Use a utility knife and a straight edge to cut tiles to fit around obstacles or along walls.
- Roll the entire installed area with a floor roller (or apply firm pressure) to ensure maximum adhesion.
Image: A close-up view of ARTENS SHY self-adhesive vinyl tiles being laid, showing the peel-and-stick backing for easy installation.
Usage Considerations
- Water Resistance: These tiles are impermeable, making them suitable for installation in bathrooms and other areas prone to moisture. The anti-slip vinyl surface provides good grip and a soft, pleasant texture.

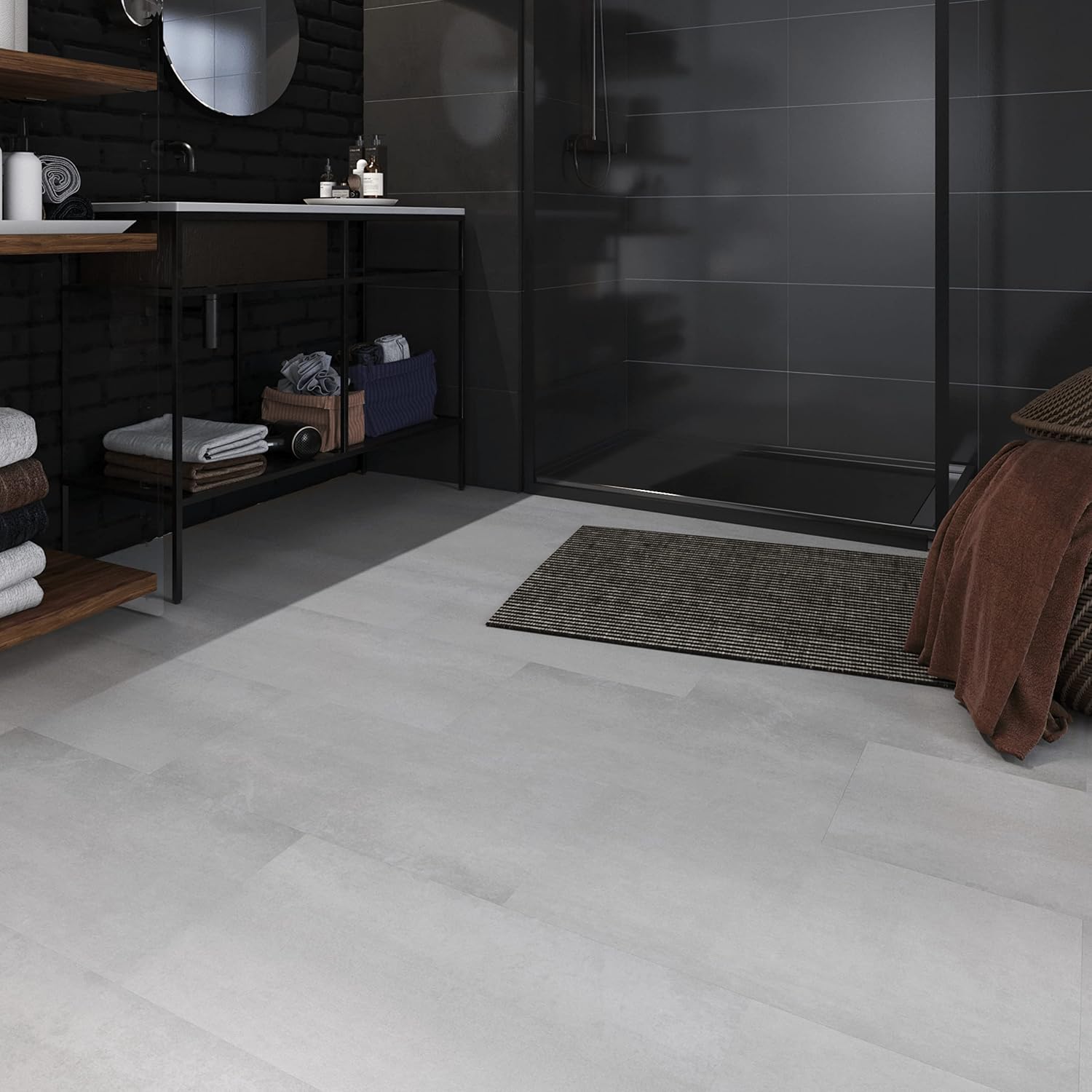

Image: A modern bathroom featuring ARTENS SHY vinyl tiles on the floor, demonstrating their suitability for wet environments.
- Underfloor Heating: The tiles are compatible with underfloor heating systems, provided the surface temperature does not exceed 29°C (84°F). Exceeding this temperature may cause damage or deformation.
- Traffic: Designed for rooms with moderate foot traffic, such as bedrooms, living rooms, and bathrooms.
Care and Maintenance
The smooth surface of ARTENS SHY PVC tiles makes them particularly easy to maintain. Regular cleaning will help preserve their appearance and extend their lifespan.
- Daily Cleaning: Sweep or vacuum regularly to remove loose dirt and dust.
- Wet Cleaning: For deeper cleaning, use a damp cloth or mop with a non-aggressive, pH-neutral detergent. Avoid excessive water.
- Avoid Harsh Chemicals: Do not use abrasive cleaners, strong solvents, or wax-based products, as these can damage the tile surface.
- Spills: Clean up spills immediately to prevent staining.
- Protection: Use felt pads under furniture legs to prevent scratches and indentations. Avoid dragging heavy furniture across the floor.
Product Specifications
| Feature | Detail |
|---|---|
| Brand | ARTENS |
| Model Name | SHY Medio Concrete Effect |
| Model Number | 3276000446392 |
| Material | PVC (Vinyl) |
| Color | Light Grey (Concrete Effect) |
| Tile Dimensions (L x W x H) | 60.96 cm x 30.48 cm x 1.5 mm |
| Tiles per Pack | 12 tiles |
| Coverage per Pack | 2.23 m² |
| Total Weight (per pack) | Approximately 6.09 kg |
| Installation Type | Self-adhesive (Peel & Stick) |
| Water Resistance | Impermeable |
| Underfloor Heating Compatibility | Yes, up to 29°C (84°F) |
| Traffic Level | Residential / Moderate |
Image: Visual representation of the ARTENS SHY vinyl tile, highlighting its dimensions (60.96 cm x 30.48 cm), thickness (1.5 mm), and features like self-adhesion, easy cutting, and easy cleaning.
Image: A table illustrating the total number of tiles and the covered area in square meters for different quantities of bundles.
Warranty Information
Specific warranty details for ARTENS SHY Self-Adhesive Vinyl Tiles are not provided in this document. Please refer to your purchase receipt or contact the retailer for information regarding the product warranty. Keep your proof of purchase for any warranty claims.
Customer Support
For further assistance, technical support, or inquiries regarding ARTENS SHY Self-Adhesive Vinyl Tiles, please contact your point of purchase or visit the official ARTENS website.
- Manufacturer: ADEO
- Brand: ARTENS
- Model: 3276000446392
