WESCO 18V 2.0 Ah Cordless Drill Driver Instruction Manual

1. Introduction

This manual provides essential information for the safe operation, maintenance, and troubleshooting of your WESCO 18V 2.0 Ah Cordless Drill Driver. Please read this manual thoroughly before using the tool to ensure proper and safe usage. Keep this manual for future reference.

Image: The WESCO 18V Cordless Drill Driver shown with its battery, charger, and various bits and accessories, including a flexible shaft and carry bag.

2. Safety Instructions

Always follow basic safety precautions when using electrical tools to reduce the risk of fire, electric shock, and personal injury.

• Work Area Safety: Keep your work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Electrical Safety: Avoid body contact with earthed or grounded surfaces. Do not expose power tools to rain or wet conditions.
• Personal Safety: Always wear eye protection. Use hearing protection when operating the tool for extended periods. Dress properly; avoid loose clothing or jewelry.
• Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
• Battery Pack Use and Care: Recharge only with the charger specified by the manufacturer. Do not use battery packs with any other power tools.

3. Package Contents

Verify that all items listed below are included in your package. If any items are missing or damaged, please contact WESCO customer support.

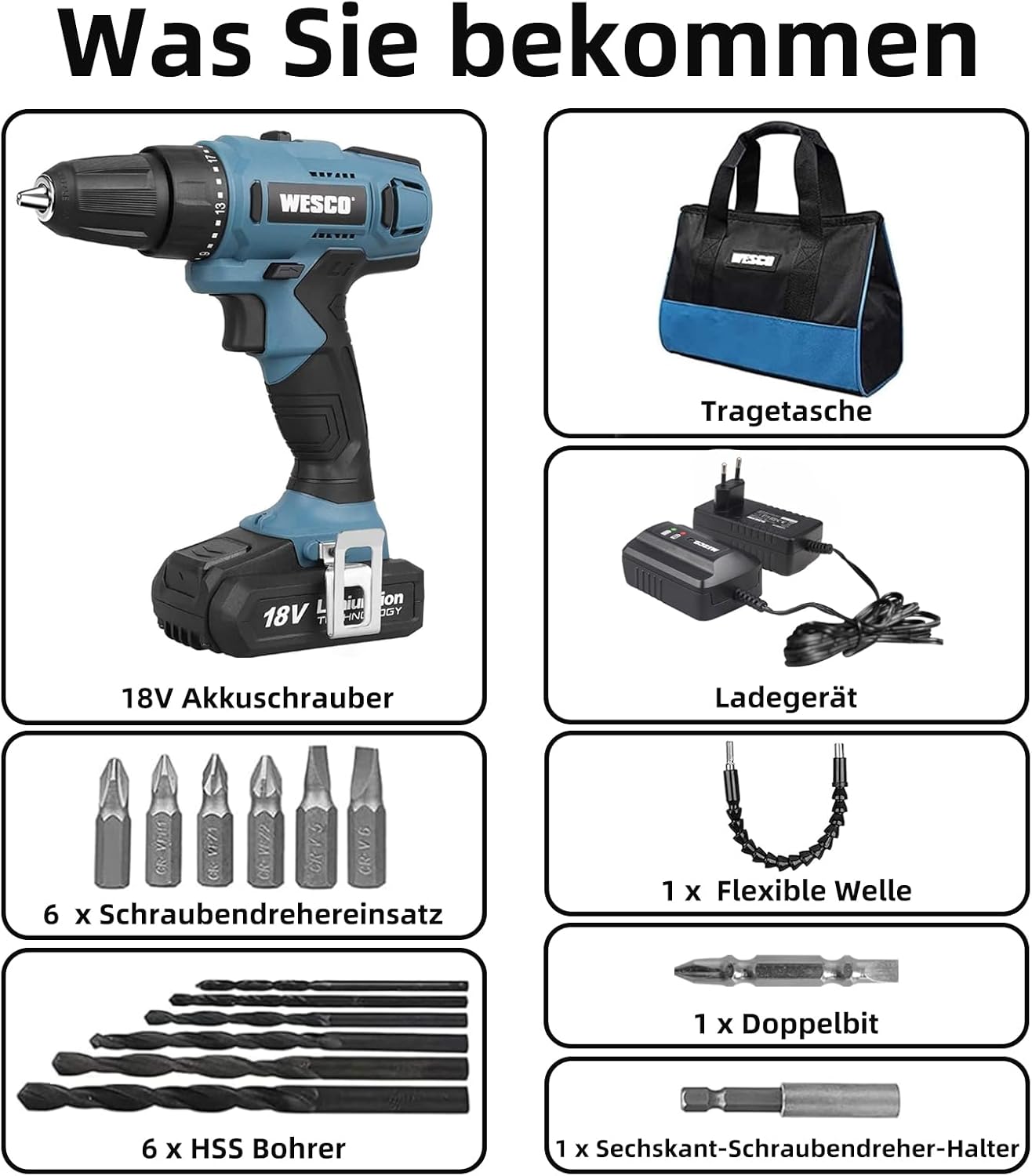

Image: A visual representation of the WESCO 18V Cordless Drill Driver and all its accompanying accessories, including the carry bag, charger, various bits, and flexible shaft.

• 1 x WESCO 18V Cordless Drill Driver
• 1 x 2.0 Ah Lithium-ion Battery
• 1 x Fast Charger
• 1 x Belt Clip
• 1 x Double-ended Bit
• 1 x Flexible Shaft
• 6 x Screwdriver Bits (25mm: Slotted 5.6mm, Phillips PH1, PH2, Pozi PZ1, PZ2)
• 6 x HSS Drill Bits
• 1 x Magnetic Bit Holder
• 1 x Carry Bag

4. Product Features

The WESCO 18V Cordless Drill Driver is designed for versatile drilling and screwdriving tasks. Key features include:

• 21+1 Torque Settings: Allows for precise control over fastening applications, preventing overtightening or stripping screws. The maximum torque is 28 N.m.


Image: An animated diagram showing the drill's chuck with numbers 1-21, indicating the adjustable torque settings for various materials like wood, aluminum, steel, and concrete.

• Two-Speed Gearbox: Provides optimal speed for different applications:
  • Low Speed (0-400 RPM): Ideal for screwdriving.
  • High Speed (0-1400 RPM): Suitable for drilling.


Image: Two drills are shown side-by-side, demonstrating the two-speed selector switch. One drill is set for drilling (0-1500 RPM) into wood, and the other for screwdriving (0-400 RPM).

• Integrated LED Work Light: Illuminates the work area for improved visibility in dimly lit spaces.

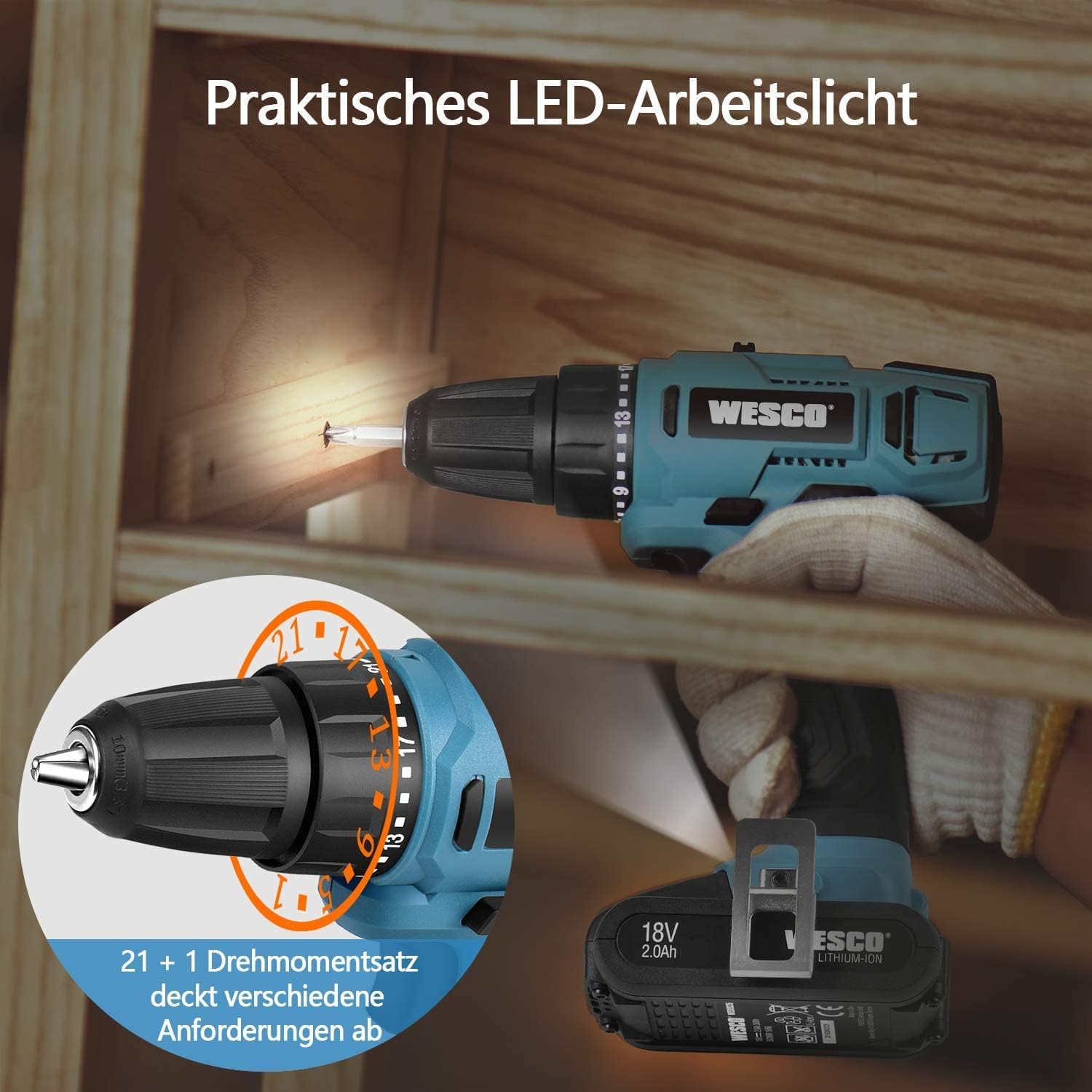

Image: A WESCO drill driver in use, with its integrated LED light brightly illuminating the screw and the wooden surface being worked on.

• Forward/Reverse Rotation Control: Allows for easy switching between driving and removing screws, and for clearing jammed drill bits. Includes a central locking position.


Image: A hand holding the drill, with insets showing the three positions of the rotation switch: clockwise rotation, locking (center), and counterclockwise rotation.

• Ergonomic Soft Grip Handle: Designed for comfortable handling and reduced fatigue during extended use.
• Keyless Chuck: For quick and easy bit changes.
• Flexible Shaft: Included accessory for reaching screws in tight or awkward spaces.


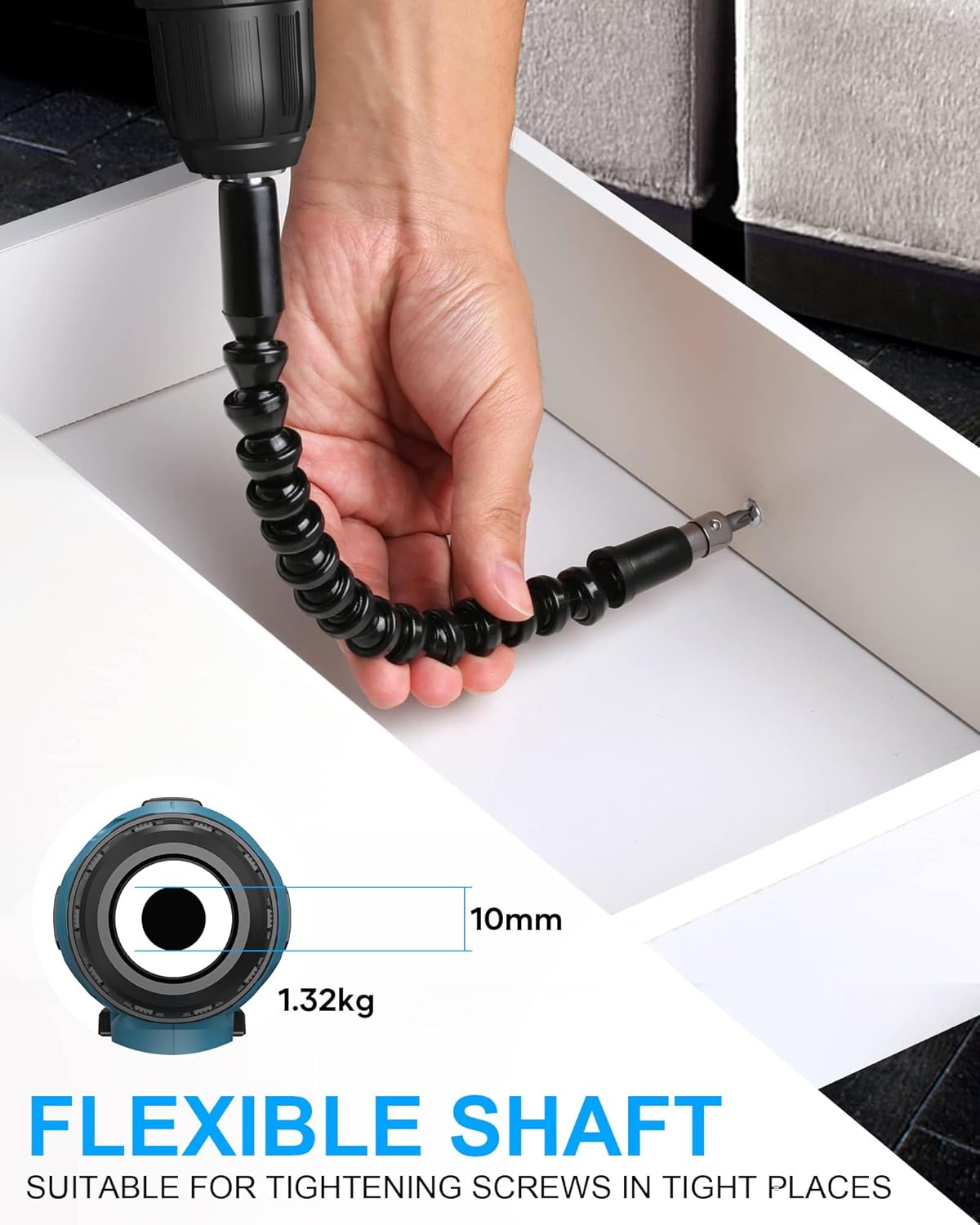

Image: A flexible shaft attached to the drill driver, being used to tighten a screw in a drawer, demonstrating its utility in confined areas.

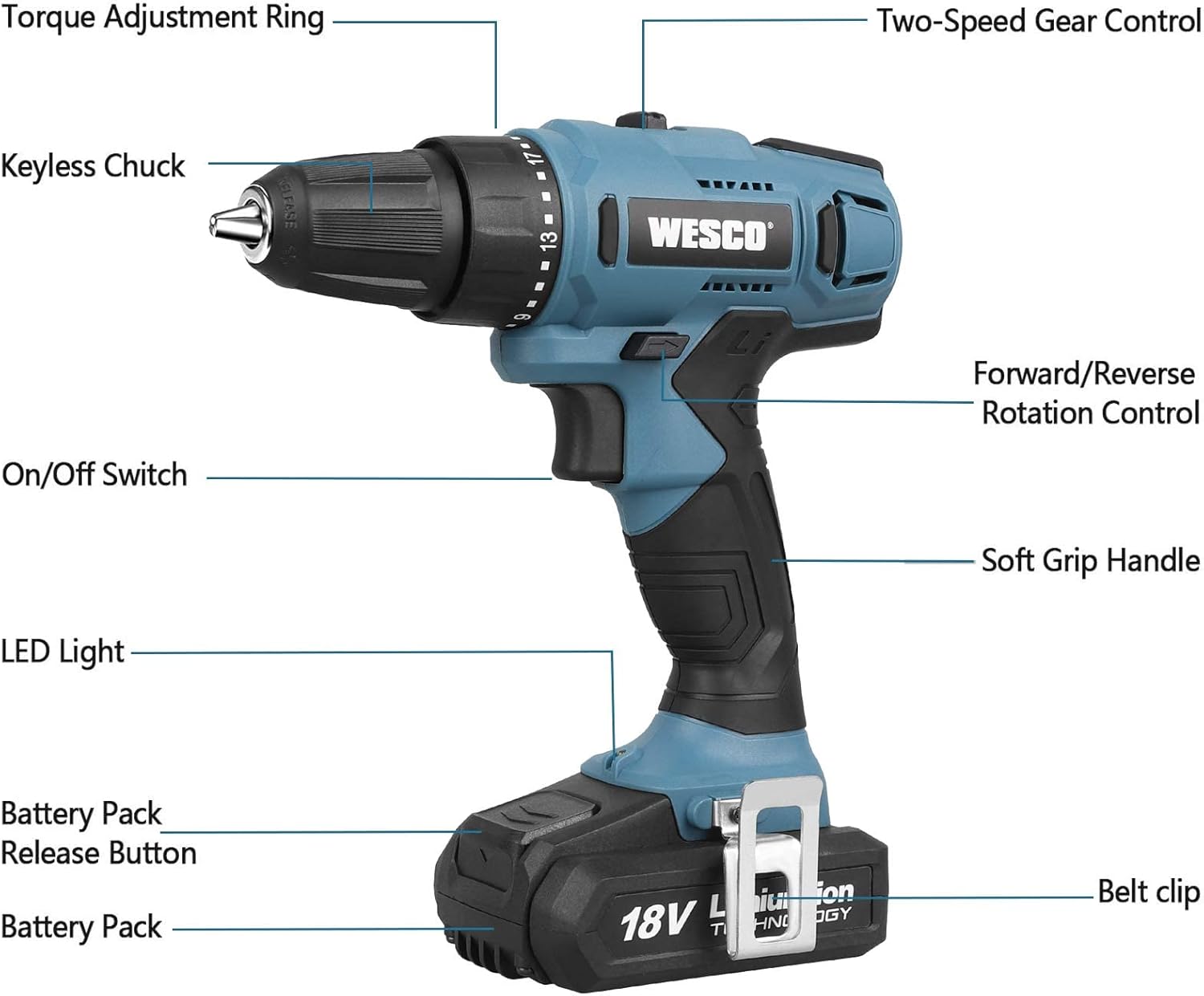

Image: A detailed diagram of the WESCO drill driver with labels pointing to its main components: Torque Adjustment Ring, Keyless Chuck, On/Off Switch, LED Light, Battery Pack Release Button, Battery Pack, Belt Clip, Two-Speed Gear Control, Forward/Reverse Rotation Control, and Soft Grip Handle.

5. Setup

5.1 Charging the Battery

The lithium-ion battery pack is partially charged from the factory. Fully charge the battery before first use.

1. Connect the charger to a standard power outlet. The charger indicator light will show its status (e.g., red for charging, green for fully charged).
2. Slide the battery pack onto the charger until it clicks into place.
3. Allow approximately 80 minutes for a full charge.
4. Once fully charged, disconnect the charger from the power outlet and remove the battery pack.

5.2 Installing/Removing the Battery Pack

• To Install: Align the battery pack with the base of the drill handle and slide it in until it clicks securely into place.
• To Remove: Press the battery pack release button (located at the front of the battery pack) and slide the battery pack out of the handle.

5.3 Installing/Removing Drill Bits and Screwdriver Bits

1. Rotate the keyless chuck counter-clockwise until the jaws are wide enough to insert the desired bit.
2. Insert the bit fully into the chuck.
3. Rotate the keyless chuck clockwise to tighten the jaws securely around the bit. Ensure the bit is centered and firmly held.
4. To remove, rotate the chuck counter-clockwise and pull the bit out.

6. Operating Instructions

6.1 Selecting Rotation Direction (Forward/Reverse)

The forward/reverse rotation control switch is located above the trigger.

• Push the switch to the left for forward (clockwise) rotation, used for drilling and driving screws.
• Push the switch to the right for reverse (counter-clockwise) rotation, used for removing screws or freeing jammed bits.
• Set the switch to the center position to lock the trigger and prevent accidental starting. Always lock the trigger when not in use or when changing bits.

6.2 Adjusting Torque Settings

The torque adjustment ring is located behind the chuck. Rotate the ring to select the desired torque setting from 1 to 21, or the drill symbol for maximum torque (drilling mode).

• Lower numbers (1-5) are for small screws or soft materials.
• Medium numbers (6-15) are for medium screws or materials.
• Higher numbers (16-21) are for large screws or harder materials.
• The drill symbol setting bypasses the clutch for maximum power, suitable for drilling holes.

6.3 Selecting Speed

The two-speed gear control switch is located on top of the drill.

• Position "1" (low speed) is for screwdriving and applications requiring high torque.
• Position "2" (high speed) is for drilling and applications requiring faster rotation.

6.4 Operating the Drill Driver

1. Ensure the battery is fully charged and properly installed.
2. Select the appropriate bit, torque setting, and speed for your task.
3. Set the forward/reverse switch to the desired rotation direction.
4. Hold the drill driver firmly with both hands if necessary, ensuring a stable grip.
5. Position the bit on the workpiece.
6. Press the trigger to start the drill. The integrated LED light will illuminate automatically.
7. Apply steady, even pressure. Do not force the tool.
8. Release the trigger to stop the drill.

7. Maintenance

Regular maintenance ensures the longevity and optimal performance of your WESCO drill driver.

• Cleaning: Keep the ventilation openings of the tool clean to prevent overheating. Use a soft, damp cloth to clean the exterior. Do not use harsh chemicals or abrasive cleaners.
• Chuck Maintenance: Periodically clean the chuck jaws to ensure proper gripping of bits.
• Battery Care:
  • Store battery packs in a cool, dry place away from direct sunlight and extreme temperatures.
  • Do not store battery packs in a discharged state. Recharge them before storage if they are low.
  • Do not short-circuit the battery terminals.
• Storage: Store the drill driver, battery, and charger in the provided carry bag in a dry, secure location out of reach of children.

8. Troubleshooting

Refer to the table below for common issues and their solutions. If the problem persists, contact WESCO customer support.

9. Specifications

10. Warranty and Support

WESCO provides a warranty for this product against defects in materials and workmanship under normal use. For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official WESCO website.

For technical assistance, troubleshooting, or to inquire about replacement parts, please contact WESCO customer support:

Email: support@wesco-tools.com

Please have your model number (WS2317.1-N) and purchase information ready when contacting support.
