Tiktun Portable XPB40-1218A Mini Single Tub Washing Machine User Manual

1. Product Overview

The Tiktun Portable XPB40-1218A is a compact and lightweight single tub washing machine designed for small loads. It features both wash and spin functions, making it suitable for apartments, dorms, RVs, and camping.

Image 1.1: The Tiktun Portable Mini Single Tub Washing Machine with a laundry basket. This image shows the overall design of the washing machine, which is white with a brown and black top panel featuring control knobs.

Key Features:

• 2-in-1 Functionality: Capable of both washing and spin-drying clothes.
• Compact and Portable: Designed for easy movement and storage in small living spaces.
• Easy Operation: Features simple knob controls for wash and spin timers.
• Clear Lid: Allows monitoring of the washing process.
• Integrated Drainage: Includes a drainage tube for convenient water disposal.
• Capacity: 11 pounds (approximately 4 kg) for laundry.

2. Safety Information

Please read all safety instructions carefully before operating the appliance to prevent injury or damage.

• Ensure the washing machine is placed on a stable, level surface.
• Do not immerse the appliance in water or other liquids.
• Keep children and pets away from the appliance during operation.
• Unplug the machine from the power outlet when not in use or before cleaning.
• Do not overload the machine beyond its stated capacity.
• Use only appropriate detergents for washing machines.
• Avoid touching moving parts during operation.

3. Setup and Installation

3.1 Unpacking

1. Carefully remove the washing machine from its packaging.
2. Check for any damage during transit. If damaged, do not use and contact your retailer.
3. Ensure all included components are present: 1 washing machine, drain hose, and power cable.

3.2 Placement

• Place the washing machine on a firm, level surface to prevent vibration and noise during operation.
• Ensure there is adequate space around the machine for ventilation and access.
• Avoid placing the machine in direct sunlight or in areas with high humidity.

3.3 Connecting Water and Power

1. Water Inlet: Connect the water inlet hose to a suitable water source. The machine features a top-load access for water filling.
2. Drainage: Position the outlet pipe (drain hose) to direct wastewater into a sink or drain. Ensure the hose is not kinked or blocked.
3. Power Connection: Plug the power cable into a grounded electrical outlet. Ensure the voltage matches the machine's requirements.

Image 3.1: Detailed view of the washing machine components, including the outlet pipe, laundry bucket, spin cap, power cable, drain hose, and water inlet. This illustrates how to connect and prepare the machine for use.

4. Operating Instructions

4.1 Washing Cycle

1. Load Clothes: Open the lid and place clothes into the washing tub. Do not exceed the 11 lbs (4 kg) capacity. This machine is ideal for small items like socks, undergarments, and handkerchiefs.
2. Add Water: Fill the tub with water to the desired level.
3. Add Detergent: Pour the appropriate amount of detergent into the tub.
4. Set Wash Timer: Turn the 'Wash Timer' knob to select the desired washing duration, up to 10 minutes.
5. Start Washing: The machine will begin the wash cycle. The clear lid allows you to monitor the process.
6. Drain Water: Once the wash cycle is complete, position the drain hose to empty the dirty water.

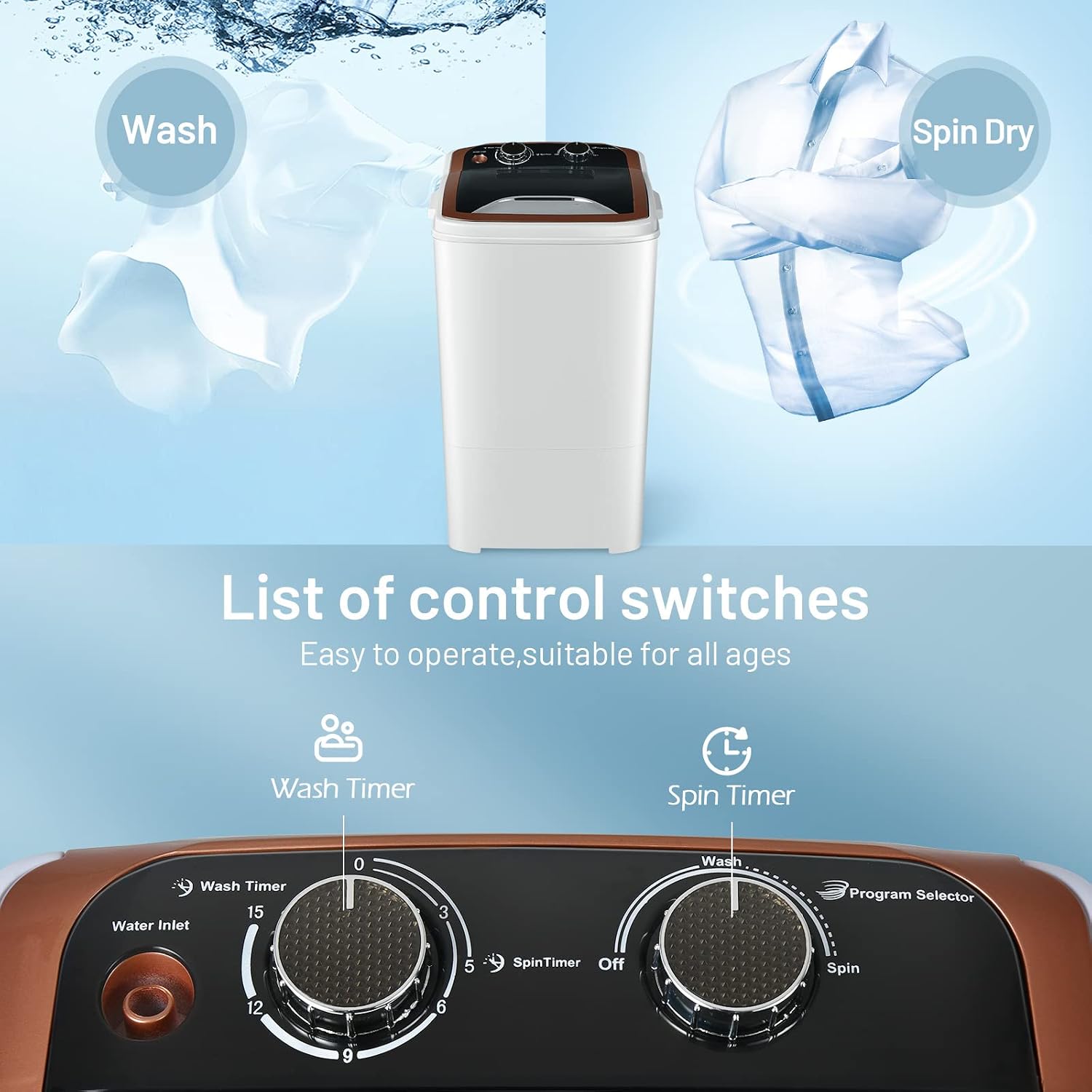

Image 4.1: Close-up of the control panel, showing the Wash Timer, Spin Timer, and Program Selector knobs. This illustrates the simple interface for operating the machine.

Image 4.2: Visual representation of the wash and spin dry functions, indicating the machine's dual capability.

4.2 Spin Cycle

1. Transfer Clothes: After washing and draining, transfer the clothes to the spin basket (if separate, or ensure they are properly arranged in the tub for spin).
2. Secure Spin Cap: Place the spin cap over the clothes in the spin basket to prevent items from flying out during spinning.
3. Set Spin Timer: Turn the 'Spin Timer' knob to select the desired spin duration, up to 5 minutes.
4. Start Spinning: The machine will begin the spin cycle to remove excess water.
5. Remove Clothes: Once the spin cycle is complete, carefully remove the clothes.

Image 4.3: Examples of wash capacity, showing typical items like bath towels, children's clothes, jeans, shirts, and socks that can be washed in one load.

5. Maintenance and Care

Regular maintenance ensures the longevity and optimal performance of your washing machine.

5.1 Cleaning the Tub and Exterior

• After each use, wipe the interior of the tub and spin basket with a clean, damp cloth.
• Clean the exterior of the machine with a soft cloth and mild detergent. Avoid abrasive cleaners.
• Ensure the machine is unplugged before cleaning.

5.2 Drain Hose Maintenance

• Periodically check the drain hose for blockages or kinks.
• Ensure the hose is clean and free of lint or debris to facilitate proper drainage.

5.3 Storage

• When not in use for an extended period, ensure the machine is completely drained and dry.
• Store in a cool, dry place away from direct sunlight.

6. Troubleshooting

If you encounter issues with your Tiktun Portable Mini Single Tub Washing Machine, refer to the following common problems and solutions:

• Machine does not start:
  - Check if the power cord is securely plugged into a working outlet.
  - Ensure the wash or spin timer knob is set to a duration and not 'Off'.
• Water is not draining:
  - Verify that the drain hose is positioned correctly and not elevated above the machine's base.
  - Check the drain hose for any kinks, blockages, or debris.
  - Ensure the drain cap (if applicable) is removed or opened.
• Machine is leaking water:
  - Inspect all hose connections (water inlet and drain) to ensure they are tight and secure.
  - Check for any visible cracks or damage to the tub or casing.
  - Ensure the machine is not overloaded, which can cause water to overflow.
• Poor washing performance:
  - Do not overload the machine; reduce the amount of laundry.
  - Use the correct amount and type of detergent.
  - Ensure adequate water level for the load size.
• Excessive vibration or noise:
  - Ensure the machine is placed on a stable and level surface.
  - Distribute the laundry evenly inside the tub, especially during the spin cycle.

If the problem persists after attempting these solutions, please contact customer support or your retailer for further assistance.

7. Specifications

Image 7.1: Diagram illustrating the dimensions of the washing machine: 27 inches (height), 15 inches (depth), and 16 inches (width).

8. Warranty and Support

For warranty information, please refer to the documentation provided with your purchase or contact the retailer from whom you purchased the Tiktun Portable XPB40-1218A Mini Single Tub Washing Machine. Specific warranty terms may vary by region and retailer.

For technical support or service inquiries, please contact your retailer or the manufacturer directly. Ensure you have your model number (XPB40-1218A) and proof of purchase available when seeking assistance.
