1. Introduction
Thank you for choosing the COLZER DBC-06B Food Dehydrator. This appliance is designed to efficiently remove moisture from various foods, preserving their nutrients, flavor, and extending their shelf life. Please read this manual thoroughly before operating the dehydrator to ensure safe and optimal performance. Keep this manual for future reference.
2. Important Safety Instructions
WARNING: To reduce the risk of fire, electric shock, or injury, always follow these basic safety precautions.
- Read all instructions before using the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electrical shock, do not immerse cord, plugs, or the appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact customer service for examination, repair, or adjustment.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- Ensure the appliance is placed on a stable, heat-resistant surface.

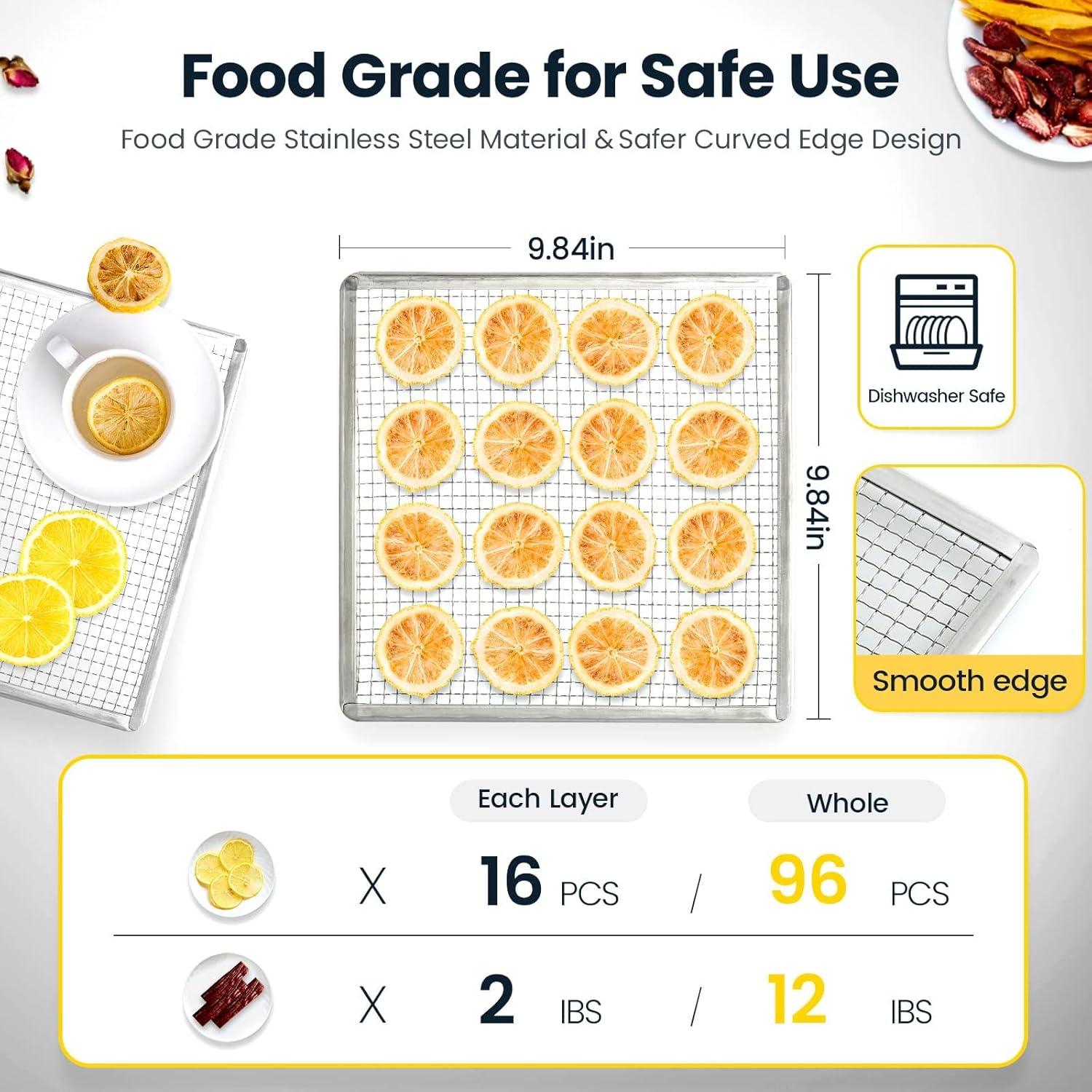

Figure 2.1: The COLZER DBC-06B features food-grade stainless steel trays with smooth edges, ensuring safe use. Each tray measures approximately 9.84 x 9.84 inches, capable of holding up to 16 lemon slices or 2 lbs of jerky per layer.
3. Product Overview
The COLZER DBC-06B Food Dehydrator is designed for efficient and even drying. It features a robust stainless steel construction and user-friendly controls.
3.1 Components
- Main Dehydrator Unit
- 6 Stainless Steel Trays
- Power Cord
- Instruction Manual
3.2 Key Features
- Larger Capacity: Equipped with 6 spacious stainless steel trays.
- BPA-Free Materials: Constructed with food-safe, BPA-free stainless steel.
- Touch Control Panel: Intuitive digital display for setting temperature and time.
- 3D Airflow Heating: Ensures uniform heat distribution for consistent drying results.
- Quiet Operation: Operates at a low noise level, typically below 50dB.
- Side and Back Cooling Holes: Designed to prevent hot air from blowing directly towards the user.
Figure 3.1: Front view of the COLZER DBC-06B Food Dehydrator, showcasing its 6-layer drawer trays and digital control panel. The image highlights its larger capacity and BPA-free stainless steel construction.
Figure 3.2: Illustration of the side and back cooling holes on the COLZER DBC-06B, designed to direct hot air away from the user for improved comfort and safety.
Figure 3.3: Diagram showing the 3D airflow heating system within the COLZER DBC-06B, which circulates air efficiently for thorough dehydration. The unit can reach temperatures up to 194°F and operates quietly below 50dB.
4. Setup and First Use
4.1 Unpacking
- Carefully remove the dehydrator and all its components from the packaging.
- Remove any protective film or packaging materials from the unit and trays.
- Verify that all parts are present and undamaged. Refer to the "Product Overview" section for a list of components.
4.2 Initial Cleaning
- Before first use, wash the stainless steel trays and any removable accessories in warm, soapy water. The trays are dishwasher safe.
- Wipe the interior and exterior of the main unit with a damp cloth. Do not immerse the main unit in water.
- Dry all parts thoroughly before assembly.
4.3 Placement
- Place the dehydrator on a stable, level, and heat-resistant surface.
- Ensure there is adequate space (at least 6 inches) around the unit for proper air circulation, especially around the side and back cooling vents.
- Do not place the dehydrator near heat sources, flammable materials, or in direct sunlight.
- Plug the power cord into a grounded electrical outlet (110V).
5. Operating Instructions
Operating your COLZER DBC-06B Food Dehydrator is straightforward. Follow these steps for optimal results.
Figure 5.1: A visual guide to the four simple steps for dehydrating food: 1. Wash and slice food, 2. Load food evenly onto the dehydrator trays, 3. Set time and temperature, 4. Wait for completion.
5.1 Preparing Food
- Wash fruits, vegetables, or herbs thoroughly.
- Slice food into uniform pieces to ensure even drying. Thinner slices dry faster.
- Pre-treat certain foods (e.g., apples, bananas) to prevent discoloration, if desired. Common methods include lemon juice or ascorbic acid dips.
5.2 Loading Trays
- Arrange the prepared food in a single layer on the stainless steel trays.
- Do not overlap food pieces, as this will hinder airflow and lead to uneven drying.
- Leave a small space between pieces for optimal air circulation.
- Slide the loaded trays into the dehydrator unit.
5.3 Setting Temperature and Time
Figure 5.2: Detailed view of the COLZER DBC-06B's touch control panel, featuring a digital temperature display and buttons for power, temperature adjustment, and timer settings.
- Ensure the dehydrator is plugged in. The control panel will illuminate.
- Press the ON/OFF button to turn on the unit.
- Press the Temperature button (often indicated by a thermometer icon) to select the desired drying temperature. Use the Up/Down arrows to adjust the temperature. The temperature range is typically 95°F to 194°F (35°C to 90°C).
- Press the Timer button (often indicated by a clock icon) to set the desired drying time. Use the Up/Down arrows to adjust the time. The timer can usually be set from 30 minutes to 72 hours.
- Once temperature and time are set, the dehydrator will begin operating. The display will show the remaining time and current temperature.
5.4 During Dehydration
- Periodically check the food for dryness. Drying times vary based on food type, thickness, and moisture content.
- Rotate trays if you notice uneven drying, though the 3D airflow system is designed to minimize this.
- When the drying cycle is complete, the unit will automatically shut off.
5.5 After Dehydration
- Unplug the dehydrator from the power outlet.
- Allow the unit and trays to cool completely before handling.
- Remove the dried food and store it in airtight containers.
6. Dehydration Guide
The following table provides general guidelines for dehydrating common foods. These are approximate times and temperatures; actual drying times may vary.
| Food Type | Preparation | Temperature (°F) | Approx. Time (Hours) | Doneness Test |
|---|---|---|---|---|
| Fruits | Sliced 1/4 inch, pre-treated if desired | 135 - 145 | 6 - 12 | Pliable, leathery, no moisture when squeezed |
| Apples | Cored, sliced | 135 | 7 - 10 | Leathery, no sticky spots |
| Bananas | Sliced 1/4 inch | 135 | 6 - 10 | Crisp or leathery |
| Strawberries | Sliced 1/4 inch | 135 | 8 - 12 | Crisp |
| Vegetables | Sliced 1/8 - 1/4 inch, blanched if desired | 125 - 135 | 4 - 10 | Brittle, crisp |
| Carrots | Sliced, blanched | 125 | 6 - 10 | Brittle |
| Mushrooms | Sliced | 125 | 4 - 8 | Leathery to brittle |
| Tomatoes | Sliced 1/4 inch | 135 | 8 - 12 | Leathery, no moisture |
| Meats | Lean, sliced 1/8 inch, pre-frozen/marinated | 155 - 165 | 4 - 10 | Leathery, no moisture, cracks when bent |
| Beef Jerky | Lean cuts, sliced thin, marinated | 160 | 6 - 10 | Leathery, no soft spots |
| Herbs | Whole leaves or small sprigs | 95 - 105 | 2 - 6 | Crumbly |
Note: For meat products, it is highly recommended to pre-treat by heating to an internal temperature of 160°F (71°C) before dehydrating to ensure food safety. Always ensure food is completely dry before storage to prevent spoilage.
7. Cleaning and Maintenance
Regular cleaning and proper maintenance will extend the life of your dehydrator and ensure hygienic operation.
7.1 Cleaning the Trays
- The stainless steel trays are dishwasher safe.
- Alternatively, wash them by hand in warm, soapy water. Use a soft brush or sponge to remove any food residue.
- Rinse thoroughly and dry completely before storing or reusing.
7.2 Cleaning the Main Unit
- Always unplug the dehydrator from the power outlet and allow it to cool completely before cleaning.
- Wipe the exterior and interior surfaces of the main unit with a damp cloth. For stubborn stains, use a mild detergent on the cloth, then wipe with a clean, damp cloth.
- Do not use abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the finish.
- Never immerse the main unit, power cord, or plug in water or any other liquid.
- Ensure all parts are dry before plugging the unit back in or storing.
7.3 Storage
- Store the dehydrator in a clean, dry place when not in use.
- Keep it away from extreme temperatures and direct sunlight.
8. Troubleshooting
If you encounter any issues with your dehydrator, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Dehydrator does not turn on. | Not plugged in; power outlet malfunction; unit not switched on. | Ensure power cord is securely plugged into a working outlet. Press the ON/OFF button. Check circuit breaker. |
| Food not drying evenly. | Overloaded trays; uneven slicing; blocked airflow. | Ensure food is in a single layer with space between pieces. Slice food uniformly. Do not block air vents. Rotate trays if necessary. |
| Drying takes too long. | Temperature set too low; food sliced too thick; high humidity. | Increase temperature (within recommended range). Slice food thinner. Dehydrate in a less humid environment. |
| Food is too brittle/over-dried. | Temperature set too high; drying time too long. | Reduce temperature or drying time for future batches. Check food periodically. |
| Unusual odor or smoke. | Food residue burning; internal malfunction. | Immediately unplug the unit. Clean trays and interior thoroughly. If problem persists, discontinue use and contact customer support. |
If the problem persists after trying these solutions, please contact COLZER customer support.
9. Product Specifications
Technical details for the COLZER DBC-06B Food Dehydrator:
| Feature | Detail |
|---|---|
| Brand | COLZER |
| Model Number | DBC-06B |
| Wattage | 600 watts |
| Voltage | 110 Volts |
| Material Feature | Food Safe Stainless Steel |
| Number of Trays | 6 |
| Is Dishwasher Safe | Yes (Trays) |
| Product Dimensions | 14.56 x 10.82 x 12.6 inches |
| Item Weight | 17.01 pounds |
| GTIN / UPC | 716032892307 |
| Date First Available | May 3, 2022 |
10. Warranty and Customer Support
COLZER products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official COLZER website.
If you have any questions, require technical assistance, or need to report a problem with your COLZER DBC-06B Food Dehydrator, please contact our customer support team:
- Website: www.colzer.com (Please check for the most current contact information)
- Email: Refer to your product packaging or website for support email.
Please have your model number (DBC-06B) and purchase date ready when contacting customer support.
