PURPLE LEAF Outdoor Patio Porch Swing User Manual

Important Safety Information

Please read and understand all instructions before assembly and use. Failure to follow these instructions may result in serious injury or property damage. Keep this manual for future reference.

• Ensure all components are present and undamaged before assembly. Do not use if any parts are missing or broken.
• Assemble the swing on a flat, stable surface.
• Do not exceed the maximum weight capacity of 750 lbs.
• Keep children and pets away from the assembly area.
• Regularly inspect all bolts and connections to ensure they are tight and secure.
• Do not stand on the swing or use it as a ladder.
• In strong winds or adverse weather conditions, it is recommended to secure or disassemble the canopy to prevent damage.

Figure 1: Key Safety Features. This image highlights the robust construction elements designed for user safety, including reinforced tubing, secure hooks, a stable triangular frame, a reliable locking mechanism, non-slip foot covers, and a durable metal seat plate.

Package Contents

Before beginning assembly, verify that all parts listed below are included in your package. If any parts are missing or damaged, please contact customer support.

Figure 2: Complete Product View. This image displays the fully assembled porch swing, providing a visual reference for all major components.

Assembly Instructions (Setup)

Follow these steps carefully to assemble your PURPLE LEAF Patio Porch Swing. It is recommended to have two people for assembly.

1. Unpack and Identify Parts: Lay out all components on a clean, soft surface to prevent scratches. Refer to the "Package Contents" section to ensure all parts are present.
2. Assemble the Main Frame: Connect the base bars and side frames using the provided bolts and nuts. Do not fully tighten bolts until all frame components are loosely assembled.
3. Attach the Swing Seat: Carefully lift and attach the swing seat assembly to the main frame using the hanging hooks and springs. Ensure the hooks are securely fastened.
4. Install the Canopy: Mount the adjustable canopy frame to the top of the main frame. Secure it with the designated knobs or fasteners.
5. Place Cushions and Pillows: Position the integrated cushion on the swing seat. Add the two roll pillows for comfort.
6. Final Tightening: Once all components are in place, systematically tighten all bolts and nuts using the provided tools. Ensure all connections are firm and stable.

Figure 3: Swing in Daybed Configuration. This image illustrates the swing's ability to convert into a comfortable flatbed, a key feature to consider during assembly planning for optimal placement.

Operating Instructions

Using the 2-in-1 Converting Seat

The PURPLE LEAF Patio Porch Swing features an adjustable backrest that allows it to convert from a 3-seat swing chair to a comfortable flatbed (daybed).

1. To Convert to Daybed:
   • Locate the simple locking mechanism (carabiner) on the side of the swing seat.
   • Open the carabiner to release the backrest.
   • Gently push the backrest down until it lies flat, forming a continuous surface with the seat.
2. To Convert Back to Swing Chair:
   • Lift the backrest upwards until it clicks into its upright position.
   • Secure the locking mechanism (carabiner) to hold the backrest in place.

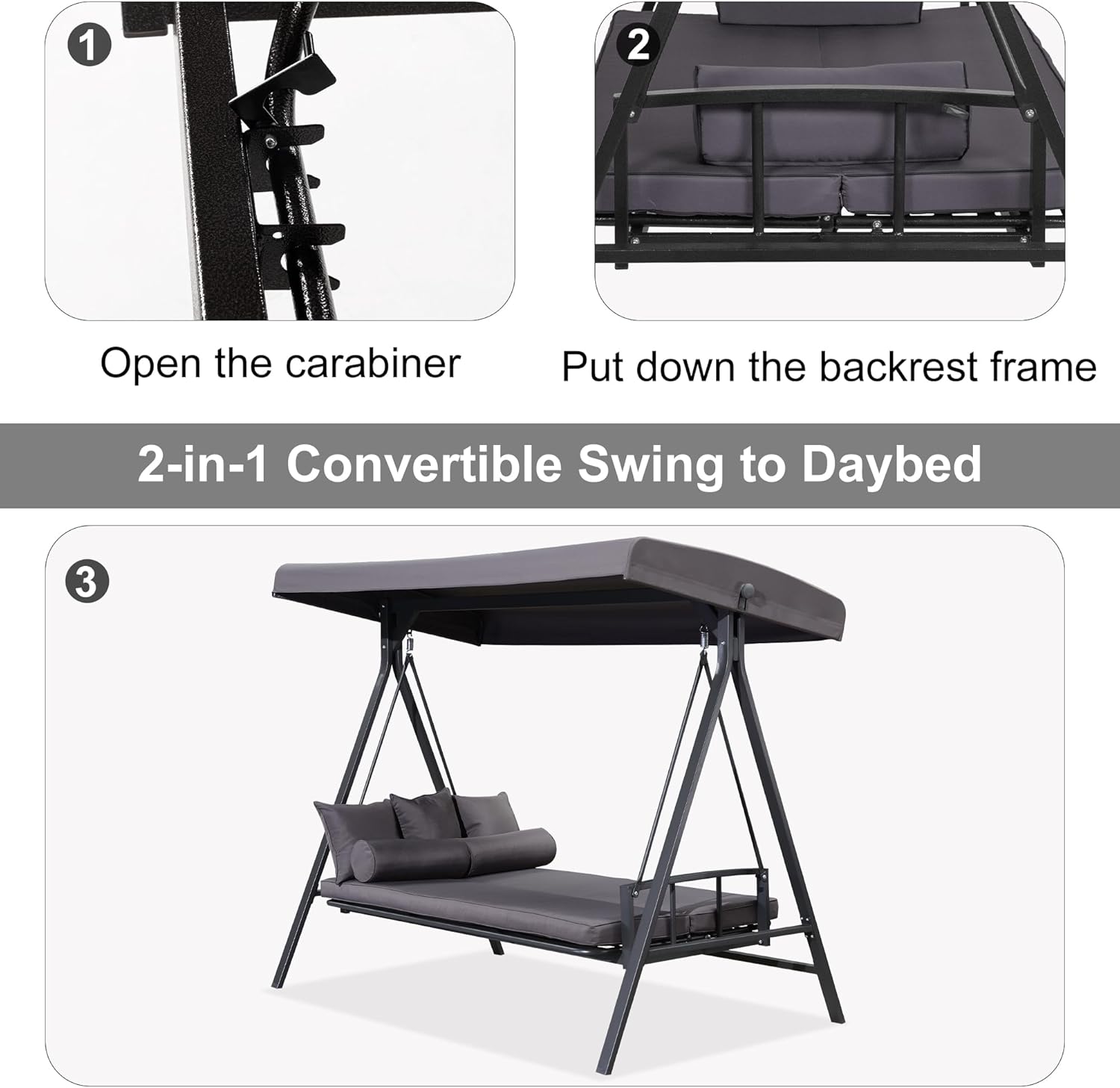

Figure 4: 2-in-1 Conversion Steps. This diagram illustrates the simple process of transforming the swing into a daybed by releasing the backrest locking mechanism.

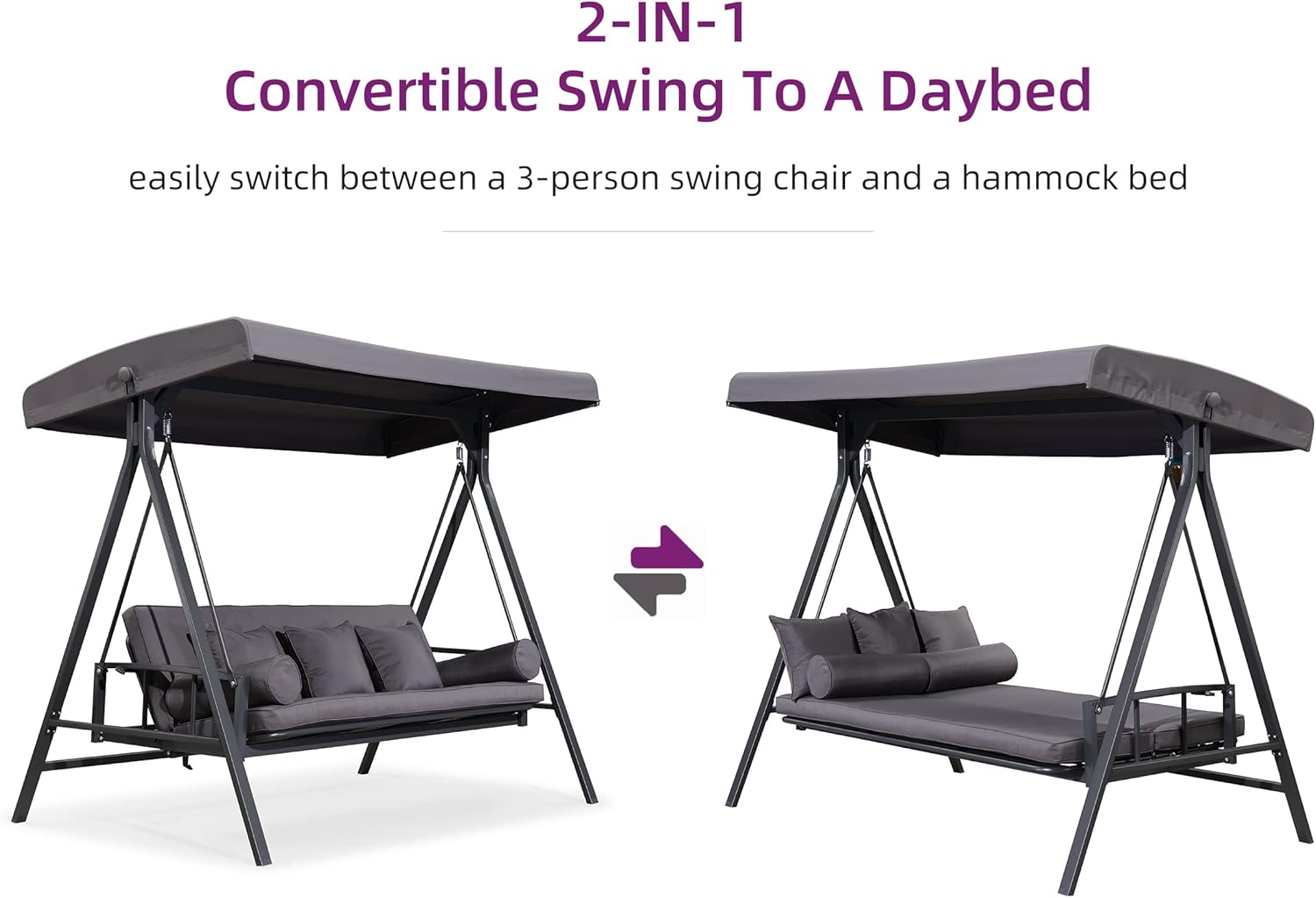

Figure 5: Convertible Swing to Daybed. This image visually demonstrates the two primary configurations of the swing, highlighting its versatility.

Adjusting the Tilt Canopy

The canopy can be adjusted to provide optimal shade throughout the day.

• Locate the rotating knobs on the sides of the canopy frame.
• Loosen the knobs slightly.
• Adjust the canopy to your desired angle.
• Tighten the knobs firmly to secure the canopy in place.

Figure 6: Adjustable Tilt Canopy. This image illustrates the canopy's adjustability and features, ensuring protection from the sun.

Maintenance and Care

Proper maintenance will extend the life and appearance of your PURPLE LEAF Patio Porch Swing.

• Cleaning the Frame: Wipe the powder-coated steel frame with a damp cloth and mild soap. Rinse thoroughly and dry completely to prevent rust. Avoid abrasive cleaners.
• Cushion Care: The integrated cushion and roll pillows are made with durable fabric. Spot clean with mild soap and water. For deeper cleaning, refer to the care label on the cushion. Allow to air dry completely before storage.
• Canopy Care: The polyester canopy fabric is weather-resistant. Clean with a soft brush and mild soap solution. Rinse well and allow to dry completely. In strong winds or heavy rain, it is advisable to remove or secure the canopy to prevent damage.
• Hardware Inspection: Periodically check all bolts, nuts, and connections for tightness. Tighten as necessary to ensure stability and safety.
• Winter Storage: During off-season or prolonged periods of non-use, it is recommended to store the swing in a dry, protected area to prolong its lifespan. Remove cushions and canopy for separate storage.

Figure 7: Fabric Durability. This image showcases the quality of the fabric used for the canopy and cushions, emphasizing its resistance to water, fading, and UV rays, which contributes to ease of maintenance.

Troubleshooting

Specifications

• Product Dimensions: 95.27" (W) x 49.60" (D) x 72.83" (H)
• Weight Capacity: 750 lbs
• Frame Material: Powder-coated Steel
• Canopy Material: Polyester Fabric (UV-resistant, Water-resistant)
• Cushion Material: High Resilience Foam with Durable Fabric Cover
• Color: Gray
• Assembly Required: Yes
• Model Number: B09HR1NJ9K

Figure 8: Product Size Information. This diagram provides precise measurements for the swing's width, depth, and height in various views.

Warranty and Support

PURPLE LEAF stands behind the quality of its products. For warranty information, replacement parts, or technical support, please contact PURPLE LEAF customer service.

• Customer Service: Refer to the contact information provided on the product packaging or the official PURPLE LEAF website.
• Online Resources: Visit the PURPLE LEAF Store on Amazon for additional product information and support.
• Returns: This product is eligible for 30-day easy returns. Please refer to the retailer's return policy for details.
