1. Introduction
The Funien BATERSUARG Canine Ovulation Tester is designed to assist in determining the optimal mating time for female dogs. This device helps identify the ideal period for breeding, potentially reducing the need for frequent veterinary visits and optimizing breeding success. It features a digital display for clear readings and a waterproof design for easy cleaning and maintenance.
Image 1.1: Overview of the Funien BATERSUARG Canine Ovulation Tester. The device is black with a white probe and a digital display.
2. Product Features
- Large Digital Display: Provides clear and accurate readings for easy interpretation.
- Waterproof Design: Allows for easy cleaning and ensures durability.
- Round Probe Design: Engineered to ensure safe use and minimize discomfort for the animal.
- Optimal Mating Period Identification: Helps pinpoint the ideal breeding time for female dogs.
- Portable with Storage Case: Includes a dedicated storage case for convenient transport and protection.
Image 2.1: The Canine Ovulation Tester highlighting its key features: easy to carry, humanized design, digital display, and waterproof design.
3. Package Contents
Verify that all items are present in the package:
- 1 x Funien BATERSUARG Canine Ovulation Tester
- 1 x Storage Case
- 1 x 9V Battery (pre-installed or included separately)
4. Device Components

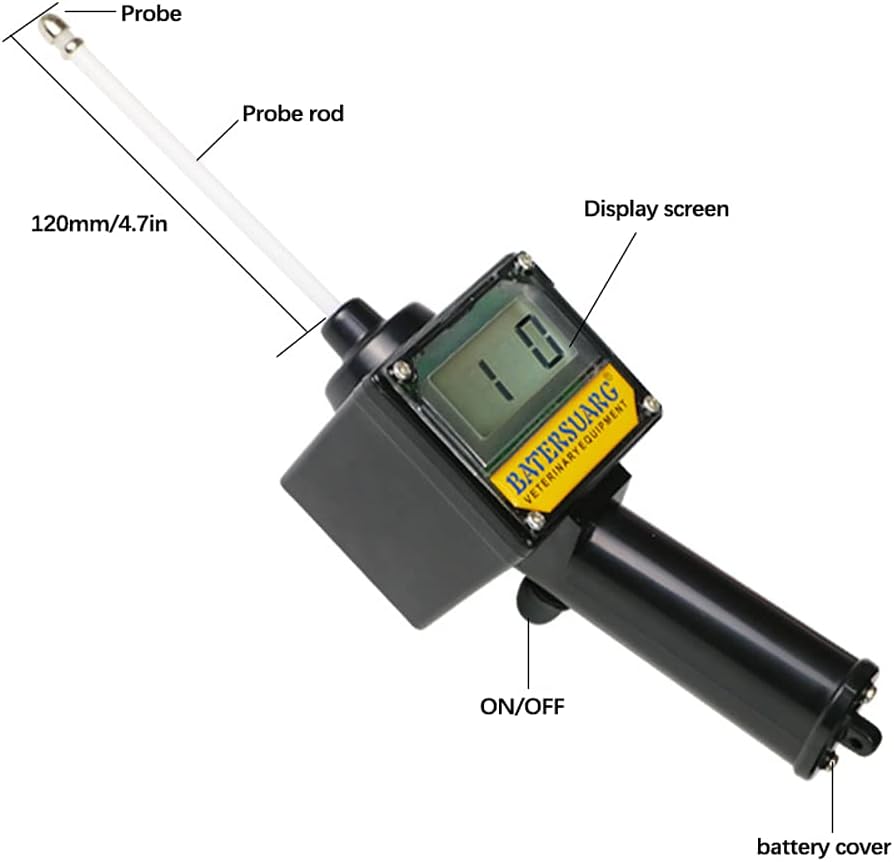

Image 4.1: Labeled diagram showing the main components of the device, including the probe, probe rod, display screen, ON/OFF button, and battery cover. The probe rod measures approximately 120mm (4.7 inches).
- Probe: The tip of the device that makes contact for measurement.
- Probe Rod: The elongated part connecting the probe to the main body.
- Display Screen: Shows the numerical readings.
- ON/OFF Button: Activates and deactivates the device, and initiates readings.
- Battery Cover: Located at the base of the handle, provides access to the 9V battery compartment.
5. Setup and Cleaning
- Battery Installation: Ensure a 9V battery is correctly installed in the battery compartment located at the base of the handle.
- Initial Cleaning: Before each use, thoroughly clean the probe. Apply a small amount of mild detergent to a clean cotton cloth.
- Wipe Probe: Wipe the probe repeatedly with the detergent-soaked cloth to ensure it is clean.
- Rinse Probe: Rinse the probe with clean water. Do not wipe it dry; use it directly while still wet.
Image 5.1: The device partially submerged in water, illustrating its full body waterproof design for convenient cleaning.
6. Operating Instructions
- Preparation: Ensure the probe is clean and wet as described in the 'Setup and Cleaning' section.
- Insertion: Gently insert the instrument into the female dog's vagina. Aim towards the 11 o'clock position.
- Depth Consistency: Mucus consistency can vary between dogs and positions. Maintain a consistent insertion depth for accurate readings.
- Rotation: Once inserted to the desired depth, rotate the instrument 1.5 to 2 full circles.
- Stabilize: Hold the instrument steady in this position without further movement.
- Take Reading: Press the ON/OFF switch to activate the device and take a reading. The numerical value will appear on the display.
- Subsequent Readings (if needed): For additional readings within the same session, simply press the ON/OFF switch again without rotating the device further.

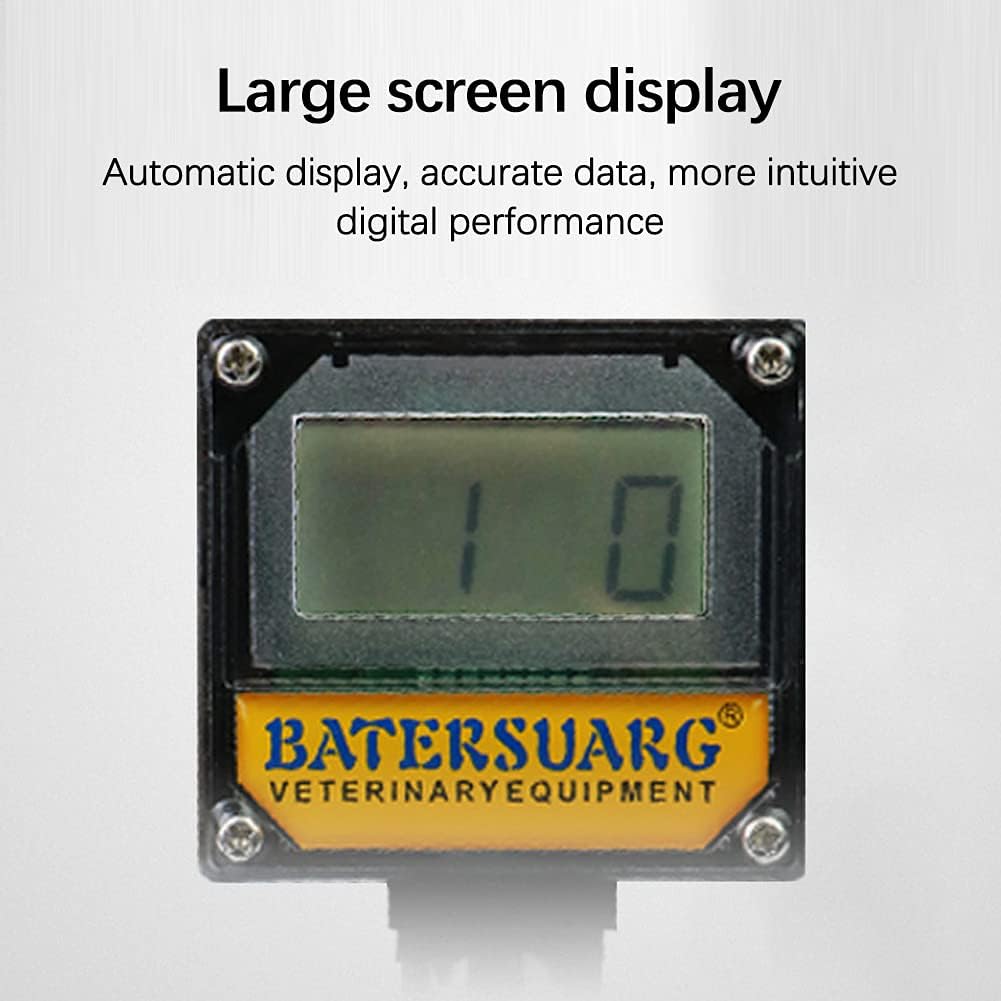

Image 6.1: Close-up view of the large digital display, showing a clear numerical reading.
Important Note on Re-testing:
If re-testing is required, wait at least 2 to 3 hours between tests. This waiting period allows for a recovery after mucus agitation, which is crucial for obtaining accurate subsequent readings.
7. Maintenance and Storage
- Post-Use Cleaning: After each use, remove the instrument from the animal. Clean the probe thoroughly following the steps outlined in the 'Setup and Cleaning' section.
- Drying: Allow the device to air dry completely before storage.
- Storage: Place the clean and dry instrument back into its provided storage case. Store the case in a cool, dry place, away from direct sunlight and extreme temperatures.
8. Specifications
| Parameter | Value |
|---|---|
| Brand | Funien |
| Model | BATERSUARG Canine Ovulation Tester |
| Material | ABS |
| Color | Black |
| Operating Temperature | 0°C ~ 50°C |
| Battery | 1 x 9V battery (included) |
| Product Dimensions (L x W x H) | 41 x 23 x 18 cm |
| Package Dimensions (L x W x H) | 410 x 230 x 180 mm (16.1 x 9.1 x 7.1 inches) |
| Package Weight | 1300g (2.9 lbs) |
9. Troubleshooting
No specific troubleshooting information is provided in the product description. If you encounter issues, please consider the following general steps:
- No Display/Power: Check if the 9V battery is correctly installed and has sufficient charge. Replace the battery if necessary.
- Inconsistent Readings: Ensure the probe is thoroughly cleaned and wet before each use. Verify consistent insertion depth and rotation as per operating instructions. Allow 2-3 hours between re-tests.
- Device Damage: Inspect the device for any visible damage. If damaged, discontinue use.
10. Warranty and Support
Specific warranty and support information is not provided in the product details. For warranty claims or technical assistance, please contact the retailer or manufacturer directly using the contact information provided at the point of purchase.
