hynade MTG165D 3-in-1 Mig Tig MMA Welder Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective operation, setup, and maintenance of your hynade MTG165D 3-in-1 Mig Tig MMA Welder. Please read this manual thoroughly before using the equipment to ensure proper function and to prevent injury or damage.

The hynade MTG165D is a versatile welding machine capable of performing MIG (Gas/Gasless), Lift TIG, and MMA (Stick) welding. It features dual voltage compatibility (110V/220V) and an intelligent control system for ease of use.

2. Safety Information

WARNING: Welding can be dangerous. Always follow safety precautions to prevent serious injury or death.

• Electric Shock: Welding current can cause fatal electric shock. Ensure proper grounding, wear dry gloves, and do not touch live electrical parts.
• Fumes and Gases: Welding fumes and gases can be hazardous to your health. Work in a well-ventilated area or use an approved respirator.
• Arc Rays: Arc rays can burn eyes and skin. Wear a welding helmet with appropriate shade and protective clothing.
• Fire and Explosion: Welding sparks and hot metal can cause fires and explosions. Keep flammable materials away from the welding area.
• Burns: Hot metal and equipment can cause severe burns. Wear protective gloves and clothing.
• Noise: Excessive noise can damage hearing. Wear ear protection.
• Always disconnect power before performing any maintenance or service.

3. Product Overview and Features

The hynade MTG165D welder is designed with user convenience and performance in mind, incorporating several advanced features:

• Synergic Function: One-knob intelligent control system for automatic compensation and adjustment of welding current and voltage, simplifying operation for optimal welding results. Features 10 levels of precise adjustment (-5V to +5V) and coordinated control of wire feeder speed and current.
• Dual Voltage 110/220V: Automatically detects and adapts to input AC voltage, offering flexibility for various power sources. Maximum output current is 165A.
• Lift TIG, 2T/4T Gas/Gasless Function: Supports Lift TIG welding, and both gas and gasless MIG welding. The 2T/4T function reduces finger fatigue during extended welding sessions.
• Arc Force, Hot Arc, VRD: Automatic control of voltage and current for a smooth arc. Synergic hot arc and arc force functions ensure reliable welding with less spatter. VRD (Voltage Reduction Device) enhances user safety.
• Energy-Saving Fan Cooling System: The fan operates only when needed, reducing dust intake and conserving energy. Includes overheat and overcurrent protection.

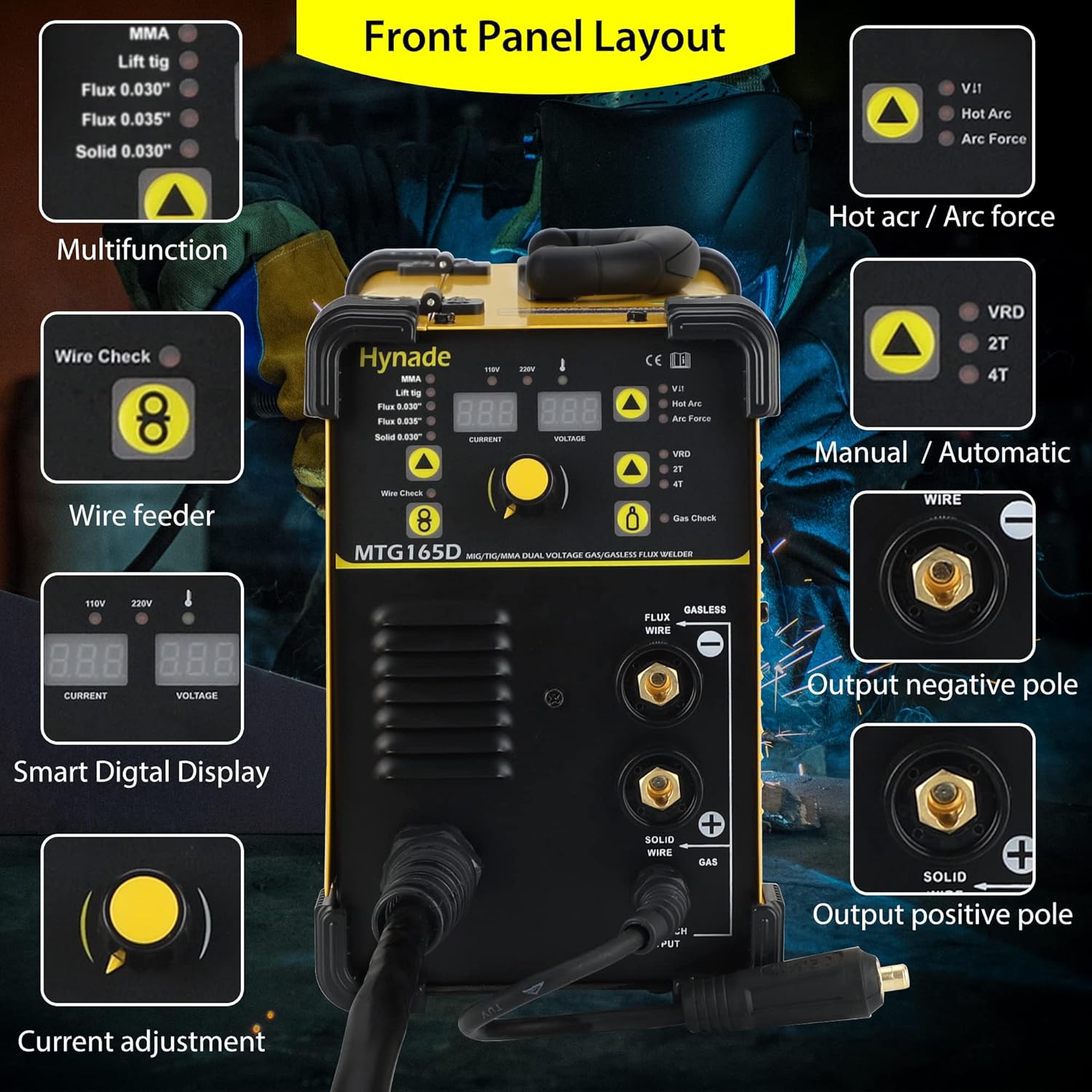

Front Panel Layout

Understanding the front panel controls is crucial for operating the MTG165D welder effectively. Refer to the image below for a visual guide to the various indicators and adjustment knobs.

Image Description: This image displays the front panel of the hynade MTG165D welder. Key features highlighted include: Multifunction selector (MMA, Lift TIG, Flux 0.030", Flux 0.035", Solid 0.030"), Wire Check indicator, Smart Digital Display for Current and Voltage, Current Adjustment knob, Hot Arc/Arc Force indicator, Manual/Automatic selector (VRD, 2T, 4T), Output Negative Pole, and Output Positive Pole. The central display shows current and voltage readings.

4. Package Contents

Upon unpacking, ensure all the following items are present:

• 1 x hynade MTG165D Mig Welder Machine
• 1 x 3-meter Mig Torch (fixed on machine)
• 1 x Ground Clamp with 3-meter Cable
• 1 x Stick Holder with 3-meter Cable
• 1 x 0.030" (0.8mm) Flux Core Wire (1 lbs)
• 2 x 0.030" (0.8mm) Contact Tips
• 1 x 2-meter Gas Hose
• 1 x Conversion Wire (110V female to 220V male plug)
• 1 x User Manual (this document)

Image Description: This image illustrates the accessories included with the hynade MTG165D welding machine. It shows the Mig torch, Stick holder with cable, Earth clamp with cable, Air hose, Power adapter, Contact tips, and a spool of Flux Wire.

5. Setup

5.1 Power Connection

The MTG165D supports dual voltage input (110V/220V). The machine will automatically detect the input AC voltage. Use the provided conversion wire if necessary to adapt to your power outlet.

5.2 Wire Feeder Setup

For MIG welding, proper wire feeding is essential. The machine comes with 0.030" (0.8mm) flux core wire. Ensure the wire spool is correctly mounted and the wire is fed through the drive rollers and into the MIG torch liner. Adjust the wire tension appropriately to prevent slipping or crushing.

Image Description: This image provides a setup guide for the hynade MTG165D. It details the wire feeding process, including how to install the wire spool and feed the wire through the torch. It also includes a table with recommended settings for MIG, MMA, and Lift TIG welding based on material type and thickness.

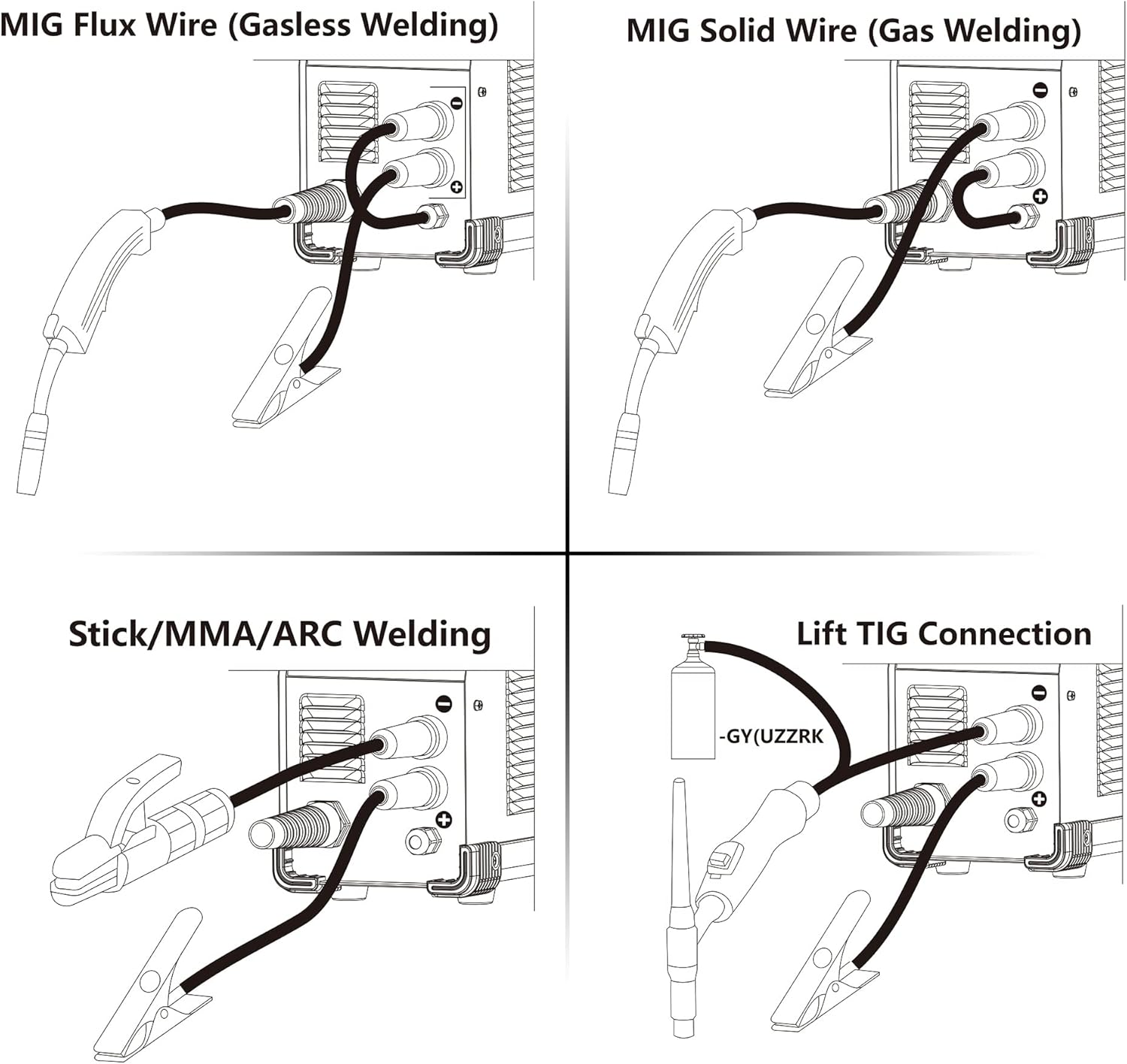

5.3 Welding Mode Connections

Refer to the diagrams below for correct cable connections for each welding mode.

Image Description: This image shows four connection diagrams for the hynade MTG165D welder: MIG Flux Wire (Gasless Welding), MIG Solid Wire (Gas Welding), Stick/MMA/ARC Welding, and Lift TIG Connection. Each diagram clearly illustrates where to connect the torch, ground clamp, and gas hose (if applicable) to the machine's front panel.

MIG Flux Wire (Gasless Welding) Connection

1. Connect the MIG torch to the positive (+) terminal.
2. Connect the ground clamp to the negative (-) terminal.
3. Ensure flux core wire is loaded and fed correctly.

MIG Solid Wire (Gas Welding) Connection

1. Connect the MIG torch to the negative (-) terminal.
2. Connect the ground clamp to the positive (+) terminal.
3. Connect the gas hose from your shielding gas cylinder to the gas inlet on the machine.
4. Ensure solid wire is loaded and fed correctly.

Stick/MMA/ARC Welding Connection

1. Connect the stick holder to the positive (+) terminal.
2. Connect the ground clamp to the negative (-) terminal.
3. Insert the welding electrode into the stick holder.

Lift TIG Connection

1. Connect the TIG torch (not included, but compatible) to the negative (-) terminal.
2. Connect the ground clamp to the positive (+) terminal.
3. Connect the gas hose from your shielding gas cylinder to the gas inlet on the machine.
4. Ensure a tungsten electrode is correctly installed in the TIG torch.

6. Operating Instructions

6.1 Selecting Welding Mode

Use the multifunction selector on the front panel to choose between MMA, Lift TIG, Flux 0.030", Flux 0.035", or Solid 0.030" welding modes. The digital display will show the selected mode and corresponding parameters.

6.2 Adjusting Parameters

The MTG165D features a synergic control system. Once a mode is selected, the machine automatically sets optimal current and voltage. You can fine-tune these settings using the current adjustment knob, with 10 levels of precise adjustment from -5V to +5V to match your specific welding needs.

6.3 2T/4T Function

The 2T/4T function is available for MIG and TIG welding. In 2T (Two-Touch) mode, the arc starts when the trigger is pressed and stops when released. In 4T (Four-Touch) mode, the arc starts when the trigger is pressed and released, and stops when the trigger is pressed and released again. This mode is useful for long welds to reduce finger fatigue.

6.4 Arc Force and Hot Arc

These functions are designed to improve arc stability and starting. Hot Arc provides an initial surge of current for easier arc ignition, while Arc Force helps prevent the electrode from sticking during MMA welding by temporarily increasing current when the arc length shortens.

6.5 VRD (Voltage Reduction Device)

The VRD function reduces the open-circuit voltage (OCV) of the machine when not welding, significantly increasing safety for the operator, especially in damp or hazardous environments.

6.6 Suitable Materials

The hynade MTG165D is suitable for welding various materials across its different modes:

• MIG: Ideal for mild steel, low-carbon steel, and stainless steel.
• Lift TIG: Suitable for stainless steel and other non-ferrous metals (with appropriate gas).
• MMA/ARC: Effective for steel plate, mild steel, and various other ferrous metals.

Image Description: This image demonstrates the versatility of the hynade MTG165D welder, showing examples of MIG, LIFT TIG, ARC, and MMA welding processes. It also highlights the types of materials suitable for welding, including Stainless steel, Low-carbon steel, Steel plate, and Mild steel.

7. Maintenance

Regular maintenance ensures the longevity and optimal performance of your welding machine.

• Cleaning: Regularly clean the machine's exterior and ventilation openings to prevent dust and debris buildup. Use compressed air to blow out internal dust, ensuring the machine is unplugged.
• Cable Inspection: Periodically inspect all cables (power, ground, torch) for cuts, fraying, or loose connections. Replace damaged cables immediately.
• Torch Maintenance: For MIG torches, regularly clean the nozzle, replace contact tips as they wear, and check the liner for obstructions. For TIG torches, ensure the tungsten electrode is sharp and free of contamination.
• Wire Feeder: Keep the wire feeder rollers clean and ensure proper tension. Check for any wire tangles or blockages.
• Storage: Store the welder in a clean, dry environment, away from excessive dust, moisture, and extreme temperatures.

8. Troubleshooting

If you encounter issues with your hynade MTG165D welder, refer to the following common troubleshooting steps:

• No Power: Check the power cord connection, wall outlet, and circuit breaker. Ensure the machine's power switch is ON.
• No Arc: Verify all cable connections (ground clamp, torch). Ensure the correct welding mode is selected and parameters are set. Check for proper wire feeding (MIG) or electrode contact (MMA).
• Poor Weld Quality: Adjust current/voltage settings. Check for proper wire feed speed (MIG). Ensure the workpiece is clean and free of rust or paint. Verify correct gas flow (if applicable). Replace worn contact tips or electrodes.
• Overheat Protection Activated: If the machine stops and an overheat indicator lights up, allow the machine to cool down. Ensure ventilation openings are clear and the fan is operating. Reduce the duty cycle or welding current if continuously overheating.
• Wire Feeding Issues (MIG): Check wire spool installation, drive roller tension, and ensure the wire is not tangled or kinked. Inspect the torch liner for blockages.

If problems persist after attempting these steps, contact customer support.

9. Specifications

10. Warranty and Support

Specific warranty details are not provided in this manual. For warranty information, technical support, or service inquiries, please refer to the product packaging, your purchase receipt, or contact hynade customer service directly through their official website or the retailer where the product was purchased.
