InfratexRC Dedicated Remote Control User Manual

Introduction

This manual provides essential information for the proper setup, operation, and maintenance of your InfratexRC dedicated remote control. This remote is specifically designed to be compatible with a range of United TV models, ensuring seamless functionality without the need for complex programming.

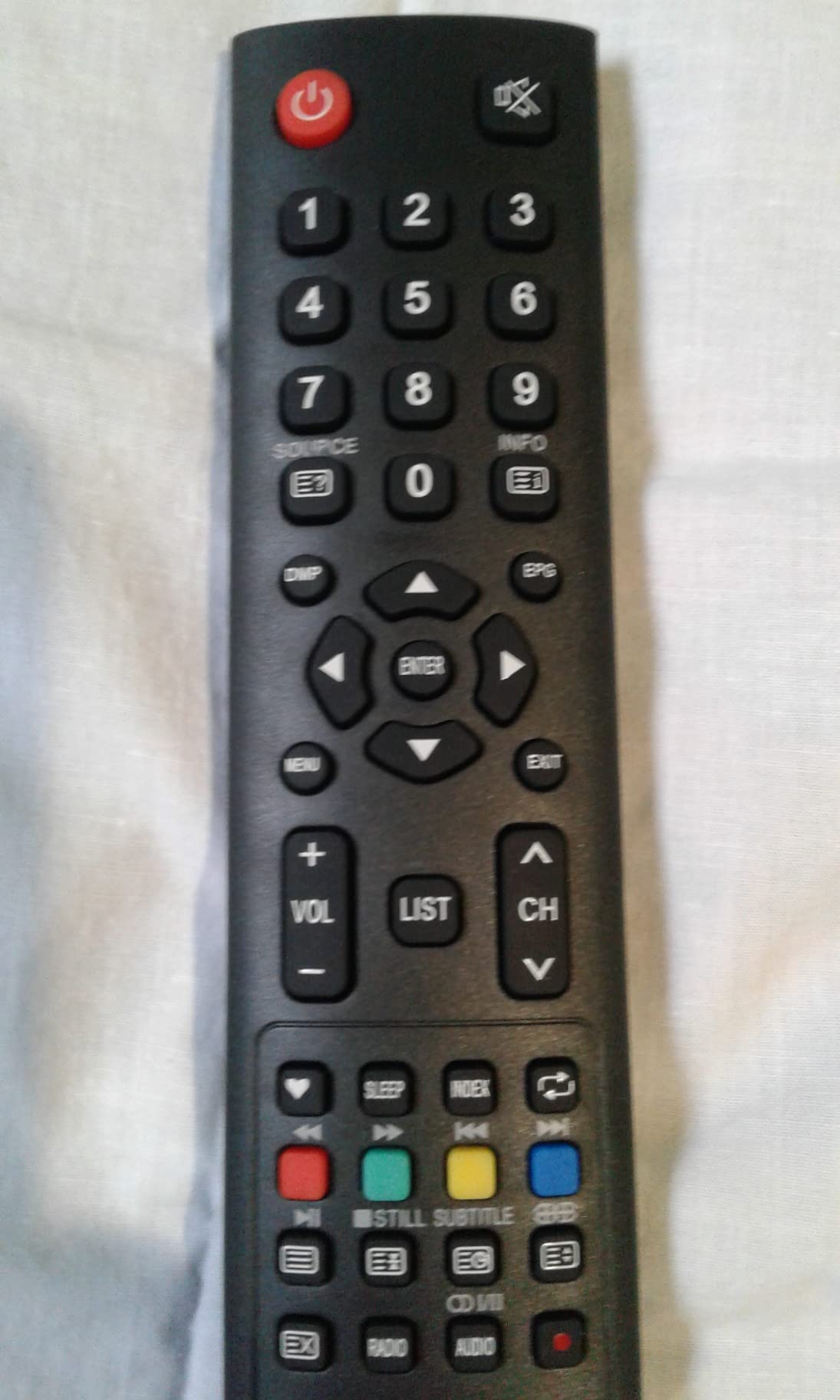

Image 1: Front view of the InfratexRC dedicated remote control.

Compatibility: This remote control is a dedicated replacement and is compatible with the following United TV models: LED24H40, LED24H42, LED24HS40, LED28H40, LED32H45, LED32H50, LED32H60, LED32HS51, LED32HS61, LED40HS50, LED40HS60, LED40HS61, LED48HS60.

Setup

1. Battery Installation

1. Locate the battery compartment on the back of the remote control.
2. Slide the battery cover downwards or press the latch to open it.
3. Insert two AAA alkaline batteries (not included), ensuring the positive (+) and negative (-) terminals match the indicators inside the compartment.
4. Close the battery cover securely until it clicks into place.

Image 2: Back view of the remote control, illustrating the battery compartment.

2. Initial Use

This InfratexRC remote control is a dedicated replacement and does not require any programming or code setup. Once batteries are correctly installed, it is ready for immediate use with your compatible United TV model.

Operating Instructions

The remote control features standard television functions. Point the remote directly at your United TV's infrared receiver for optimal performance.

• Power Button: Turns the TV on or off.
• Number Buttons (0-9): Selects channels directly.
• Channel Up/Down: Navigates through channels sequentially.
• Volume Up/Down: Adjusts the audio level.
• Mute Button: Silences or restores TV audio.
• Input/Source Button: Cycles through available input sources (HDMI, AV, etc.).
• Menu Button: Accesses the TV's main menu.
• Navigation Buttons (Up, Down, Left, Right, OK): Used to navigate menus and confirm selections.
• Exit/Back Button: Exits menus or returns to the previous screen.

Refer to your United TV's original user manual for specific functions related to advanced settings or smart features, as this remote provides core TV control.

Maintenance

Cleaning

To clean the remote control, gently wipe its surface with a soft, dry cloth. For stubborn dirt, slightly dampen the cloth with water or a mild, non-abrasive cleaner. Avoid using harsh chemicals, solvents, or abrasive materials, as these can damage the remote's finish or internal components.

Battery Replacement

Replace batteries when the remote's response becomes sluggish or stops working. Always replace both batteries at the same time with new AAA alkaline batteries. Do not mix old and new batteries, or different types of batteries, as this can lead to leakage or malfunction.

Storage

If the remote control will not be used for an extended period, remove the batteries to prevent potential leakage and damage. Store the remote in a cool, dry place away from direct sunlight and extreme temperatures.

Troubleshooting

• Remote not working:
  • Check if the batteries are inserted correctly with the correct polarity (+/-).
  • Replace old batteries with new ones.
  • Ensure there are no obstructions between the remote control and the TV's infrared sensor.
  • Confirm the remote is pointed directly at the TV.
• Buttons not responding:
  • If only certain buttons are not working, try cleaning the remote as described in the Maintenance section.
  • Ensure the TV is powered on and not in a standby mode that restricts remote input.
• Intermittent operation:
  • This often indicates low battery power. Replace the batteries.
  • Ensure no strong light sources (like direct sunlight or bright fluorescent lights) are interfering with the infrared signal.

If issues persist after following these steps, the remote control may be faulty or incompatible with your specific TV model, despite the listed compatibility. Double-check your TV model number against the compatibility list.

Specifications

Warranty Information

No specific warranty information is provided with this product. For details regarding potential warranty coverage or return policies, please refer to the terms and conditions of your purchase from the retailer.

Support

For further assistance or inquiries, please contact the retailer from whom you purchased this product. You may also visit the InfratexRC brand's official website for any available support resources, if applicable.
