1. Introduction and Overview
The TIMBER RIDGE Folding Collapsible Wagon is a versatile and durable utility cart designed for convenient transportation of personal belongings for various outdoor activities. Its robust alloy steel frame and premium polyester fabric ensure longevity, while its collapsible design allows for easy storage and portability. With a substantial weight capacity, this wagon is an ideal companion for beach days, camping trips, picnics, sporting events, gardening, and shopping.

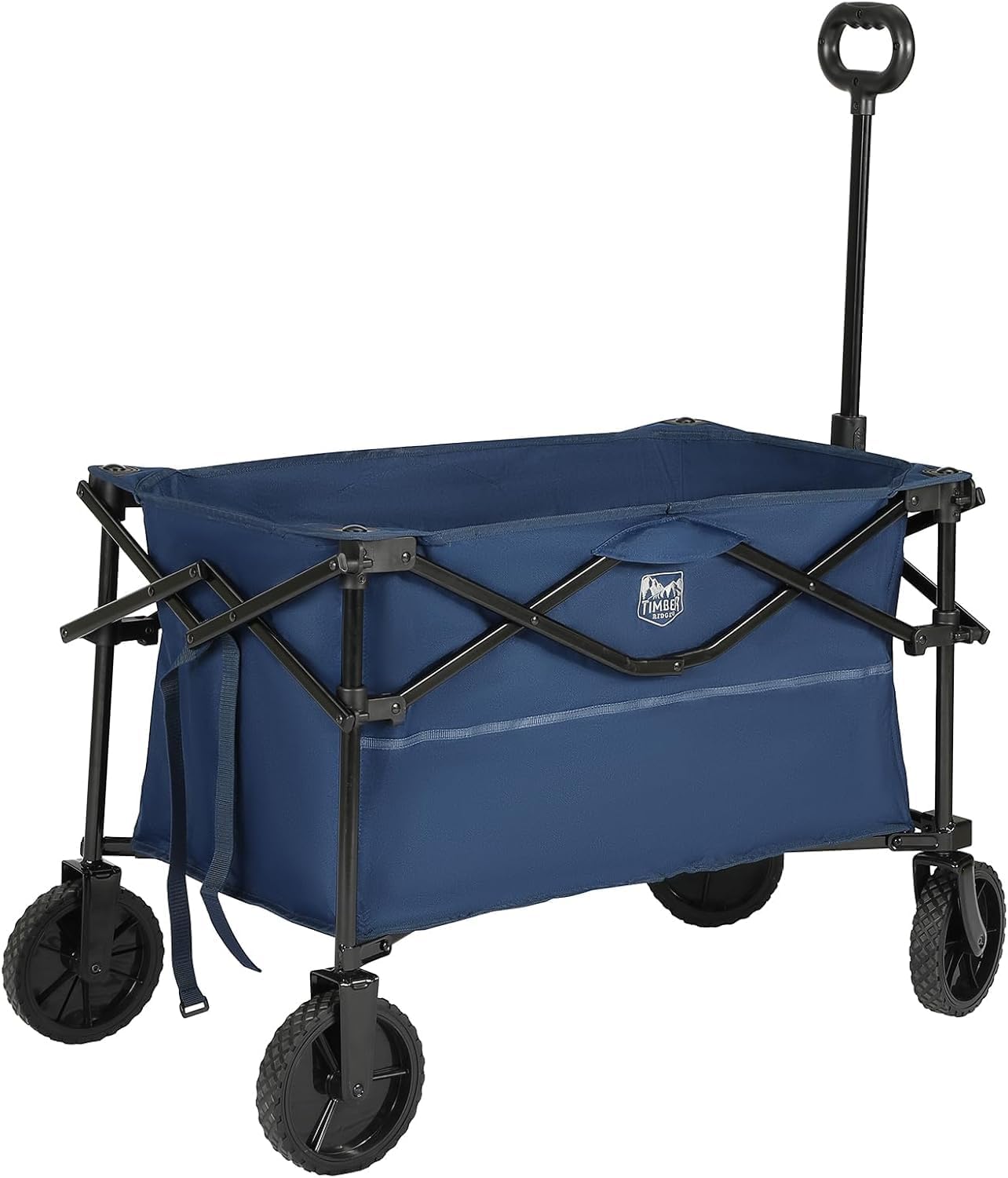

Figure 1: The TIMBER RIDGE Folding Collapsible Wagon, showcasing its spacious design and sturdy construction.
2. Setup and Assembly
The TIMBER RIDGE wagon is designed for quick and easy setup, requiring no complex assembly. Follow these steps to prepare your wagon for use:
- Unpack the Wagon: Remove the wagon from its carrying case. The case can be unzipped and slid off the folded wagon.
- Unfold the Frame: Stand the folded wagon upright. Gently pull the sides of the wagon outwards to begin unfolding the frame.
- Secure the Base: Once the frame is partially open, push down firmly on the center of the wagon's base until it fully extends and locks into place.
- Insert Bottom Panel: Place the rigid bottom panel (often found folded inside the wagon when packed) into the base of the wagon. This provides a flat, stable surface for your items.
- Adjust the Handle: The ergonomic handle can be pulled up and adjusted to your desired height for comfortable towing.
Figure 2: Visual guide for unfolding the wagon, demonstrating its quick setup process.
Figure 3: The wagon in its folded, compact state, highlighting its space-saving design.
3. Operating Instructions
The TIMBER RIDGE wagon is designed for ease of use across various terrains and for different hauling needs.
3.1 Loading and Transporting
- Ensure the wagon is fully unfolded and the bottom panel is securely in place before loading.
- Distribute weight evenly within the wagon to maintain stability. The wagon has a maximum weight capacity of 225 lbs.
- Utilize the adjustable handle to find a comfortable pulling or pushing position. The handle can be angled for optimal maneuverability.
- The all-terrain universal wheels are designed to navigate various surfaces, including sand, grass, and uneven paths, providing smooth transport.
Figure 4: The wagon in action, demonstrating its ease of pulling even when loaded.
Figure 5: Detail of the adjustable handle, allowing for customized height and angle.
3.2 Storage and Portability
- To fold the wagon, remove the bottom panel and pull the central strap upwards. The frame will collapse inward.
- Secure the folded wagon with the integrated straps or by zipping it into its carrying case.
- The compact folded dimensions (11.8" x 24.4" x 7.1") allow for easy storage in car trunks, closets, or small spaces.

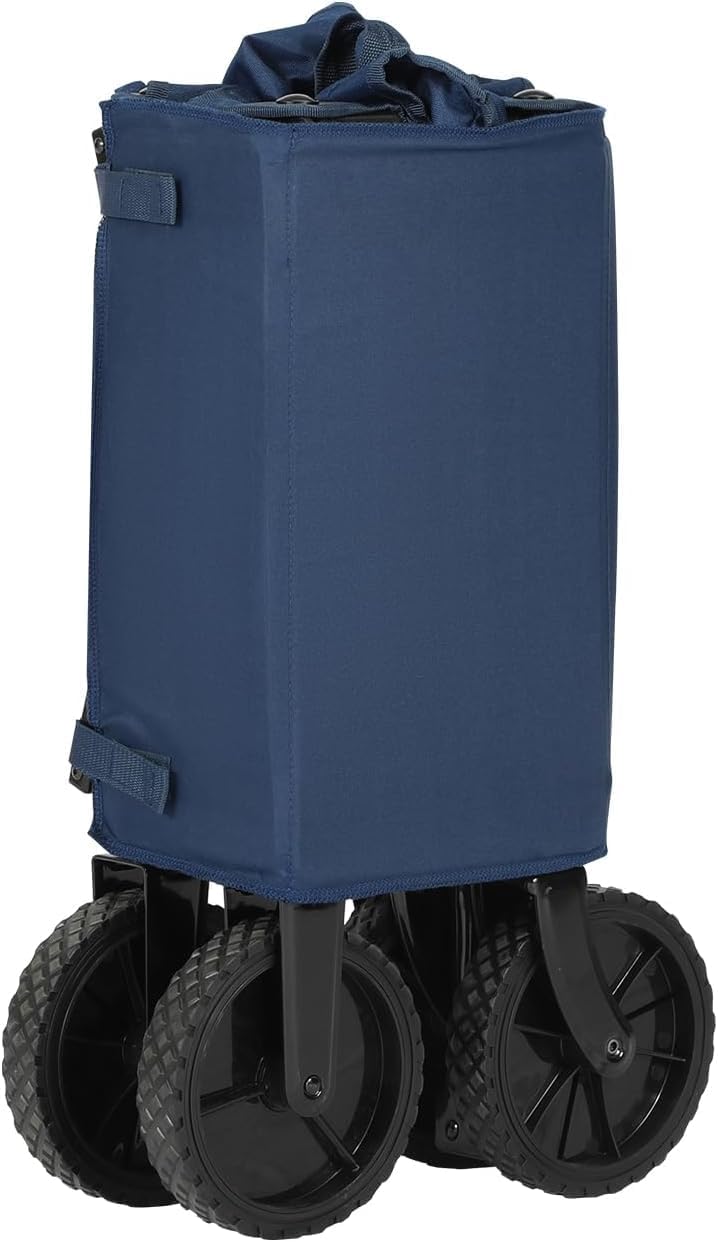

Figure 6: The wagon's compact folded size, making it convenient for transport and storage.
4. Maintenance
Regular maintenance will extend the life and performance of your TIMBER RIDGE wagon.
- Cleaning: The polyester fabric can be spot cleaned with mild soap and water. Allow to air dry completely before folding and storing to prevent mildew.
- Frame Care: The alloy steel frame is designed for durability. Wipe down the frame with a damp cloth to remove dirt and debris. Ensure it is dry before storage to prevent rust.
- Wheel Maintenance: Periodically check the PVC wheels for any debris or obstructions that might hinder smooth rolling. Clean as needed.
- Storage: Store the wagon in a dry, cool place away from direct sunlight when not in use to preserve the fabric and frame integrity.
5. Troubleshooting
If you encounter any issues with your wagon, refer to the following common troubleshooting tips:
- Wagon not unfolding completely: Ensure the central base is pushed down firmly until it is flat and the frame is fully extended. Sometimes a gentle shake can help align the joints.
- Difficulty folding the wagon: Make sure the bottom panel is removed. The central pull strap must be lifted directly upwards to initiate the folding mechanism. Check for any items or debris obstructing the folding joints.
- Wheels not rolling smoothly: Inspect the wheels for any trapped dirt, sand, or small objects. Clean the wheel axles if necessary. Ensure the wheels are properly attached and not loose.
- Wagon feels unstable when loaded: Verify that the weight is distributed evenly across the wagon's base. Avoid placing excessively heavy items on one side. Ensure the wagon is on a relatively flat surface.
6. Specifications
| Feature | Detail |
|---|---|
| Product Dimensions (Assembled) | 33.46"D x 19.69"W x 44.09"H |
| Product Dimensions (Folded) | 11.8" x 24.4" x 7.1" |
| Brand | TIMBER RIDGE |
| Material | Alloy Steel (Frame), Polyester Fabric |
| Color | Dark Blue |
| Special Features | Retractable Handle, Angle Adjustable Handle, Heavy Duty 225 LBS, Collapsible, Foldable |
| Weight Limit | 225 Pounds |
| Item Weight | 19.84 Pounds |
| Number of Wheels | 4 |
| Tire Type | PVC Wheel |
| Assembly Required | Yes (Minimal unfolding) |
Figure 7: Key dimensions and weight capacity of the wagon.
7. Warranty and Support
Your TIMBER RIDGE Folding Collapsible Wagon comes with a 1-year manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use.
For warranty claims, technical support, or any questions regarding your product, please contact the manufacturer or seller directly through the platform where the purchase was made. Please have your proof of purchase and model number (TR-21830-Blue) ready when contacting support.
