ELERA Extra Large Blood Pressure Cuff Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective use of your ELERA Extra Large Blood Pressure Cuff. Please read these instructions thoroughly before use and retain them for future reference. This cuff is designed as a replacement for compatible blood pressure monitors and is suitable for adult arm circumferences ranging from 9 to 24 inches (22-60 cm).

Image 1.1: ELERA Extra Large Blood Pressure Cuff.

2. Product Overview

2.1 Key Features

• Large Adult Cuff: Designed for arm circumferences of 9-24 inches (22-60 cm) to ensure accurate measurements for larger arms.
• Universal Compatibility: Includes six adapters for compatibility with most blood pressure monitor brands.
• Premium Material: Constructed from non-toxic, odorless TPU airbags and comfortable nylon fabric for user comfort and durability.

2.2 Package Contents

• 1 x ELERA Extra Large Blood Pressure Cuff
• 6 x Adapters (sizes: 0.16", 0.18", 0.2", 0.24", 0.28", 0.44")
• 1 x Quick User Guide

Image 2.1: Contents of the ELERA Extra Large Blood Pressure Cuff package.

Image 2.2: Detailed view of the cuff's construction, highlighting medical-grade tubing, premium fastener, and sturdy nylon fabric.

3. Safety Information

• This cuff is an accessory and requires a compatible blood pressure monitor for operation. The monitor is not included.
• Ensure the correct cuff size is selected for accurate readings. An improperly sized cuff can lead to inaccurate results.
• Consult a healthcare professional for interpretation of blood pressure readings. Self-diagnosis or treatment based on measurements can be dangerous.
• Keep out of reach of children.
• Do not use the cuff on injured or inflamed skin.

4. Setup and Installation

4.1 Selecting the Correct Adapter

The ELERA Extra Large Blood Pressure Cuff comes with six different adapters to ensure compatibility with various blood pressure monitors. Identify the port on your blood pressure monitor where the air tube connects and select the adapter that fits securely into this port.

Image 4.1: Universal compatibility with six included connectors for various blood pressure monitors.

4.2 Connecting the Cuff to Your Monitor

1. Select the appropriate adapter for your blood pressure monitor.
2. Firmly insert one end of the air tube from the cuff into the selected adapter.
3. Insert the adapter with the attached air tube into the air jack on your blood pressure monitor. Ensure a snug fit to prevent air leakage during measurement.

5. Operating Instructions

5.1 Measuring Arm Circumference

To ensure accurate readings, it is crucial to use a cuff that fits your arm correctly. Measure the circumference of your upper arm at the midpoint between your shoulder and elbow. Refer to the table below to determine if this extra-large cuff is suitable for your arm size.

Image 5.1: Guide for selecting the correct cuff size based on arm circumference.

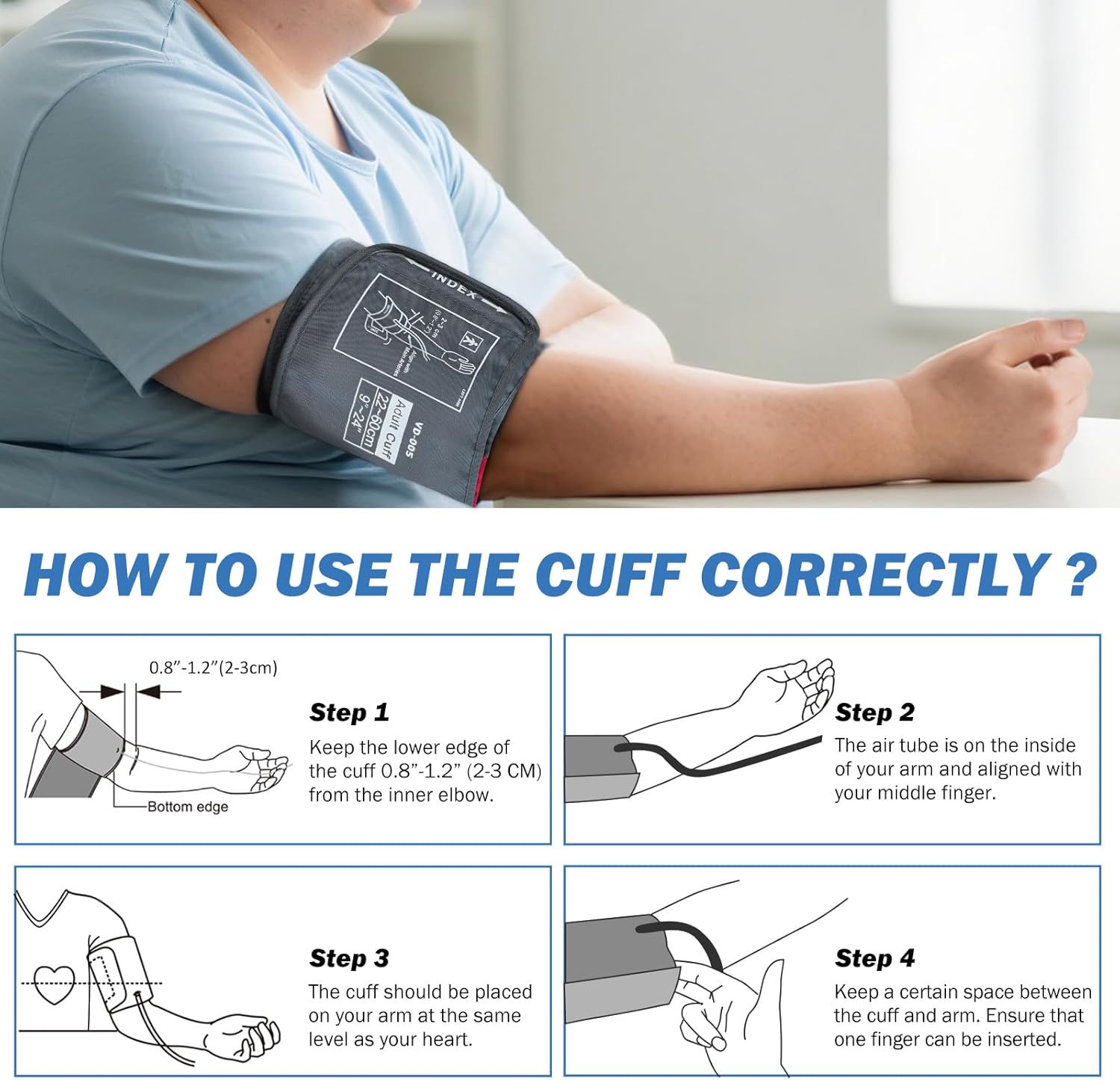

5.2 Correct Cuff Application

Proper application of the cuff is essential for accurate blood pressure readings. Follow these steps:

1. Step 1: Use the same arm for every measurement. Keep the lower edge of the cuff 0.8"-1.2" (2-3 cm) from the inner elbow.
2. Step 2: The air tube should be positioned on the inside of your arm and aligned with your middle finger.
3. Step 3: The cuff should be placed on your arm at the same level as your heart.
4. Step 4: Ensure there is a certain space between the cuff and your arm. One finger should be able to be inserted comfortably.

Image 5.2: Step-by-step guide for correct cuff placement on the arm.

6. Maintenance and Care

• Cleaning: Wipe the cuff with a soft, dry cloth. If necessary, use a slightly damp cloth with mild soap and water, then wipe dry. Do not immerse the cuff in water or use harsh chemical cleaners.
• Storage: Store the cuff in a clean, dry place away from direct sunlight, extreme temperatures, and humidity. Avoid folding the air tube sharply to prevent damage.
• Inspection: Regularly inspect the cuff and air tube for any signs of wear, cracks, or damage. Replace the cuff if any damage is observed.

7. Troubleshooting

If you encounter issues with your blood pressure cuff, consider the following:

• Inaccurate Readings: Ensure the cuff is correctly sized for your arm and applied as per the operating instructions. Verify that the air tube is securely connected to both the cuff and the monitor.
• Cuff Not Inflating: Check all connections for tightness. Ensure the air tube is not kinked or blocked. Confirm your blood pressure monitor is functioning correctly.
• Air Leakage: Inspect the air tube and connections for any visible damage or loose fittings. Replace the cuff or adapter if a leak is detected.

For persistent issues, please refer to the troubleshooting section of your blood pressure monitor's manual or contact customer support.

8. Specifications

Image 8.1: Dimensions of the Extra Large Cuff.

9. Warranty and Support

ELERA is committed to customer satisfaction. While the blood pressure monitor is not included with this cuff, we provide 24-hour support to address any quality concerns or issues that may arise with the cuff itself. For assistance, please contact ELERA customer service.

You can find more information and products from ELERA by visiting the official ELERA Store.
