LILPARTNER Stand Mixer Instruction Manual

Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions before operating the stand mixer.
• To protect against risk of electrical shock, do not immerse the mixer base, cord, or plug in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
• Avoid contact with moving parts. Keep hands, hair, and clothing, as well as spatulas and other utensils, away from beaters during operation to reduce the risk of injury to persons and/or damage to the mixer.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or electrical or mechanical adjustment.
• The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter.
• Do not let cord contact hot surfaces, including the stove.
• Remove beaters from mixer before washing.
• This appliance is intended for household use only.

Product Overview

Familiarize yourself with the components of your LILPARTNER Stand Mixer before initial use.

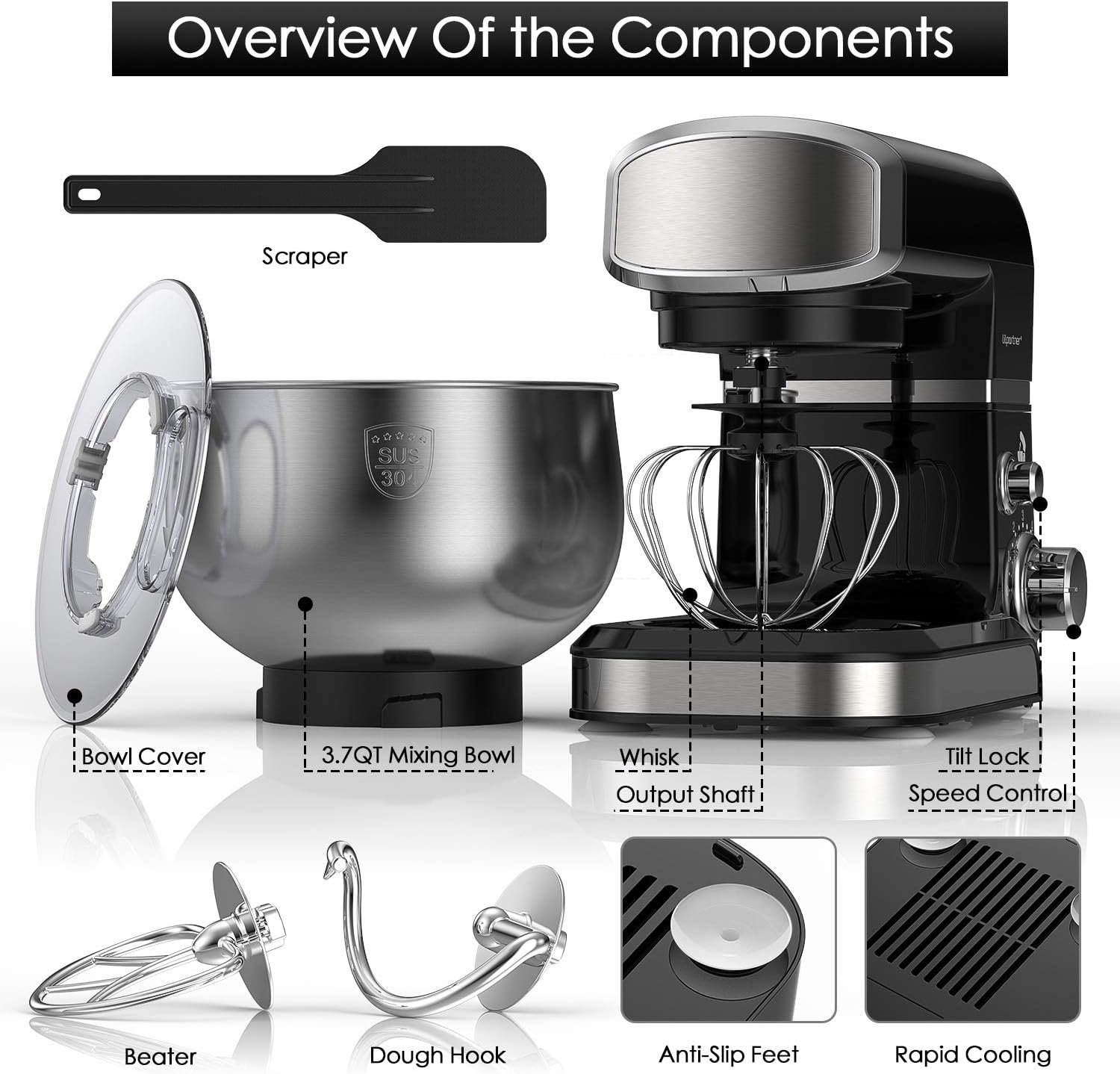

Image: Overview of the LILPARTNER Stand Mixer components, including the main unit, mixing bowl, bowl cover, whisk, beater, dough hook, scraper, anti-slip feet, and rapid cooling system.

• Main Unit: Houses the motor, speed control, and tilt-head mechanism.
• 3.7 QT Mixing Bowl: Stainless steel bowl for mixing ingredients. Features a handle for easy pouring.
• Bowl Cover: Transparent cover to prevent splashes during operation.
• Whisk: Ideal for whipping eggs, cream, and light batters.
• Beater: Suitable for mixing cakes, cookies, and frostings.
• Dough Hook: Designed for kneading yeast doughs like bread and pizza.
• Scraper: A silicone spatula for scraping down the sides of the bowl.
• Anti-Slip Feet: Suction cups on the base to secure the mixer to the countertop.
• Speed Control Dial: Adjusts mixing speed from 0 to 6, with a pulse setting.
• Tilt Lock: Button to release and lock the tilt-head.

Setup

1. Unpacking: Carefully remove all components from the packaging. Retain packaging for future storage or transport.
2. Cleaning: Before first use, wash the mixing bowl, attachments (whisk, beater, dough hook), and bowl cover in warm, soapy water. Rinse thoroughly and dry. Wipe the main unit with a damp cloth.
3. Placement: Place the mixer on a clean, dry, and stable countertop. Ensure the anti-slip feet are securely suctioned to the surface.


   Image: Close-up of the mixer's base showing the anti-slip suction feet for stability during operation.
4. Attaching the Mixing Bowl:
   • Ensure the mixer is unplugged and the speed control is set to "0".
   • Press the tilt lock button to raise the motor head.


     Image: The tilt-head mechanism of the LILPARTNER Stand Mixer, showing how the head can be raised for easy access to the bowl and attachments.

   • Place the mixing bowl onto the base, aligning the grooves on the bowl with the base. Twist clockwise until it locks securely into place.


     Image: The stainless steel mixing bowl securely attached to the base of the LILPARTNER Stand Mixer.
5. Attaching Accessories:
   • With the motor head raised, insert the desired attachment (whisk, beater, or dough hook) into the output shaft. Push upwards and twist to lock it into position.


     Image: The three primary attachments for the LILPARTNER Stand Mixer: whisk, beater, and dough hook, ready for use.

   • Lower the motor head until it clicks into place.
   • Place the bowl cover over the mixing bowl, ensuring it fits snugly.

Operating Instructions

1. Adding Ingredients: Add your ingredients to the mixing bowl. The bowl cover has an opening to add ingredients during mixing.
2. Power On: Plug the mixer into a standard 120V AC outlet.
3. Selecting Speed: Turn the speed control dial to the desired setting (1-6). For quick bursts of power, use the "P" (Pulse) setting.


   Image: Close-up of the speed control dial on the LILPARTNER Stand Mixer, showing settings from 0 to 6 and a pulse function.

4. Mixing: Allow the mixer to operate until ingredients are thoroughly combined. Use the scraper to push down ingredients from the sides of the bowl as needed.
5. Power Off: Once mixing is complete, turn the speed control dial back to "0" and unplug the mixer from the outlet.
6. Removing Bowl and Attachments: Press the tilt lock button to raise the motor head. Twist the mixing bowl counter-clockwise to remove it. Twist the attachment counter-clockwise and pull down to remove it from the shaft.

Recommended Usage:

Image: Visual guide showing various applications for the LILPARTNER Stand Mixer, including cakes, salads, pizza, bread, and ice cream.

• Whisk: Best for light mixtures such as egg whites, cream, meringues, and light batters. Use higher speeds (4-6).
• Beater: Suitable for medium-heavy mixtures like cakes, cookies, frostings, and mashed potatoes. Use medium speeds (2-4).
• Dough Hook: Designed for heavy mixtures such as bread dough, pizza dough, and pasta dough. Use low speeds (1-2).

Maintenance and Cleaning

Proper maintenance ensures the longevity and optimal performance of your LILPARTNER Stand Mixer.

1. Always unplug the mixer before cleaning or performing any maintenance.
2. Mixing Bowl and Attachments: The stainless steel mixing bowl, whisk, beater, and dough hook are dishwasher safe. Alternatively, they can be washed by hand in warm, soapy water, rinsed, and thoroughly dried.
3. Main Unit: Wipe the exterior of the motor head and base with a soft, damp cloth. Do not use abrasive cleaners or immerse the main unit in water.
4. Bowl Cover: Wash the transparent bowl cover in warm, soapy water and rinse thoroughly.
5. Storage: Store the mixer and its accessories in a dry place, away from direct sunlight and heat.

Troubleshooting

If you encounter any issues with your LILPARTNER Stand Mixer, refer to the following common problems and solutions:

Specifications

Warranty and Support

For detailed warranty information and customer support, please refer to the official LILPARTNER website or contact their customer service directly. Keep your purchase receipt for warranty claims.

For further assistance, please visit: LILPARTNER Product Page
