Introduction
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Hyperikon 4 inch Recessed LED Slim Downlight. Please read this manual thoroughly before installation and keep it for future reference. This product is designed for both indoor and outdoor use, offering color temperature tuning from 2700K to 5000K and dimmable functionality.
Important Safety Information
WARNING: Risk of electric shock. Disconnect power at the fuse or circuit breaker before installing or servicing. This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
- Ensure the main power supply is turned off before installation.
- Do not attempt to modify the fixture. Any modifications may void the warranty and create safety hazards.
- This fixture is UL and Energy Star Listed, ensuring it meets nationally recognized safety and energy efficiency requirements.
- Operating temperature range: -4°F to 122°F (-20°C to 50°C).
Product Overview
The Hyperikon 4 inch Recessed LED Slim Downlight is a versatile lighting solution featuring adjustable color temperature and dimmable capabilities. It is designed for easy retrofit installation into existing recessed lighting cans or new construction.
Key Features:
- Color Temperature Tuning (CCT): Select from five presets: 2700K (warm white), 3000K (soft white), 3500K (white), 4000K (daylight), and 5000K (bright white).
- Dimmable: Smooth dimming from 100% down to 20% with compatible LED dimmers.
- Energy Efficient: 9W power consumption, 650 lumens output, 72 lumens per watt efficacy.
- Certifications: UL Listed (E479325) and Energy Star Certified.
- Long Lifespan: Rated for 45,000 hours of operation.
- Indoor/Outdoor Use: Suitable for various environments including bathrooms, bedrooms, kitchens, and covered outdoor areas.
Product Dimensions:

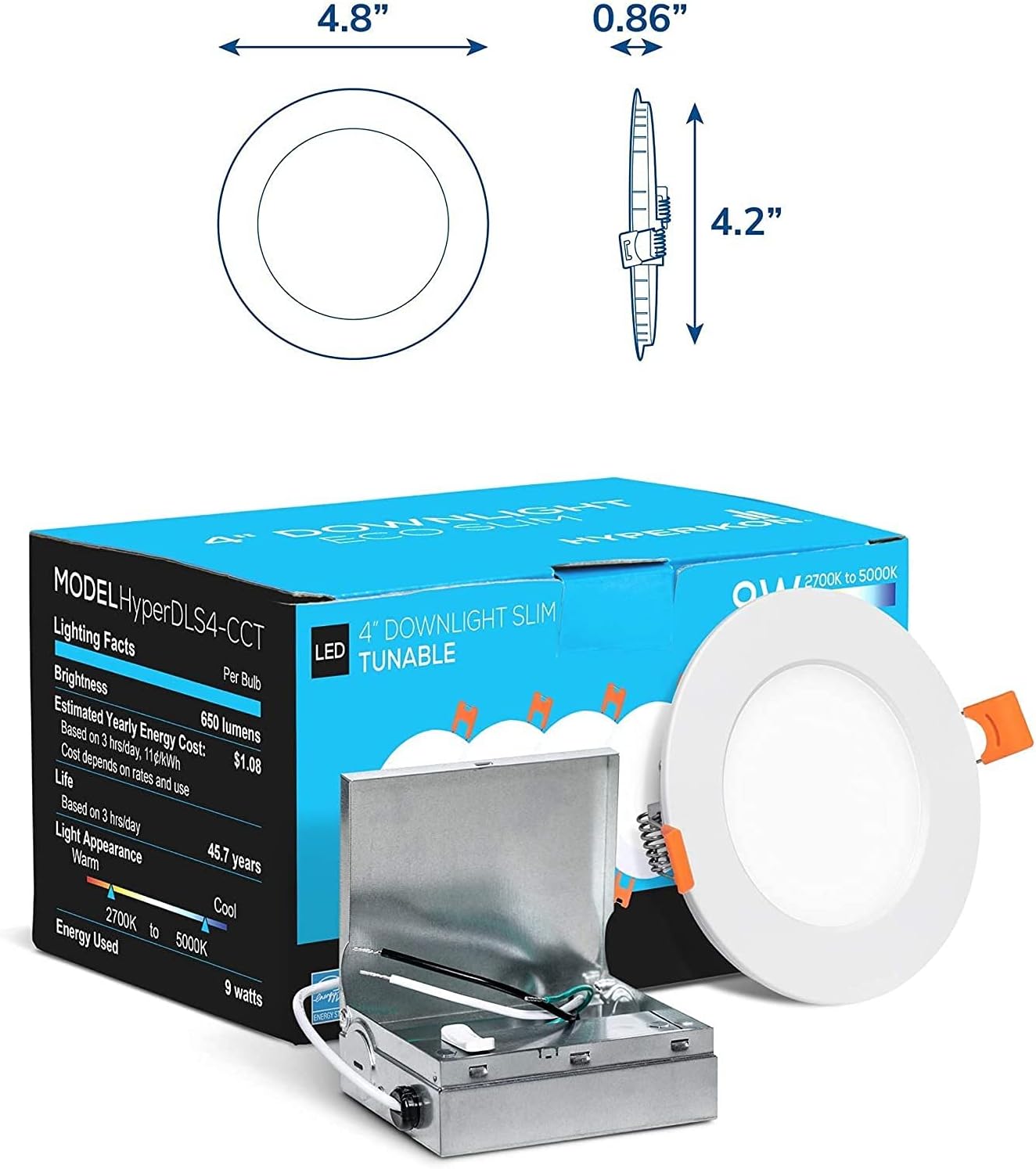

Image: Product dimensions. The downlight has a 4.8-inch diameter face and a slim profile.
Setup and Installation
Before beginning installation, ensure all power to the circuit is turned off at the breaker panel.
Installation Steps:
- Prepare the Opening: Ensure you have a 4-inch diameter opening in your ceiling for the downlight.
- Wire the J-Box: Connect the electrical wires from your ceiling to the provided junction box (J-box). Follow standard wiring practices: connect the black wire to the live wire, the white wire to the neutral wire, and the ground wire to the ground wire. Secure all connections with wire nuts.
- Select Color Temperature: Before closing the J-box, locate the CCT (Color Correlated Temperature) switch inside the J-box. Select your desired color temperature (2700K, 3000K, 3500K, 4000K, or 5000K) by sliding the switch.
- Connect Downlight to J-Box: Connect the cable from the downlight fixture to the J-box using the provided connector. Ensure a secure connection.
- Insert J-Box: Place the J-box into the ceiling opening.
- Install Downlight: Hold the two spring clips on the sides of the downlight upright. Push the downlight into the ceiling opening until the springs snap into position, securing the fixture flush with the ceiling.
Image: Simple installation steps. Connect the downlight to the J-box, then push the light into the ceiling opening.
Image: Color temperature selection switch inside the J-box. Adjust this switch to choose your preferred light color before final installation.
Image: Rear view of the downlight showing the connection to the J-box.
Operating Instructions
Color Temperature Adjustment:
The color temperature (CCT) is set using a switch located inside the J-box during installation. Once installed, the CCT cannot be changed without removing the fixture and accessing the J-box. Ensure you select your preferred color temperature before final installation.
Image: Example of CCT adjustable downlights in a kitchen setting, showcasing different color temperatures.
Dimming Functionality:
This downlight is fully dimmable from 100% to 20% when used with compatible modern LED dimmers. For optimal performance, ensure your dimmer switch is rated for LED lighting. Refer to your dimmer's instruction manual for specific wiring and operation details.
Image: Illustration of the dimmable feature, along with UL and Energy Star certifications.
Maintenance
The Hyperikon LED Slim Downlight requires minimal maintenance. There are no user-serviceable parts inside the fixture.
- Cleaning: To clean the fixture, ensure the power is off. Use a soft, dry, or slightly damp cloth. Do not use harsh chemicals, abrasive cleaners, or solvents, as these can damage the finish or electrical components.
- Bulb Replacement: The LED light source is integrated and not replaceable. The fixture is designed for a long operational life.
Troubleshooting
If you encounter issues with your downlight, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power to the fixture; Loose wiring connection; Faulty switch or circuit breaker. | Check power supply at the breaker. Verify all wiring connections are secure. Test the switch. |
| Light flickers or dims inconsistently | Incompatible dimmer switch; Loose wiring; Voltage fluctuations. | Ensure an LED-compatible dimmer is used. Check wiring connections. Consult an electrician for voltage issues. |
| Incorrect color temperature | CCT switch set incorrectly. | Turn off power, carefully remove the fixture, and adjust the CCT switch inside the J-box to the desired setting. Reinstall. |
| Light is too dim or too bright | Dimmer setting; CCT setting (brighter CCTs can appear brighter). | Adjust the dimmer. If CCT is the issue, adjust the CCT switch as described above. |
Specifications
Detailed technical specifications for the Hyperikon 4 inch Recessed LED Slim Downlight.
Image: Key product specifications at a glance.
| Attribute | Value |
|---|---|
| Model Number | HyperDLS4-CCT |
| Brand | Hyperikon |
| Wattage | 9W (equivalent to 65W incandescent) |
| Brightness | 650 Lumens |
| Efficacy | 72 Lumens per Watt |
| Color Temperature | 2700K, 3000K, 3500K, 4000K, 5000K (Selectable) |
| CRI | 90+ |
| Dimmability | 100%-20% with modern LED dimmers |
| Beam Angle | 120 degrees |
| Input Voltage | 120V |
| Lifespan | 45,000 hours |
| Material | Aluminum |
| Color | White |
| Mounting Type | Ceiling Mount, Flush Mount |
| Indoor/Outdoor Use | Indoor, Outdoor (Water Resistant) |
| Certifications | UL Listed (E479325), Energy Star |
| Item Weight | 3.3 Pounds |
Warranty and Support
Warranty Information:
Hyperikon products are designed for quality and durability. For specific warranty terms and conditions, please refer to the warranty information provided at the time of purchase or visit the official Hyperikon website. Keep your proof of purchase for warranty claims.
Customer Support:
If you have any questions, require technical assistance, or need to report an issue with your product, please contact Hyperikon customer support through their official website or the retailer where the product was purchased. Please have your model number (HyperDLS4-CCT) and purchase date ready when contacting support.
