1. Introduction
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of the Goodway BioSpray 5 Ultra-Portable, Cordless CO2 Powered Surface Sanitation System. The BioSpray 5 utilizes advanced micro-droplet spray technology and CO2 propulsion to safely and efficiently apply sanitizing chemicals. This system is designed to reduce labor time and chemical usage compared to traditional spray pumps and wipes.
Please read this manual thoroughly before operating the device and retain it for future reference.
Figure 1: Goodway BioSpray 5 Ultra-Portable Surface Sanitation System. This image shows the complete system, a grey portable case with wheels and an extendable handle, with the spray gun and hose attached to the side.
2. Safety Information
Always adhere to the following safety guidelines to prevent injury or damage to the system:
- Read and understand all instructions before use.
- Wear appropriate personal protective equipment (PPE) including gloves, eye protection, and respiratory protection, as recommended by the chemical manufacturer.
- Ensure adequate ventilation when operating the system, especially in enclosed spaces.
- Use only alcohol-based chemicals approved for use with this system. Refer to the chemical manufacturer's safety data sheet (SDS) for specific handling instructions.
- Do not modify the system in any way. Use only genuine BioSpray replacement parts and accessories.
- Handle CO2 tanks with care. Ensure tanks are securely fastened and stored in a cool, well-ventilated area.
- Do not expose the system to extreme temperatures or direct sunlight for prolonged periods.
- Keep out of reach of children and unauthorized personnel.
- In case of chemical exposure or accidental ingestion, seek immediate medical attention.
3. What's Included
The Goodway BioSpray 5 system typically includes the following components:
- BioSpray 5 Main Unit (portable case with integrated CO2 connection)
- Empty 5lb CO2 Container (tank)
- Microdroplet Spray Gun
- 20' (6M) Hose
- Rinse Bottle
Figure 2: Included Components. This image illustrates the main BioSpray 5 unit, an empty 5lb CO2 container, a 20-foot hose, a microdroplet spray gun, and a rinse bottle, all connected or shown alongside the main unit.
4. Setup
- Unpack Components: Carefully remove all components from the packaging.
- Connect CO2 Tank:
- Ensure the 5lb CO2 tank is full and securely placed within the designated compartment of the BioSpray 5 unit.
- Connect the CO2 hose from the unit to the CO2 tank valve, ensuring a tight seal.
- Attach Hose and Spray Gun:
- Connect one end of the 20' (6M) hose to the output port on the BioSpray 5 unit.
- Connect the other end of the hose to the microdroplet spray gun.
- Ensure all connections are secure to prevent leaks.
- Fill Chemical Reservoir:
- Unscrew the chemical reservoir from the spray gun.
- Fill the reservoir with the desired alcohol-based sanitizing chemical. Do not overfill.
- Securely reattach the reservoir to the spray gun.

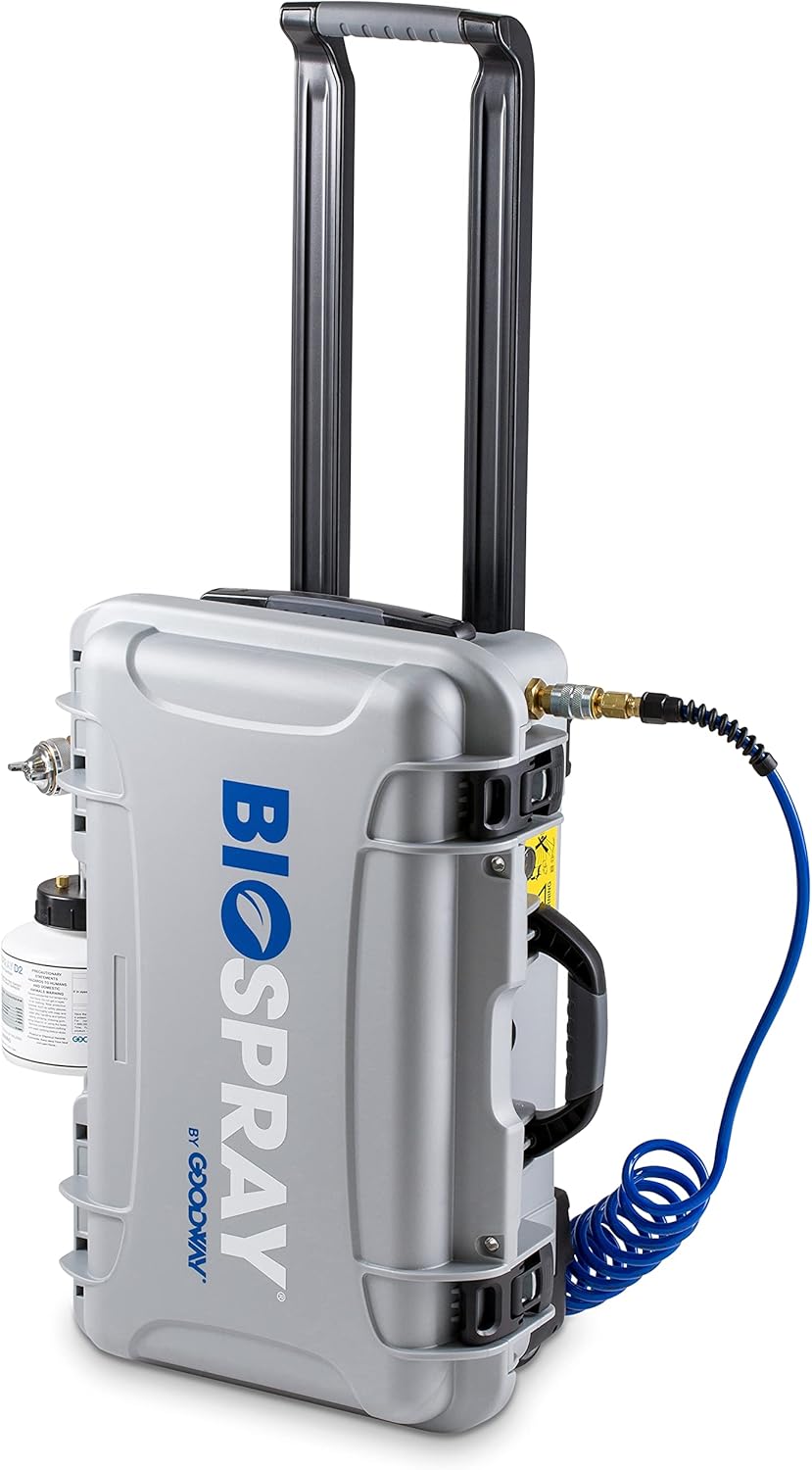

Figure 3: System Connections. This image provides a side view of the BioSpray 5 unit, highlighting the connection points for the CO2 tank and the hose leading to the spray gun.
5. Operation
The BioSpray 5 system is designed for ultra-portable, cordless operation, requiring no external power source as it is propelled by CO2. It is suitable for intermittent applications rather than continuous spraying.
- Activate CO2 Flow: Slowly open the valve on the CO2 tank to allow gas to flow into the system.
- Begin Spraying: Aim the microdroplet spray gun at the surface to be sanitized. Depress the trigger on the spray gun to begin spraying.
- Application Technique: Apply the chemical evenly across the surface. The microdroplet technology ensures efficient coverage.
- Intermittent Use: The system is designed for intermittent use. Release the trigger when not actively spraying to conserve CO2 and chemical.
- Transport: The unit features an extendable handle and wheels for easy transport between areas.

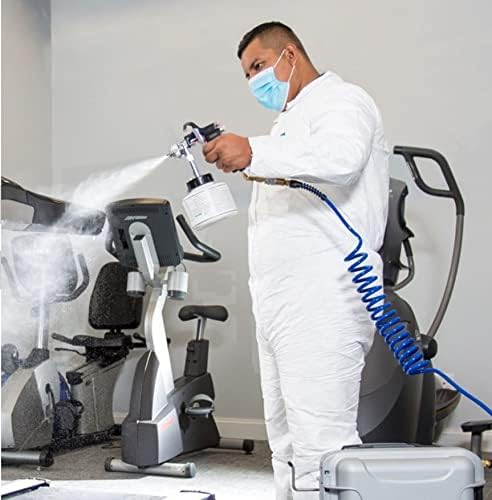

Figure 4: In-Use Application. This image shows an operator wearing protective gear, using the BioSpray 5 system to sanitize equipment in a gym, demonstrating the spray pattern and portability.
Figure 5: Portability. This image shows a person easily pulling the BioSpray 5 unit by its extendable handle, highlighting its wheeled design for effortless transport.
Figure 6: Key Features. This image visually emphasizes the core benefits of the BioSpray 5 system: its ability to quickly sanitize, its independence from external power sources, and its ultra-portable design.
6. Maintenance
Proper maintenance ensures the longevity and optimal performance of your BioSpray 5 system.
- Cleaning: After each use, especially when changing chemicals, use the provided rinse bottle to flush the system with clean water. This prevents chemical buildup and clogging.
- Spray Gun Care: Regularly inspect the spray gun nozzle for any blockages. Clean with a soft brush if necessary.
- Hose Inspection: Check the hose for any signs of wear, cracks, or leaks. Replace if damaged.
- CO2 Tank Connection: Ensure the CO2 tank connection remains clean and free of debris.
- Storage: Store the BioSpray 5 system in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the CO2 tank valve is closed and the system is depressurized before storage.
7. Troubleshooting
This section addresses common questions and issues you might encounter.
7.1. CO2 Tank Duration
The duration of a CO2 tank depends on the model and activity usage. Approximate spray times are as follows:
- 5lb CO2 Cylinder: Approximately 22 minutes of total spray time.
- 10lb CO2 Cylinder: Approximately 45 minutes of total spray time.
- 20lb CO2 Cylinder: Approximately 90 minutes of total spray time.
7.2. Where can BioSpray be used?
The BioSpray system is designed for use on a wide variety of hard nonporous surfaces, including both food contact and non-food contact surfaces. Examples of suitable environments include:
- Commercial Businesses
- Retail Businesses
- Offices
- Fitness Centers
- Food and Beverage Manufacturing Facilities
- Educational Facilities
- Medical Facilities
- Daycare Centers
- Funeral Homes
- And more.
Figure 7: Frequently Asked Questions. This image presents common questions and answers regarding the BioSpray system, specifically addressing where it can be used and the expected duration of CO2 tanks.
8. Specifications
| Feature | Specification |
|---|---|
| Model | BIO-SPRAY-5 |
| Dimensions (H x W x D) | 22 inches x 16 inches x 9 inches |
| Weight (Empty) | 18 lbs |
| Input Power | None (CO2 Powered) |
| CO2 Tank Compatibility | 5lb CO2 tank (empty tank included) |
| Hose Length | 20 feet (6 meters) |
| Chemical Compatibility | Alcohol-based chemicals |
| Application Type | Intermittent Microdroplet Spray |
| Manufacturing Location | Made in the U.S.A. |
9. Warranty and Support
For information regarding product warranty, technical support, or replacement parts, please contact Goodway Technologies directly. Refer to the contact information provided with your purchase documentation or visit the official Goodway Technologies website.
