1. Introduction
This manual provides essential instructions for the proper use, installation, and maintenance of your DAJDAH VK-6067B H13 True HEPA Air Purifier Filter Replacement. Please read this manual thoroughly before use to ensure optimal performance and longevity of your filter.
2. Product Overview and Features
The DAJDAH VK-6067B filter is designed to enhance air quality by capturing various airborne particles and odors. It features a multi-stage filtration system:
- Ultra-Fine Pre-Filter: Captures common large particles such as dust, lint, hair, fibers, dander, and pet fur. This layer helps extend the life of the subsequent filters.
- H13 Grade True HEPA Filter: Effectively captures 99.97% of airborne particles as small as 0.3 microns, including pollen, dust mites, and other allergens.
- High-Efficiency Activated Carbon Filter: Absorbs various unfavorable odors and fumes, including cigarette smoke, cooking smells, and volatile organic compounds (VOCs). It is particularly effective against pet odors.
Image: Exploded view of the multi-layer filtration system within the VK-6067B filter.
Image: Visual representation of the filter's ability to capture various airborne pollutants.
3. Compatibility
The DAJDAH VK-6067B filter is compatible with the following air purifier models:
- Vremi Air Purifier (models compatible with VK-6067B or VK-6067A filters)
- Hokeki Air Purifier (models compatible with VK-6067B or VK-6067A filters)
- Honkeeki Air Purifier
- Brillante Air Purifier
- Toyuugo Air Purifier
Please verify your air purifier's model number (VK-6067B or VK-6067A) to ensure correct filter selection.
Image: The VK-6067B filter shown with compatible Vremi and Hokeki air purifiers.
4. Installation and Replacement
Follow these steps to replace your air purifier filter:
- Prepare the Appliance: Turn off and unplug your air purifier. Carefully turn the appliance upside down.
- Open the Base Cover: Locate the base cover and turn it counterclockwise from the 'Lock' position to the 'Open' position.
- Remove Old Filter: Gently remove the used filter from the air purifier.
- Insert New Filter: Place the new DAJDAH VK-6067B filter into the air purifier, ensuring it is seated correctly.
- Close the Base Cover: Turn the base cover clockwise from the 'Open' position to the 'Lock' position to secure the filter.
- Reset Filter Indicator: Plug in your air purifier. If your model has a filter lifetime sensor, press and hold the 'Filter' button for 3 seconds to reset the indicator.

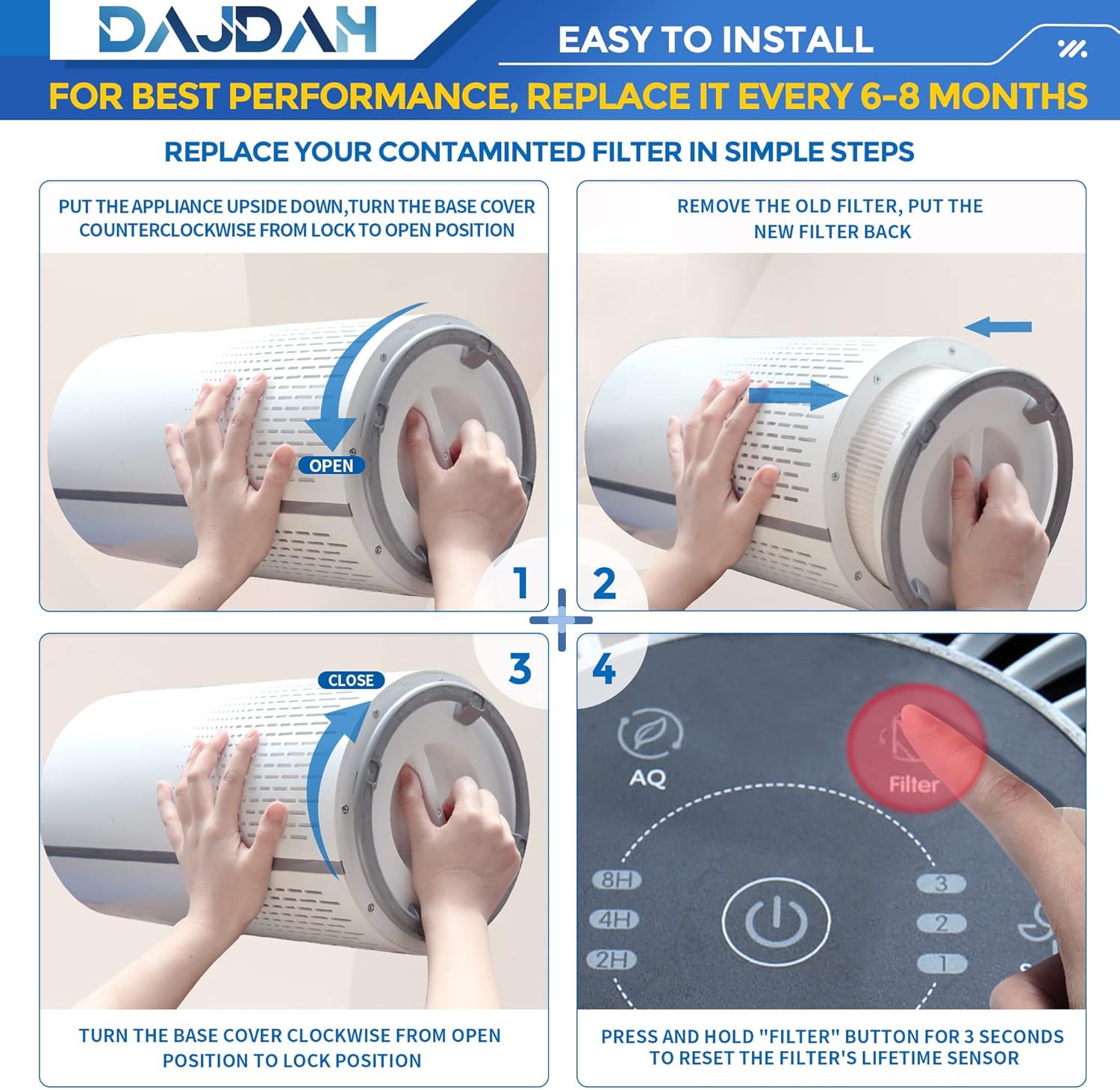

Image: Step-by-step guide for replacing the air purifier filter.
Installation Video Guide
Video: A short demonstration of the VK-6067B filter, including its compatibility and potential installation steps for Vremi and Hokeki air purifiers.
5. Maintenance
To maintain optimal air purification performance, it is recommended to replace the DAJDAH VK-6067B filter every 6-8 months. The actual replacement interval may vary depending on usage frequency and environmental air quality.
Regularly check your air purifier's filter indicator light, if available, and replace the filter when prompted or when you notice a decrease in air quality or increased noise from the unit.
6. Specifications
- Model Number: VK-6067B
- Filter Type: H13 True HEPA with Activated Carbon
- Dimensions: 6.93 inches (Length) x 6.93 inches (Width) x 6.97 inches (Height)
- Item Weight: 1.73 pounds
- Material: Nylon with Activated Carbon
- Recommended Replacement: Every 6-8 months
Image: Detailed dimensions of the VK-6067B filter.
7. Troubleshooting
If you encounter issues after replacing your filter, consider the following:
- Air Purifier Not Turning On: Ensure the filter is correctly installed and the base cover is securely locked. Many air purifiers have a safety mechanism that prevents operation if the filter is not properly seated.
- Filter Indicator Light Still On: After replacing the filter, remember to reset the filter lifetime sensor by pressing and holding the 'Filter' button for approximately 3 seconds. Refer to your air purifier's specific manual for exact instructions.
- Reduced Airflow or Odor Persistence: Verify that the new filter is the correct model for your air purifier. Ensure there are no obstructions around the air intake or outlet of the purifier.
8. Support
For any questions, concerns, or assistance regarding your DAJDAH VK-6067B filter, please do not hesitate to contact DAJDAH customer support. Our team is available to help ensure your satisfaction.
Contact information can typically be found on the product packaging or the official DAJDAH website.
