WR50X10068 Refrigerator Defrost Thermostat User Manual

1. Introduction

This manual provides essential information for the installation, operation, and troubleshooting of the Seentech WR50X10068 Refrigerator Defrost Thermostat. This component is designed to ensure the proper defrosting cycle of your refrigerator, preventing frost buildup and maintaining optimal cooling performance. Please read this manual thoroughly before proceeding with any installation or maintenance.

2. Product Overview

The WR50X10068 Refrigerator Defrost Thermostat is a critical component in your refrigerator's defrost system. It attaches to the evaporator coil tubing in the freezer and monitors its temperature. When the coil reaches a certain temperature (typically around 140 degrees Fahrenheit), the thermostat opens, signaling the defrost heater to turn off. This prevents excessive heating and ensures efficient defrosting.

Image: The Seentech WR50X10068 Refrigerator Defrost Thermostat, showing its compact design with red and orange wires.

Key Features:

• High-Quality Material: Made from durable materials for long-lasting and effective performance.
• Direct Replacement: Designed to replace original parts with a perfect fit.
• Easy DIY Fix: Simplifies the repair process, often taking less than an hour.
• Wide Compatibility: Compatible with various Hotpoint refrigerator models and other brands.

3. Compatibility

The WR50X10068 Defrost Thermostat is compatible with Hotpoint refrigerators and replaces several part numbers. Always verify your appliance's model number before purchasing to ensure compatibility.

Replaces Part Numbers:

• WR50X10015
• WR50X10017
• WR50X10018
• WR50X10028
• WR50X10051
• WR50X10052
• WR50X10053
• WR50X10054
• WR50X10074
• WR50X10075
• WR50X10079
• PS1017716
• 1170024
• AP3884317

Known Compatible Models (Partial List):

• A4425GDTABB
• A4425GDTAWW
• A4425GDTW
• BSS25GFPACC
• BSS25GFPAWW
• BSS25GFPCCC
• BSS25GFPCWW
• BSS25GFPDCC
• BSS25GFPDWW
• BSS25GFPECC
• BSS25GFPEWW
• BSS25GFPHCC
• BSS25GFPHWW
• DSF25MGSBWW
• DSS25JFPACC
• ...and many more Hotpoint models.

Image: The thermostat with text indicating wide compatibility for top brands like General Electric and Hotpoint.

Image: Diagram showing the thermostat with its dimensions (5.5 inches wire length, 1 inch diameter) and a list of part numbers it replaces.

4. Installation (Setup)

Replacing the defrost thermostat is a straightforward DIY repair. However, safety precautions must be followed. The part arrives fully assembled for easier installation.

Safety Precautions:

• Always unplug your refrigerator from the power outlet before beginning any repair work.
• Wear work gloves to protect your hands from sharp edges or components.

Installation Steps (General Guide):

1. Disconnect power to the refrigerator.
2. Locate the evaporator coil in the freezer compartment. This usually involves removing interior panels.
3. Identify the existing defrost thermostat, which will be clipped onto the evaporator tubing.
4. Carefully disconnect the wires leading to the old thermostat. Note their positions for re-connection.
5. Remove the old thermostat from the tubing.
6. Attach the new WR50X10068 thermostat to the evaporator tubing, ensuring it is securely clipped.
7. Connect the wires to the new thermostat.
8. Reassemble any removed panels.
9. Restore power to the refrigerator.

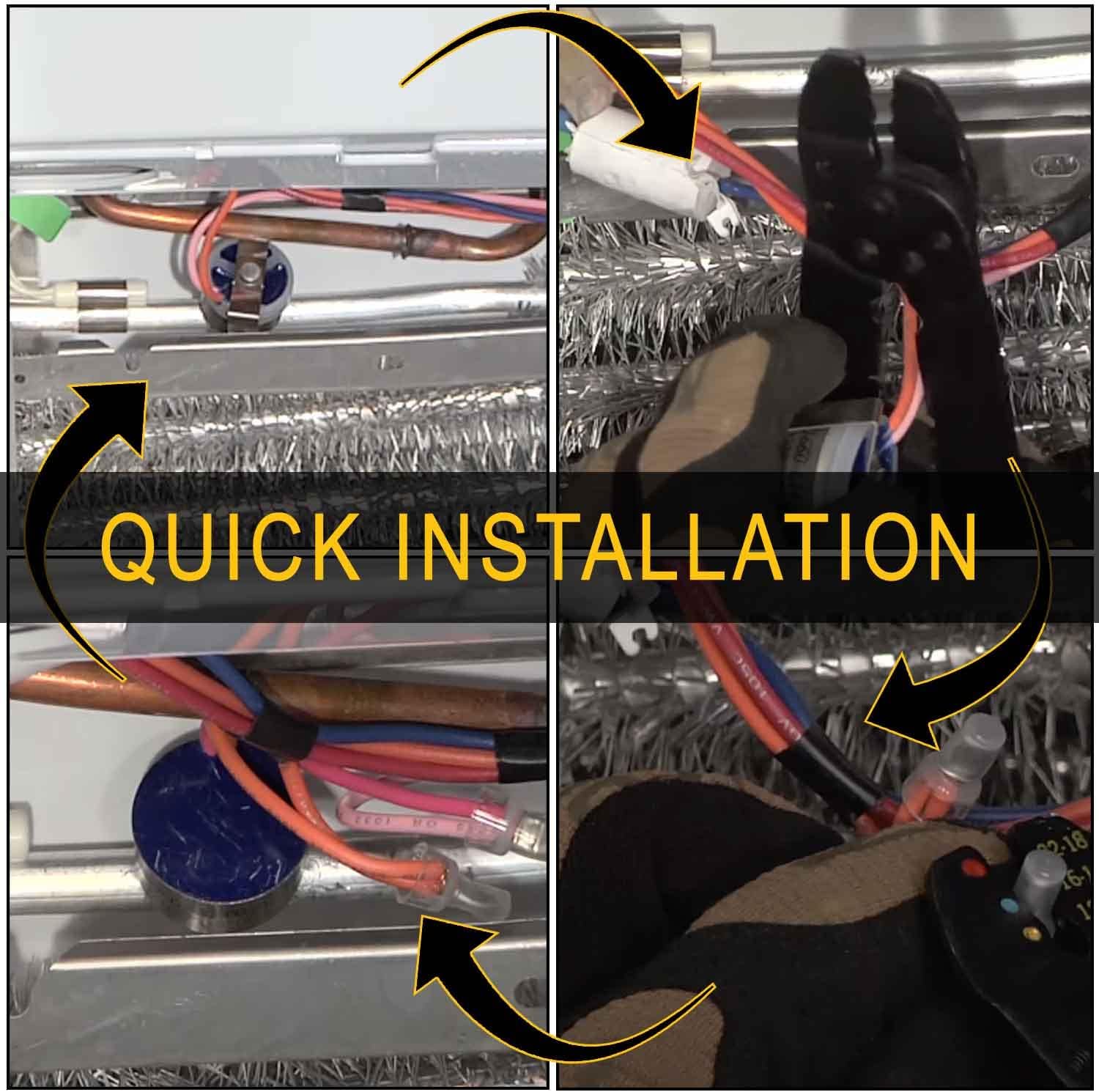

Image: A collage of four images demonstrating the quick installation process of the defrost thermostat within a refrigerator's freezer compartment, showing wire connections and placement on the evaporator coil.

Image: An image illustrating the ease of DIY repair for the thermostat, emphasizing that it's a quick fix and more cost-effective than a repair call. It also reminds users to unplug the refrigerator and wear gloves.

5. Operation

The WR50X10068 Defrost Thermostat operates automatically within your refrigerator's defrost system. Its primary function is to monitor the temperature of the evaporator coil. When the coil temperature drops to a certain point, the thermostat closes, allowing power to flow to the defrost heater. Once the coil reaches approximately 140 degrees Fahrenheit, indicating successful defrosting, the thermostat opens, cutting power to the heater and preventing overheating. This cycle ensures efficient frost removal without user intervention.

6. Troubleshooting

A faulty defrost thermostat can lead to several common refrigerator issues. If you experience any of the following symptoms, the WR50X10068 may be the cause:

Common Symptoms of a Faulty Thermostat:

• Fridge too warm: Inadequate defrosting can lead to ice buildup, blocking airflow and causing the refrigerator section to warm up.
• Freezer section too warm: Similar to the fridge, ice buildup can hinder proper cooling in the freezer.
• Freezer not defrosting: The most direct symptom, indicating the defrost heater is not activating or staying on long enough.
• Frost buildup: Excessive frost on the evaporator coil or inside the freezer compartment.

The thermostat contacts are normally closed and should have continuity until the temperature reaches 140 degrees Fahrenheit. If the thermostat is open (no continuity) at room temperature or colder, it is defective and needs replacement.

Image: The defrost thermostat shown in a kitchen setting, pointing to a list of symptoms it fixes: Frost buildup, Freezer not defrosting, Fridge too warm, and Freezer section too warm.

7. Maintenance

The Seentech WR50X10068 Refrigerator Defrost Thermostat is designed for durability and long-term performance with minimal maintenance. As a sealed electronic component, it does not require regular cleaning or lubrication.

General Care Instructions:

• Ensure the area around the evaporator coil remains clear of obstructions to allow for proper airflow and defrosting.
• If you need to clean the freezer compartment, ensure the refrigerator is unplugged and use a damp cloth. Avoid direct water spray on electrical components.
• Regularly check for excessive frost buildup, which could indicate an issue with the defrost system, including the thermostat.

8. Specifications

9. Warranty and Support

Seentech is committed to customer satisfaction. The product comes with a 30-day return window from the date of purchase. If you have any questions regarding compatibility, installation, or performance, please do not hesitate to contact the Seentech customer service team. You can reach out via the customer questions and answer section on the product page or by sending a message through the Seentech storefront.

Image: Seentech company logo and a description emphasizing their commitment to customer satisfaction and providing quality home appliance parts.
