ADVANCE OUTDOOR 6x6 ft Storage Shelter Instruction Manual

1. Introduction and Overview

Thank you for choosing the ADVANCE OUTDOOR 6x6 ft Storage Shelter. This portable garage kit tent is designed to provide reliable outdoor storage for motorcycles, ATVs, bikes, lawnmowers, firewood, and other gardening tools. Featuring a heavy-duty frame, triple-layer 240g PE cover, and unique ventilation, this shelter offers waterproof, UV-resistant, and windproof protection. Please read this manual thoroughly before assembly and use to ensure proper installation and safe operation.

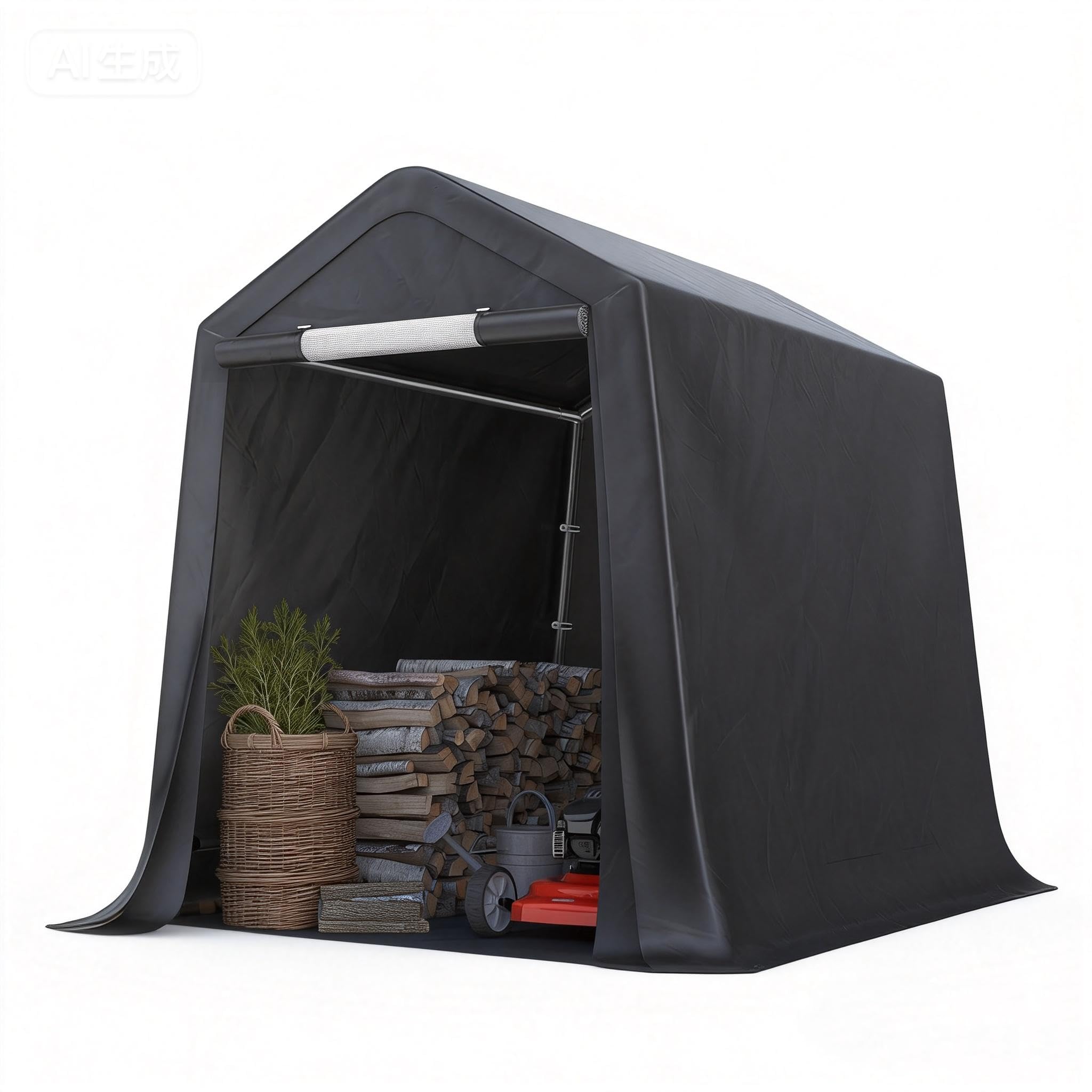

Image 1: The ADVANCE OUTDOOR 6x6 ft Storage Shelter, fully assembled.

2. Product Features

• 2 Removable Roll-up Zipper Doors: Doors with double zippers and buckles can be removed or rolled up for easy entry, exit, and improved air circulation.
• Unique Vents Design: Equipped with double-layer vents on each door to help with airflow, prevent moisture, and avoid condensation.
• Heavy Duty Durable Frame: 1-1/2-inch diameter steel poles provide stability and strength. Upgraded 0.32X11.81 inch (8X300mm) L-Type pegs increase stability.
• Triple Layer 240g PE Cover: Durable, UV-treated, waterproof, anti-UV, windproof, rainproof, dustproof, and anti-snow material.
• Easy to Assemble: Tool-free frame with easy-to-connect steel pipes and a one-piece cover for quick installation.
• Various Use: Suitable for motorcycles, ATVs, bikes, small lawnmowers, firewood, and other gardening tools.

Image 2: Gable roof design ensures all-weather protection by shedding water and snow effectively.

Image 3: Illustration of the high-density PE fabric, highlighting its UV-blocking and waterproof properties for long-lasting durability.

3. Safety Information

Always anchor the shelter to the ground using the provided pegs to ensure stability, especially in windy conditions. Do not use in extreme wind conditions to prevent damage or injury. Ensure all connections are secure before use.

4. Package Contents

Before beginning assembly, verify that all components are present and undamaged. The package typically includes:

• Steel Frame Poles (various lengths and shapes, labeled)
• Connectors
• Triple Layer 240g PE Cover (main cover, front door, back door)
• L-Type Pegs (for anchoring)
• Elastic Bungees
• Hardware (e.g., bolts, nuts, washers)
• User Manual
• Gloves (for assembly)

5. Setup and Assembly Instructions

Assembly is designed to be quick and easy, typically taking around an hour for one person. Follow these steps:

1. Step 1: Install the Top Frame. Lay out all labeled steel poles and connectors on a flat surface. Connect the top frame components according to the diagrams in the included user manual.
2. Step 2: Install the Legs. Attach the vertical leg poles to the assembled top frame.
3. Step 3: Place Cover and Install Ground Bar. Carefully drape the one-piece cover over the frame. Ensure it is centered and aligned. Install the bottom ground bars, connecting them to the leg poles. It is recommended to attach the middle bottom rail first, then the two outer poles.
4. Step 4: Secure Doors. Attach the front and back doors. Use the bungee balls and Velcro straps to secure the cover tightly to the frame.
5. Anchor the Shelter. Use the provided L-Type pegs to firmly anchor each leg of the shelter to the ground. This is crucial for stability, especially in windy conditions.

Image 4: Visual guide illustrating the four main steps for quick and easy shelter setup.

Image 5: Detail of the reinforced structure, showing the ratchet system for cover tensioning and L-shaped ground anchors for enhanced wind resistance.

Image 6: Close-up of the bungee ball connection system, ensuring a strong and secure fit of the cover to the frame.

6. Operating Instructions

The ADVANCE OUTDOOR Storage Shelter is designed for convenient access and protection.

Opening and Closing Doors:

The shelter features two roll-up zipper doors at both the front and back. To open, simply unzip the doors completely. The doors can then be rolled up and secured with the integrated buckles and straps to keep them open, allowing for easy drive-through access or increased ventilation. To close, unbuckle the rolled-up doors, pull them down, and zip them securely.

Ventilation:

Each door is equipped with double-layer vents. These vents facilitate airflow, helping to prevent moisture buildup and condensation inside the shelter. Ensure vents are clear of obstructions for optimal performance.

Image 7: Diagram illustrating the dual airflow design, showing how large vents promote air circulation and prevent condensation.

Product Video: Advance Outdoor Storage Shelter

Video 1: This video provides a general overview of the Advance Outdoor Storage Shelter, showcasing its features and functionality.

Product Video: ADVANCE OUTDOOR Storage Shelter 2 Doors & Vents Gray

Video 2: This video highlights the features of the ADVANCE OUTDOOR Storage Shelter in Gray, focusing on its two doors and ventilation system.

Product Video: ADVANCE OUTDOOR Storage Shelter 2 Doors & Vents Dark Gray

Video 3: This video showcases the ADVANCE OUTDOOR Storage Shelter in Dark Gray, detailing its two doors and vent features.

7. Maintenance

To ensure the longevity and optimal performance of your storage shelter, regular maintenance is recommended:

• Clean the Cover: Periodically clean the PE cover with mild soap and water to remove dirt, debris, and prevent mildew buildup. Avoid harsh chemicals that could damage the material.
• Check Anchors: Regularly inspect the ground pegs and anchoring system to ensure they remain secure, especially after strong winds or heavy rain. Re-secure if necessary.
• Inspect Frame: Check the steel frame for any signs of rust, damage, or loose connections. Tighten any loose bolts or replace damaged parts promptly.
• Clear Snow/Debris: In snowy conditions, gently remove accumulated snow from the roof to prevent excessive weight and potential collapse.

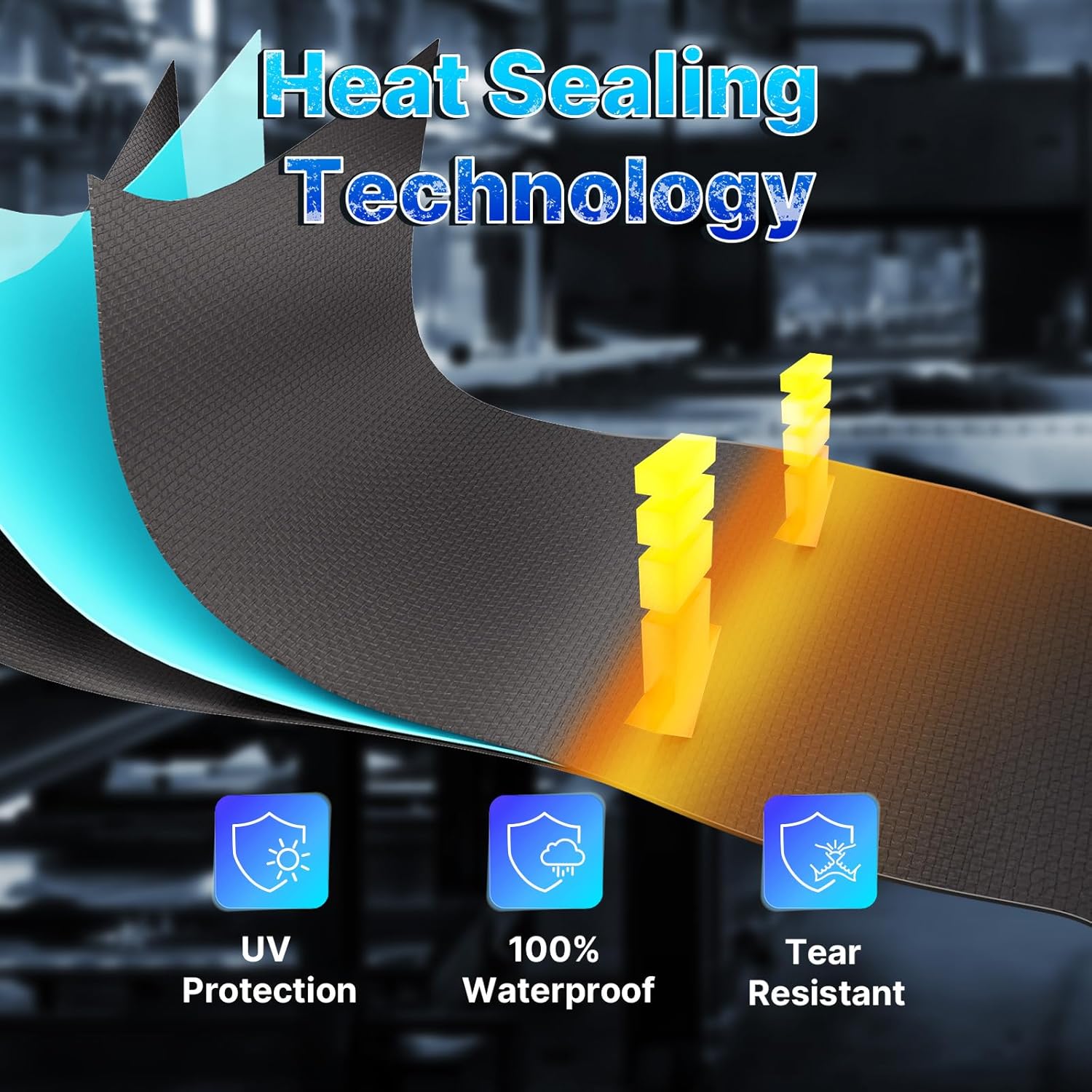

Image 8: Illustration of the heat sealing technology used in the cover, emphasizing its UV protection, 100% waterproof, and tear-resistant qualities.

8. Troubleshooting

If you encounter any issues with your ADVANCE OUTDOOR Storage Shelter, consider the following:

• Instability: Ensure all frame connections are fully engaged and tightened. Verify that all ground pegs are securely driven into the ground. Consider additional anchoring in very windy areas.
• Water Leakage: Check that the cover is properly tensioned and all seams are intact. Ensure doors are fully zipped and secured.
• Condensation: Make sure the double-layer vents are open and unobstructed to allow for proper airflow.
• Difficulty Zipping Doors: Ensure the cover is evenly distributed and not pulling excessively on one side. Check for any debris caught in the zipper teeth.

For further assistance, please contact ADVANCE OUTDOOR customer support.

Product Video: Wind and Rain Test: Is Our Storage Shed Tough Enough?

Video 4: This video demonstrates the wind and rain resistance of the storage shed, showcasing its durability in various weather conditions.

9. Specifications

Image 9: Visual representation of the shelter's dimensions: 6 ft wide, 6 ft deep, and 7 ft high.

10. Warranty and Support

ADVANCE OUTDOOR provides a one-year coverage for poles and canopy covers. For other accessories such as connectors, foot pads, pegs, anchors, or elastic bungees, replacements are always provided. Please retain your proof of purchase for warranty claims.

For any questions, concerns, or warranty claims, please contact ADVANCE OUTDOOR customer support through the retailer where the product was purchased.
