AGSHOME Water Alarm Detector User Manual

Introduction

The AGSHOME Water Alarm Detector is designed to provide early warning of water leaks and drips, helping to prevent potential water damage in your home or office. Featuring a loud 120dB alarm, it alerts you instantly when moisture is detected. Its compact, wireless design allows for flexible placement in various locations prone to leaks.

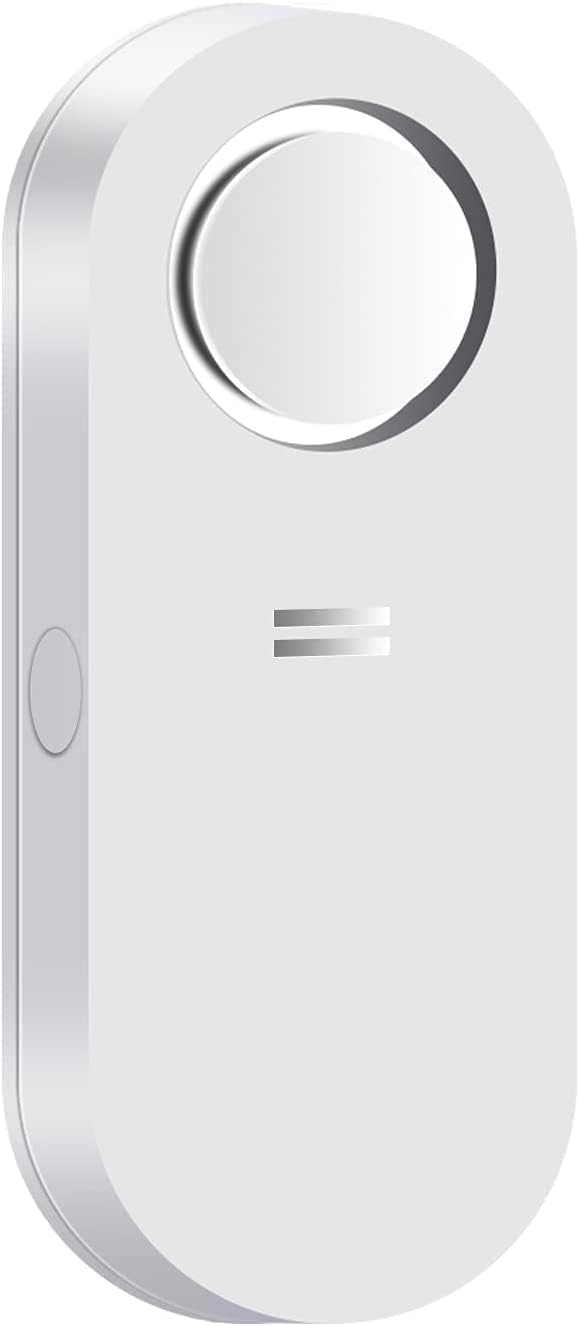

Image: Front view of the AGSHOME Water Alarm Detector, a white, oval-shaped device with a circular button on top and two horizontal lines below it.

Key Features

• Loud 120dB Alarm: Emits a powerful audible alert upon water detection, ensuring you are notified quickly. In flood situations, the alarm is designed to float and continue sounding until the probe is dried or the battery is depleted.
• Sensitive Detection: Equipped with multiple water-sensing probes, including two groups on the back and one group on the front, to detect both leaks and drips effectively.
• Low Battery Alert: The device will beep and flash a red light when the battery level drops below 5%, indicating it's time for replacement.
• Wireless and Compact: No cables or complex setup required. Its mini size allows for discreet placement in tight spaces.
• Mute Function: Press the button on the device to temporarily silence the alarm after a leak is detected and the probe is being dried. The alarm will reactivate if the probe remains wet after 5 seconds.

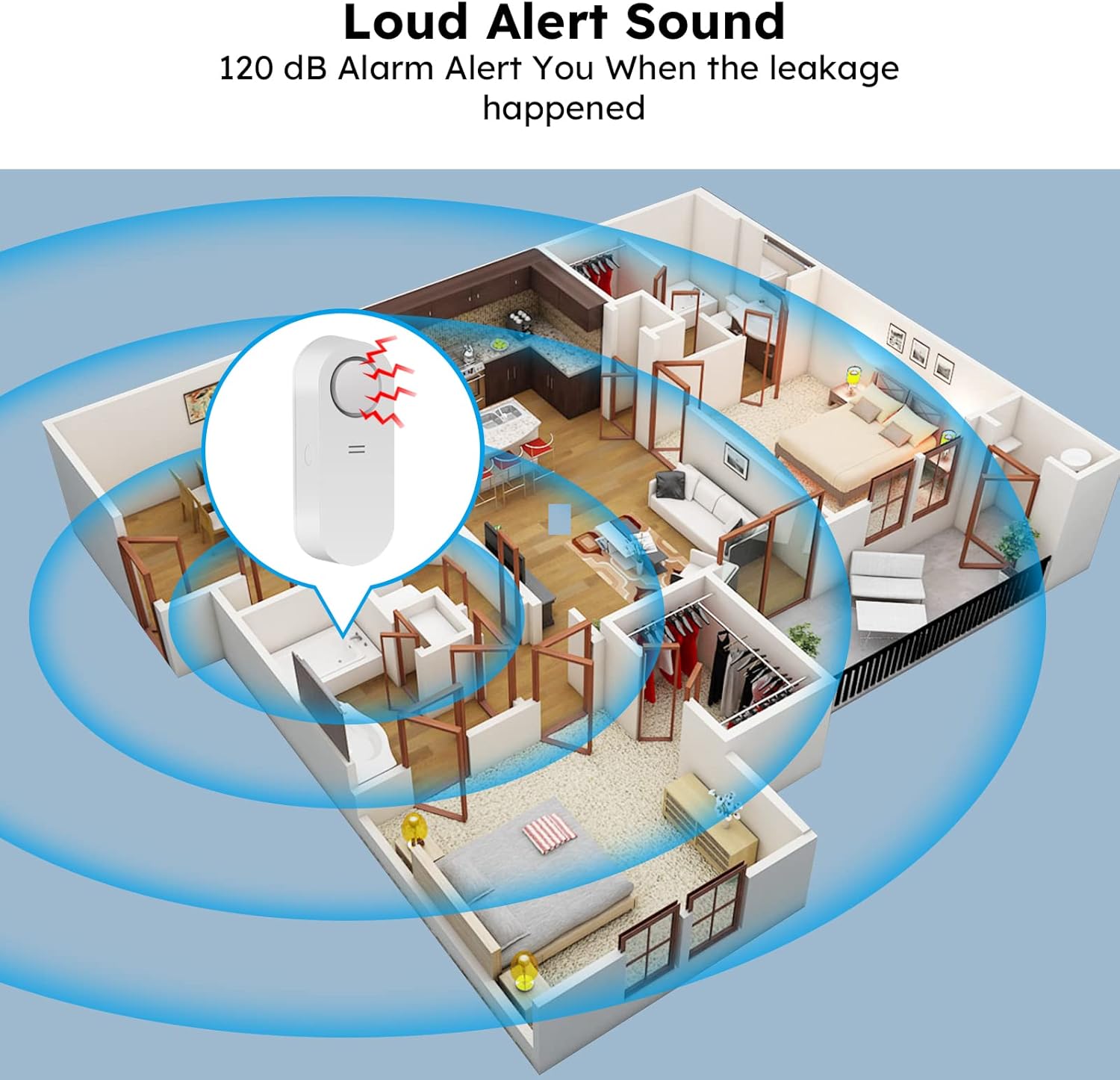

Image: Diagram illustrating the 120 dB loud alert sound of the water detector, showing sound waves emanating from the device placed within a house floor plan, indicating its ability to alert occupants throughout the home.

Image: A water detector placed near a sink, with water dripping from the faucet and pooling on the counter. Insets show close-ups of the detector's sensors distinguishing between "leaking" (larger water contact) and "dripping" (smaller water contact).

Setup

Battery Installation

1. Locate the battery compartment on the back of the AGSHOME Water Alarm Detector.
2. Open the battery compartment cover.
3. Insert the included batteries (AAA type) into the compartment, ensuring correct polarity (+/-).
4. If there is a pull tab for battery activation, remove it.
5. Close the battery compartment cover securely.

Placement

Place the water alarm detector in any area where water leaks or drips are a concern. Ensure the water-sensing probes on the bottom of the device are in direct contact with the surface where water might accumulate. Common placement areas include:

• Under sinks (kitchen, bathroom)
• Near water heaters
• Behind toilets
• Next to washing machines or dishwashers
• In basements or utility rooms

Image: An open AGSHOME Water Alarm Detector showing the battery compartment with two AAA batteries inserted. A red light and a battery icon with "5%" are shown, indicating a low battery prompt.

Image: A collage showing various ideal placement locations for the water alarm detector, including a bathroom sink, a kitchen sink, and next to a washing machine, highlighting its versatility.

Operating Instructions

Water Detection and Alarm

Once the batteries are installed and the device is placed, it is active. The alarm will sound loudly (120dB) if water bridges any two of the water-sensing probes. This immediate alert allows for prompt action to mitigate potential water damage.

Muting the Alarm

To mute the alarm after a leak has been detected and addressed, press the large circular button on the top of the device. The alarm will silence. If the water-sensing probes are not completely dry within approximately 5 seconds, the alarm will reactivate. Ensure the area and the probes are thoroughly dried to permanently silence the alarm.

Testing the Battery Level

You can test the battery level at any time by pressing the circular button on the device. If the battery is low (below 5%), the device will beep and flash a red light.

Image: A person's hand pressing the button on the water detector, which is placed under a kitchen sink. An inset diagram shows how to dry the sensor to mute the alarm, indicating the process of silencing the device after a leak.

Maintenance

Battery Replacement

When the low battery alert activates (beeping and red flashing light), replace the batteries promptly to ensure continuous protection. Follow the battery installation steps outlined in the "Setup" section.

Cleaning

Periodically inspect the water-sensing probes for any dirt or debris that might interfere with detection. Clean the device with a soft, dry cloth. Do not use abrasive cleaners or immerse the device in water.

Troubleshooting

Specifications

Image: A diagram showing the AGSHOME Water Alarm Detector from both a side view and a bottom view, highlighting the water-sensing points and providing its dimensions (4.35 inches length, 1.79 inches width, 0.96 inches depth).

Warranty and Support

For warranty information, technical support, or any inquiries regarding your AGSHOME Water Alarm Detector, please refer to the contact information provided with your product packaging or visit the official AGSHOME website. Keep your purchase receipt for warranty claims.
