1. Introduction
This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your uRage Exodus 700 Semi-Mechanical Gaming Keyboard. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.
2. Package Contents
Verify that all items are present in the package:
- uRage Exodus 700 Semi-Mechanical Gaming Keyboard
- User's Guide (this document)
- Warranty Card
3. Setup
3.1 Connecting the Keyboard
The uRage Exodus 700 keyboard connects via a wired USB-A connection. Follow these steps to connect your keyboard:
- Locate an available USB-A port on your computer.
- Plug the USB-A connector of the keyboard cable into the USB-A port on your computer.
- The operating system (Windows 11/10/8/7) will automatically detect and install the necessary drivers.
3.2 Software Installation (Optional)
For advanced customization, including macro programming and lighting effects, dedicated gaming software is available. Refer to the official uRage website for the latest software download and installation instructions.
Image 1: uRage Exodus 700 Semi-Mechanical Gaming Keyboard connected and ready for use.
4. Operating the Keyboard
4.1 Key Features
- Semi-Mechanical Keys: Provides a tactile typing experience with fast response times (1 ms) and a key travel of 2.5 mm.
- Anti-Ghosting: Ensures that multiple key presses are registered simultaneously, crucial for gaming. Up to 24 keys can be registered at once.
- RGB Lighting: Customizable backlighting with various effects and colors.
- WIN Lock-Function: Disables the Windows key to prevent accidental interruptions during gameplay.
- Integrated Wrist Rest: Designed for enhanced comfort during extended use.
4.2 RGB Lighting Control
The keyboard features integrated RGB lighting. Specific key combinations (often involving the 'Fn' key) or the dedicated gaming software can be used to:
- Turn the lighting on or off.
- Cycle through different lighting modes and effects.
- Adjust brightness levels.
Refer to the keyboard's function key legends for specific lighting control shortcuts.
Image 2: Keyboard in use, demonstrating RGB lighting.
4.3 Macro and Multimedia Functions
The keyboard includes 4 dedicated macro buttons (G1-G4) and additional multimedia functions. These can be programmed and controlled:
- Macro Programming: Use the dedicated gaming software to record and assign complex key sequences to the macro buttons.
- Multimedia Controls: Access functions like volume control, play/pause, and track skipping via function key combinations.

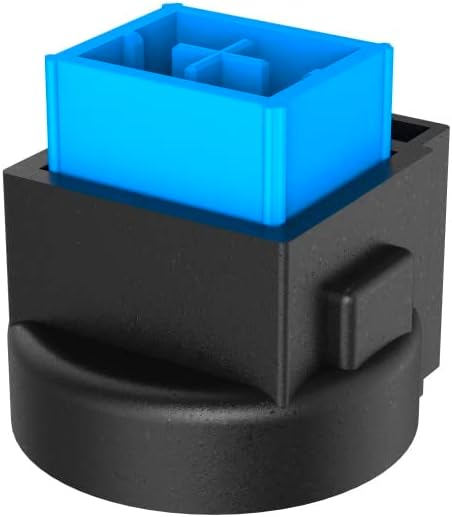

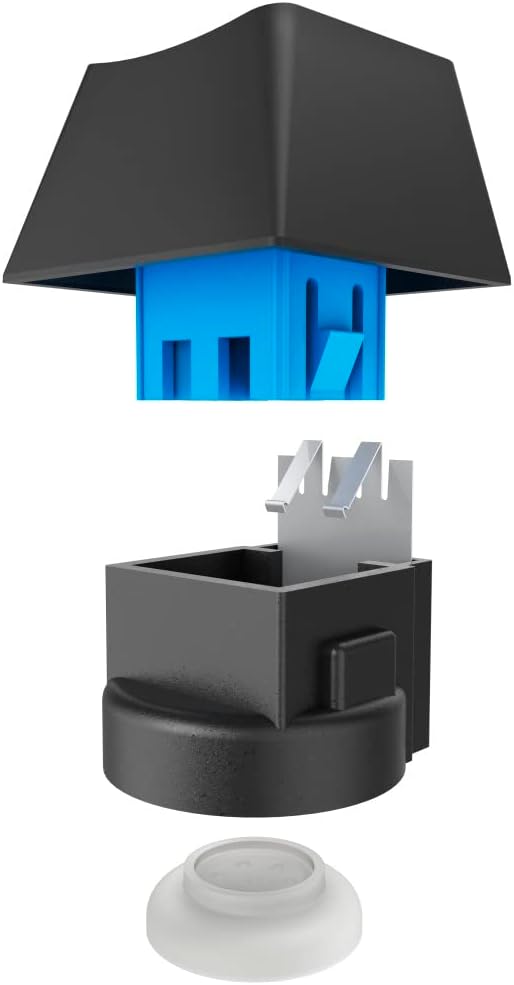

Image 3: Exploded and assembled views of the semi-mechanical key structure.
5. Maintenance
Proper maintenance ensures the longevity and performance of your keyboard.
5.1 Cleaning
- Disconnect the keyboard from your computer before cleaning.
- Use a soft, dry cloth to wipe the surface of the keyboard.
- For dust and debris between keys, use compressed air.
- Avoid using harsh chemicals, abrasive cleaners, or excessive moisture.
5.2 Storage
When not in use, store the keyboard in a clean, dry environment away from direct sunlight and extreme temperatures.
6. Troubleshooting
If you encounter issues with your uRage Exodus 700 keyboard, refer to the following common solutions:
- Keyboard not responding:
- Ensure the USB cable is securely plugged into both the keyboard and the computer.
- Try plugging the keyboard into a different USB port.
- Restart your computer.
- Keys not registering:
- Check for any physical obstructions under the keycaps.
- Ensure the keyboard drivers are correctly installed (check Device Manager on Windows).
- RGB lighting not working:
- Verify that the lighting is not turned off via keyboard shortcuts.
- Check the gaming software settings if installed.
- Macro functions not working:
- Ensure the gaming software is running and macros are correctly configured.
- Update the gaming software to the latest version.
If problems persist, contact uRage customer support for further assistance.
7. Specifications
| Feature | Specification |
|---|---|
| Model Name | Exodus 700 |
| Model Number | ham_n8_U8186011 |
| Keyboard Layout | QWERTY (English) |
| Key Technology | Semi-Mechanical |
| Number of Keys | 114 |
| Rollover Buttons | Up to 24 |
| Response Time | 1 ms |
| Key Lifetime | 10 Million Attacks |
| Work Travel | 2.5 mm |
| Connectivity | Wired USB-A |
| Lighting | RGB Colours |
| Compatible OS | Windows 11/10/8/7 |
| Number of Macro Buttons | 4 |
| Color | Black |
| Material | Plastic |
| Cable Length | 180 cm |
| Dimensions (W x H x D) | 47 cm x 3.5 cm x 19 cm |
| Weight | 885 g |
8. Warranty & Support
8.1 Manufacturer Warranty
The uRage Exodus 700 Semi-Mechanical Gaming Keyboard comes with a 5-year manufacturer warranty. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use.
8.2 Customer Support
For technical support, warranty claims, or further inquiries, please visit the official uRage website or contact their customer service department. Contact information can typically be found on the warranty card included in your package or on the brand's official website.
