Seentech 482731 Evaporator Fan Motor Kit

1. Product Overview

The Seentech 482731 Evaporator Fan Motor Kit is a high-quality replacement part designed to restore optimal cooling and quiet operation to your refrigerator or freezer. This kit addresses common issues such as excessive noise, insufficient cooling in the fridge or freezer sections, or both being too warm. It is manufactured from durable materials and rigorously tested to ensure long-lasting performance.

Image 1.1: Complete Seentech 482731 Evaporator Fan Motor Kit, including motor, fan blade, grommets, washers, and screws.

2. Compatibility

This evaporator fan motor kit is widely compatible with various refrigerator and freezer models from leading brands, including:

• Whirlpool
• Kenmore
• Roper
• Estate
• Caloric
• Amana

It replaces numerous part numbers, ensuring broad applicability. Key replacement part numbers include: 4389140, 8537621, 4318001, 0056721, 0056801, 1100473, PS376645, AP3110929, R0950025, and many others.

Important Note:

This product features two terminals located on opposite sides of the motor. It is crucial to verify that your existing motor has a similar terminal configuration for proper fit and function. If you are uncertain about compatibility, please consult your appliance's model number with the manufacturer or a qualified technician.

Image 2.1: Visual representation of wide brand compatibility.

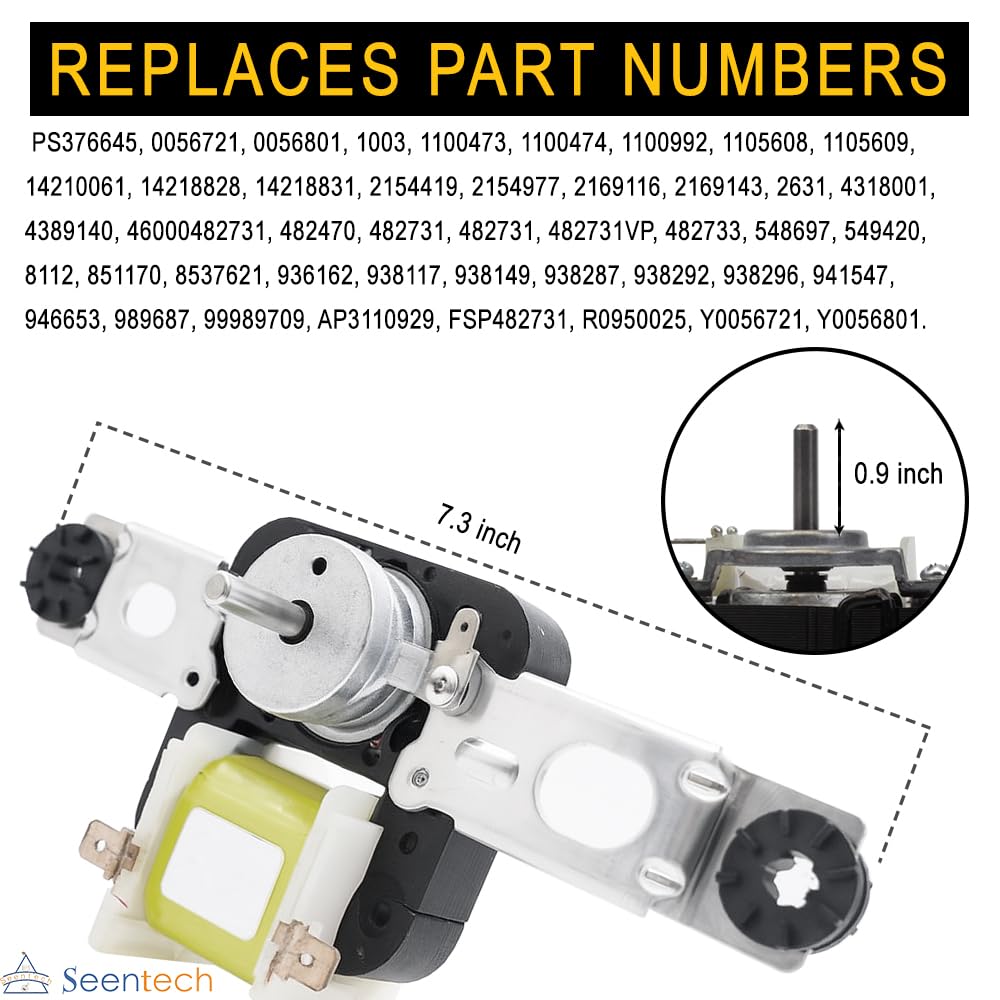

Image 2.2: Detailed view of replacement part numbers and motor shaft dimensions.

3. What's in the Box

Your Seentech 482731 Evaporator Fan Motor Kit includes all necessary components for a straightforward repair:

• 1 x Evaporator Fan Motor with Mounting Bracket
• 1 x Snap-on Fan Blade
• 2 x Mounting Grommets with Sleeves
• 8 x Screws (for easy installation)

4. Installation and Setup

The Seentech 482731 kit is designed for easy DIY installation. Before beginning, ensure the refrigerator or freezer is unplugged from the power source to prevent electrical shock.

1. Locate the existing evaporator fan motor within your appliance. This is typically found behind a panel in the freezer compartment.
2. Carefully disconnect any wiring and remove the old motor and fan blade. Note the orientation of the old motor and fan blade for correct reassembly.
3. Attach the new snap-on fan blade to the shaft of the new evaporator fan motor. Ensure it is securely fastened but not pushed too far back to avoid hitting the motor housing.
4. Install the mounting grommets and sleeves onto the new motor's bracket.
5. Mount the new motor assembly into position using the provided screws. Ensure the terminals align with your appliance's wiring.
6. Reconnect the electrical wiring to the new motor's terminals. Double-check all connections for security.
7. Replace any panels or covers removed during the process.
8. Plug the appliance back into the power source.

After installation, monitor the appliance for proper cooling and listen for any unusual noises. The new motor should operate quietly.

Image 4.1: Visual guide for quick installation.

5. Troubleshooting

This evaporator fan motor kit is designed to resolve several common refrigerator and freezer issues. If you experience any of the following symptoms, replacing the evaporator fan motor may be the solution:

• Noisy Operation: A failing motor can produce squealing, groaning, or grinding sounds.
• Fridge or Freezer Too Warm: If the fan motor is not circulating air properly, the cooling efficiency will decrease, leading to warmer temperatures in one or both compartments.
• Both Sections Too Warm: A complete failure of the evaporator fan motor will prevent cold air distribution throughout the entire appliance.

If issues persist after installation, double-check all connections and ensure the fan blade is not obstructed or hitting any part of the housing. For complex problems, it is recommended to consult a professional appliance technician.

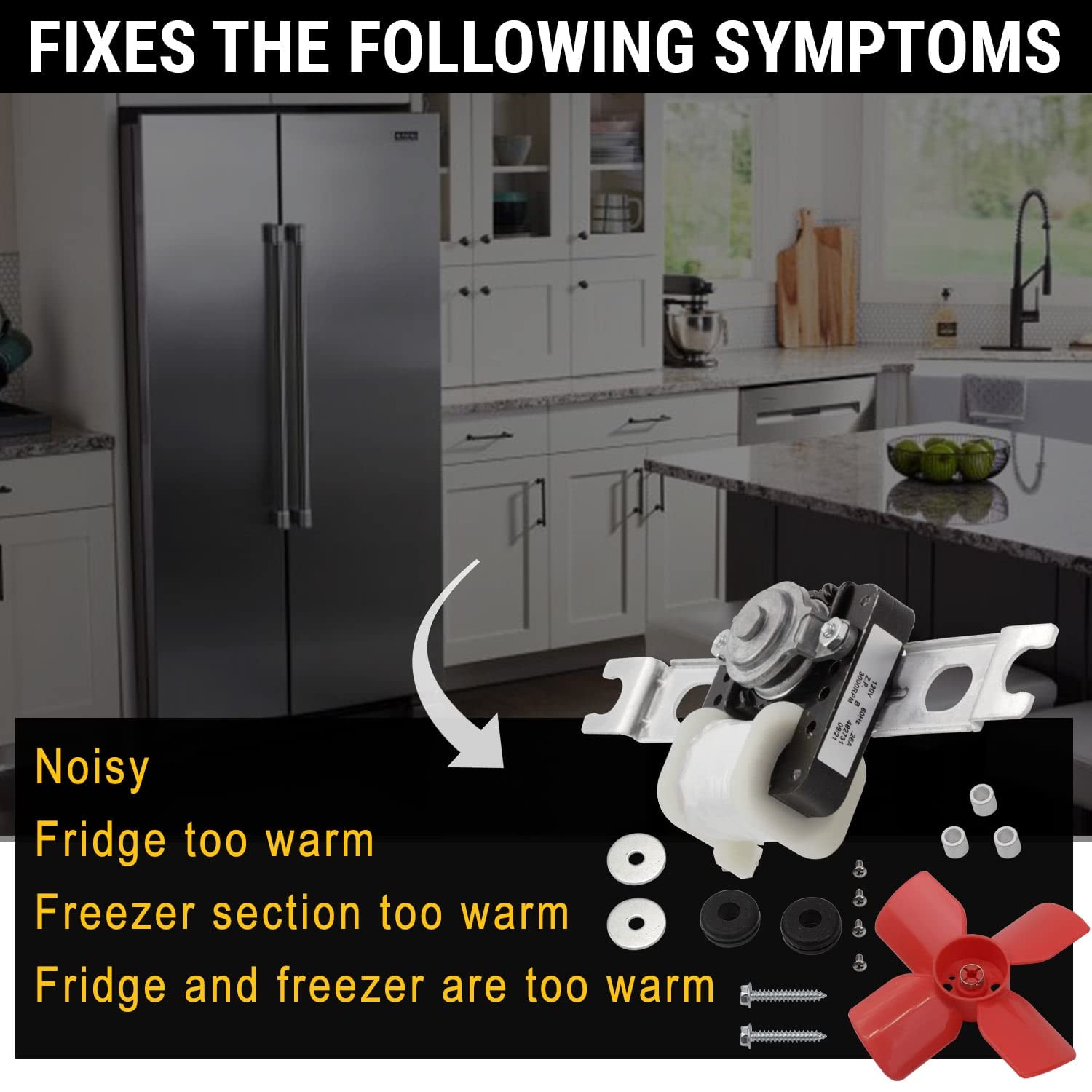

Image 5.1: Common symptoms addressed by replacing the evaporator fan motor.

6. Specifications

7. Warranty and Support

Seentech is committed to providing high-quality, durable replacement parts. Each product is made from robust materials and undergoes thorough testing by the manufacturer to ensure reliable and effective performance.

If you have any questions regarding product compatibility, installation, or performance, please reach out to Seentech customer support. You can typically find contact information on the Seentech storefront or through the platform where the product was purchased. We are dedicated to helping you ensure you select the correct replacements for your appliances and resolve any issues you may encounter.
