AVASTA AV-390 Adult Mountain Bike User Manual

Introduction

Thank you for choosing the AVASTA AV-390 Adult Mountain Bike. This manual provides essential information for the safe assembly, operation, and maintenance of your new bicycle. Please read this manual thoroughly before your first ride and keep it for future reference. Proper assembly and regular maintenance are crucial for your safety and the longevity of your bike.

Image: The AVASTA AV-390 Mountain Bike, showcasing its black frame, 26-inch wheels, and front suspension.

Safety Information

Always prioritize safety when riding your bicycle. Adhere to the following guidelines:

• Wear a Helmet: Always wear a properly fitted bicycle helmet that meets safety standards.
• Pre-Ride Check: Before each ride, inspect brakes, tires, quick releases, and steering for proper function.
• Visibility: Use lights and reflectors, especially when riding in low-light conditions. Wear bright clothing.
• Traffic Laws: Obey all local traffic laws, signs, and signals.
• Weight Limit: Do not exceed the recommended weight limit for the bicycle.
• Professional Assembly: If you are unsure about any assembly steps, seek assistance from a qualified bicycle mechanic.

Package Contents

Your AVASTA AV-390 Mountain Bike package includes the following components:

• Bicycle Frame (partially assembled with rear wheel, drivetrain, and rear brake)
• Front Wheel
• Handlebar
• Seat Post with Saddle
• Pedals (Left and Right)
• Reflectors (Front, Rear, Wheel)
• Tool Kit for Assembly
• User Manual (this document)

Setup and Assembly

Your AVASTA mountain bike arrives approximately 85% assembled. The following steps detail the completion of the assembly process. It is recommended to have basic tools and a bicycle stand for easier assembly.

1. Unpacking: Carefully remove all components from the packaging. Remove any protective wrapping or zip ties.
2. Install Front Wheel:
   • Orient the front wheel so the disc rotor aligns with the brake caliper.
   • Insert the wheel axle into the fork dropouts. Ensure the quick-release skewer is properly installed and tightened.
   • Check that the wheel spins freely without rubbing against the brake pads.
3. Attach Handlebar:
   • Loosen the bolts on the stem faceplate.
   • Position the handlebar in the stem, ensuring it is centered and the brake levers and shifters are at a comfortable angle.
   • Tighten the stem faceplate bolts evenly and securely.
4. Install Seat Post and Saddle:
   • Insert the seat post into the frame's seat tube. Ensure it is inserted past the minimum insertion line.
   • Adjust the saddle height to a comfortable riding position.
   • Tighten the seat post quick-release or bolt securely.


   Image: Close-up view of the quick-release mechanism for the saddle, allowing for easy height adjustment.

5. Attach Pedals:
   • Identify the Left (L) and Right (R) pedals. The left pedal has a reverse thread.
   • Apply a small amount of grease to the pedal threads.
   • Screw the pedals into the crank arms. The right pedal tightens clockwise, the left pedal tightens counter-clockwise.
   • Tighten securely with a pedal wrench.
6. Inflate Tires:
   • Locate the recommended tire pressure (PSI) on the tire sidewall.
   • Using a bicycle pump with a pressure gauge, inflate both tires to the recommended PSI.


   Image: Detailed view of the CST Jet tire tread, designed for various terrains.

7. Final Checks:
   • Ensure all bolts and quick releases are tightened.
   • Test both front and rear brakes.
   • Check gear shifting for smooth operation.
   • Install front and rear reflectors.

Operating Instructions

Gear Shifting (27 Speeds)

Your AVASTA mountain bike is equipped with a 27-speed (3x9) drivetrain, allowing for precise gear selection across various terrains. The trigger shifters on the handlebar control the front and rear derailleurs.

• Right Shifter: Controls the rear derailleur (9 speeds). Use for fine-tuning speed and cadence.
• Left Shifter: Controls the front derailleur (3 speeds). Use for significant changes in terrain (e.g., climbing steep hills).
• Shifting Technique: Shift gears while pedaling lightly. Avoid shifting under heavy load to prevent damage to the drivetrain.

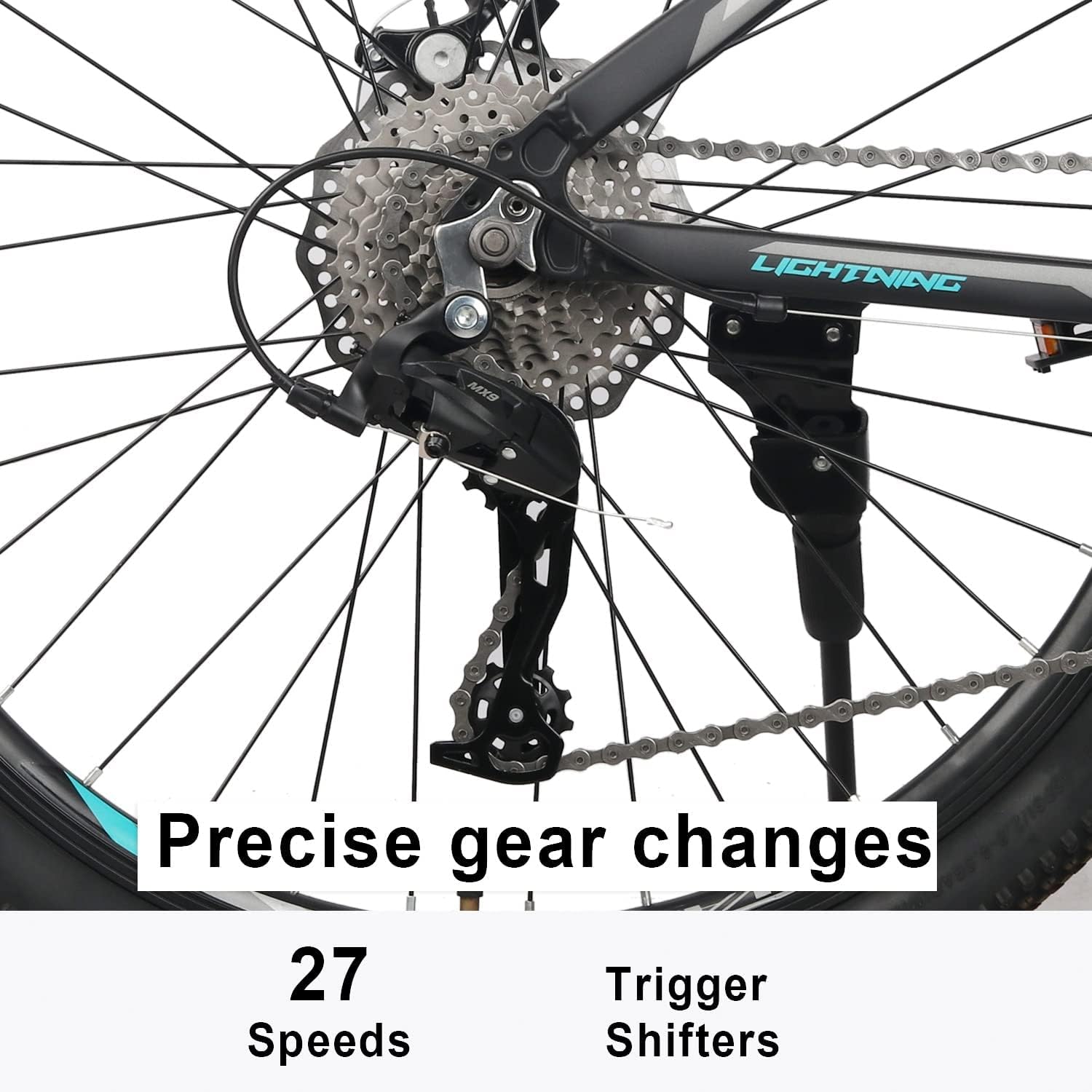

Image: Detailed view of the rear derailleur and 9-speed cassette, illustrating the precise gear changes available.

Braking System (Dual Disc Brakes)

The bike features mechanical disc brakes on both the front and rear wheels for reliable stopping power in various conditions.

• Front Brake: Controlled by the left brake lever. Provides strong stopping power. Use with caution to avoid skidding.
• Rear Brake: Controlled by the right brake lever. Helps control speed and stability.
• Braking Technique: Apply both brakes simultaneously for effective and controlled stopping. Shift your weight slightly backward when braking hard.

Image: Close-up of the front disc brake system, highlighting the caliper and rotor for confident stopping.

Front Suspension Fork

The front suspension fork absorbs shocks and bumps, providing a smoother and more comfortable ride, especially on uneven terrain. It features a lockout mechanism.

• Lockout Feature: The suspension fork includes a lockout switch (typically a dial on the top of the fork leg).
• "Open" Position: Allows the suspension to absorb impacts, ideal for rough trails.
• "Locked" Position: Makes the fork rigid, improving pedaling efficiency on smooth roads or during uphill climbs.

Image: Detailed view of the suspension fork with its lockout switch, showing 'Lock' and 'Open' positions for adjusting ride stiffness.

Maintenance

Regular maintenance ensures the safety, performance, and longevity of your AVASTA mountain bike.

• Cleaning: Regularly clean your bike with mild soap and water. Avoid high-pressure washers directly on bearings.
• Lubrication: Keep the chain clean and lubricated. Apply bicycle-specific chain lubricant every 100-150 miles or after riding in wet conditions.
• Tire Pressure: Check tire pressure before each ride and inflate to the recommended PSI.
• Brake Inspection: Regularly check brake pads for wear and ensure brake levers provide firm, consistent stopping power. Adjust as needed.
• Gear Adjustment: If shifting becomes rough or inconsistent, the derailleurs may need adjustment. Consult a bike mechanic if unsure.
• Bolt Tightness: Periodically check all bolts (stem, seat post, crank arms, wheel axles) for proper tightness.
• Professional Service: It is recommended to have your bike professionally serviced at least once a year, or more frequently with heavy use.

Troubleshooting

This section addresses common issues you might encounter with your mountain bike.

For issues not listed here or if you are uncomfortable performing repairs, please consult a professional bicycle mechanic.

Specifications

Support and Contact

For further assistance, warranty inquiries, or to report any issues with your AVASTA AV-390 Mountain Bike, please contact AVASTA customer support.

Please refer to your purchase documentation for specific contact details or visit the official AVASTA website.

Online Support: AVASTA Store on Amazon
