YSWH Full-Over-Full Bunk Bed with Storage Staircase Instruction Manual

1. Important Safety Information

Please read and understand all instructions before assembling and using this bunk bed. Keep this manual for future reference.

• Weight Capacity: The upper bed has a maximum weight capacity of 200 lbs. The bottom bed has a maximum weight capacity of 275 lbs. Do not exceed these limits.
• Mattress Thickness: For the upper bed, the recommended mattress thickness is 6 inches. For the bottom bed, the recommended mattress thickness is 8 inches. Ensure mattresses fit snugly within the bed frame.
• Guardrails: The upper bunk is equipped with full-length guardrails. Always ensure guardrails are properly installed and secured to prevent falls.
• Staircase Safety: The bunk bed features a four-step staircase with a handrail for safe access to the upper bunk. Always use the staircase for entry and exit.
• Assembly: Assembly must be performed by adults. Ensure all parts are correctly assembled and fasteners are tightened securely before use. Periodically check and re-tighten all fasteners.
• Separation: This bunk bed can be separated into two independent beds. Follow the disassembly and reassembly instructions carefully if converting the bed configuration.

2. Package Contents

Before beginning assembly, ensure all components are present and undamaged. The product is shipped in 3 packages. If any parts are missing or damaged, please contact customer support.

Included components:

• Bed Frame Components (Plywood, Pinewood, MDF)
• Guardrails
• Slats (14 for upper bed, 14 for bottom bed)
• Staircase with integrated storage shelves
• All necessary hardware (screws, bolts, etc.)
• Detailed installation instructions

3. Setup and Assembly Instructions

Assembly is required for this bunk bed. It is recommended that two adults perform the assembly. Please follow the detailed installation instructions provided in the product parcel. The general steps involve:

1. Unpack all components and verify against the parts list.
2. Assemble the main bed frames (upper and lower).
3. Attach the guardrails to the upper bed frame.
4. Install the bed slats for both upper and lower bunks.
5. Assemble and attach the storage staircase to the bed frame.
6. Ensure all connections are secure and stable.

Figure 3.1: Detailed dimensions of the bunk bed, including overall length (94.25"), width (58.07"), and height (63.1"), as well as individual component measurements for the bunks and staircase.

Figure 3.2: Side view illustrating the installed bed slats for both the upper and lower sleeping platforms, providing mattress support.

4. Operating Instructions

This bunk bed offers versatile functionality:

• Bunk Bed Configuration: Use as a traditional full-over-full bunk bed, providing two sleeping surfaces while maximizing floor space.
• Convertible Design: The bunk bed can be separated into two independent full-sized beds. To convert, carefully follow the disassembly instructions for the bunk configuration and reassemble as two separate beds. This process typically involves removing the connecting hardware and guardrails, then positioning the beds individually.
• Storage Staircase: The integrated staircase provides safe access to the upper bunk and features four open shelves. These shelves can be used for storing books, toys, or other personal items.

Figure 4.1: The YSWH Full-Over-Full Bunk Bed assembled, showcasing its gray finish, guardrails, and integrated storage staircase.

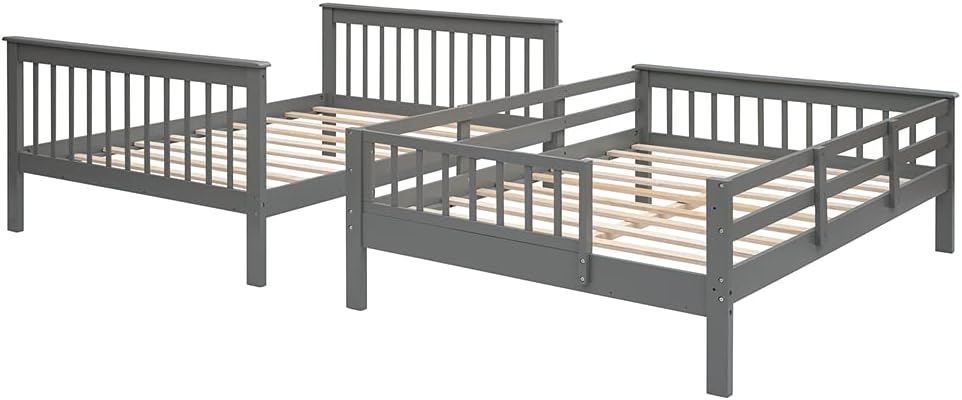

Figure 4.2: The bunk bed disassembled and configured as two separate full-sized beds, demonstrating its versatility.

5. Maintenance

To ensure the longevity and safety of your YSWH Bunk Bed, follow these maintenance guidelines:

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the finish.
• Fastener Checks: Periodically (e.g., every 3-6 months) inspect all bolts, screws, and other fasteners. Re-tighten any loose connections to maintain structural integrity and safety.
• Structural Integrity: Regularly check for any signs of wear, damage, or instability in the wood components or joints. Address any issues promptly.
• Mattress Care: Ensure mattresses are of the recommended size and thickness. Rotate mattresses regularly to promote even wear.

6. Troubleshooting

If you encounter any issues with your bunk bed, consider the following common solutions:

• Squeaking Noises: Squeaking often indicates loose fasteners. Re-tighten all bolts and screws, especially those connecting the main frame components and slats.
• Instability/Wobbling: Ensure the bed is placed on a level surface. Check all connections for tightness. If the bed was recently moved, re-verify assembly.
• Difficulty Assembling: Refer to the detailed assembly instructions provided. Ensure you are using the correct hardware for each step. Do not force parts together. If a part seems incorrect, double-check the diagram.
• Missing Parts: If you discover missing parts during assembly, do not proceed. Contact customer support immediately for assistance.

7. Specifications

8. Warranty and Support

Product Warranty: This YSWH Bunk Bed comes with a two-year product warranty from the date of purchase.

Customer Support: If you have any questions regarding assembly, missing parts, or product functionality, please refer to the contact information provided in your purchase documentation or contact the seller directly. Ensure you have your purchase details and model information ready when contacting support.
