1. Introduction
Thank you for choosing the Allegri Estrella Pendant Light. This elegant 8-light fixture, featuring a brushed champagne gold finish and exquisite crystal embellishments, is designed to provide sophisticated ambient lighting for your indoor spaces. This manual provides essential information for the safe installation, operation, and maintenance of your new pendant light. Please read all instructions carefully before beginning installation and retain this manual for future reference.

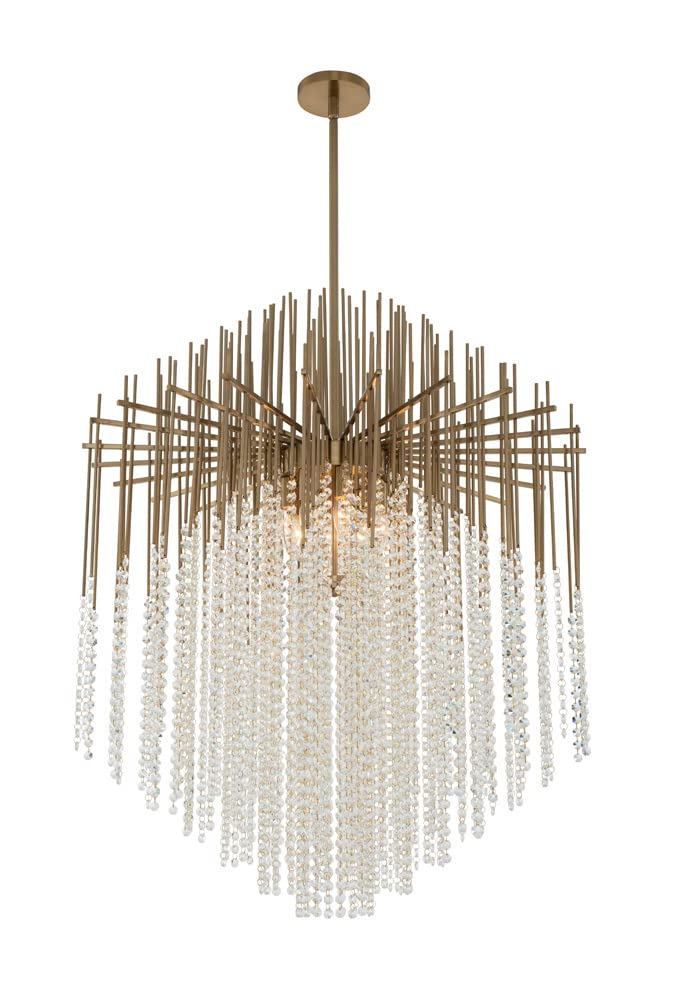

Figure 1: Allegri Estrella Pendant Light. This image displays the Allegri Estrella Pendant Light, featuring a brushed champagne gold metal frame with a starburst design at the top, from which numerous strands of clear, faceted crystals cascade downwards, creating a shimmering effect. The light fixture is designed for ceiling installation and provides ambient illumination.
2. Safety Information
WARNING: To reduce the risk of fire, electric shock, or personal injury, always follow these safety precautions:
- Always disconnect power at the main circuit breaker or fuse box before installation, servicing, or cleaning.
- Installation should be performed by a qualified electrician in accordance with all local electrical codes.
- Ensure the mounting surface can support the weight of the fixture (approximately 37 pounds).
- Handle crystal components with care to prevent breakage or injury.
- Do not connect this fixture to an ungrounded electrical system.
- This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.
3. Package Contents
Verify that all components are present and undamaged before beginning installation. If any parts are missing or damaged, do not attempt to install the fixture. Contact your retailer for assistance.
- Pendant Light Fixture (Pre-assembled frame)
- Mounting Hardware Kit (Canopy, mounting plate, screws, wire nuts)
- Crystal Strands/Components (May require individual attachment)
- Instruction Manual
4. Setup and Installation
This fixture is designed for semi-flush mount ceiling installation with down lighting. Professional installation is highly recommended.
- Prepare for Installation: Turn off power at the circuit breaker. Ensure the electrical box is securely mounted and capable of supporting the fixture's weight.
- Mounting Plate Installation: Attach the mounting plate to the electrical box using the provided screws.
- Wiring: Carefully connect the fixture's wires to the corresponding household wires (black to black, white to white, ground to ground) using wire nuts. Ensure all connections are secure.
- Fixture Attachment: Secure the fixture canopy to the mounting plate.
- Bulb Installation: Install eight (8) E12 candelabra base bulbs (not included) into the sockets. The fixture is rated for a maximum of 40 Watts per bulb, totaling 320 Watts.
- Crystal Attachment (if applicable): If crystal strands are not pre-attached, carefully hang each crystal strand onto the designated hooks or loops on the fixture frame according to the design. Refer to any included diagrams for specific placement.
- Restore Power: Once installation is complete and all components are secure, restore power at the circuit breaker.
5. Operating Instructions
The Allegri Estrella Pendant Light is designed for ease of use and offers dimmable functionality.
- Power On/Off: Operate the light using a standard wall switch connected to the fixture's circuit.
- Dimmable Feature: This fixture is dimmable. To utilize this feature, ensure you are using dimmable E12 bulbs and have a compatible dimmer switch installed (sold separately).
- Remote Control: The fixture supports remote control operation. Refer to the specific remote control instructions (if a remote is included or purchased separately) for pairing and functionality.
6. Maintenance
Regular cleaning and proper care will help maintain the beauty and longevity of your Allegri Estrella Pendant Light.
- Cleaning the Fixture: Before cleaning, ensure the power is turned off and the fixture has cooled. Use a soft, dry, or slightly damp cloth to wipe down the brushed champagne gold finish. Avoid abrasive cleaners or harsh chemicals, as they can damage the finish.
- Cleaning Crystals: The crystal components can be gently wiped with a soft, lint-free cloth. For a deeper clean, a mild glass cleaner can be sprayed onto a cloth (not directly onto the crystals or fixture) and then used to wipe the crystals. Ensure no liquid drips into electrical components.
- Bulb Replacement: When replacing bulbs, ensure the power is off and the bulbs have cooled. Use only E12 candelabra base bulbs, not exceeding 40 Watts per bulb.
7. Troubleshooting
If you encounter issues with your pendant light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power to the fixture; loose wiring; faulty bulb. | Check circuit breaker. Verify all wire connections are secure. Replace bulb(s). |
| Light flickers or dims inconsistently. | Loose wiring; incompatible dimmer switch or bulbs. | Check wiring connections. Ensure dimmer and bulbs are compatible with each other and the fixture. |
| Remote control not working. | Remote batteries dead; remote not paired; obstruction. | Replace remote batteries. Refer to remote's instructions for pairing. Remove any obstructions between remote and fixture. |
8. Specifications
| Brand | Allegri |
| Model Number | 037656-038-FR001 |
| Dimensions (L x W x H) | 32 x 32 x 44 inches |
| Item Weight | 37 Pounds |
| Color | Gold, Champ, Gld Leaf (Brushed Champagne Gold) |
| Material | Crystal |
| Style | Modern |
| Light Fixture Form | Pendant |
| Specific Uses | General Purpose, Ambient Lighting (Dining Rooms, Living Rooms, Kitchens) |
| Indoor/Outdoor Usage | Indoor |
| Power Source | Corded Electric |
| Installation Type | Semi Flush Mount |
| Special Feature | Dimmable |
| Control Method | Remote |
| Light Source Type | Incandescent, Candelabra (E12) |
| Finish Type | Brushed |
| Shade Material | Crystal |
| Number of Light Sources | 8 |
| Voltage | 120 Volts |
| Brightness | 4000 lumen (Note: Lumen output depends on installed bulbs) |
| Wattage (per bulb) | 40 Watts (Max) |
| Total Wattage | 320 Watts (Max) |
| Bulb Base | E12 |
| Assembly Required | No (Minor crystal attachment may be required) |
| Water Resistance Level | Not Water Resistant |
9. Warranty Information
This Allegri pendant light is covered by a manufacturer's warranty. The specific terms and duration of the warranty may vary. For detailed warranty information, including coverage and how to make a claim, please refer to the documentation provided with your purchase or contact Allegri directly. Retain your proof of purchase for warranty purposes.
10. Support and Contact
If you have any questions regarding the installation, operation, or maintenance of your Allegri Estrella Pendant Light, or if you require technical assistance, please contact your retailer or Allegri customer support. For the most up-to-date contact information, please visit the official Allegri website.
Manufacturer: Kalco Lighting
