Alaterre Furniture Williamsburg 60 Inch Double Sink Bathroom Vanity Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, installation, and maintenance of your Alaterre Furniture Williamsburg 60 Inch Double Sink Bathroom Vanity. This freestanding cabinet is designed to accommodate a 61-inch-wide by 22-inch-deep top with double sinks (top and sinks are not included). It features soft-close doors, three deep drawers, and nickel hardware. Please read all instructions carefully before beginning assembly.

2. Safety Information

Always keep hands away from closing doors and drawers to prevent pinching. Use appropriate safety gear and follow assembly instructions carefully to avoid injury during installation. Do not exceed the weight capacity of 200 lbs. Ensure all connections are secure before use. This product is intended for indoor use only.

3. Package Contents

Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact customer support.

• Vanity Cabinet Frame (unassembled)
• 2 Cabinet Doors with Soft-Close Hinges
• 3 Drawer Fronts and Drawer Boxes
• Drawer Slides (pre-installed or separate)
• Nickel Hardware (knobs/pulls)
• Adjustable Height Levelers
• Assembly Hardware (screws, dowels, cam locks, etc.)
• Instruction Manual

Note: The vanity top, sinks, and faucets are not included and must be purchased separately.

4. Assembly Instructions

Assembly is required for this product. It is recommended to have two people for assembly. Clear a spacious area and lay out all parts. Follow the step-by-step diagrams provided in the included manual. Ensure all connections are tight but do not overtighten screws.

Figure 4.1: Product Dimensions and Internal Layout. This diagram illustrates the overall dimensions of the vanity (60" L x 21.3" W x 34" H) and detailed measurements for the drawers and internal cabinet spaces. It also indicates a 200 lbs capacity.

4.1. Cabinet Frame Assembly

1. Identify all side panels, back panels, and base supports.
2. Attach the base supports to the side panels using the provided hardware.
3. Connect the side panels to the back panel, ensuring proper alignment.
4. Secure the top frame of the vanity.

4.2. Drawer Assembly and Installation

1. Assemble each drawer box according to the diagrams.
2. Attach the drawer slides to the assembled drawer boxes and the vanity frame.
3. Insert the assembled drawers into their respective slots.

Figure 4.2: Drawer Slide Mechanism. This image provides a detailed view of the drawer construction and the smooth-gliding metal drawer slides, highlighting the quality of the components.

4.3. Door Installation

1. Attach the soft-close hinges to the cabinet doors.
2. Mount the doors to the vanity frame, adjusting as necessary for proper alignment.

Figure 4.3: Soft-Close Hinge Detail. This image shows a close-up of the soft-close hinge mechanism, which ensures quiet and gentle closing of the cabinet doors.

4.4. Hardware and Levelers

1. Install the nickel knobs/pulls on all doors and drawers.
2. Adjust the height levelers at the bottom of the vanity to ensure stability and a level surface.

Figure 4.4: Nickel Hardware. A detailed view of the polished nickel knob, showcasing the design and finish of the included hardware.

5. Usage

The Alaterre Furniture Williamsburg Vanity provides ample storage for bathroom essentials. The soft-close doors and drawers operate smoothly and quietly. The open back design facilitates plumbing installation for your chosen sinks.

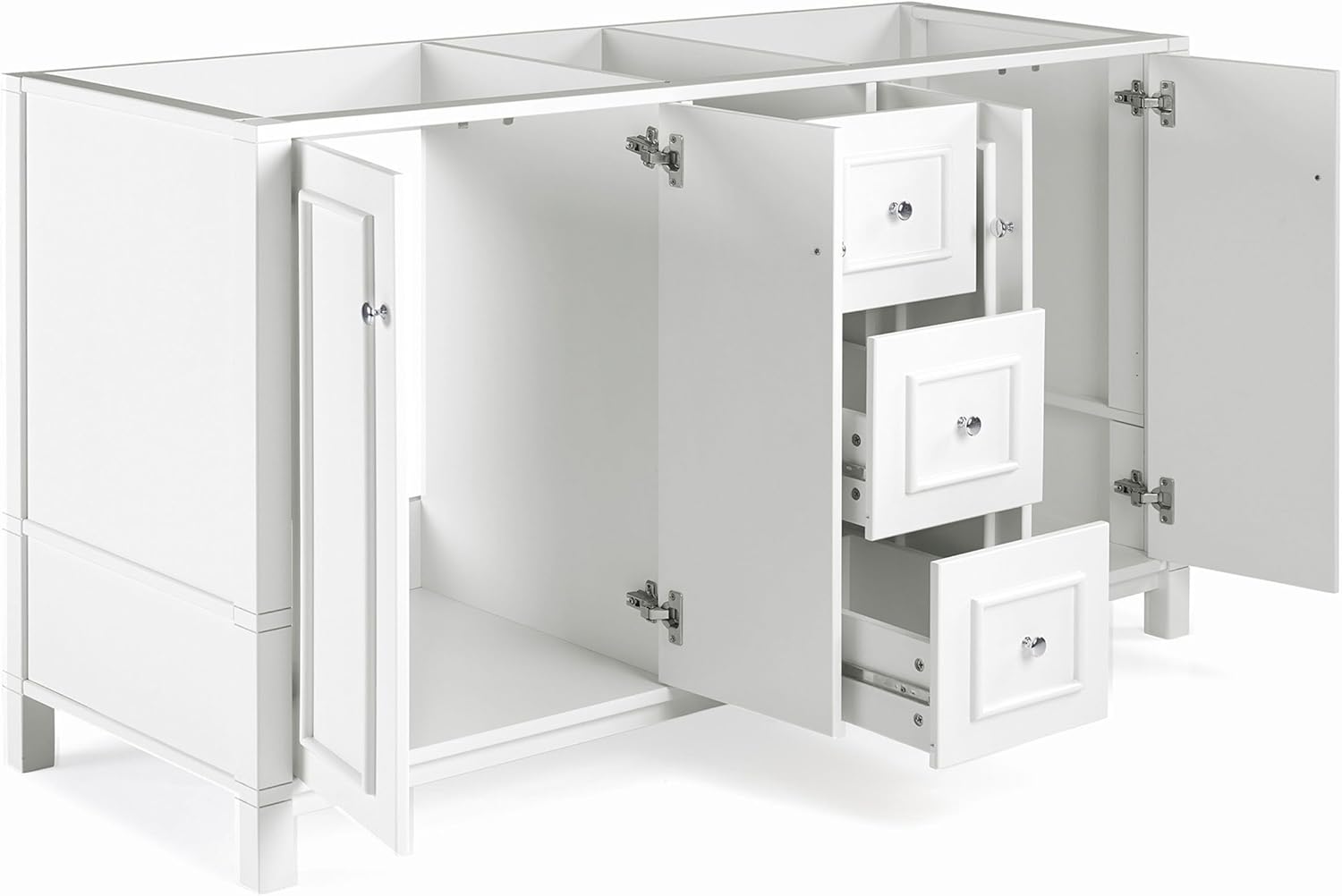

Figure 5.1: Interior Storage View. This image displays the interior of the vanity with all doors and drawers open, illustrating the generous storage capacity within the two cabinets and three deep drawers.

6. Maintenance

To maintain the appearance and longevity of your vanity, wipe surfaces with a damp cloth. Avoid using abrasive cleaners or harsh chemicals, as these can damage the painted finish. Promptly clean any spills to prevent staining or water damage.

7. Troubleshooting

• Wobbly Vanity: Adjust the height levelers at the bottom of the vanity until it is stable and level on the floor.
• Doors/Drawers Not Closing Properly: Check hinge and drawer slide alignments. Ensure all screws are tightened. For soft-close mechanisms, verify they are free of obstructions.
• Minor Scratches/Chips: For small imperfections, touch-up paint may be available from the manufacturer or a compatible white furniture paint can be used.

8. Specifications

9. Warranty and Support

This product comes with a 30-day limited manufacturer warranty against defects. For warranty claims, missing parts, or assembly assistance, please contact Alaterre Furniture customer support. Refer to the contact information provided with your purchase or visit the official Alaterre Furniture website.
