1. Important Safety Instructions
Please read all instructions carefully before using the appliance and keep them for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Always connect the appliance to a grounded power outlet.
- Do not immerse the appliance, power cord, or plug in water or any other liquid.
- Keep the appliance out of reach of children.
- Do not operate the appliance if the power cord or plug is damaged.
- Avoid contact with hot surfaces, such as the brewing head, steam wand, and cup warming plate. Use handles or knobs.
- Unplug the machine from the power outlet before cleaning or when not in use.
- Use only cold, fresh water in the water tank.
- Never remove the portafilter during the brewing process.
2. Product Overview
The H.Koenig EXPRO980 is a professional-grade espresso machine designed for home use, featuring an integrated coffee grinder and a powerful 20-bar Italian pump for optimal aroma extraction.
Components
- Control Panel (On/Off, Hot Water, Single/Double Shot buttons)
- Pressure Gauge
- Integrated Coffee Grinder with Bean Hopper
- Grind Size Selector
- Portafilter Holder
- Steam Wand
- Removable Water Tank (2.7 L capacity)
- Drip Tray and Grid
- Cup Warming Plate
3. Setup
3.1 Unpacking and Initial Cleaning
Carefully remove all packaging materials. Wash the water tank, portafilter, filter baskets, and drip tray with warm soapy water. Rinse thoroughly and dry.

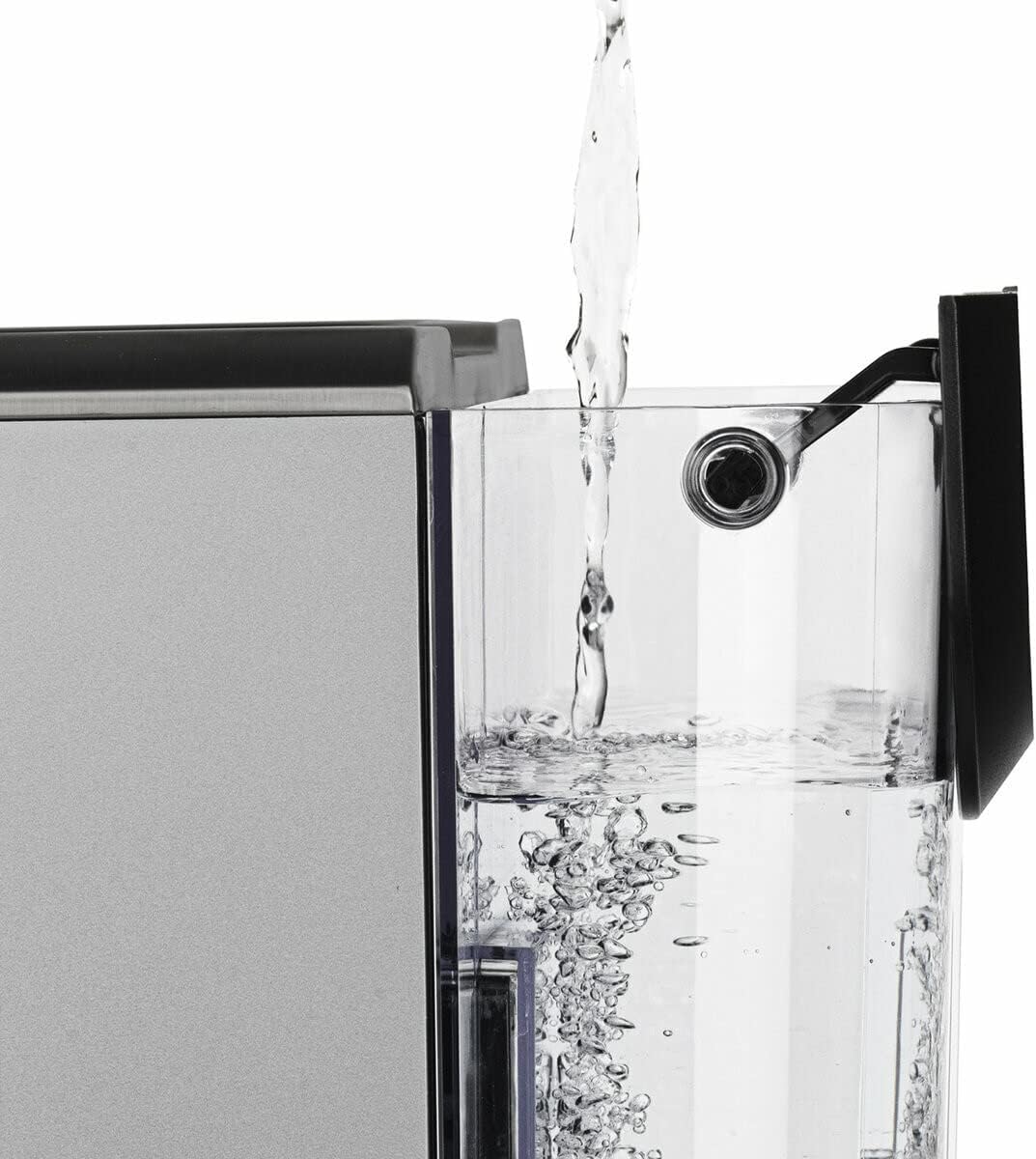

3.2 Filling the Water Tank
Remove the water tank from the back of the machine. Fill it with fresh, cold water up to the MAX line (2.7 L capacity). Place the tank back securely into the machine.
3.3 Filling the Bean Hopper
Open the lid of the bean hopper located on top of the machine. Pour fresh whole coffee beans into the hopper (250g capacity). Close the lid securely.
3.4 Priming the Machine
Before first use or after a long period of inactivity, prime the machine:
- Ensure the water tank is filled.
- Place a container under the brewing head and steam wand.
- Press the 'On/Off' button to turn on the machine. It will start heating up.
- Once heated, press the 'Hot Water' button to dispense hot water through the brewing head until water flows smoothly.
- Turn the steam knob to release steam through the steam wand until steam flows continuously. Close the steam knob.
4. Operating Instructions
4.1 Grinding Coffee Beans
- Select your desired grind size using the grind size selector (15 sizes available). A finer grind is typically for espresso.
- Place the portafilter under the grinder outlet.
- Activate the grinder (refer to specific button/lever on your model) to dispense freshly ground coffee into the portafilter.
- Tamp the ground coffee firmly and evenly using the provided tamper.
4.2 Brewing Espresso
- Ensure the machine is heated and the pressure gauge indicates optimal brewing pressure.
- Insert the portafilter with tamped coffee into the brewing head and lock it into place by turning it to the right.
- Place your cup(s) on the drip tray under the portafilter spouts.
- Press the 'Single' or 'Double' button for your desired shot size. The machine will automatically stop when the programmed volume is reached.
- For best results, preheat your cups on the cup warming plate before brewing.
4.3 Steaming Milk
- Ensure the machine is at steaming temperature (indicated by the steam icon or light).
- Fill a stainless steel milk jug with cold milk (do not fill more than halfway).
- Purge the steam wand briefly into the drip tray to remove any condensed water.
- Insert the steam wand into the milk, just below the surface.
- Turn the steam knob to release steam. Move the jug up and down to create foam.
- Once desired temperature and texture are achieved, turn off the steam knob.
- Immediately wipe the steam wand with a damp cloth to prevent milk residue from drying.
5. Maintenance and Cleaning
5.1 Daily Cleaning
- Empty and rinse the drip tray daily.
- Remove and clean the portafilter and filter basket after each use.
- Wipe down the exterior of the machine with a damp cloth.
- Clean the steam wand immediately after each use.
5.2 Descaling
Regular descaling is crucial to maintain machine performance and extend its lifespan. The frequency depends on water hardness and usage. Follow the instructions provided with your descaling solution.
- Prepare the descaling solution according to the manufacturer's instructions and pour it into the water tank.
- Place a large container under the brewing head and steam wand.
- Run approximately half of the solution through the brewing head by pressing the 'Single' or 'Double' button repeatedly.
- Run the remaining solution through the steam wand.
- Rinse the water tank thoroughly and fill it with fresh water.
- Run several tanks of fresh water through both the brewing head and steam wand to rinse the system completely.
5.3 Grinder Cleaning
Periodically clean the integrated grinder to prevent blockages and ensure consistent grind quality. Refer to the specific instructions for removing and cleaning the burrs.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Coffee is lukewarm. | Cups or portafilter not preheated; machine not fully heated. | Preheat cups on the warming plate. Run a blank shot through the portafilter before brewing. Ensure machine is fully heated. |
| No coffee dispenses. | Water tank empty; portafilter not correctly inserted; grind too fine. | Fill water tank. Ensure portafilter is locked securely. Adjust grind to be coarser. |
| Grinder not working. | No beans in hopper; blockage in grinder. | Fill bean hopper. Clean the grinder burrs and chute for any blockages. |
| Steam wand not producing steam. | Machine not at steaming temperature; steam wand blocked. | Wait for the machine to reach steaming temperature. Clean the steam wand nozzle with a pin if blocked. |
7. Specifications
| Feature | Value |
|---|---|
| Brand | H.Koenig |
| Model Number | EXPRO980 |
| Color | Metal |
| Product Dimensions (L x W x H) | 30.4 x 40.5 x 41.5 cm |
| Weight | 8 Kilograms |
| Water Tank Capacity | 2.7 Liters |
| Bean Hopper Capacity | 250g |
| Power | 1620 Watts |
| Voltage | 162 Volts |
| Material | Stainless Steel |
| Special Features | Milk frother, Removable reservoir, Thermal, Programmable |
| Coffee Maker Type | Espresso Machine |
| Filter Type | Reusable |
8. Warranty and Support
The H.Koenig EXPRO980 espresso machine comes with an extended 2-year warranty. This warranty covers manufacturing defects and ensures peace of mind for prolonged and reliable use.
For any technical assistance, repairs, or questions regarding your product, please contact the H.Koenig customer support. An after-sales service workshop is available in France to provide prompt and efficient support.
Please retain your proof of purchase for warranty claims.
