Youmile Micro USB Humidifier Module (Model JK-YM-163) Instruction Manual

Introduction

This instruction manual provides comprehensive guidance for the Youmile Micro USB Humidifier Module, model JK-YM-163. Please read this manual carefully before installation and operation to ensure correct usage and optimal performance. This module is designed for various DIY humidification and atomization projects.

Product Overview

The Youmile Micro USB Humidifier Module is a compact 5V ultrasonic atomization circuit board designed to generate fine mist. It operates by converting electrical energy into high-frequency mechanical vibrations, which then atomize water into a fine spray. This module is suitable for integration into small humidifiers, aroma diffusers, and other similar applications.

Key Features:

• Integrated driver circuit with ON trigger function.
• High-frequency 108 kHz oscillator for efficient atomization.
• Micron-sized aperture for fine mist production.
• Enameled surface on the atomized sheet for durability.
• Micro USB power input for convenient connectivity.

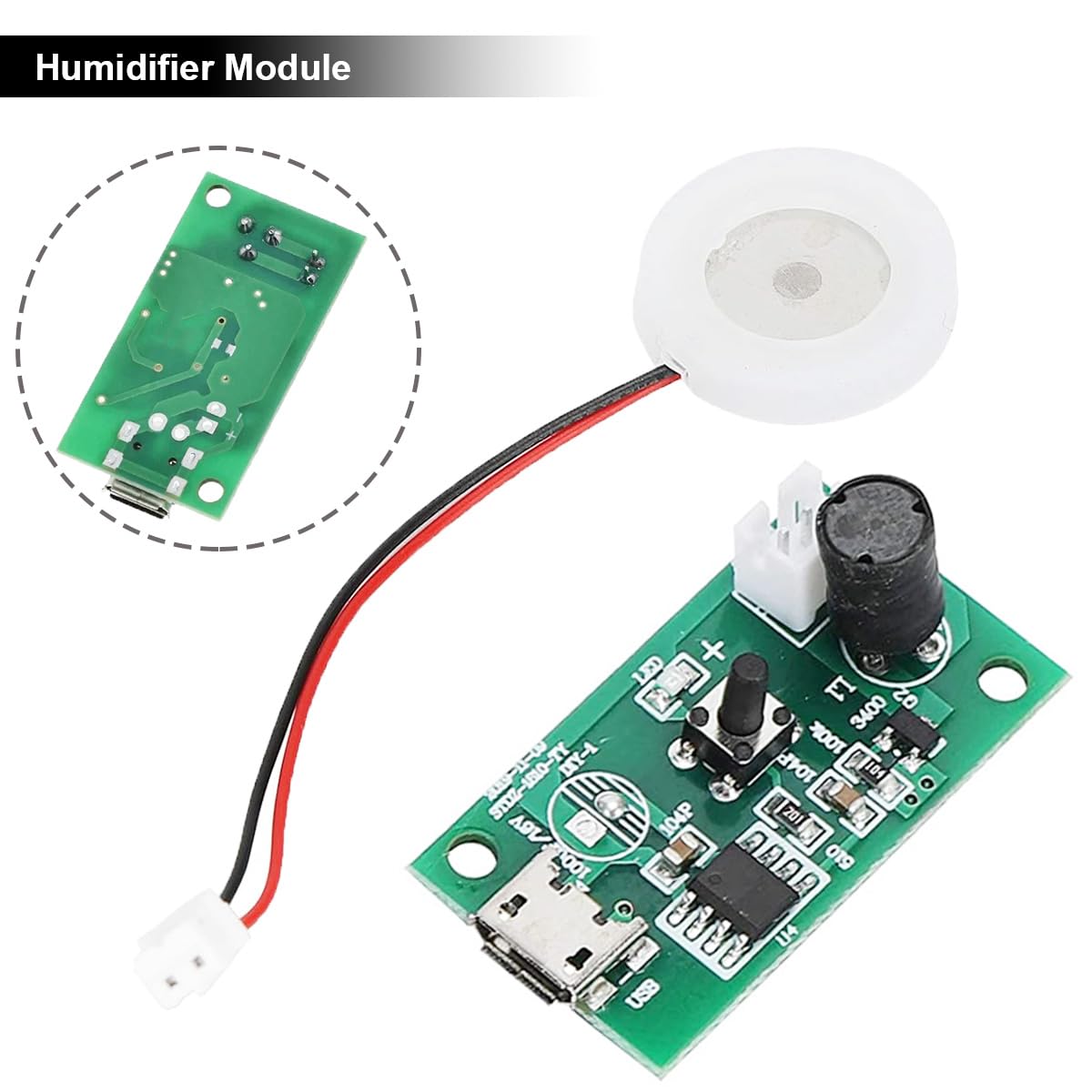

Image 1: The Youmile Micro USB Humidifier Module, showing the main PCB and the connected ultrasonic atomizer disc. The PCB includes the micro USB port and control components.

Package Contents

The following items are included in your package:

• 1 x Micro USB Humidifier Module (PCB with driver circuit)
• 1 x Humidifier Support (for the atomizer disc)
• 3 x 10mm Cotton Swabs (wicking material)
• 1 x Micro to USB Cable (for power supply)

Specifications

Image 2: Detailed dimensions of the humidifier module, atomizer disc, and cotton swab for integration planning.

Setup Instructions

Follow these steps to set up your Youmile Micro USB Humidifier Module:

Component Identification:

Image 3: Diagram identifying key components on the humidifier module PCB, including the inductor, atomizer socket, work indicator, controller, and Micro USB port.

1. Connect the Atomizer: Plug the atomizer disc's two-pin connector into the "Atomizer Socket" on the PCB. Ensure correct polarity if indicated (usually red wire to positive, black to negative).
2. Insert Cotton Swab: If using the humidifier support, insert one of the provided 10mm cotton swabs into the support. Ensure it is fully saturated with water before operation.
3. Position the Atomizer: Place the atomizer disc into the humidifier support, ensuring the white piezoelectric ceramic ring surface (spraying surface) faces upwards. The steel sheet surface (suction surface) should face downwards, towards the water source.
4. Power Connection: Connect the provided Micro USB cable to the Micro USB port on the module. Connect the other end of the USB cable to a 5V DC power source (e.g., USB charger, power bank, computer USB port).
5. Water Source: Ensure the cotton swab or atomizer disc is in direct contact with the water source for proper mist generation.

Important Notes:

• The white piezoelectric ceramic ring surface is the spraying surface and should be installed facing upwards.
• The entire steel sheet surface is the suction surface and should be installed facing downwards, towards the water.
• For continuous atomization without pressing the switch, the left and right solder points of the switch on the PCB can be soldered together. This will enable atomization immediately upon power-on.

Image 4: Illustration showing the anti-vibration rubber ring, piezoelectric ceramic ring, and waterproof welding point of the atomizer. Also depicts an alternative wiring method for direct power supply without Micro USB, connecting wires to the positive and negative solder points on the PCB.

Operating Instructions

Once the module is set up and connected to a power source:

1. Power On: If the switch solder points are not bridged, press the button on the PCB to activate the atomization function. If they are bridged, the module will start atomizing automatically upon power connection.
2. Observe Mist: A fine mist should begin to emanate from the atomizer disc. The work indicator LED on the PCB may illuminate.
3. Power Off: To stop atomization, disconnect the Micro USB power cable or press the button again if it functions as a toggle switch.

Image 5: The humidifier module fully assembled with the cotton swab and support, actively producing mist. An inset shows the atomizer disc generating mist from a small container.

Applications

This versatile module can be used in various applications, including:

• DIY USB humidifiers
• Medical humidifiers
• Perfume sprayers
• Aromatherapy atomizers
• Automotive parts (e.g., car humidifiers)
• Small-scale industrial humidification

Image 6: Collage showing various applications of the humidifier module, including misting from a sponge, integration into a bottle-top humidifier, use in portable USB humidifiers, and direct misting from a cup.

Maintenance

To ensure the longevity and optimal performance of your humidifier module:

• Clean the Atomizer Disc: Periodically clean the surface of the atomizer disc to prevent mineral buildup, which can reduce mist output. Use a soft cloth and mild descaling solution if necessary. Avoid abrasive materials.
• Replace Cotton Swabs: If using cotton swabs, replace them regularly, especially if you notice reduced mist or discoloration. Ensure new swabs are fully saturated before use.
• Water Quality: Use clean, distilled, or demineralized water to minimize mineral buildup on the atomizer disc.
• Storage: When not in use for extended periods, disconnect power, clean the module, and store it in a dry, cool place.

Troubleshooting

If you encounter issues with your humidifier module, refer to the following common problems and solutions:

Safety Information

Please observe the following safety precautions:

• Do not operate the module without water. Dry operation can damage the atomizer disc.
• Ensure the power supply is within the specified voltage range (DC 4.5V-5.0V).
• Keep the module away from children and pets.
• Avoid touching the atomizer disc directly when it is operating, as it vibrates at high frequency.
• Do not immerse the PCB in water. Only the atomizer disc is designed for contact with water.
• Disconnect power before performing any maintenance or cleaning.

Support

For further assistance or inquiries regarding the Youmile Micro USB Humidifier Module (Model JK-YM-163), please refer to the retailer where the product was purchased or visit the official Youmile support channels if available.
